TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

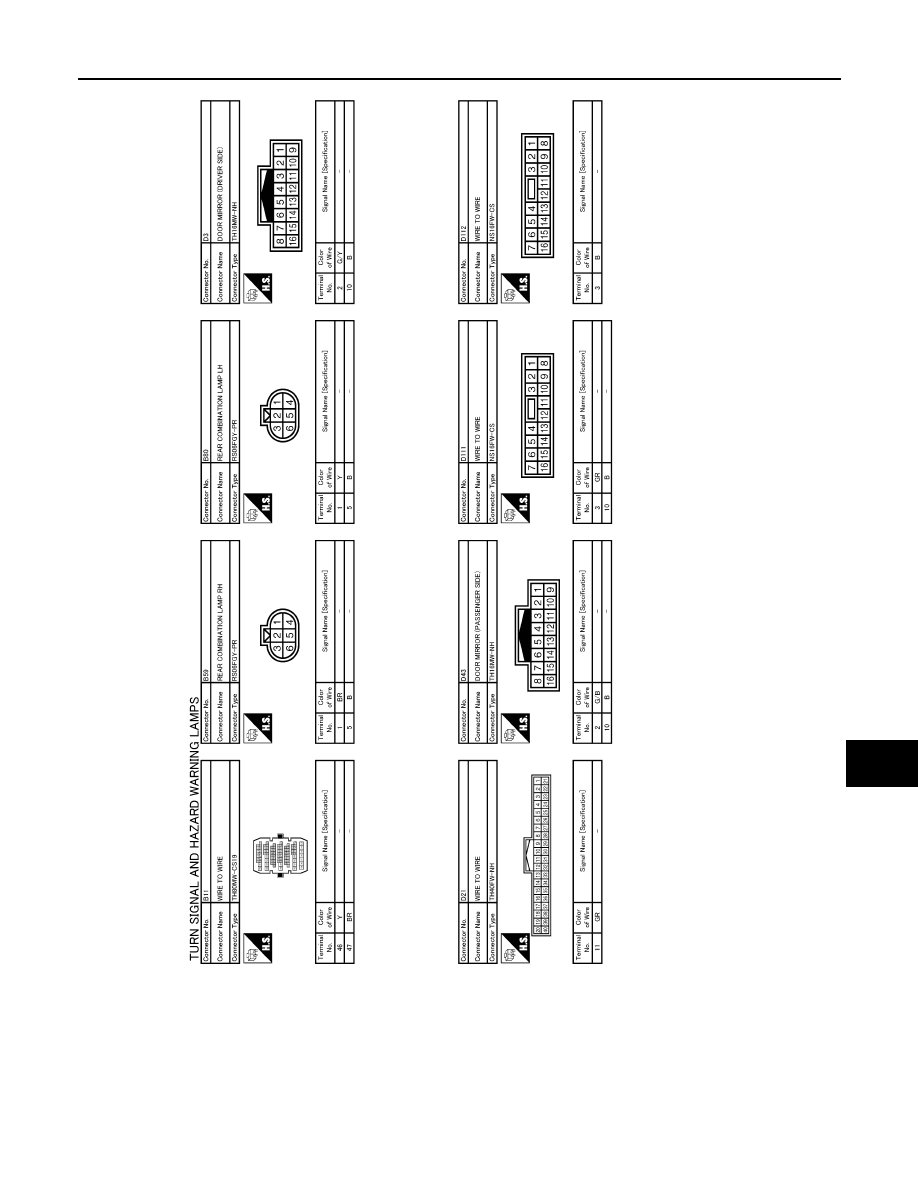

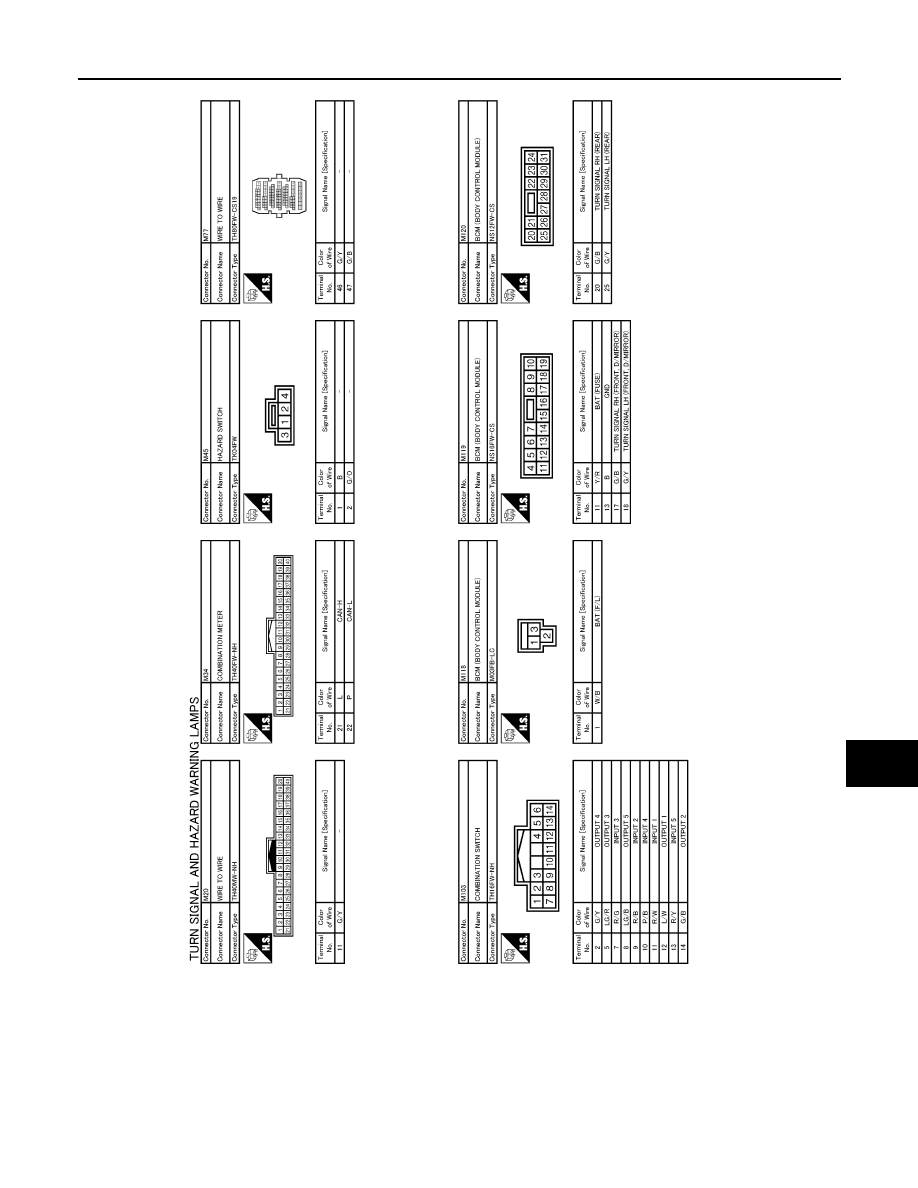

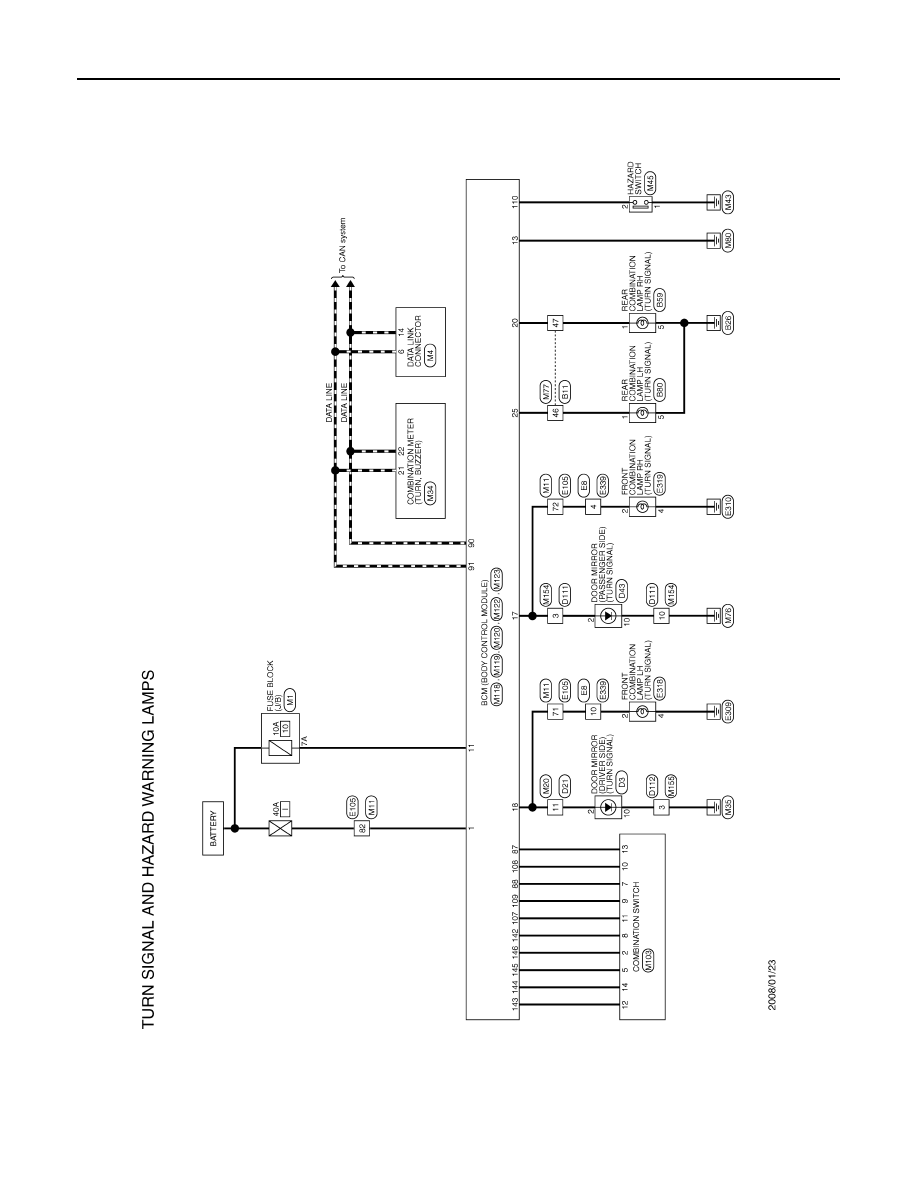

Wiring Diagram - TURN AND HAZARD WARNING LAMPS -

INFOID:0000000003773589

JCLWM1461GB

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

EXL-91

< COMPONENT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

JCLWM1462GB

EXL-92

< COMPONENT DIAGNOSIS >

[XENON TYPE]

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

JCLWM1463GB

TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM

EXL-93

< COMPONENT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

JCLWM1464GB
