TURN SIGNAL LAMP CIRCUIT

TURN SIGNAL LAMP CIRCUIT

Description

INFOID:0000000003773570

BCM performs the high flasher operation (fail-safe) if any bulb or harness of the turn signal lamp circuit is
open.
NOTE:
The turn signal lamp blinks at normal speed when using the hazard warning lamp.

Component Function Check

INFOID:0000000003773571

1.

CHECK TURN SIGNAL LAMP

CONSULT-III ACTIVE TEST

1.

Select “FLASHER” of BCM (FLASHER) active test item.

2.

With operating the test items, check that the turn signal lamp is turned ON.

Is the turn signal lamp turned ON?

YES

>> Turn signal lamp circuit is normal.

NO

>> Refer to

EXL-66, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003773572

1.

CHECK TURN SIGNAL LAMP BULB

Check the applicable lamp bulb.

Is the bulb normal?

YES

>> GO TO 2.

NO

>> Replace the bulb.

2.

CHECK TURN SIGNAL LAMP OUTPUT VOLTAGE

1.

Turn the ignition switch OFF.

2.

Disconnect the front combination lamp connector, the door mirror connector or the rear combination lamp
connector.

3.

Turn the ignition switch ON.

4.

With operating the turn signal switch, check the voltage between the BCM harness connector and the
ground.

LH

: Turn signal lamps (LH) ON

RH

: Turn signal lamps (RH) ON

Off

: Turn signal lamps OFF

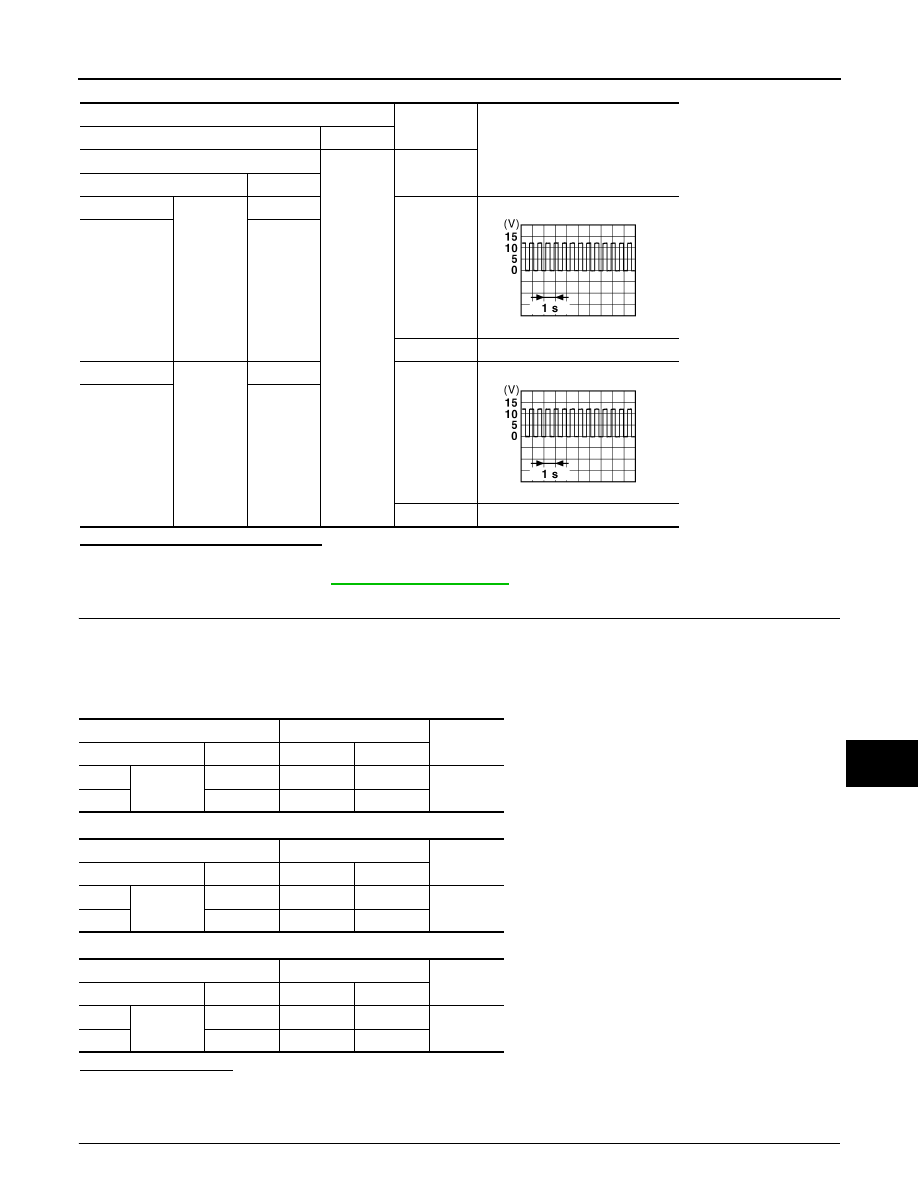

TURN SIGNAL LAMP CIRCUIT

EXL-67

< COMPONENT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Is the measurement value normal?

YES

>> GO TO 3.

NO

>> Replace BCM. Refer to

BCS-78, "Exploded View"

.

3.

CHECK TURN SIGNAL LAMP OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect BCM connector.

3.

Check continuity between the BCM harness connector and the front combination lamp, the door mirror or
the rear combination lamp harness connector.

Front turn signal lamp

Side turn signal lamp

Rear turn signal lamp

Does continuity exist?

YES

>> GO TO 4.

NO

>> Repair the harnesses or connectors.

4.

CHECK TURN SIGNAL LAMP SHORT CIRCUIT

Terminals

Condition

Voltage (Approx.)

(+)

(

−

)

BCM

Ground

Turn signal

switch

Connector

Terminal

Front/side RH

M119

17

LH or RH

Front/side LH

18

OFF

0 V

Rear RH

M120

20

LH or RH

Rear LH

25

OFF

0 V

PKID0926E

PKID0926E

BCM

Front combination lamp

Continuity

Connector

Terminal

Connector

Terminal

 RH

M119

17

E319

2

Existed

 LH

18

E318

2

BCM

Door mirror

Continuity

Connector

Terminal

Connector

Terminal

 RH

M119

17

D43

2

Existed

 LH

18

D3

2

BCM

Rear combination lamp

Continuity

Connector

Terminal

Connector

Terminal

RH

M120

20

B59

1

Existed

LH

25

B80

1

EXL-68

< COMPONENT DIAGNOSIS >

[XENON TYPE]

TURN SIGNAL LAMP CIRCUIT

Check continuity between the BCM harness connector and the ground.

Does continuity exist?

YES

>> Repair the harnesses or connectors.

NO

>> GO TO 5.

5.

CHECK TURN SIGNAL LAMP GROUND OPEN CIRCUIT

Check continuity between the front combination lamp, the door mirror or the rear combination lamp and the
ground.

Front turn signal lamp

Side turn signal lamp

Rear turn signal lamp

Does continuity exist?

YES

>> Replace the front combination lamp, door mirror assembly or the rear combination lamp.

NO

>> Repair the harnesses or connectors.

BCM

Ground

Continuity

Connector

Terminal

Front/side RH

M119

17

Not existed

Front/side LH

18

Rear RH

M120

20

Rear LH

25

Front combination lamp

Ground

Continuity

Connector

Terminal

RH

E319

4

Existed

LH

E318

4

Door mirror

Ground

Continuity

Connector

Terminal

RH

D43

10

Existed

LH

D3

10

Rear combination lamp

Ground

Continuity

Connector

Terminal

RH

B59

5

Existed

LH

B80

5

OPTICAL SENSOR

EXL-69

< COMPONENT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

OPTICAL SENSOR

Description

INFOID:0000000003773573

Optical sensor converts the outside brightness (lux) to voltage and transmits the optical sensor signal to BCM.

Component Function Check

INFOID:0000000003773574

1.

CHECK OPTICAL SENSOR SIGNAL BY CONSULT-III

CONSULT-III DATA MONITOR

1.

Turn the ignition switch ON.

2.

Select "OPTICAL SENSOR" of BCM (HEADLAMP) data monitor item.

3.

Turn the lighting switch AUTO.

4.

With the optical sensor illuminating, check the monitor status.

*: Illuminates the optical sensor. The value may be less than the standard value if brightness is weak.

Is the item status normal?

YES

>> Optical sensor is normal.

NO

>> Refer to

EXL-69, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003773575

1.

CHECK OPTICAL SENSOR POWER SUPPLY INPUT

1.

Turn the ignition switch ON.

2.

Turn the lighting switch AUTO.

3.

Check the voltage between the optical sensor harness connector and the ground.

Is the measurement value normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK OPTICAL SENSOR GROUND INPUT

Check the voltage between the optical sensor harness connector and the ground.

Is the measurement value normal?

YES

>> GO TO 3.

NO

>> GO TO 6.

3.

CHECK OPTICAL SENSOR SIGNAL OUTPUT

Monitor item

Condition

Voltage (Approx.)

OPTICAL SENSOR

Optical sensor

When illuminating

3.1 V or more *

When shutting off light

0.6 V or less

Terminals

Voltage

(Approx.)

(+)

(

−

)

Optical sensor

Ground

Connector

Terminal

M17

1

5 V

Terminals

Voltage

(Approx.)

(+)

(

−

)

Optical sensor

Ground

Connector

Terminal

M17

3

0 V
