Nissan Teana J32. Manual - part 507

EX-4

< ON-VEHICLE MAINTENANCE >

EXHAUST SYSTEM

ON-VEHICLE MAINTENANCE

EXHAUST SYSTEM

Inspection

INFOID:0000000003793260

Check exhaust pipes, muffler and mounting for improper attachment,
leakage, cracks, damage or deterioration.
• If anything is found, repair or replace damaged parts.

SMA211A

EXHAUST SYSTEM

EX-5

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

ON-VEHICLE REPAIR

EXHAUST SYSTEM

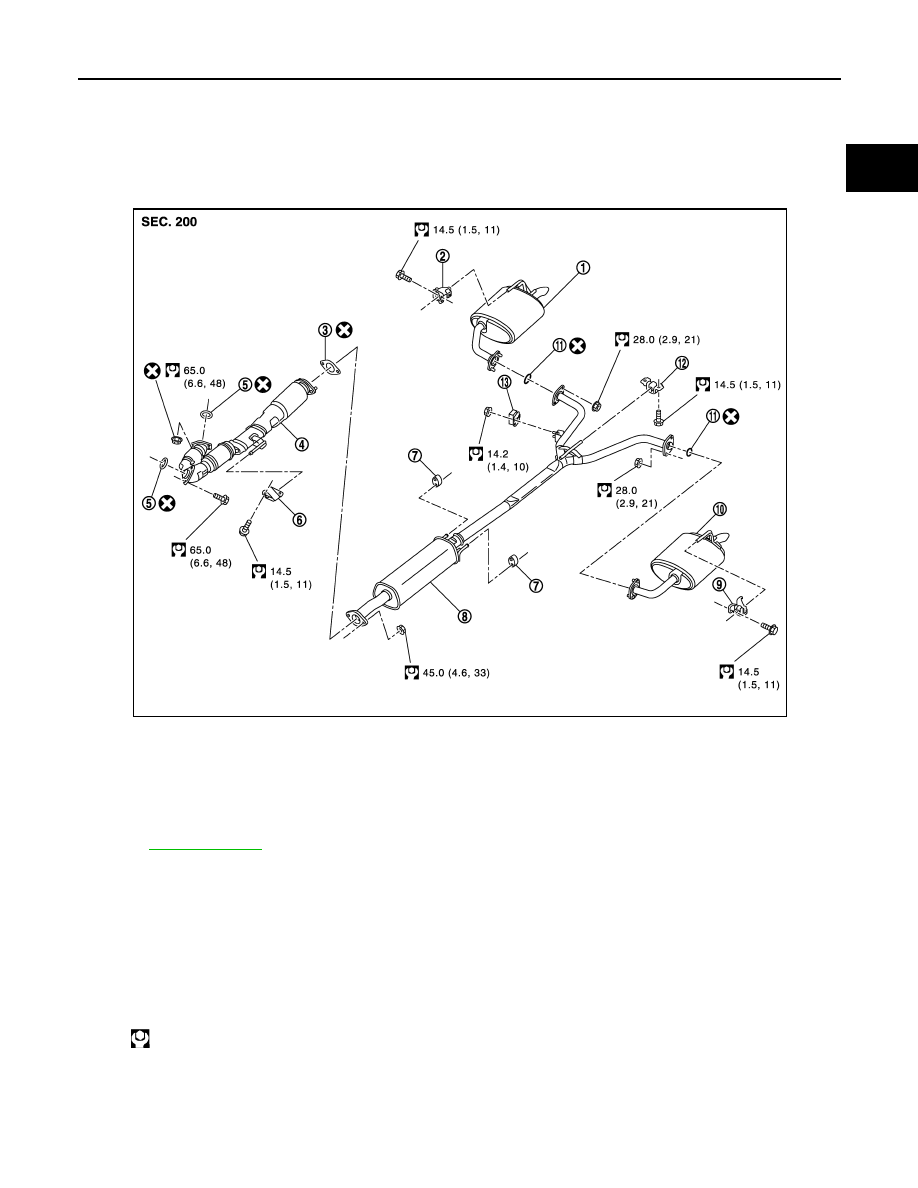

Exploded View

INFOID:0000000003793261

Removal and Installation

INFOID:0000000003793262

REMOVAL

Disconnect each joint and mounting using power tool.

INSTALLATION

Note the following, and install in the reverse order of removal.
• If exhaust front tube stud bolts were removed, and install them and tighten to the specified torque below.

CAUTION:

• Always replace exhaust tube gaskets with new ones when reassembling.
• If heat insulator is badly deformed, repair or replace exhaust front tube/center muffler. If deposits

such as mud pile up on the heat insulator, remove them.

1.

Main muffler (RH)

2.

Mounting rubber

3.

Gasket

4.

Exhaust front tube

5.

Ring gasket

6.

Mounting rubber

7.

Mounting rubber

8.

Center muffler

9.

Mounting rubber

10. Main muffler (LH)

11. Ring gasket

12. Mounting rubber

13. Dynamic damper

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA2203GB

: 14.7 N·m (1.5 kg-m, 11 ft-lb)

EX-6

< ON-VEHICLE REPAIR >

EXHAUST SYSTEM

• Remove deposits from the sealing surface of each connection. Connect them securely to avoid

gases leakage.

• When installing each mounting rubber, use silicon oil to avoid twisting.
• Temporarily tighten mounting nuts and bolts. Check each part for unusual interference, and then

tighten them to the specified torque.

• When installing each mounting rubber, avoid twisting or unusual extension in up/down, front/rear

and right/left directions.

Inspection

INFOID:0000000003793263

INSPECTION AFTER INSTALLATION

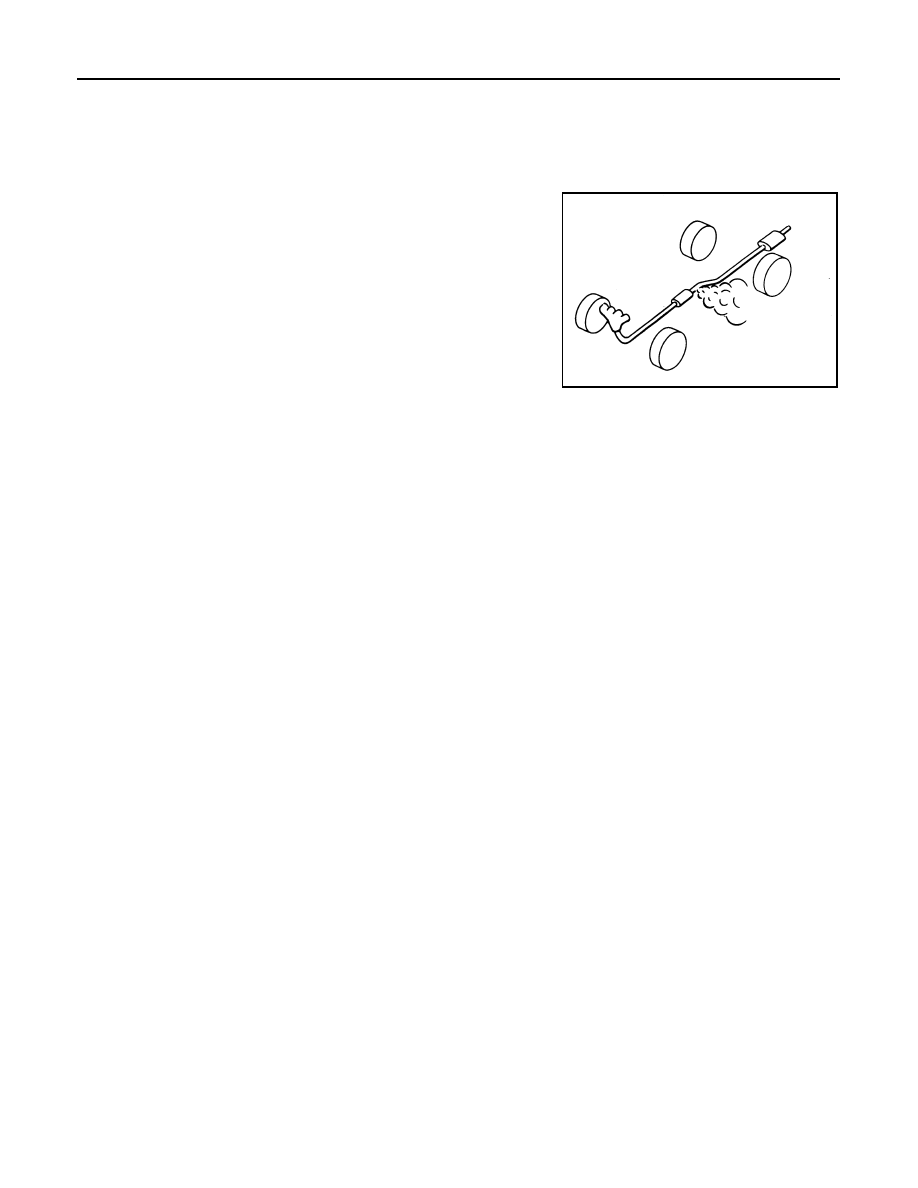

• Check clearance between tail tube and rear bumper is even.
• With engine running, check exhaust tube joints for gas leakage and unusual noises.
• Check to ensure that mounting brackets and mounting rubbers are installed properly and free from undue

stress. Improper installation could result in excessive noise and vibration.
