Nissan Teana J32. Manual - part 464





EC-394

< ECU DIAGNOSIS >

[VQ25DE, VQ35DE]

ECM

• Sea level
• Flat road
• Ambient air temperature: 20 - 30

°

C (68 - 86

°

F)

• Diagnosis is performed as quickly as possible under normal conditions.

Under different conditions [For example: ambient air temperature other than 20 - 30

°

C (68 - 86

°

F)], diagno-

sis may also be performed.

Pattern 1:
• The engine is started at the engine coolant temperature of

10 to 35

°

C (14 to 95

°

F)

(where the voltage between the ECM terminal 46 and ground is 3.0 - 4.3 V).

• The engine must be operated at idle speed until the engine coolant temperature is greater than 70

°

C

(158

°

F) (where the voltage between the ECM terminal 46 and ground is lower than 1.4 V).

• The engine is started at the fuel tank temperature of warmer than 0

°

C (32

°

F) (where the voltage

between the ECM terminal 95 and ground is less than 4.1 V).

Pattern 2:
• When steady-state driving is performed again even after it is interrupted, each diagnosis can be conducted.

In this case, the time required for diagnosis may be extended.

Pattern 3:

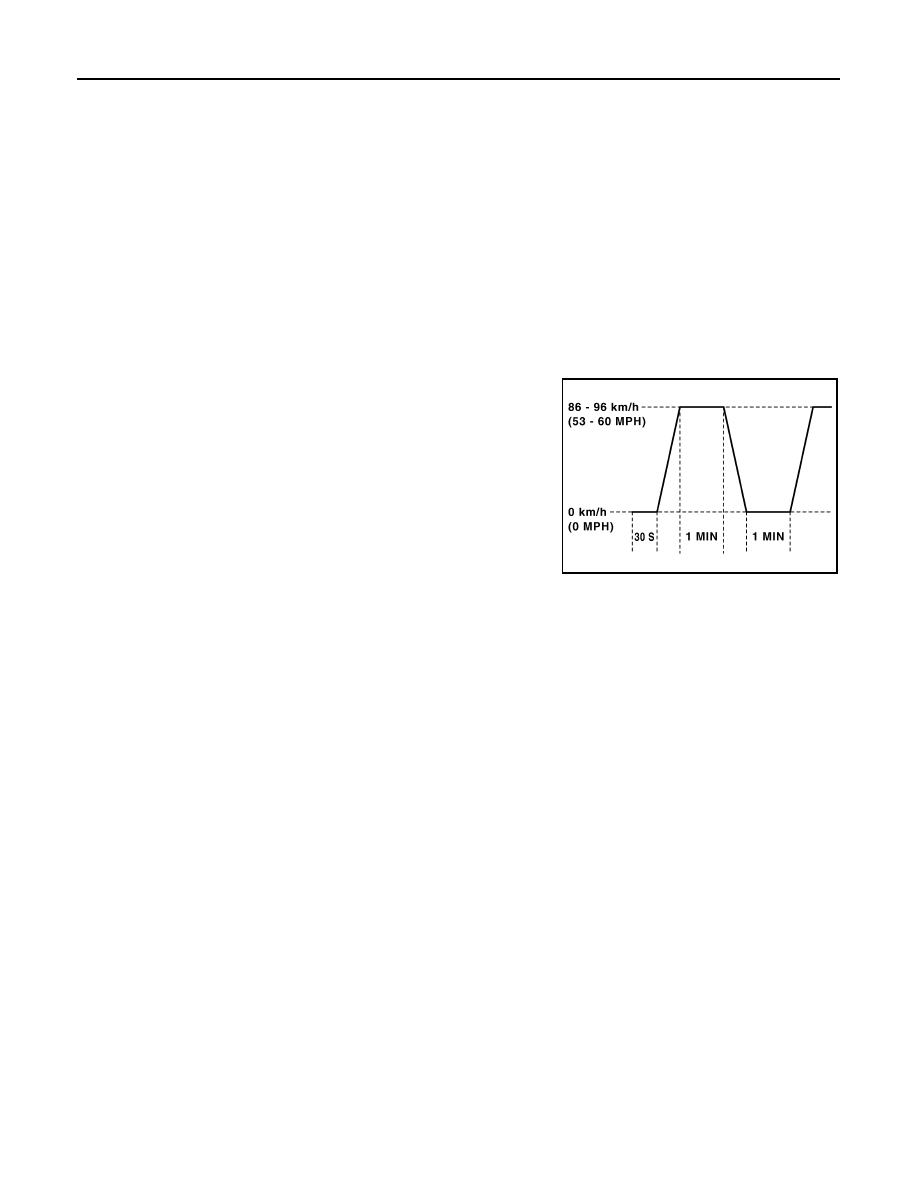

• Operate vehicle following the driving pattern shown in the figure.
• Release the accelerator pedal during deceleration of vehicle speed

from 90 km/h (56 MPH) to 0 km/h (0 MPH).

Pattern 4:
• The accelerator pedal must be held very steady during steady-

state driving.

• If the accelerator pedal is moved, the test must be conducted

again.

*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56
MPH), then release the accelerator pedal and keep it released for
more than 10 seconds. Depress the accelerator pedal until vehicle
speed is 90 km/h (56 MPH) again.
*2: Checking the vehicle speed with GST is advised.

Suggested Transmission Gear Position.

Selector lever position is D.

Test Value and Test Limit

INFOID:0000000003856874

The following is the information specified in Service $06 of ISO 15031-5.
The test value is a parameter used to determine whether a system/circuit diagnostic test is OK or NG while
being monitored by the ECM during self-diagnosis. The test limit is a reference value which is specified as the
maximum or minimum value and is compared with the test value being monitored.
These data (test value and test limit) are specified by On Board Monitor ID (OBDMID), Test ID (TID), Unit and
Scaling ID and can be displayed on the GST screen.
The items of the test value and test limit will be displayed with GST screen which items are provided by the
ECM. (eg., if bank 2 is not applied on this vehicle, only the items of bank 1 is displayed)

PBIB2244E

ECM

EC-395

< ECU DIAGNOSIS >

[VQ25DE, VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and

Test limit

(GST display)

Description

TID

Unit and

Scaling

ID

HO2S

01H

Air fuel ratio (A/F) sensor 1
(Bank 1)

P0131

83H

0BH

Minimum sensor output voltage for test
cycle

P0131

84H

0BH

Maximum sensor output voltage for test
cycle

P0130

85H

0BH

Minimum sensor output voltage for test
cycle

P0130

86H

0BH

Maximum sensor output voltage for test
cycle

P0133

87H

04H

Response rate: Response ratio (Lean to
Rich)

P0133

88H

04H

Response rate: Response ratio (Rich to
Lean)

P2A00

89H

84H

The amount of shift in air fuel ratio

P2A00

8AH

84H

The amount of shift in air fuel ratio

P0130

8BH

0BH

Difference in sensor output voltage

P0133

8CH

83H

Response gain at the limited frequency

02H

Heated oxygen sensor 2
(Bank 1)

P0138

07H

0CH

Minimum sensor output voltage for test
cycle

P0137

08H

0CH

Maximum sensor output voltage for test
cycle

P0138

80H

0CH

Sensor output voltage

P0139

81H

0CH

Difference in sensor output voltage

03H

Heated oxygen sensor 3
(Bank 1)

P0143

07H

0CH

Minimum sensor output voltage for test
cycle

P0144

08H

0CH

Maximum sensor output voltage for test
cycle

P0146

80H

0CH

Sensor output voltage

P0145

81H

0CH

Difference in sensor output voltage

EC-396

< ECU DIAGNOSIS >

[VQ25DE, VQ35DE]

ECM

HO2S

05H

Air fuel ratio (A/F) sensor 1
(Bank 2)

P0151

83H

0BH

Minimum sensor output voltage for test
cycle

P0151

84H

0BH

Maximum sensor output voltage for test
cycle

P0150

85H

0BH

Minimum sensor output voltage for test
cycle

P0150

86H

0BH

Maximum sensor output voltage for test
cycle

P0153

87H

04H

Response rate: Response ratio (Lean to
Rich)

P0153

88H

04H

Response rate: Response ratio (Rich to
Lean)

P2A03

89H

84H

The amount of shift in air fuel ratio

P2A03

8AH

84H

The amount of shift in air fuel ratio

P0150

8BH

0BH

Difference in sensor output voltage

P0153

8CH

83H

Response gain at the limited frequency

06H

Heated oxygen sensor 2
(Bank 2)

P0158

07H

0CH

Minimum sensor output voltage for test
cycle

P0157

08H

0CH

Maximum sensor output voltage for test
cycle

P0158

80H

0CH

Sensor output voltage

P0159

81H

0CH

Difference in sensor output voltage

07H

Heated oxygen sensor 3
(Bank2)

P0163

07H

0CH

Minimum sensor output voltage for test
cycle

P0164

08H

0CH

Maximum sensor output voltage for test
cycle

P0166

80H

0CH

Sensor output voltage

P0165

81H

0CH

Difference in sensor output voltage

CATA-
LYST

21H

Three way catalyst function
(Bank1)

P0420

80H

01H

O2 storage index

P0420

82H

01H

Switching time lag engine exhaust index
value

P2423

83H

0CH

Difference in 3rd O2 sensor output volt-
age

P2423

84H

84H

O2 storage index in HC trap catalyst

22H

Three way catalyst function
(Bank2)

P0430

80H

01H

O2 storage index

P0430

82H

01H

Switching time lag engine exhaust index
value

P2424

83H

0CH

Difference in 3rd O2 sensor output volt-
age

P2424

84H

84H

O2 storage index in HC trap catalyst

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and

Test limit

(GST display)

Description

TID

Unit and

Scaling

ID

ECM

EC-397

< ECU DIAGNOSIS >

[VQ25DE, VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

EGR
SYSTEM

31H

EGR function

P0400

80H

96H

Low Flow Faults: EGR temp change
rate (short-term)

P0400

81H

96H

Low Flow Faults: EGR temp change
rate (long-term)

P0400

82H

96H

Low Flow Faults: Difference between
max EGR temp and EGR temp under
idling condition

P0400

83H

96H

Low Flow Faults: Max EGR temp

P1402

84H

96H

High Flow Faults: EGR temp increase
rate

EVAP
SYSTEM

39H

EVAP control system leak
(Cap Off)

P0455

80H

0CH

Difference in pressure sensor output
voltage before and after pull down

3BH

EVAP control system leak
(Small leak)

P0442

80H

05H

Leak area index (for more than
0.04inch)

3CH

EVAP control system
 (Very small leak)

P0456

80H

05H

Leak area index (for more than
0.02inch)

P0456

81H

FDH

Maximum internal pressure of EVAP
system during monitoring

3DH

Purge flow system

P0441

83H

0CH

Difference in pressure sensor output
voltage before and after vent control val-
ue close

O2 SEN-
SOR
HEATER

41H

A/F sensor 1 heater
 (Bank 1)

Low Input: P0031

High Input: P0032

81H

0BH

Converted value of Heater electric cur-
rent to voltage

42H

Heated oxygen sensor 2
(Bank 1)

Low Input: P0037

High Input: P0038

80H

0CH

Converted value of Heater electric cur-
rent to voltage

43H

Heated oxygen sensor 3
(Bank 1)

P0043

80H

0CH

Converted value of Heater electric cur-
rent to voltage

45H

A/F sensor 1 heater
 (Bank 2)

Low Input: P0051

High Input: P0052

81H

0BH

Converted value of Heater electric cur-
rent to voltage

46H

Heated oxygen sensor 2
(Bank 2)

Low Input: P0057

High Input: P0058

80H

0CH

Converted value of Heater electric cur-
rent to voltage

47H

Heated oxygen sensor 3
(Bank 2)

P0063

80H

0CH

Converted value of Heater electric cur-
rent to voltage

 SEC-
OND-
ARY AIR

71H

Secondary Air system

P0411

80H

01H

Secondary Air Injection System Incor-
rect Flow Detected

Bank1: P0491
Bank2: P0492

81H

01H

Secondary Air Injection System Insuffi-
cient Flow

P2445

82H

01H

Secondary Air Injection System Pump
Stuck Off

P2448

83H

01H

Secondary Air Injection System High
Airflow

Bank1: P2440
Bank2: P2442

84H

01H

Secondary Air Injection System Switch-
ing Valve Stuck Open

P2440

85H

01H

Secondary Air Injection System Switch-
ing Valve Stuck Open

P2444

86H

01H

Secondary Air Injection System Pump
Stuck On

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and

Test limit

(GST display)

Description

TID

Unit and

Scaling

ID
