Nissan Teana J32. Manual - part 452





EC-346

< COMPONENT DIAGNOSIS >

[VQ25DE, VQ35DE]

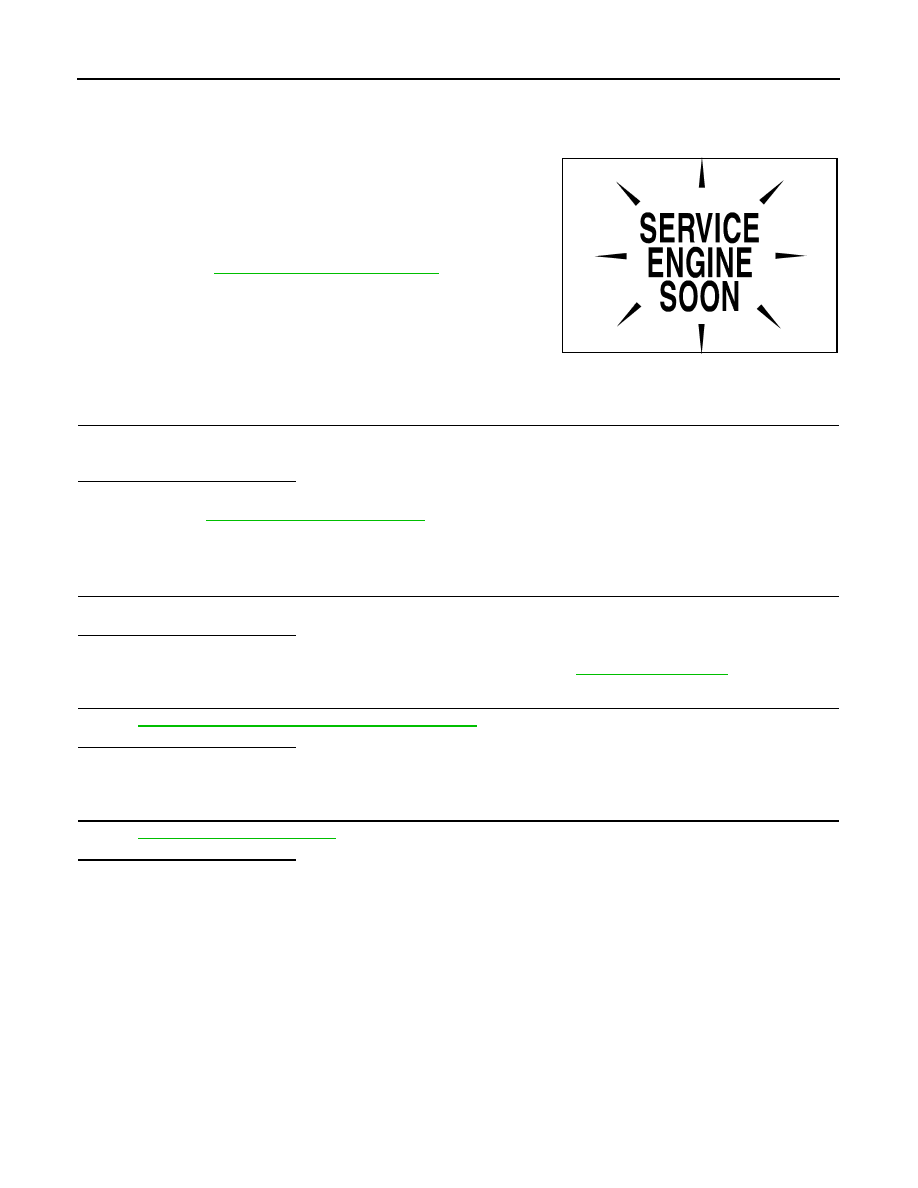

MALFUNCTION INDICATOR

MALFUNCTION INDICATOR

Description

INFOID:0000000003856853

The Malfunction Indicator MI is located on the combination meter.
The MI will illuminate when the ignition switch is turned ON without
the engine running. This is a bulb check.
When the engine is started, the MI should turn off. If the MI remains
illuminated, the on board diagnostic system has detected an engine
system malfunction.
For details, refer to

EC-102, "Diagnosis Description"

.

Component Function Check

INFOID:0000000003856854

1.

CHECK MI FUNCTION

1.

Turn ignition switch ON.

2.

Check that MI illuminates.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-346, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003856855

1.

CHECK DTC

Check that DTC U1000 or U1001 is not displayed.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Perform trouble diagnosis for DTC U1000, U1001. Refer to

EC-135, "Description"

.

2.

CHECK COMBINATION METER FUNCTION

Refer to

MWI-33, "CONSULT-III Function (METER/M&A)"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace.

3.

CHECK INTERMITTENT INCIDENT

Refer to

GI-35, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace combination meter.

NO

>> Repair or replace.

SEF217U

POSITIVE CRANKCASE VENTILATION

EC-347

< COMPONENT DIAGNOSIS >

[VQ25DE, VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

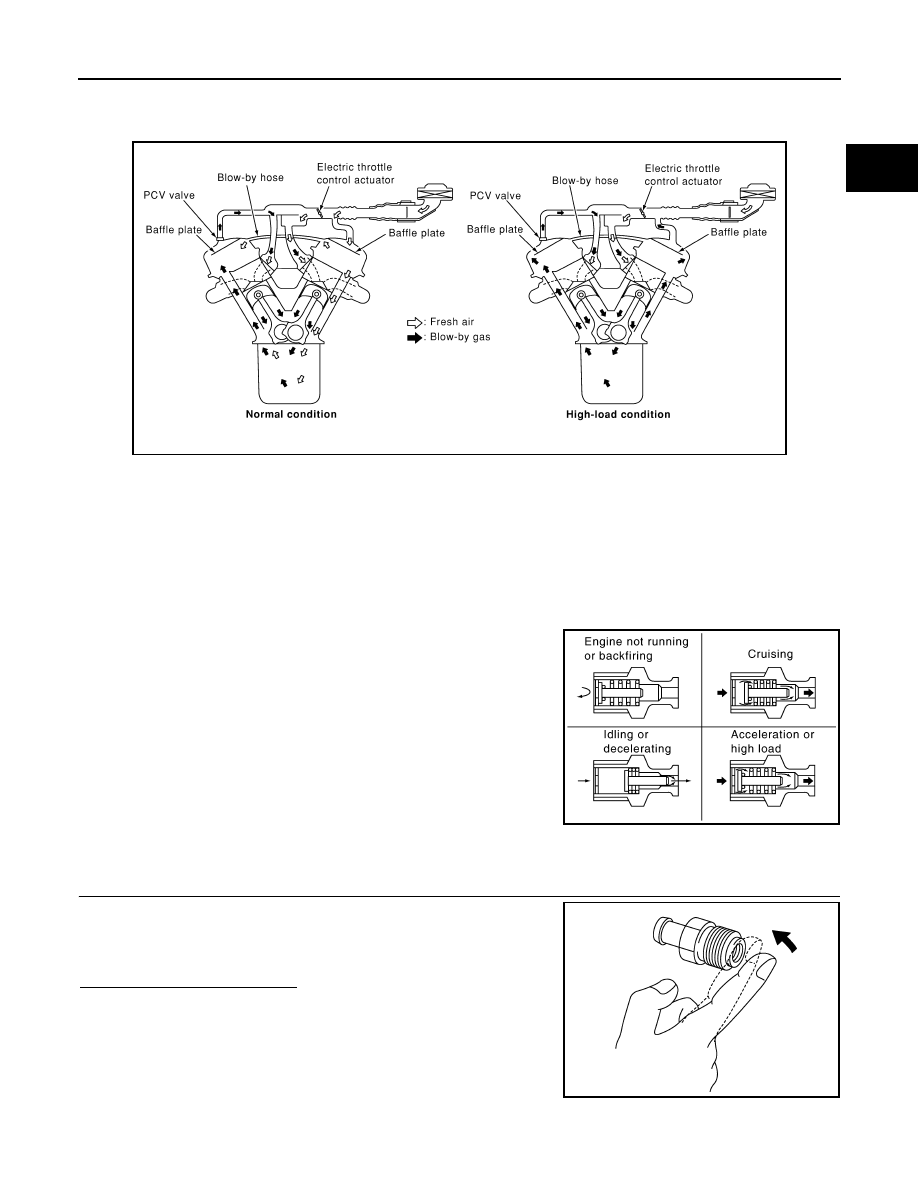

POSITIVE CRANKCASE VENTILATION

Description

INFOID:0000000003856860

This system returns blow-by gas to the intake manifold.
The positive crankcase ventilation (PCV) valve is provided to conduct crankcase blow-by gas to the intake
manifold.
During partial throttle operation of the engine, the intake manifold sucks the blow-by gas through the PCV
valve.
Normally, the capacity of the valve is sufficient to handle any blow-by and a small amount of ventilating air.
The ventilating air is drawn from the air inlet tubes into the crankcase. In this process the air passes through
the hose connecting air inlet tubes to rocker cover.
Under full-throttle condition, the manifold vacuum is insufficient to draw the blow-by flow through the valve.
The flow goes through the hose connection in the reverse direction.
On vehicles with an excessively high blow-by, the valve does not
meet the requirement. This is because some of the flow will go
through the hose connection to the air inlet tubes under all condi-
tions.

Component Inspection

INFOID:0000000003856861

1.

CHECK PCV VALVE

With engine running at idle, remove PCV valve from rocker cover. A
properly working valve makes a hissing noise as air passes through
it. A strong vacuum should be felt immediately when a finger is
placed over valve inlet.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace PCV valve.

SEC921C

PBIB1588E

PBIB1589E

EC-348

< COMPONENT DIAGNOSIS >

[VQ25DE, VQ35DE]

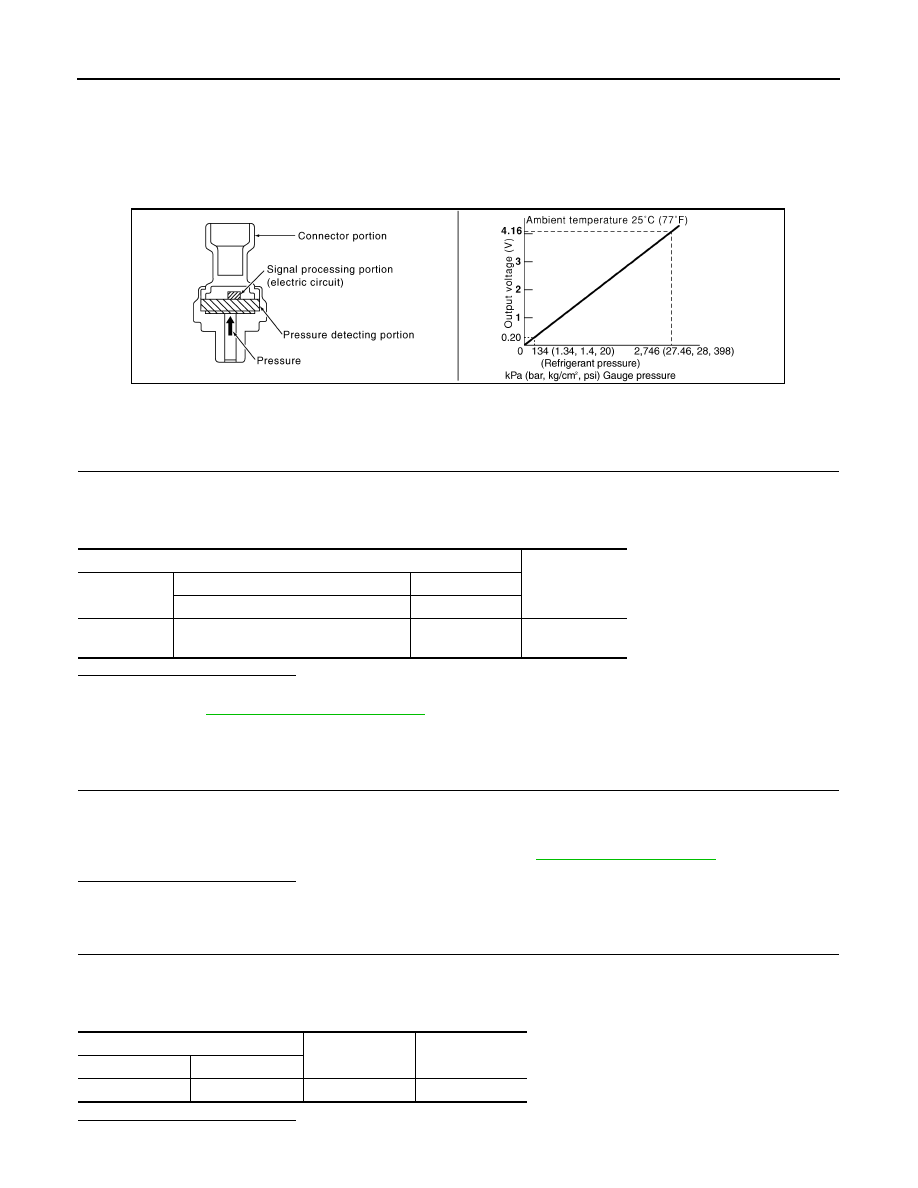

REFRIGERANT PRESSURE SENSOR

REFRIGERANT PRESSURE SENSOR

Description

INFOID:0000000003856862

The refrigerant pressure sensor is installed at the condenser of the air conditioner system. The sensor uses an
electrostatic volume pressure transducer to convert refrigerant pressure to voltage. The voltage signal is sent
to ECM, and ECM controls cooling fan system.

Component Function Check

INFOID:0000000003856863

1.

CHECK REFRIGERANT PRESSURE SENSOR FUNCTION

1.

Start engine and warm it up to normal operating temperature.

2.

Turn A/C switch and blower fan switch ON.

3.

Check the voltage between ECM harness connector terminals under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-348, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003856864

1.

CHECK GROUND CONNECTION

1.

Turn A/C switch and blower fan switch OFF.

2.

Stop engine.

3.

Turn ignition switch OFF.

4.

Check ground connection E38. Refer to Ground Inspection in

GI-37, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT

1.

Disconnect refrigerant pressure sensor harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between refrigerant pressure sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

PBIB2657E

ECM

Voltage (V)

Connector

+

Terminal

Terminal

F8

39

(Refrigerant pressure sensor signal)

40

(Sensor ground)

1.0 - 4.0

Refrigerant pressure sensor

Ground

Voltage (V)

Connector

Terminal

E300

1

Ground

Approx. 5

REFRIGERANT PRESSURE SENSOR

EC-349

< COMPONENT DIAGNOSIS >

[VQ25DE, VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

NO

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors F123, E6
• IPDM E/R harness connectors E10, E346
• Harness for open or short between ECM and refrigerant pressure sensor

>> Repair open circuit, short to ground or short to power in harness or connectors.

4.

CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between refrigerant pressure sensor harness connector and ECM harness connec-
tor.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors F123, E6
• IPDM E/R harness connectors E10, E346
• Harness for open or short between ECM and refrigerant pressure sensor

>> Repair open circuit, short to ground or short to power in harness or connectors.

6.

CHECK REFRIGERANT PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check the continuity between refrigerant pressure sensor harness connector and ECM harness connec-
tor.

2.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors F123, E6
• IPDM E/R harness connectors E10, E346
• Harness for open or short between ECM and refrigerant pressure sensor

>> Repair open circuit, short to ground or short to power in harness or connectors.

8.

CHECK INTERMITTENT INCIDENT

Refer to

GI-35, "Intermittent Incident"

.

Is the inspection result normal?

Refrigerant pressure sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

E300

3

F8

40

Existed

Refrigerant pressure sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

E300

2

F8

39

Existed
