P2101 ELECTRIC THROTTLE CONTROL FUNCTION

5.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair or replace malfunctioning part.

8.

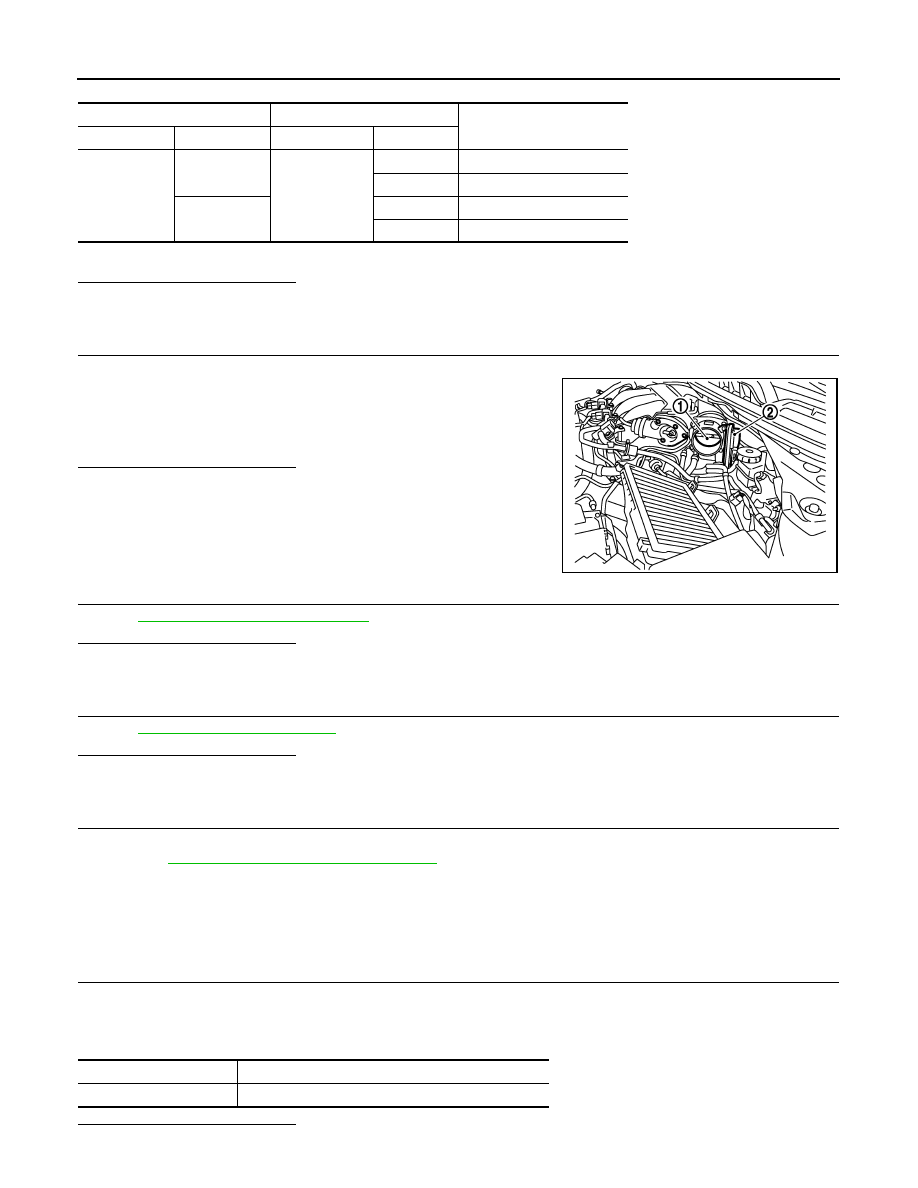

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1.

Remove the intake air duct.

2.

Check if foreign matter is caught between the throttle valve (1)
and the housing.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Remove the foreign matter and clean the electric throttle

control actuator inside.

9.

CHECK THROTTLE CONTROL MOTOR

Refer to

EC-298, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> GO TO 11.

10.

CHECK INTERMITTENT INCIDENT

Refer to

GI-35, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Repair or replace harness or connectors.

11.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace electric throttle control actuator.

2.

Refer to

EC-299, "Special Repair Requirement"

.

>> INSPECTION END

Component Inspection

INFOID:0000000003856786

1.

CHECK THROTTLE CONTROL MOTOR

1.

Turn ignition switch OFF.

2.

Disconnect electric throttle control actuator harness connector.

3.

Check resistance between electric throttle control actuator terminals as per the following.

Is the inspection result normal?

Electric throttle control actuator

ECM

Continuity

Connector

Terminal

Connector

Terminal

F29

5

F7

5

Not existed

6

Existed

6

5

Existed

6

Not existed

2: Electric throttle control actuator

JMBIA1390ZZ

Terminals

Resistance

5 and 6

Approx. 1 - 15

Ω

 [at 25

°

C (77

°

F)]

P2101 ELECTRIC THROTTLE CONTROL FUNCTION

EC-299

< COMPONENT DIAGNOSIS >

[VQ25DE, VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace electric throttle control actuator.

2.

Go to

EC-299, "Special Repair Requirement"

.

>> INSPECTION END

Special Repair Requirement

INFOID:0000000003858126

1.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Refer to

EC-16, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

>> GO TO 2.

2.

PERFORM IDLE AIR VOLUME LEARNING

Refer to

EC-16, "IDLE AIR VOLUME LEARNING : Special Repair Requirement"

>> END

EC-300

< COMPONENT DIAGNOSIS >

[VQ25DE, VQ35DE]

P2118 THROTTLE CONTROL MOTOR

P2118 THROTTLE CONTROL MOTOR

Description

INFOID:0000000003856788

The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor. The throttle position
sensor provides feedback to the ECM, when opens/closes the throttle valve in response to driving conditions
via the throttle control motor.

DTC Logic

INFOID:0000000003856789

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Turn ignition switch ON and wait at least 2 seconds.

2.

Start engine and let it idle for 5 seconds.

3.

Check DTC.

Is DTC detected?

YES

>> Go to

EC-300, "DTC Logic"

.

NO

>> INSPECTION END

Component Inspection

INFOID:0000000003858132

1.

CHECK THROTTLE CONTROL MOTOR

1.

Turn ignition switch OFF.

2.

Disconnect electric throttle control actuator harness connector.

3.

Check resistance between electric throttle control actuator terminals as per the following.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace electric throttle control actuator.

2.

Go to

EC-299, "Special Repair Requirement"

.

>> INSPECTION END

Special Repair Requirement

INFOID:0000000003858127

1.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2118

Throttle control motor
circuit short

ECM detects short in both circuits between
ECM and throttle control motor.

• Harness or connectors

(Throttle control motor circuit is shorted.)

• Electric throttle control actuator

(Throttle control motor)

Terminals

Resistance

5 and 6

Approx. 1 - 15

Ω

 [at 25

°

C (77

°

F)]

P2118 THROTTLE CONTROL MOTOR

EC-301

< COMPONENT DIAGNOSIS >

[VQ25DE, VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Refer to

EC-16, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

>> GO TO 2.

2.

PERFORM IDLE AIR VOLUME LEARNING

Refer to

EC-16, "IDLE AIR VOLUME LEARNING : Special Repair Requirement"

>> END
