P0222, P0223 TP SENSOR

P0222, P0223 TP SENSOR

Description

INFOID:0000000003857789

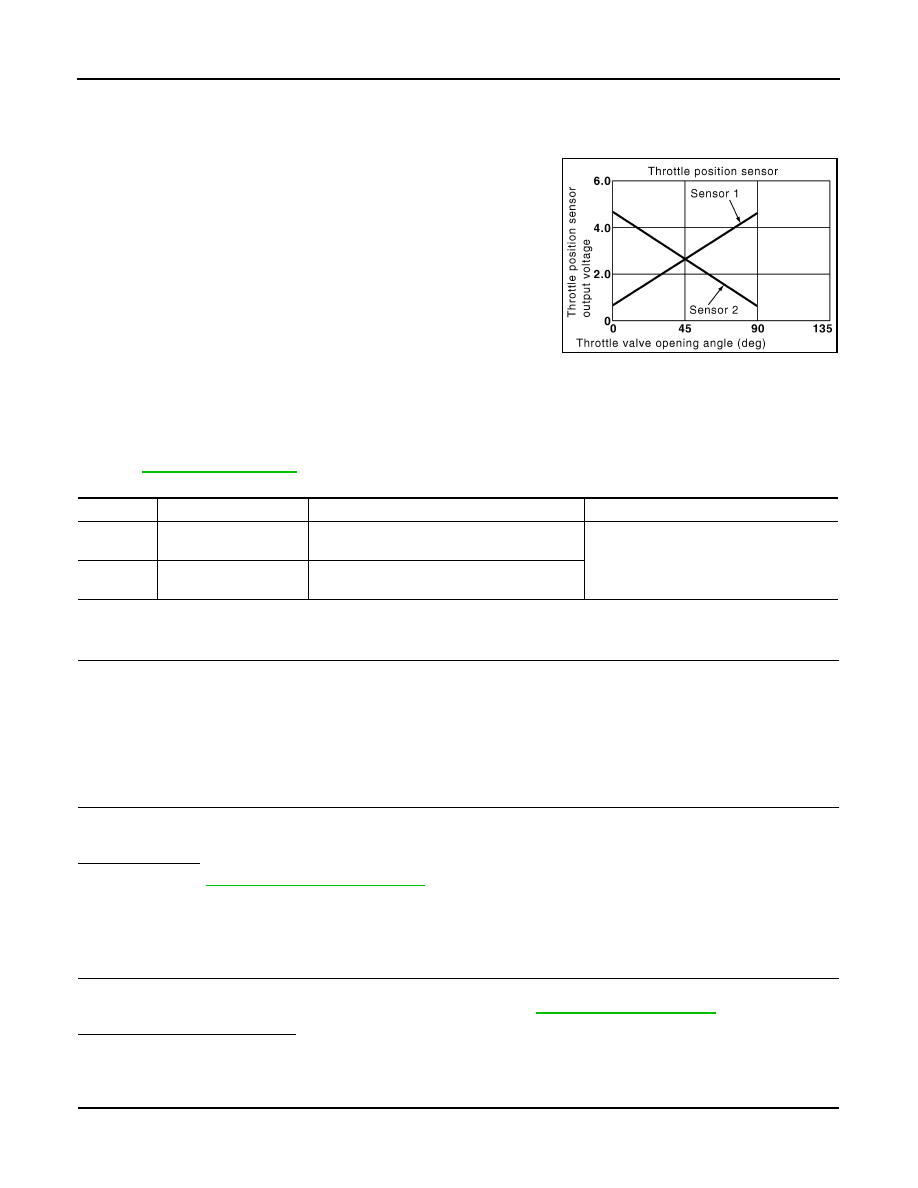

Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometer which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and controls the throttle valve opening angle in response to
driving conditions via the throttle control motor.

DTC Logic

INFOID:0000000003856613

DTC DETECTION LOGIC

NOTE:
If DTC P0222 or P0223 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.
Refer to

EC-243, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start engine and let it idle for 1 second.

2.

Check DTC.

Is DTC detected?

YES

>> Go to

EC-206, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000003856614

1.

CHECK GROUND CONNECTION

1.

Turn ignition switch OFF.

2.

Check ground connection E38. Refer to Ground Inspection in

GI-37, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK THROTTLE POSITION SENSOR 1 POWER SUPPLY CIRCUIT-I

1.

Disconnect electric throttle control actuator harness connector.

2.

Turn ignition switch ON.

PBIB0145E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0222

Throttle position sensor
1 circuit low input

An excessively low voltage from the TP sensor
1 is sent to ECM.

• Harness or connectors

(TP sensor 1 circuit is open or shorted.)

• Electric throttle control actuator

(TP sensor 1)

P0223

Throttle position sensor
1 circuit high input

An excessively high voltage from the TP sensor
1 is sent to ECM.

P0222, P0223 TP SENSOR

EC-207

< COMPONENT DIAGNOSIS >

[VQ25DE, VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

3.

Check the voltage between electric throttle control actuator harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

3.

CHECK THROTTLE POSITION SENSOR 1 GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between electric throttle control actuator and ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

4.

CHECK THROTTLE POSITION SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check the continuity between electric throttle control actuator and ECM harness connector.

2.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

5.

CHECK THROTTLE POSITION SENSOR

Refer to

EC-207, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace electric throttle control actuator.

2.

Refer to

EC-208, "Special Repair Requirement"

.

>> INSPECTION END

7.

CHECK INTERMITTENT INCIDENT

Refer to

GI-35, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000003857982

1.

CHECK THROTTLE POSITION SENSOR

Electric throttle control actuator

Ground

Voltage

Connector

Terminal

F29

1

Ground

Approx. 5 V

Electric throttle control actuator

ECM

Continuity

Connector

Terminal

Connector

Terminal

F29

4

F8

36

Existed

Electric throttle control actuator

ECM

Continuity

Connector

Terminal

Connector

Terminal

F29

2

F8

37

Existed

EC-208

< COMPONENT DIAGNOSIS >

[VQ25DE, VQ35DE]

P0222, P0223 TP SENSOR

1.

Turn ignition switch OFF.

2.

Reconnect all harness connectors disconnected.

3.

Perform

EC-16, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

4.

Turn ignition switch ON.

5.

Selector lever position is D.

6.

Check the voltage between ECM harness connector terminals under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1.

Replace electric throttle control actuator.

2.

Go to

EC-162, "Special Repair Requirement"

.

>> INSPECTION END

Special Repair Requirement

INFOID:0000000003857985

1.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Refer to

EC-16, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

>> GO TO 2.

2.

PERFORM IDLE AIR VOLUME LEARNING

Refer to

EC-16, "IDLE AIR VOLUME LEARNING : Special Repair Requirement"

>> END

ECM

Condition

Voltage

Connector

+

–

Terminal

Terminal

F8

37 (TP sensor 1

signal)

36

(Sensor ground)

Accelerator pedal

Fully released

More than 0.36 V

Fully depressed

Less than 4.75 V

38 (TP sensor 2

signal)

Fully released

Less than 4.75 V

Fully depressed

More than 0.36 V
