EC-38
< FUNCTION DIAGNOSIS >
[VQ25DE, VQ35DE]
ELECTRIC IGNITION SYSTEM
operate under normal driving conditions. If engine knocking occurs, the knock sensor monitors the condition.
The signal is transmitted to the ECM. The ECM retards the ignition timing to eliminate the knocking condition.

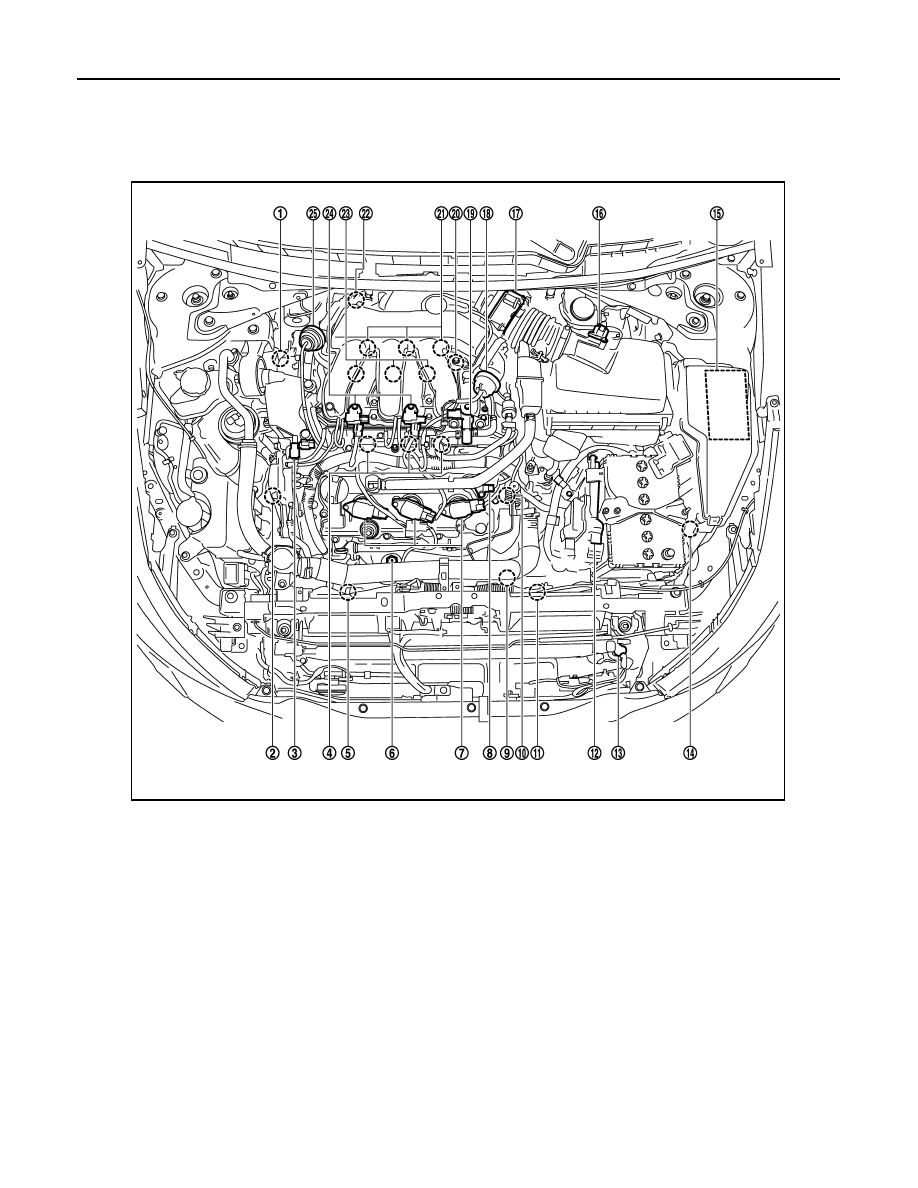

Component Parts Location
INFOID:0000000003857772
1.
Intake valve timing control solenoid
valve (bank 1)
2.
Intake valve timing control solenoid
valve (bank 2)
3.
Electronic controlled engine mount
control solenoid valve
4.
Fuel injector (bank 2)
5.
Cooling fan motor-2
6.
A/F sensor 1 (bank 2)
7.
Ignition coil (with power transistor)
and spark plug (bank 2)
8.
Camshaft position sensor (PHASE)
(bank 2)
9.
Crankshaft position sensor (POS)
10. Engine coolant temperature sensor
11.
Cooling fan motor-1
12. ECM
13. Refrigerant pressure sensor
14. Battery current sensor
15. IPDM E/R
16. Mass air flow sensor (with intake air
temperature sensor)
17. Electric throttle control actuator
18. Power valve actuator 2 (VQ35DE
models)
19. EVAP canister purge volume control
solenoid valve
20. Camshaft position sensor (PHASE)
(bank 1)
21. Ignition coil (with power transistor)
and spark plug (bank 1)
22. A/F sensor 1 (bank 1)
23. Fuel injector (bank 1)
24. VIAS control solenoid valve 1 and 2
(VQ35DE models)
25. Power valve actuator 1
JMBIA1373ZZ
