DOOR LOCK OPERATION WARNING DOES NOT OPERATE WITH DOOR RE-

QUEST SWITCH

DLK-179

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK OPERATION WARNING DOES NOT OPERATE WITH DOOR
REQUEST SWITCH

Description

INFOID:0000000003795036

NOTE:
• Before performing the diagnosis in the following procedure, check “Work Flow”. Refer to

DLK-7, "Work

Flow"

.

• Warning functions operating condition is extremely complicated, during operating confirmations, reconfirm

the list above twice in order to ensure proper operation. Refer to

DLK-31, "WARNING FUNCTION : System

Description"

.

Diagnosis Procedure

INFOID:0000000003795037

1.

CHECK DOOR LOCK FUNCTION

Check door lock function by door request switch.

Does door lock/unlock with door request switch?

YES

>> GO TO 2.

NO

>> • Go to

DLK-161, "DRIVER SIDE : Description"

 (driver side).

• Go  to

DLK-161, "PASSENGER SIDE : Description"

 (passenger side).

• Go  to

DLK-162, "TRUNK : Description"

 (trunk room).

2.

CHECK DOOR SWITCH

Check door switch (driver side).
Refer to

DLK-57, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CHECK INTELLIGENT KEY WARNING BUZZER

Check Intelligent Key warning buzzer.
Refer to

DLK-82, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the malfunctioning parts.

4.

CHECK INSIDE KEY ANTENNA

Check inside key antenna.
Refer to

DLK-50, "DTC Logic"

 (instrument center).

Refer to

DLK-52, "DTC Logic"

 (console).

Refer to

DLK-54, "DTC Logic"

 (trunk room).

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace the malfunctioning parts.

5.

CONFIRM THE OPERATION

Confirm the operation again.

Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-35, "Intermittent Incident"

.

NO

>> GO TO 1.

DLK-180

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

KEY ID WARNING DOES NOT OPERATE

KEY ID WARNING DOES NOT OPERATE

Description

INFOID:0000000003795038

NOTE:
• Before performing the diagnosis in the following procedure, check “Work Flow”. Refer to

DLK-7, "Work

Flow"

.

• Warning functions operating condition is extremely complicated, during operating confirmations, reconfirm

the list above twice in order to ensure proper operation. Refer to

DLK-31, "WARNING FUNCTION : System

Description"

.

Diagnosis Procedure

INFOID:0000000003795039

1.

CHECK INTELLIGENT KEY

Check Intelligent Key.
Refer to

DLK-84, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK COMBINATION METER DISPLAY FUNCTION

Check combination meter display function.
Refer to

DLK-93, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CONFIRM THE OPERATION

Confirm the operation again.

Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-35, "Intermittent Incident"

.

NO

>> GO TO 1.

INTELLIGENT KEY LOW BATTERY WARNING DOES NOT OPERATE

DLK-181

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY LOW BATTERY WARNING DOES NOT OPERATE

Description

INFOID:0000000003795040

NOTE:
• Before performing the diagnosis in the following procedure, check “Work Flow”. Refer to

DLK-7, "Work

Flow"

.

• Warning functions operating condition is extremely complicated, during operating confirmations, reconfirm

the list above twice in order to ensure proper operation. Refer to

DLK-31, "WARNING FUNCTION : System

Description"

.

Diagnosis Procedure

INFOID:0000000003795041

1.

CHECK INTELLIGENT KEY

Check Intelligent Key.
Refer to

DLK-84, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK COMBINATION METER DISPLAY FUNCTION

Check combination meter display function.
Refer to

DLK-93, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CONFIRM THE OPERATION

Confirm the operation again.

Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-35, "Intermittent Incident"

.

NO

>> GO TO 1.

DLK-182

< SYMPTOM DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

SQUEAK AND RATTLE TROUBLE DIAGNOSES

SQUEAK AND RATTLE TROUBLE DIAGNOSES

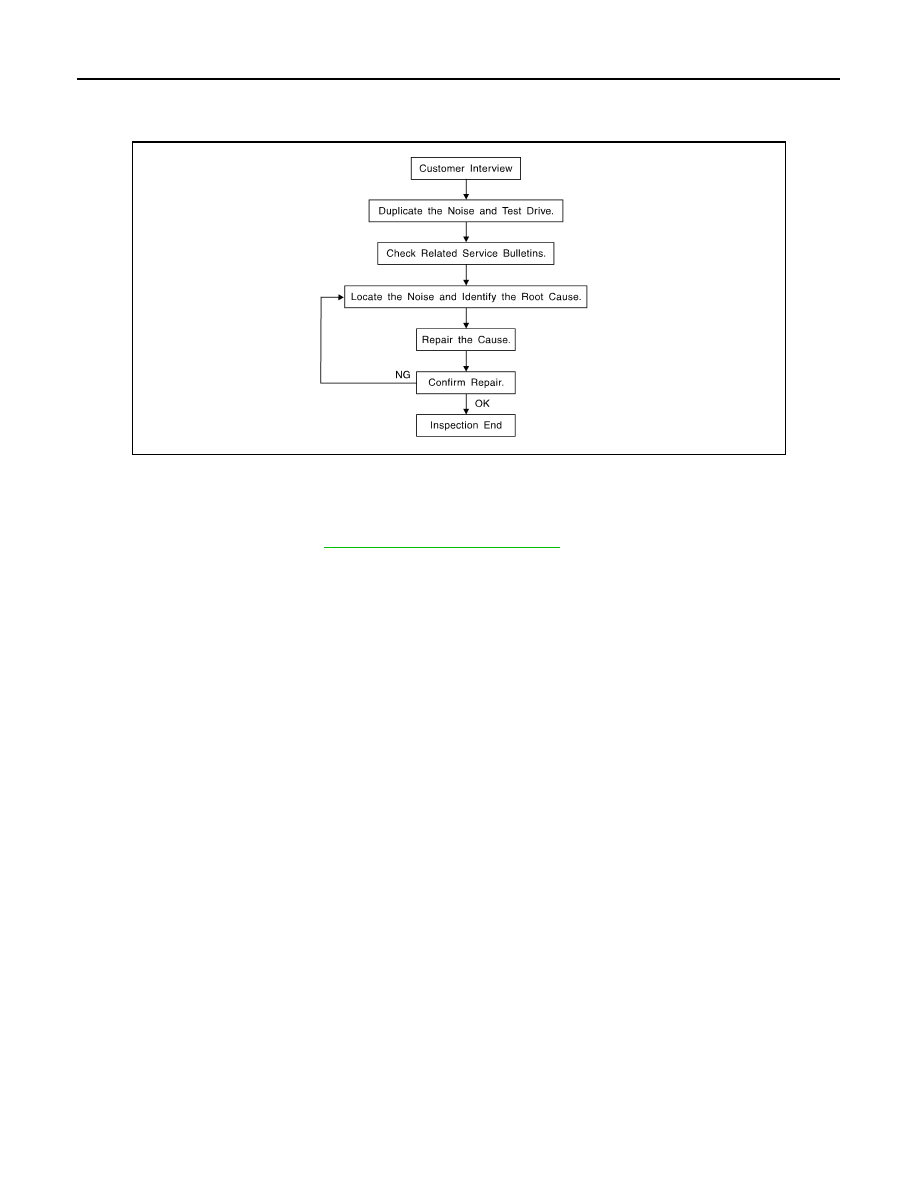

Work Flow

INFOID:0000000003941377

CUSTOMER INTERVIEW

Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any of
the customer's comments; refer to

DLK-186, "Diagnostic Worksheet"

. This information is necessary to dupli-

cate the conditions that exist when the noise occurs.
• The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain

all the facts and conditions that exist when the noise occurs (or does not occur).

• If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer is

concerned about. This can be accomplished by a test drive with the customer.

• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics

are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

• Squeak – (Like tennis shoes on a clean floor)

Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces
= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping

• Creak – (Like walking on an old wooden floor)

Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch depen-
dent on materials/often brought on by activity.

• Rattle – (Like shaking a baby rattle)

Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

• Knock – (Like a knock on a door)

Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

• Tick – (Like a clock second hand)

Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

• Thump – (Heavy, muffled knock noise)

Thump characteristics include softer knock/dead sound often brought on by activity.

• Buzz – (Like a bumble bee)

Buzz characteristics include high frequency rattle/firm contact.

• Often the degree of acceptable noise level will vary depending upon the person. A noise that a technician

may judge as acceptable may be very irritating to the customer.

• Weather conditions, especially humidity and temperature, may have a great effect on noise level.

DUPLICATE THE NOISE AND TEST DRIVE

If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when the repair is reconfirmed.

SBT842
