KEY WARNING LAMP

DLK-95

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

KEY WARNING LAMP

Description

INFOID:0000000003794915

Performs operation method guide and warning together with buzzer.

Component Function Check

INFOID:0000000003794916

1.

CHECK FUNCTION

Check the operation with “INDICATOR” in “Active Test” mode with CONSULT-III.

Is the inspection result normal?

YES

>> Key warning lamp in combination meter is OK.

NO

>> Refer to

DLK-95, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003794917

1.

CHECK KEY WARNING LAMP

Refer to

MWI-4, "Work flow"

.

Is the inspection result normal?

Yes

>> GO TO 2.

No

>> Repair or replace key warning lamp circuit.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-35, "Intermittent Incident"

.

>> INSPECTION END

Test item

Condition

INDICATOR

RED ON

Key warning lamp (red) illuminates

RED IND

Key warning lamp (red) flashes

DLK-96

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

HAZARD FUNCTION

HAZARD FUNCTION

Description

INFOID:0000000003794918

Perform answer-back for each operation with number of blinks.

Component Function Check

INFOID:0000000003794919

1.

CHECK FUNCTION

Check hazard warning lamp (“FLASHER”) in Active Test.

Is the inspection result normal?

YES

>> Hazard warning lamp circuit is OK.

NO

>> Refer to

DLK-96, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003794920

1.

CHECK HAZARD SWITCH CIRCUIT

Refer to

EXL-90, "Wiring Diagram - TURN AND HAZARD WARNING LAMPS -"

 (For xenon type) or

EXL-262,

"Wiring Diagram - TURN AND HAZARD WARNING LAMPS -"

 (For halogen type)

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace hazard warning switch circuit. Refer to

EXL-328, "Symptom Table"

.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-35, "Intermittent Incident"

.

>> INSPECTION END

POWER DOOR LOCK SYSTEM

DLK-97

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

POWER DOOR LOCK SYSTEM

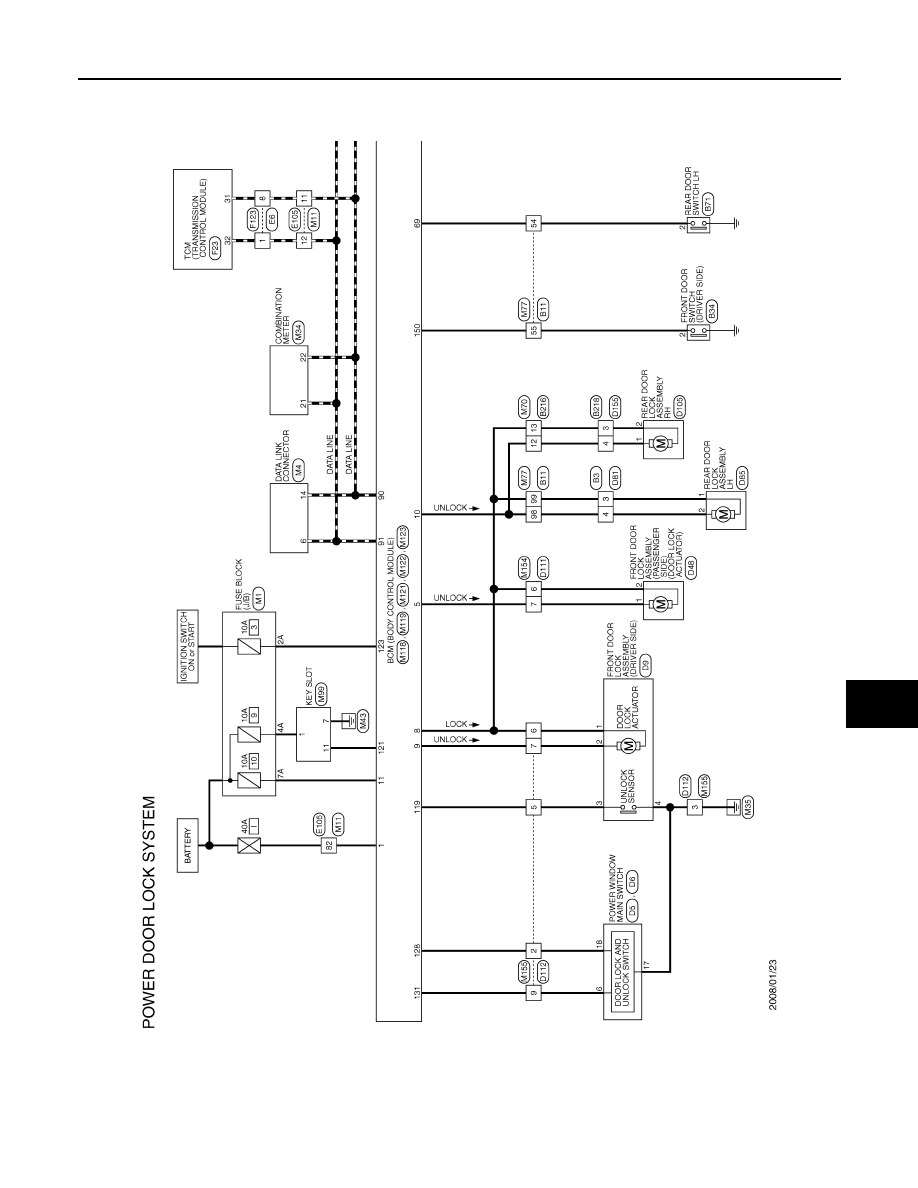

Wiring Diagram - POWER DOOR LOCK SYSTEM -

INFOID:0000000003940917

JCKWM1180GB

DLK-98

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

POWER DOOR LOCK SYSTEM

JCKWM1181GB
