Nissan Teana J32. Manual - part 303

ON IS NOT DISPLAYED WHEN PRESSING REAR WINDOW DEFOGGER

SWITCH BUT IT OPERATES

DEF-61

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

ON IS NOT DISPLAYED WHEN PRESSING REAR WINDOW DEFOGGER
SWITCH BUT IT OPERATES

WITH AV CONTROL UNIT

WITH AV CONTROL UNIT : Diagnosis Procedure

INFOID:0000000003806069

1.

CHECK AV CONTROL FUNCTION

Check that the AV control unit is operating normally.
• Base audio: Refer to

AV-45, "Work Flow"

.

• BOSE audio with navigation: Refer to

AV-398, "Work Flow"

.

• BOSE audio without navigation: Refer to

AV-185, "Work Flow"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CONFIRM THE OPERATION

Confirm the operation again.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-35, "Intermittent Incident"

.

NO

>> GO TO 1.

WITHOUT AV CONTROL UNIT

WITHOUT AV CONTROL UNIT : Diagnosis Procedure

INFOID:0000000003888342

1.

CHECK A/C CONTROL FUNCTION

Check that the A/C control is operating normally.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Check A/C control system. Refer to

HAC-6, "Work Flow"

.

2.

CHECK REAR WINDOW DEFOGGER DISPLAY

Check that ON appears on the display when rear window defogger is activated.

Is the inspection result normal?

YES

>> Replace A/C control (rear window defogger switch). Refer to

VTL-21, "Removal and Installation"

.

NO

>> Check rear window defogger indicator. Refer to

DEF-62, "WITHOUT AV CONTROL UNIT : Diag-

nosis Procedure"

.

DEF-62

< SYMPTOM DIAGNOSIS >

REAR WINDOW DEFOGGER INDICATOR DOES NOT ILLUMINATE

REAR WINDOW DEFOGGER INDICATOR DOES NOT ILLUMINATE

WITH AV CONTROL UNIT

WITH AV CONTROL UNIT : Diagnosis Procedure

INFOID:0000000003806070

1.

CHECK REAR WINDOW DEFOGGER OPERATION

Check rear window defogger operation.
Is the inspection result normal?

YES-1 >> Base audio: Check AV control system.Refer to

AV-45, "Work Flow"

YES-2 >> BOSE audio with navigation: Check AV control system. Refer to

AV-398, "Work Flow"

YES-3 >> BOSE audio without navigation: Check AV control system. Refer to

AV-185, "Work Flow"

NO

>> Check rear window defogger system. Refer to

DEF-3, "Work Flow"

WITHOUT AV CONTROL UNIT

WITHOUT AV CONTROL UNIT : Diagnosis Procedure

INFOID:0000000003840906

1.

CHECK A/C CONTROL FUNCTION

Check that the A/C control is operating normally.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Check A/C control system. Refer to

HAC-6, "Work Flow"

.

2.

CHECK REAR WINDOW DEFOGGER ON SIGNAL

Check rear window defogger ON signal.
Refer to

DEF-25, "Component Function Check"

.

Is the inspection result normal?

YES

>> Replace A/C control (rear window defogger switch). Refer to

VTL-21, "Removal and Installation"

.

NO

>> Repair or replace the malfunctioning parts.

PRECAUTIONS

DEF-63

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003940045

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIRBAG” and
“SEAT BELT” of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

DEF-64

< ON-VEHICLE REPAIR >

FILAMENT

ON-VEHICLE REPAIR

FILAMENT

Inspection and Repair

INFOID:0000000003806072

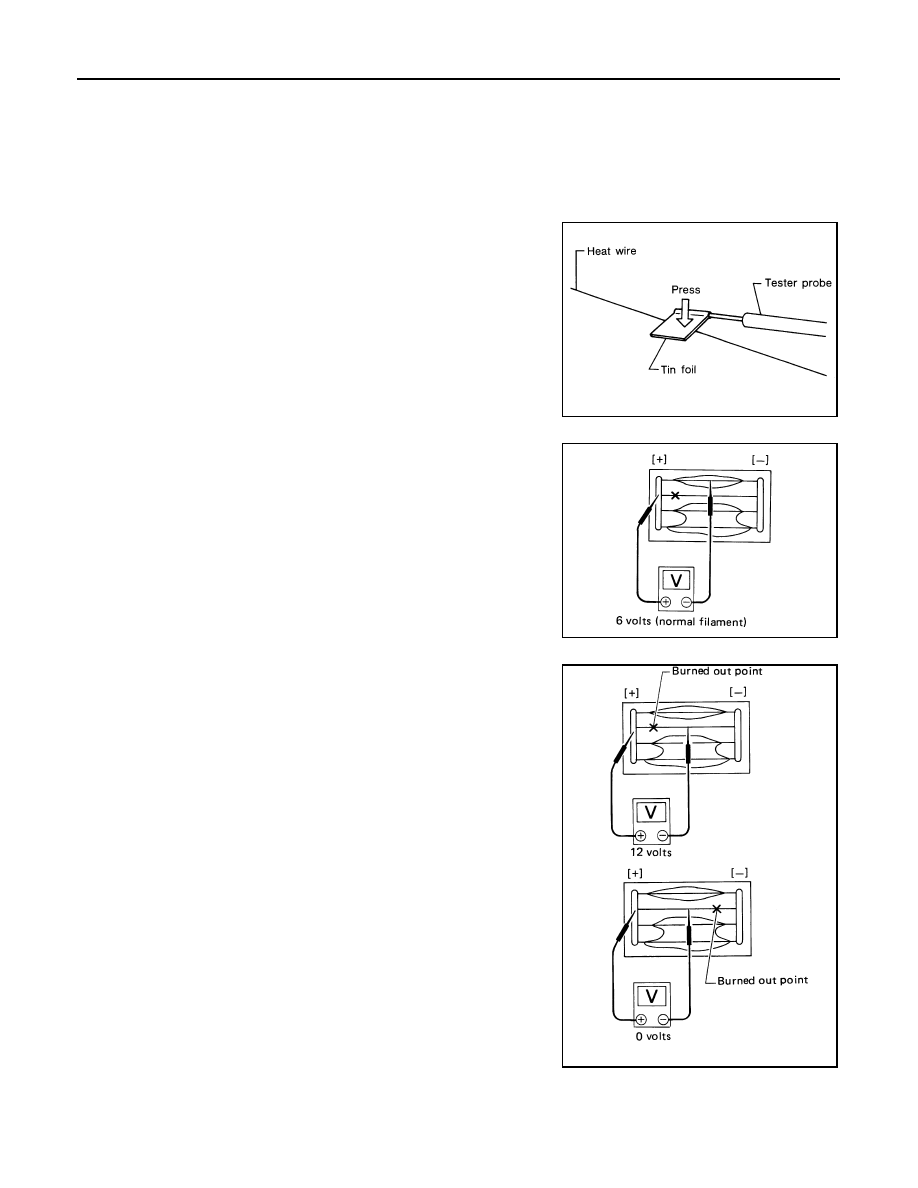

INSPECTION

1.

When measuring voltage, wrap tin foil around the top of the neg-
ative probe. Then press the foil against the wire with your finger.

2.

Attach probe circuit tester (in Volt range) to middle portion of
each filament.

3.

If a filament is burned out, circuit tester registers 0 or battery
voltage.

4.

To locate burned out point, move probe to left and right along fil-
ament. Test needle swings abruptly when probe passes the
point.

REPAIR

REPAIR EQUIPMENT

• Conductive silver composition (Dupont No. 4817 or an equivalent)

SEL122R

SEL263

SEL265
