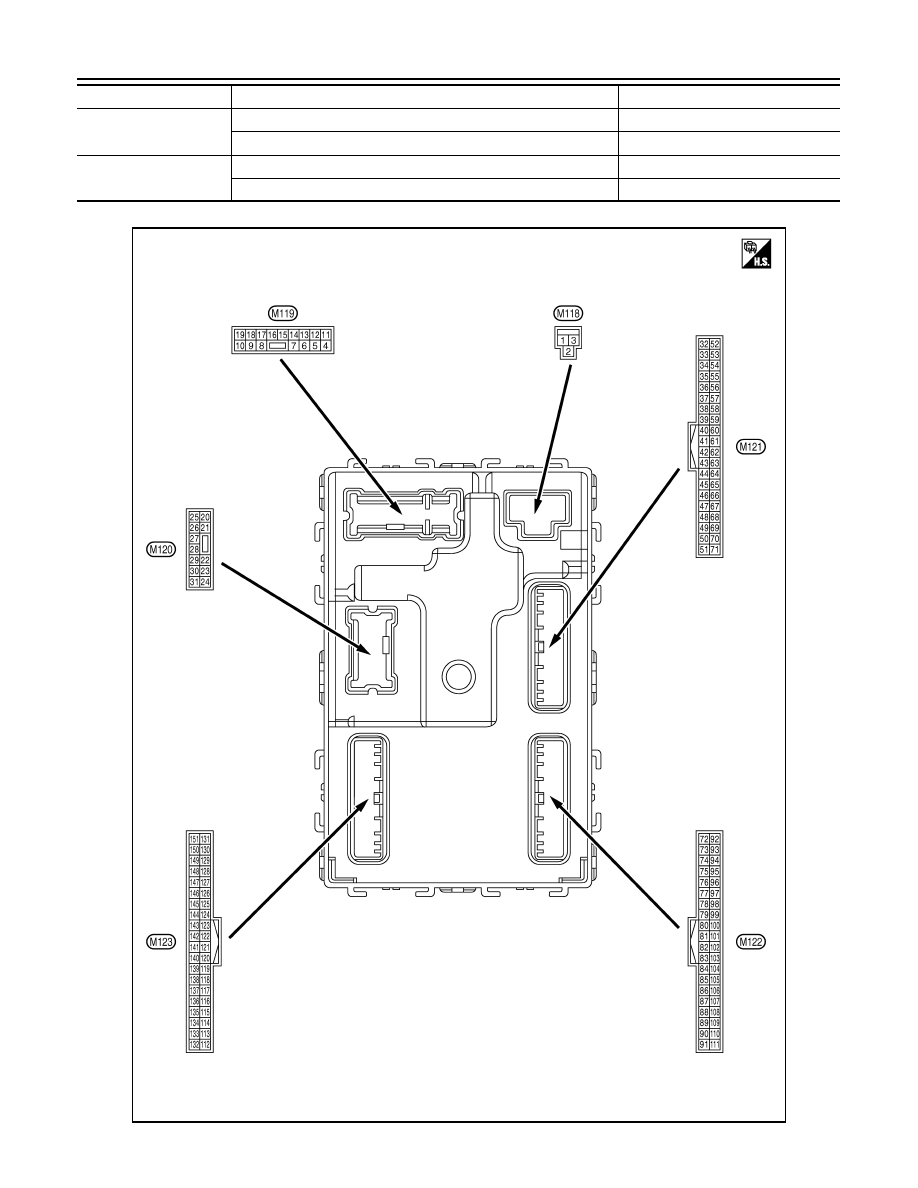

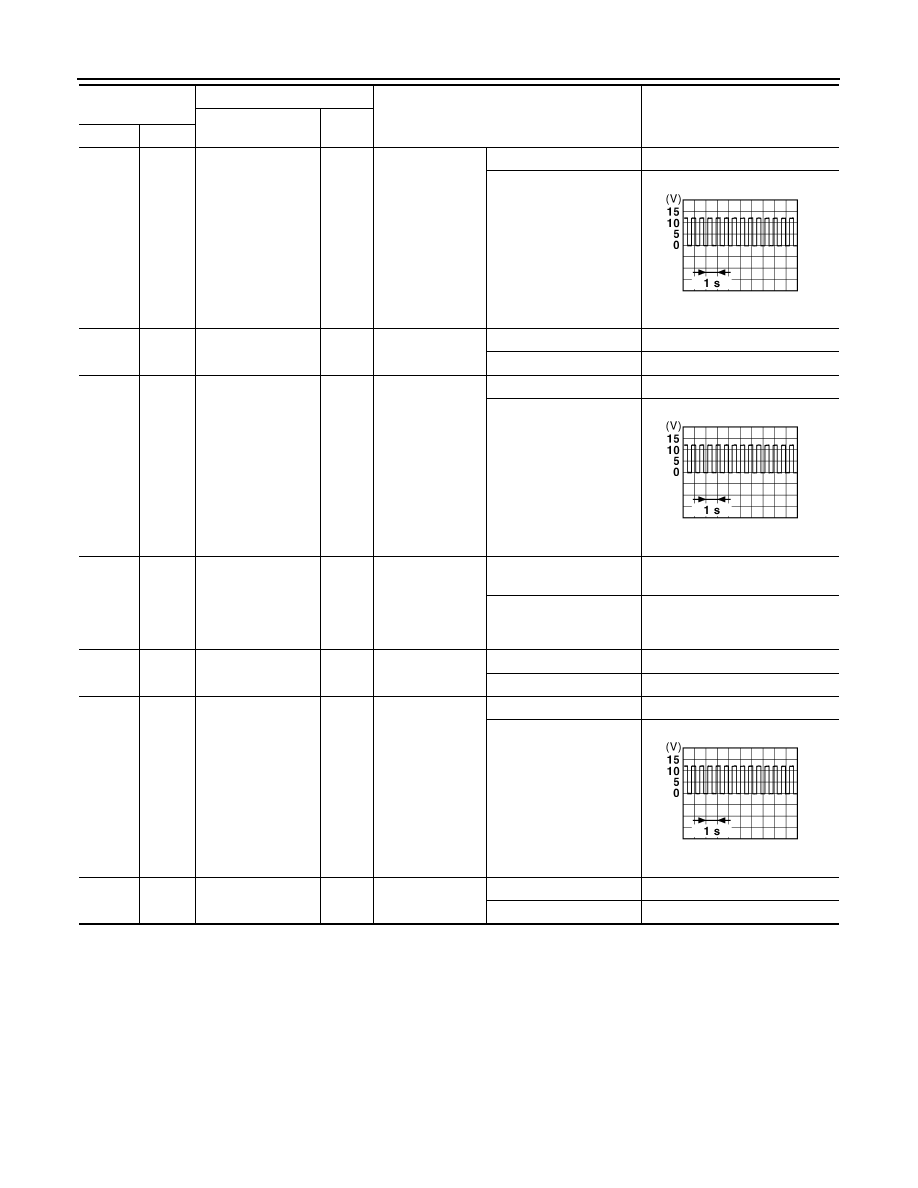

BCM (BODY CONTROL MODULE)
DEF-29
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
M
A
B
DEF
N
O
P
S/L UNLK-IPDM
Steering is unlocked
Off
Steering is locked
On
S/L RELAY-REQ
Ignition switch in OFF or ACC position
Off
Ignition switch in ON position
On
VEH SPEED 1
While driving
Equivalent to speedometer reading
VEH SPEED 2
While driving
Equivalent to speedometer reading
DOOR STAT-DR
Driver door is locked
LOCK
Wait with selective UNLOCK operation (5 seconds)
READY
Driver door is unlocked
UNLOCK
DOOR STAT-AS
Passenger door is locked
LOCK
Wait with selective UNLOCK operation (5 seconds)
READY
Passenger door is unlocked
UNLOCK
ID OK FLAG
Ignition switch in ACC or ON position
Reset
Ignition switch in OFF position
Set
PRMT ENG STRT
The engine start is prohibited
Reset
The engine start is permitted
Set
PRMT RKE STRT
NOTE:
The item is indicated, but not monitored.
Reset
KEY SW -SLOT
The key is not inserted into key slot
Off
The key is inserted into key slot
On
RKE OPE COUN1
During the operation of the key
Operation frequency of the key
RKE OPE COUN2
NOTE:
The item is indicated, but not monitored.
—
CONFRM ID ALL
The key ID that the key slot receives does not accord with any key
ID registered to BCM.
Yet
The key ID that the key slot receives accords with any key ID regis-
tered to BCM.
Done
CONFIRM ID4
The key ID that the key slot receives does not accord with the fourth
key ID registered to BCM.
Yet
The key ID that the key slot receives accords with the fourth key ID
registered to BCM.
Done
CONFIRM ID3
The key ID that the key slot receives does not accord with the third
key ID registered to BCM.
Yet
The key ID that the key slot receives accords with the third key ID
registered to BCM.
Done
CONFIRM ID2
The key ID that the key slot receives does not accord with the sec-
ond key ID registered to BCM.
Yet
The key ID that the key slot receives accords with the second key
ID registered to BCM.
Done
CONFIRM ID1
The key ID that the key slot receives does not accord with the first
key ID registered to BCM.
Yet
The key ID that the key slot receives accords with the first key ID
registered to BCM.
Done
TP 4
The ID of fourth key is not registered to BCM
Yet
The ID of fourth key is registered to BCM
Done
TP 3
The ID of third key is not registered to BCM
Yet
The ID of third key is registered to BCM
Done
Monitor Item
Condition
Value/Status
