Nissan Teana J32. Manual - part 278
CHG
S TERMINAL CIRCUIT
CHG-13
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
B
A
O
P
N
S TERMINAL CIRCUIT
Description
INFOID:0000000003860527
The output voltage of the alternator is controlled by the IC voltage regulator at the “S” terminal detecting the
input voltage.
The “S” terminal circuit detects the battery voltage to adjust the alternator output voltage with the IC voltage
regulator.
Diagnosis Procedure
INFOID:0000000003860528
1.
CHECK “S” TERMINAL CONNECTION
1.
Turn ignition switch OFF.
2.
Check if “S” terminal is clean and tight.
Is the inspection result normal?
YES
>> GO TO 2.
NO
>> Repair “S” terminal connection. Confirm repair by performing complete Starting/Charging system
test. Refer to Technical Service Bulletin.
2.
CHECK “S” TERMINAL CIRCUIT

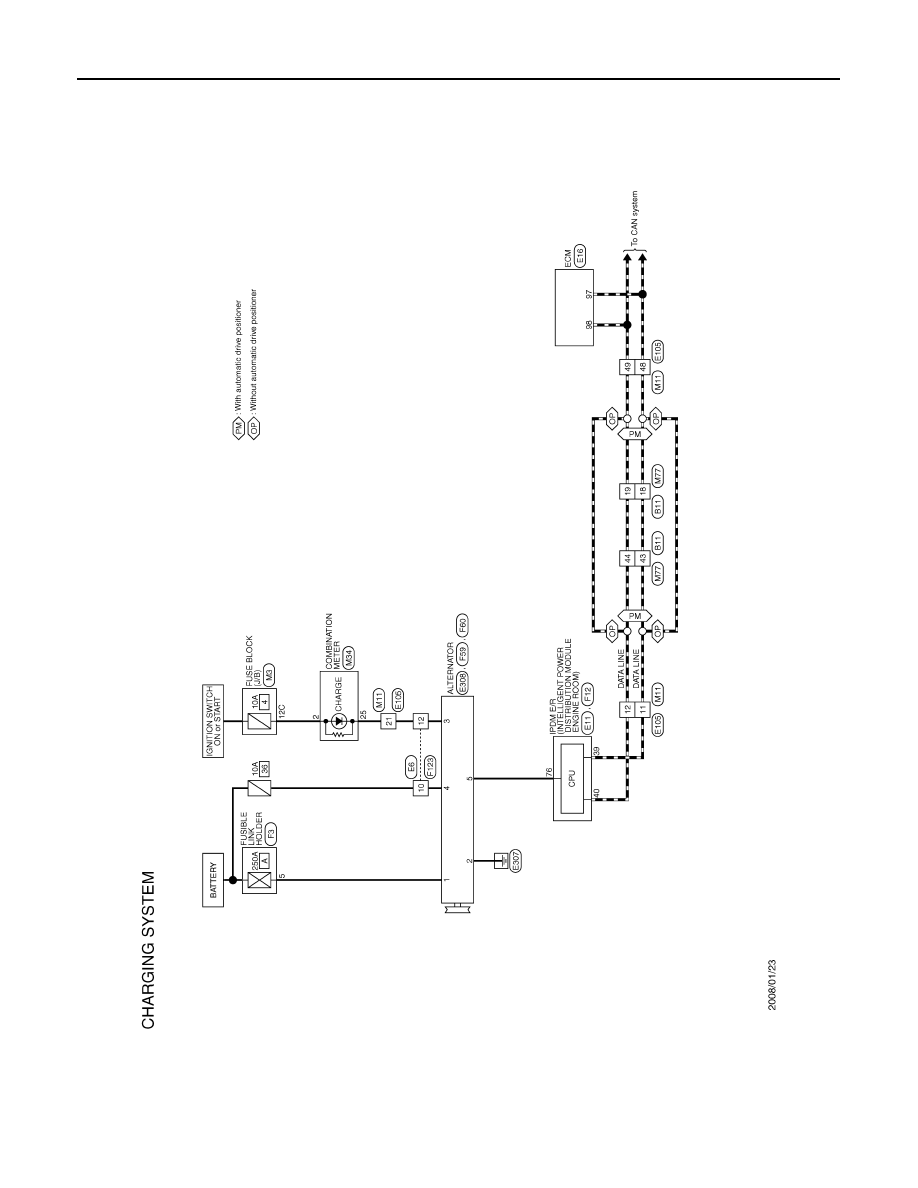

Check voltage between alternator harness connector and ground.
Is the inspection result normal?
YES
>> Refer to
.
NO
>> Check harness for open between alternator and fuse.

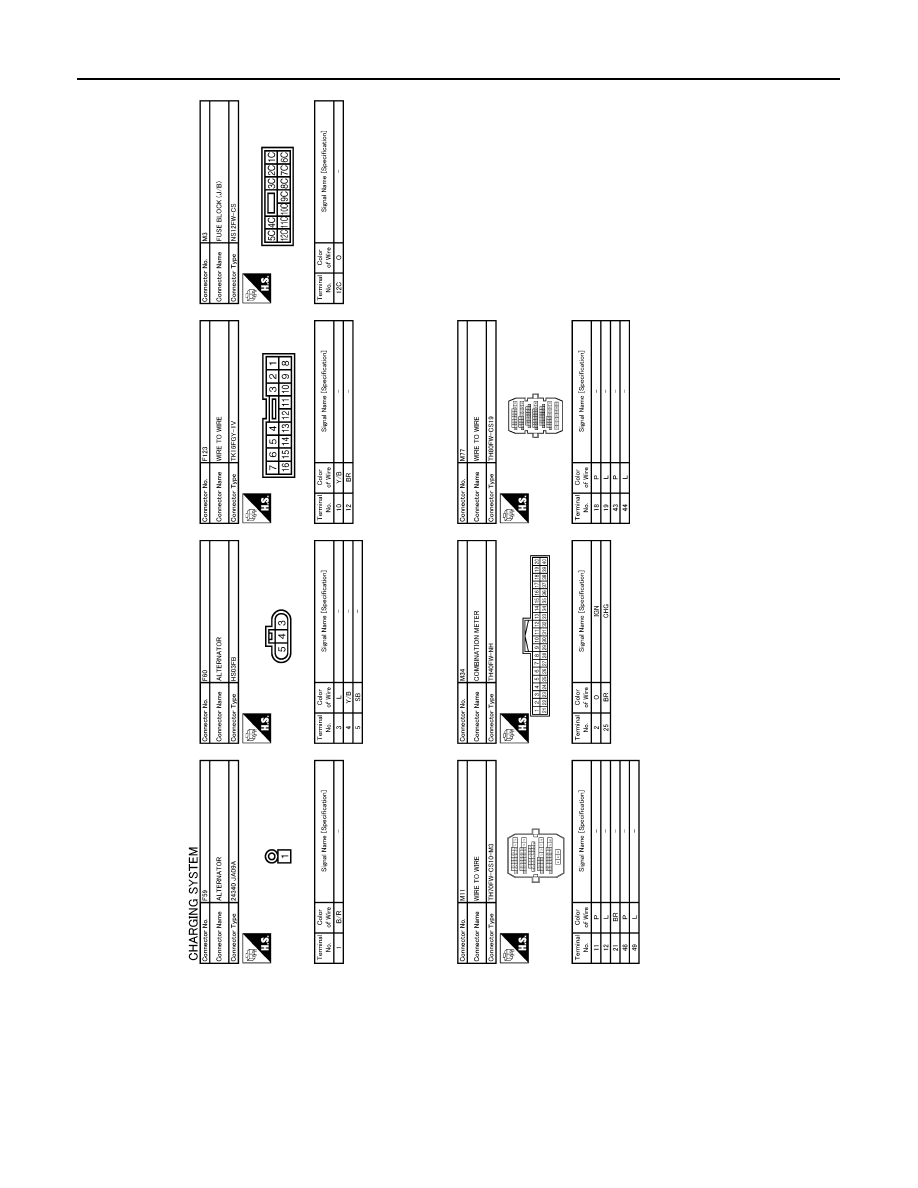

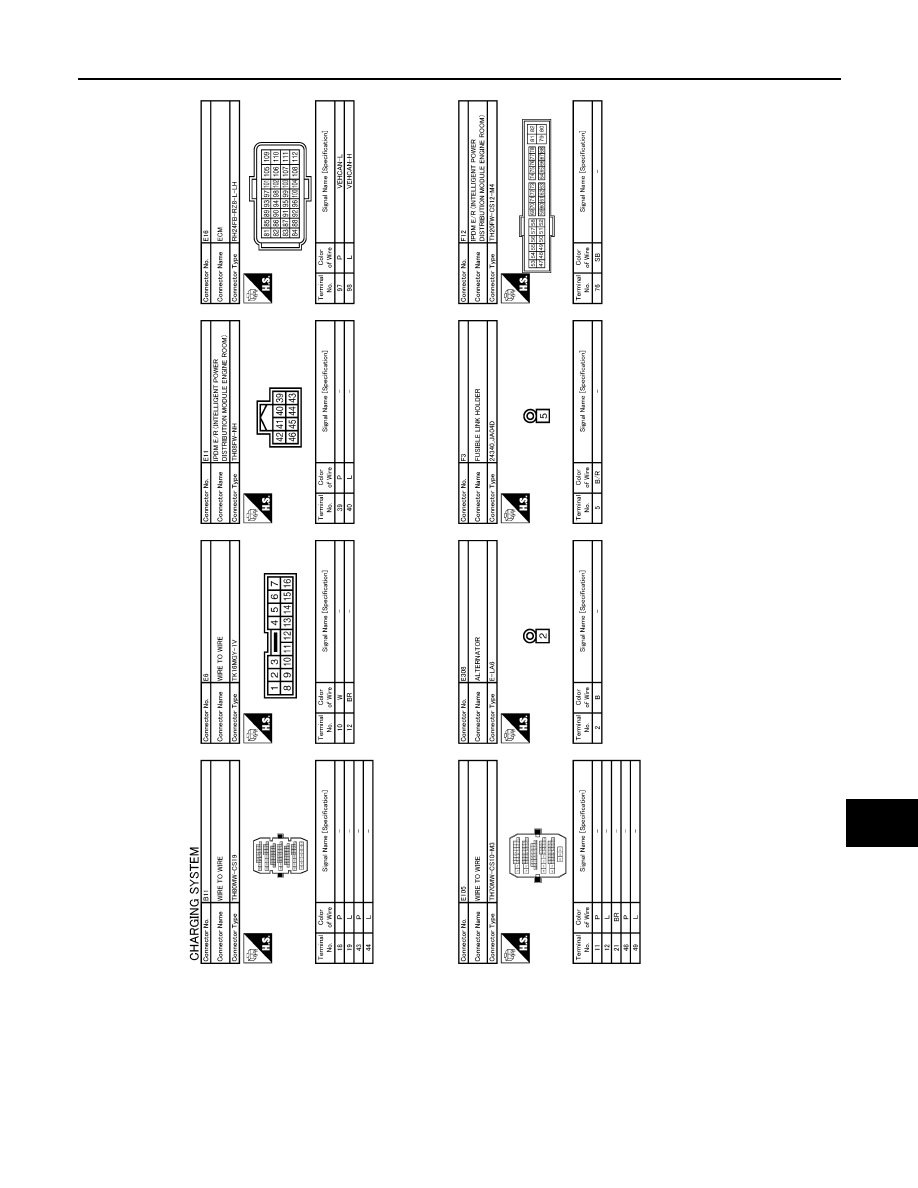

Terminals
Voltage (Approx.)
(+)
(–)
Alternator harness connector
Terminal
F60
4
Ground
Battery voltage
