Nissan Teana J32. Manual - part 270





BRC-138

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

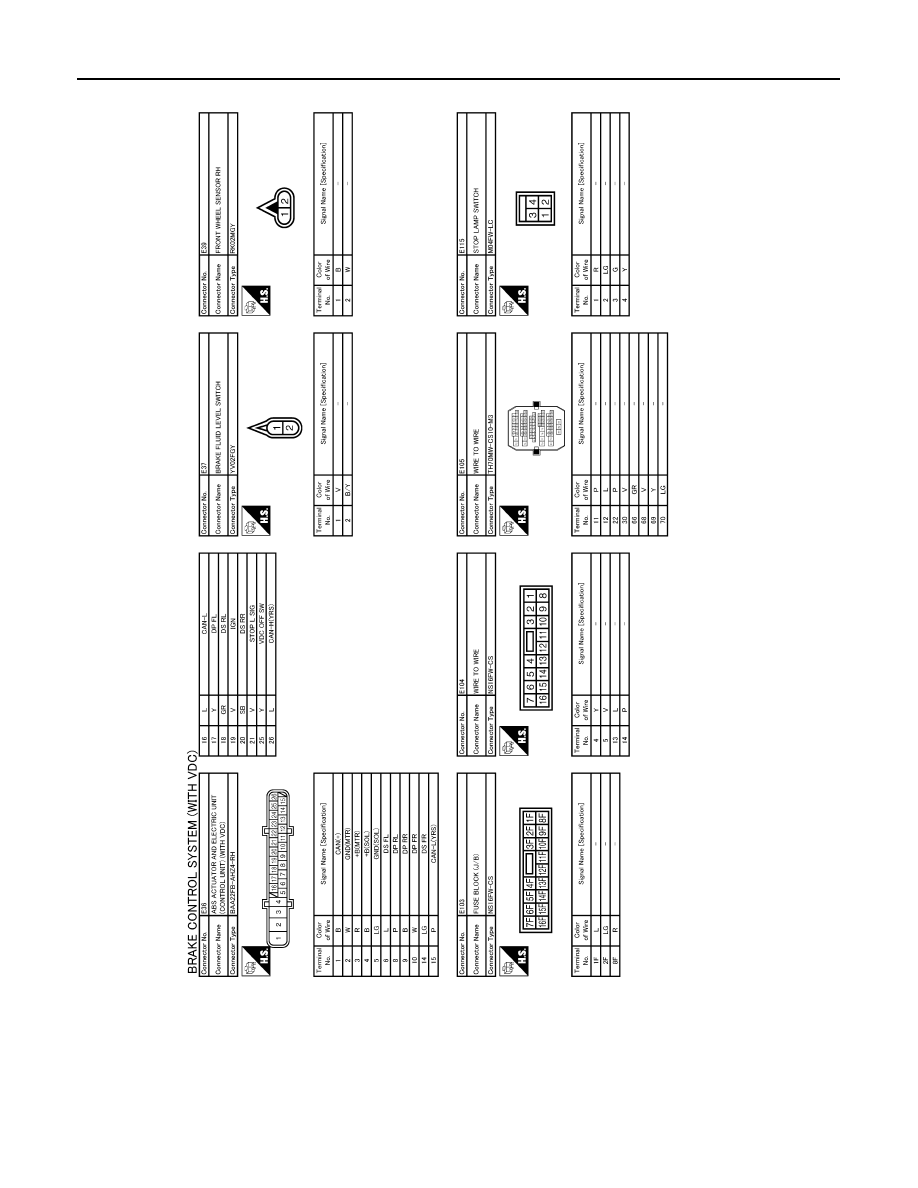

JCFWM0152GB

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-139

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Fail-Safe

INFOID:0000000003767021

ABS, EBD SYSTEM

If ABS malfunction electrically, ABS warning lamp, VDC OFF indicator lamp, SLIP indicator lamp will turn on. If
EBD malfunction electrically, brake warning lamp, ABS warning lamp, VDC OFF indicator lamp and SLIP indi-
cator lamp will turn on. Simultaneously, the VDC/TCS/ABS become one of the following conditions of the fail-
safe function.

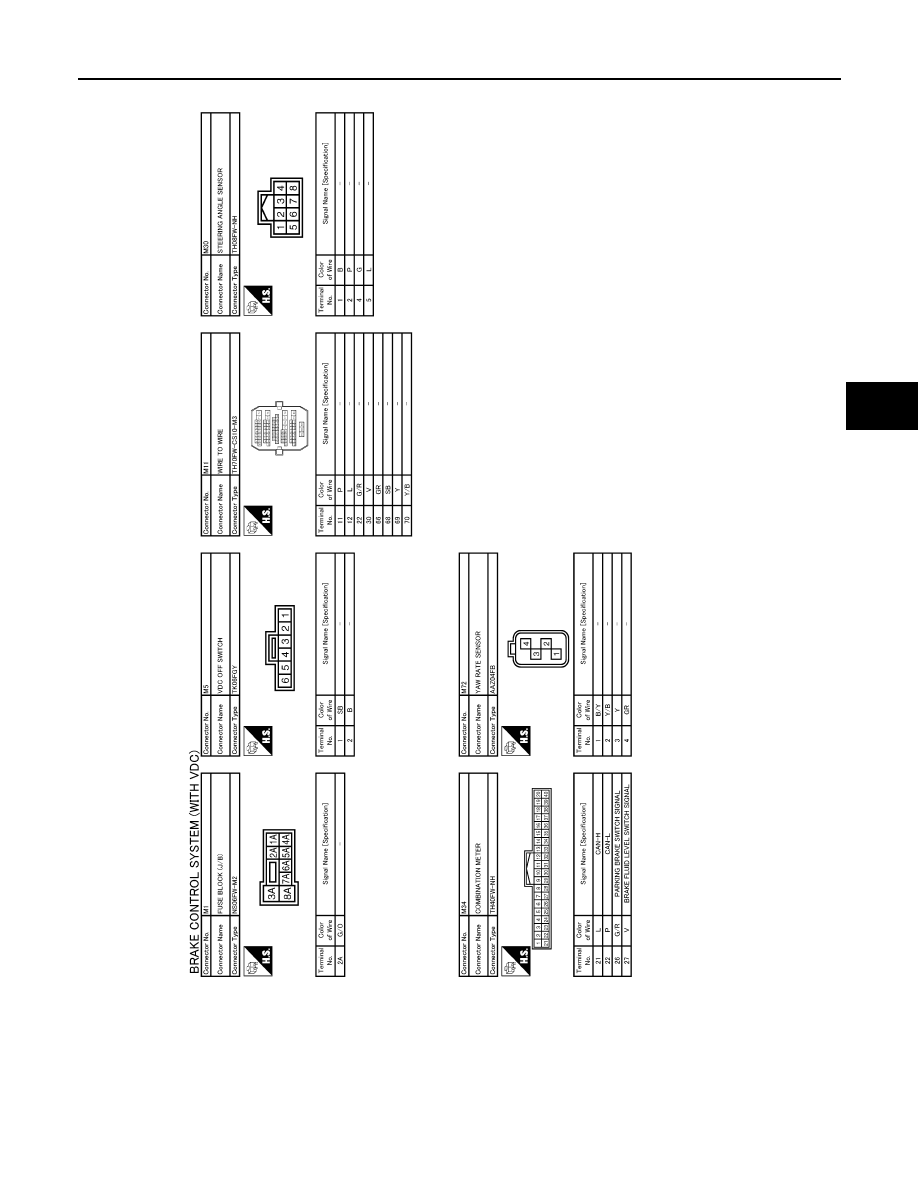

JCFWM0153GB

BRC-140

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

• For malfunction of ABS, only the EBD is activated and the condition of vehicle is the same condition of vehi-

cles without TCS/ABS system.
NOTE:
ABS self-diagnosis sound may be heard. That is a normal condition because a self-diagnosis for “Ignition
switch ON” and “The first starting” are being performed.

• For malfunction of EBD, EBD and ABS become inoperative, and the condition of vehicle is the same as the

condition of vehicles without TCS/ABS, EBD system.

VDC/TCS

If VDC/TCS/ABS system malfunction electrically, VDC OFF indicator lamp, SLIP indicator lamp are turned on,
and the condition of vehicle is the same as the condition of vehicles without VDC/TCS control.

CAUTION:

If the Fail-Safe function is activated, then perform self-diagnosis for VDC/TCS/ABS control system.

DTC No. Index

INFOID:0000000003767022

DTC

Items (CONSULT screen terms)

Reference

C1101

RR RH SENSOR-1

BRC-85, "DTC Logic"

C1102

RR LH SENSOR-1

C1103

FR RH SENSOR-1

C1104

FR LH SENSOR-1

C1105

RR RH SENSOR-2

BRC-88, "DTC Logic"

C1106

RR LH SENSOR-2

C1107

FR RH SENSOR-2

C1108

FR LH SENSOR-2

C1109

BATTERY VOLTAGE [ABNORMAL]

BRC-91, "DTC Logic"

C1110

CONTROLLER FAILURE

BRC-93, "DTC Logic"

C1111

PUMP MOTOR

BRC-94, "DTC Logic"

C1115

ABS SENSOR [ABNORMAL SIGNAL]

BRC-96, "DTC Logic"

C1116

STOP LAMP SW

BRC-99, "DTC Logic"

C1120

FR LH IN ABS SOL

BRC-101, "DTC Logic"

C1121

FR LH OUT ABS SOL

BRC-103, "DTC Logic"

C1122

FR RH IN ABS SOL

BRC-101, "DTC Logic"

C1123

FR RH OUT ABS SOL

BRC-103, "DTC Logic"

C1124

RR LH IN ABS SOL

BRC-101, "DTC Logic"

C1125

RR LH OUT ABS SOL

BRC-103, "DTC Logic"

C1126

RR RH IN ABS SOL

BRC-101, "DTC Logic"

C1127

RR RH OUT ABS SOL

BRC-103, "DTC Logic"

C1130

ENGINE SIGNAL 1

BRC-105, "DTC Logic"

C1140

ACTUATOR RLY

BRC-106, "DTC Logic"

C1142

PRESS SEN CIRCUIT

BRC-108, "DTC Logic"

C1143

ST ANG SEN CIRCUIT

BRC-110, "DTC Logic"

C1144

ST ANG SEN SIGNAL

BRC-112, "DTC Logic"

C1145

YAW RATE SENSOR

BRC-113, "DTC Logic"

C1146

SIDE G-SEN CIRCUIT

C1153

EMERGENCY BRAKE

BRC-93, "DTC Logic"

C1155

BR FLUID LEVEL LOW

BRC-116, "DTC Logic"

C1164

CV 1

BRC-118, "DTC Logic"

C1165

CV 2

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-141

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1166

SV 1

BRC-120, "DTC Logic"

C1167

SV 2

C1170

VARIANT CORDING

BRC-93, "DTC Logic"

U1000

CAN COMM CIRCUIT

BRC-122, "DTC Logic"

U1002

SYSTEM COMM (CAN)

DTC

Items (CONSULT screen terms)

Reference
