Nissan Teana J32. Manual - part 254

BRC-74

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

ABS

ABS

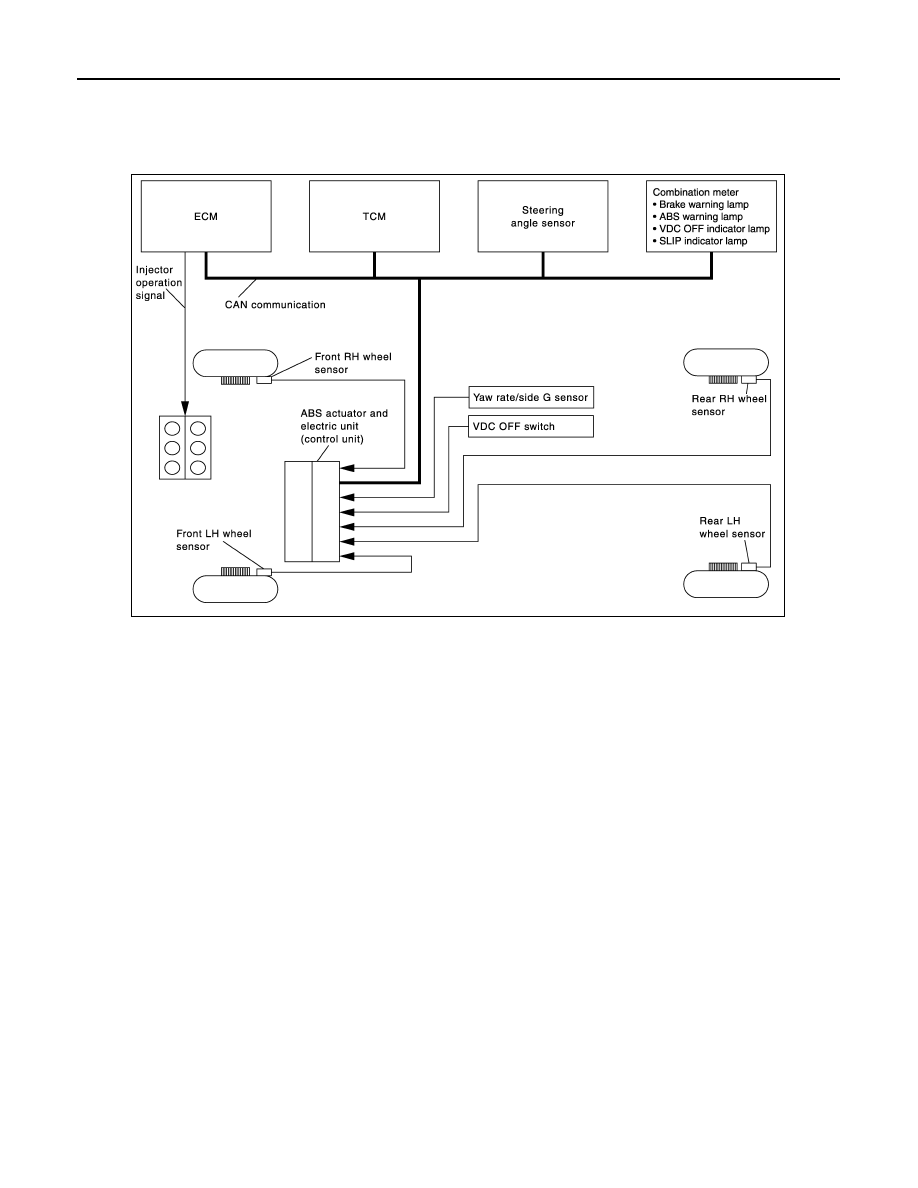

System Diagram

INFOID:0000000003767315

System Description

INFOID:0000000003766894

• Anti-Lock Braking System detects wheel revolution while braking, electronically controls braking force, and

prevents wheel locking during sudden braking. It improves handling stability and maneuverability for avoid-
ing obstacles.

• Electrical system diagnosis by CONSULT-III is available.

JSFIA0259GB

ABS

BRC-75

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

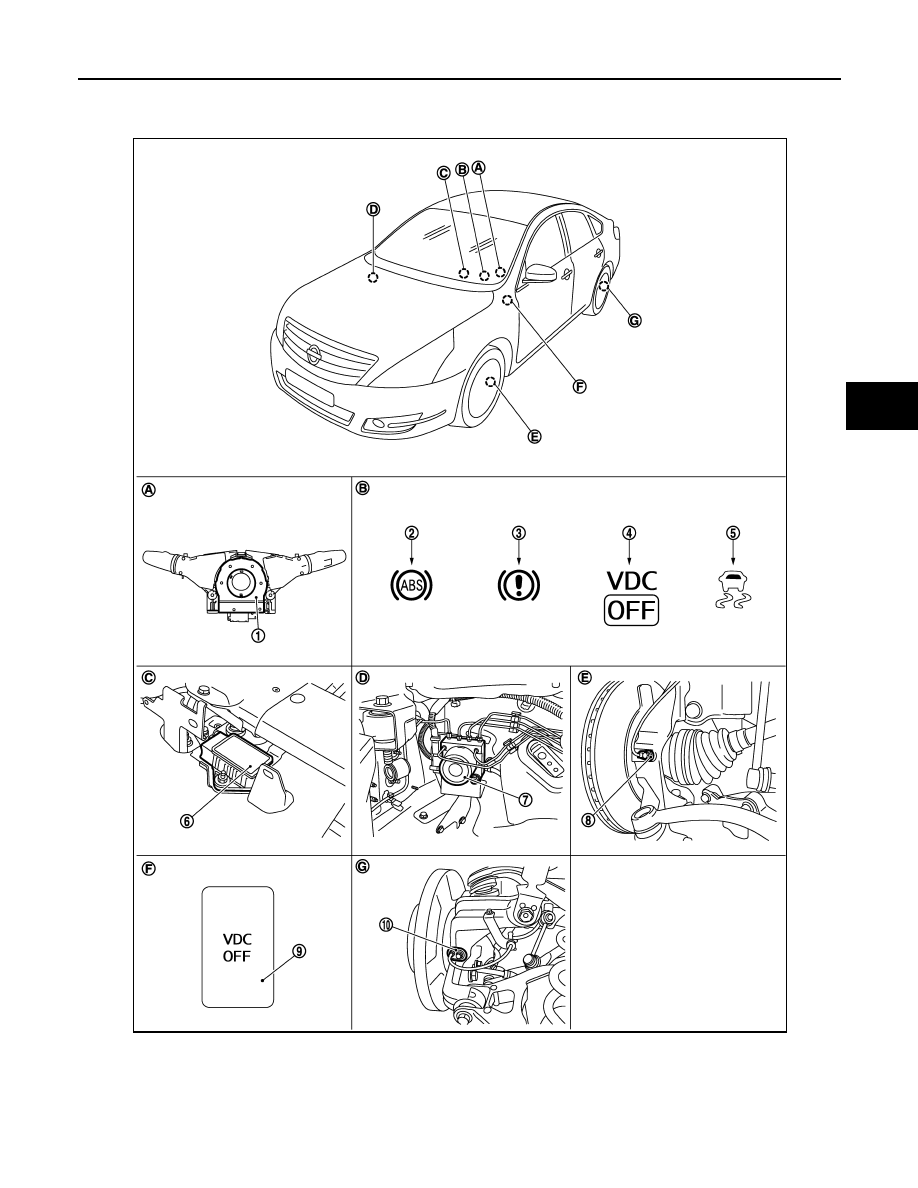

Component Parts Location

INFOID:0000000003767316

1.

Steering angle sensor

2.

ABS warning lamp

3.

Brake warning lamp

4.

VDC OFF indicator lamp

5.

SLIP indicator lamp

6.

Yaw rate/side G sensor

7.

ABS actuator and electric unit (con-
trol unit)

8.

Front wheel sensor

9.

VDC OFF switch

10. Rear wheel sensor

JSFIA0260ZZ

BRC-76

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

ABS

Component Description

INFOID:0000000003767317

A.

Back of spiral cable assembly

B.

Combination meter

C.

Under center console

D.

Engine room right side

E.

Steering knuckle

F.

Instrument driver lower panel

G.

Rear axle

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-94, "Description"

Motor

Actuator relay (main relay)

BRC-106, "Description"

Solenoid valve

BRC-103, "Description"

Pressure sensor

BRC-108, "Description"

VDC switch-over valve (USV1, USV2)

BRC-118, "Description"

VDC switch-over valve (HSV1, HSV2)

BRC-120, "Description"

Wheel sensor

BRC-96, "Description"

Yaw rate/side G sensor

BRC-113, "Description"

Steering angle sensor

BRC-110, "Description"

VDC OFF switch

BRC-126, "Description"

ABS warning lamp

BRC-128, "Description"

Brake warning lamp

BRC-129, "Description"

VDC OFF indicator lamp

BRC-130, "Description"

SLIP indicator lamp

BRC-131, "Description"

EBD

BRC-77

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

EBD

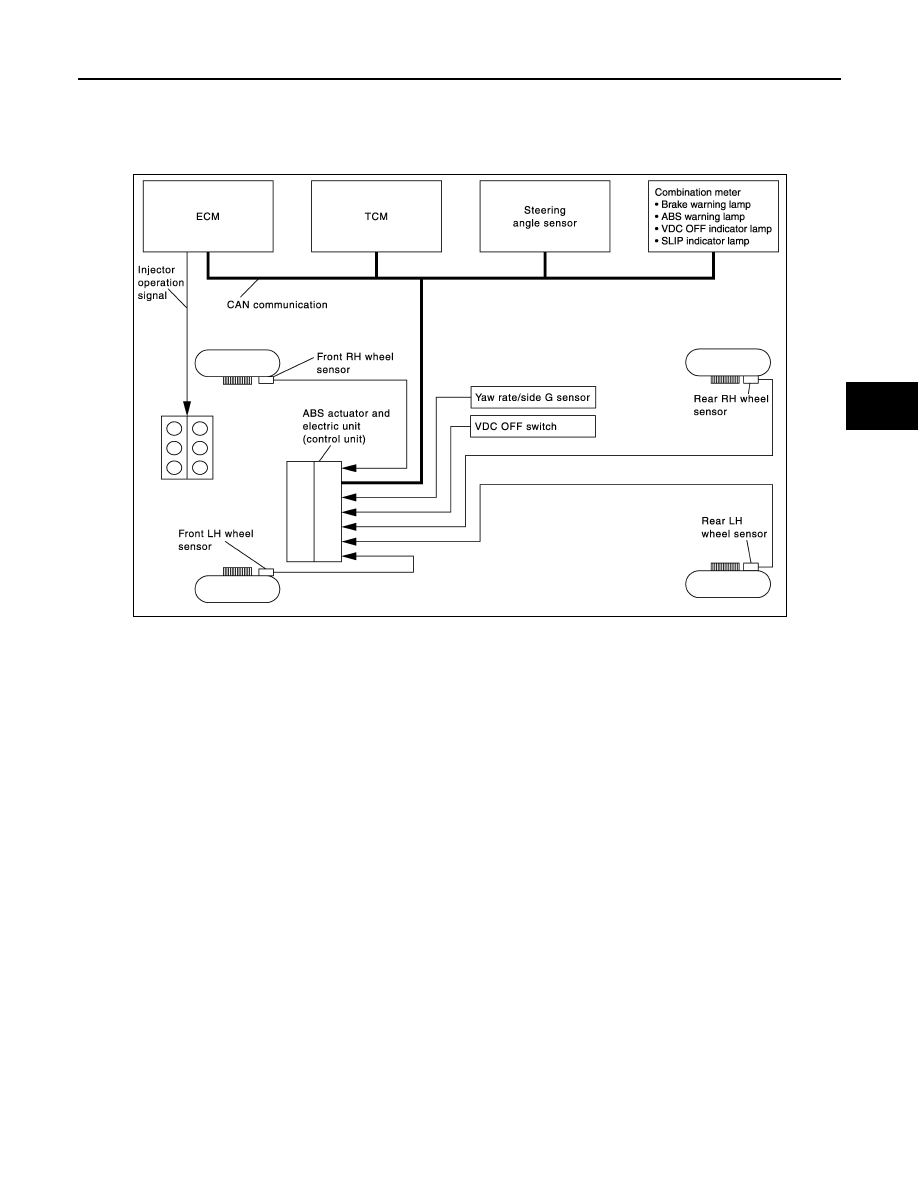

System Diagram

INFOID:0000000003767318

System Description

INFOID:0000000003766898

• Electric Brake force Distribution is a following function. ABS actuator and electric unit (control unit) detects

subtle slippages between the front and rear wheels during braking. Then is electronically controls the rear
braking force (brake fluid pressure) to reducing and reduces rear wheel slippage. Accordingly it improves
vehicle stability.

• Electrical system diagnosis by CONSULT-III is available.

JSFIA0259GB
