BCM (BODY CONTROL MODULE)
ON-VEHICLE REPAIR
BCM (BODY CONTROL MODULE)

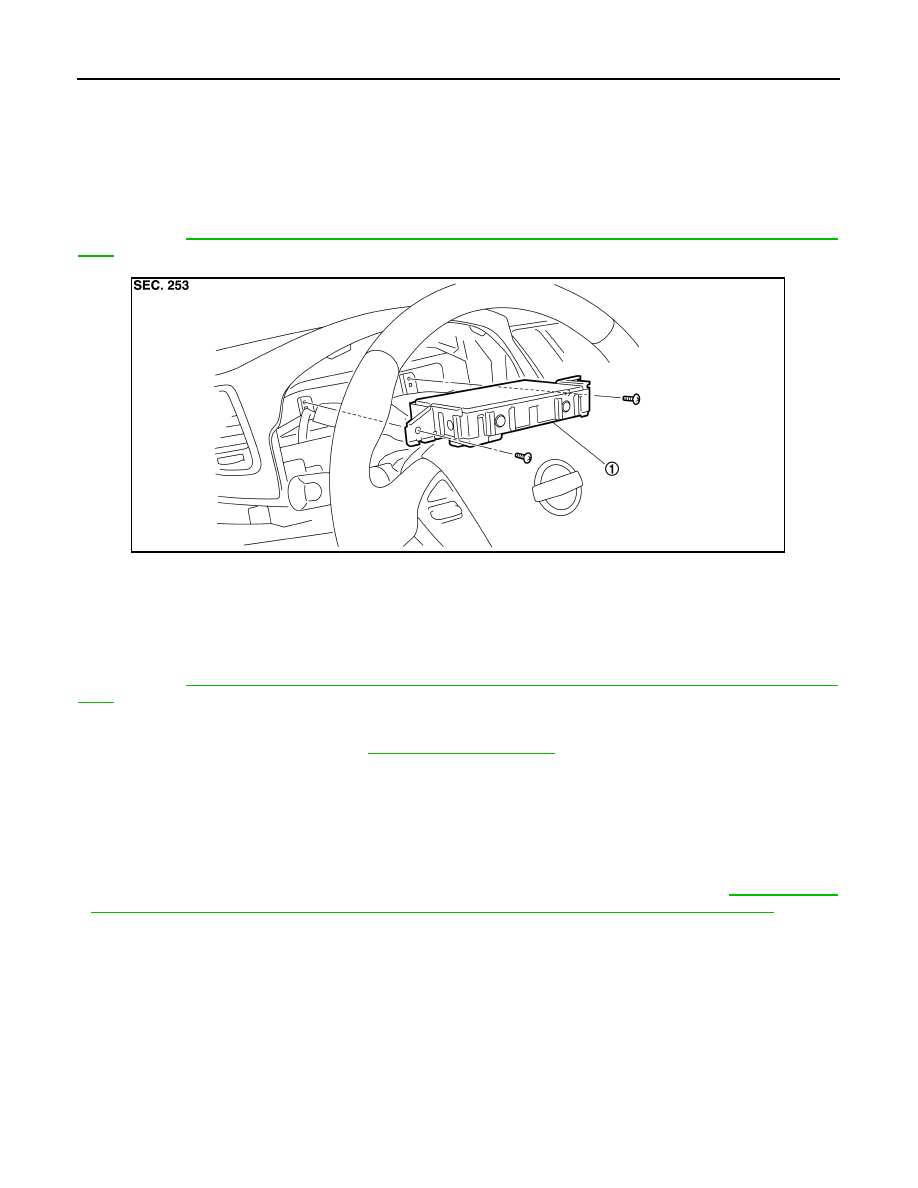

Exploded View
INFOID:0000000003809634
CAUTION:
Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specifica-
tion. Refer to
BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Descrip-
.
Removal and Installation
INFOID:0000000003809635
CAUTION:
Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specifica-
tion. Refer to
BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Descrip-
.
REMOVAL
1.
Remove combination meter. Refer to
.
2.
Remove screws.
3.
Remove BCM and disconnect the connector.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
• Be sure to perform “WRITE CONFIGURATION” when replacing BCM.
• Be sure to perform the system initialization (NATS) when replacing BCM. Refer to
TIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Special Repair Requirement"
.
1.
BCM
JPMIA1038ZZ
