DIAGNOSIS SYSTEM (BCM)

DATA MONITOR

ACTIVE TEST

REAR WINDOW DEFOGGER

REAR WINDOW DEFOGGER : CONSULT-III Function (BCM - REAR DEFOGGER)

INFOID:0000000003897058

Data monitor

ACTIVE TEST

BUZZER

Monitor item

Description

DOOR LOCK-UNLOCK SET

Selective unlock function mode can be changed to operate (WITH) or not operate (WITHOUT) with
this mode.

Monitor Item

Contents

REQ SW-DR

Indicates [ON/OFF] condition of door request switch (driver side).

REQ SW-AS

Indicates [ON/OFF] condition of door request switch (passenger side).

REQ SW-BD/TR

Indicates [ON/OFF] condition of trunk lid opener request switch.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch (driver side).

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch (passenger side).

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch RH.

DOOR SW-RL

Indicates [ON/OFF] condition of rear door switch LH.

DOOR SW-BK

NOTE:
This item is displayed, but cannot be monitored.

CDL LOCK SW

Indicates [ON/OFF] condition of lock signal from door lock unlock switch.

CDL UNLOCK SW

Indicates [ON/OFF] condition of unlock signal from door lock unlock switch.

KEY CYL LK-SW

Indicates [ON/OFF] condition of lock signal from door key cylinder.

KEY CYL UN-SW

Indicates [ON/OFF] condition of unlock signal from door key cylinder.

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation.
• The all door lock actuators are locked when “ALL LCK” on CONSULT-III screen is touched.
• The all door lock actuators are unlocked when “ALL UNLK” on CONSULT-III screen is touched.
• The door lock actuator (driver side) is unlocked when “DR UNLK” on CONSULT-III screen is

touched.

• The door lock actuator (passenger side) is unlocked when “AS UNLK” on CONSULT- III screen

is touched.

• The door lock actuator (rear LH and RH) is unlocked when “OTR ULK” on CONSULT-III screen

is touched.

Monitor Item

Description

REAR DEF SW

• Without AV control unit: Displays “Press (ON)/other (OFF)” status determined with the rear win-

dow defogger switch

• With AV control unit: This is displayed even when it is not equipped

PUSH SW

Indicates [ON/OFF] condition of push switch

Test Item

Description

REAR DEFOGGER

This test is able to check rear window defogger operation. Rear window defogger operates when
“ON” on CONSULT-III screen is touched

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-19

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BUZZER : CONSULT-III Function (BCM - BUZZER)

INFOID:0000000003897064

CONSULT-III APPLICATION ITEMS

DATA MONITOR

ACTIVE TEST

INT LAMP

INT LAMP : CONSULT-III Function (BCM - INT LAMP)

INFOID:0000000003897059

WORK SUPPORT

Test item

Diagnosis mode

Description

BUZZER

Data Monitor

Displays BCM input data in real time.

Active Test

Operation of electrical loads can be checked by sending driving signal to them.

Display item

[Unit]

Description

PUSH SW
[On/Off]

Status of push button ignition switch judged by BCM.

UNLK SEN-DR
[On/Off]

Status of unlock sensor judged by BCM.

VEH SPEED 1
[km/h]

Value of vehicle speed signal received from ABS actuator and electric unit (control unit) with CAN
communication line.

KEY SW-SLOT
[On/Off]

Status of key slot judged by BCM.

TAIL LAMP SW
[On/Off]

Status of each switch judged by BCM using the combination switch readout function.

FR FOG SW
[On/Off]

Status of front fog lamp switch judged by BCM.

DOOR SW-DR
[On/Off]

Status of driver side door switch judged by BCM.

Display item

[Unit]

Description

IGN KEY WARN ALM

The key warning chime operation can be checked by operating the relevant function (On/Off).

LIGHT WARN ALM

The light warning chime operation can be checked by operating the relevant function (On/Off).

RUN FLAT/T WARN BUZZER

This item is displayed, but not function.

JPLIA0093GB

BCS-20

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

*: Factory setting

DATA MONITOR

Service item

Setting item

Setting

SET I/L D-UNLCK INTCON

On*

With the interior room lamp timer function

Off

Without the interior room lamp timer function

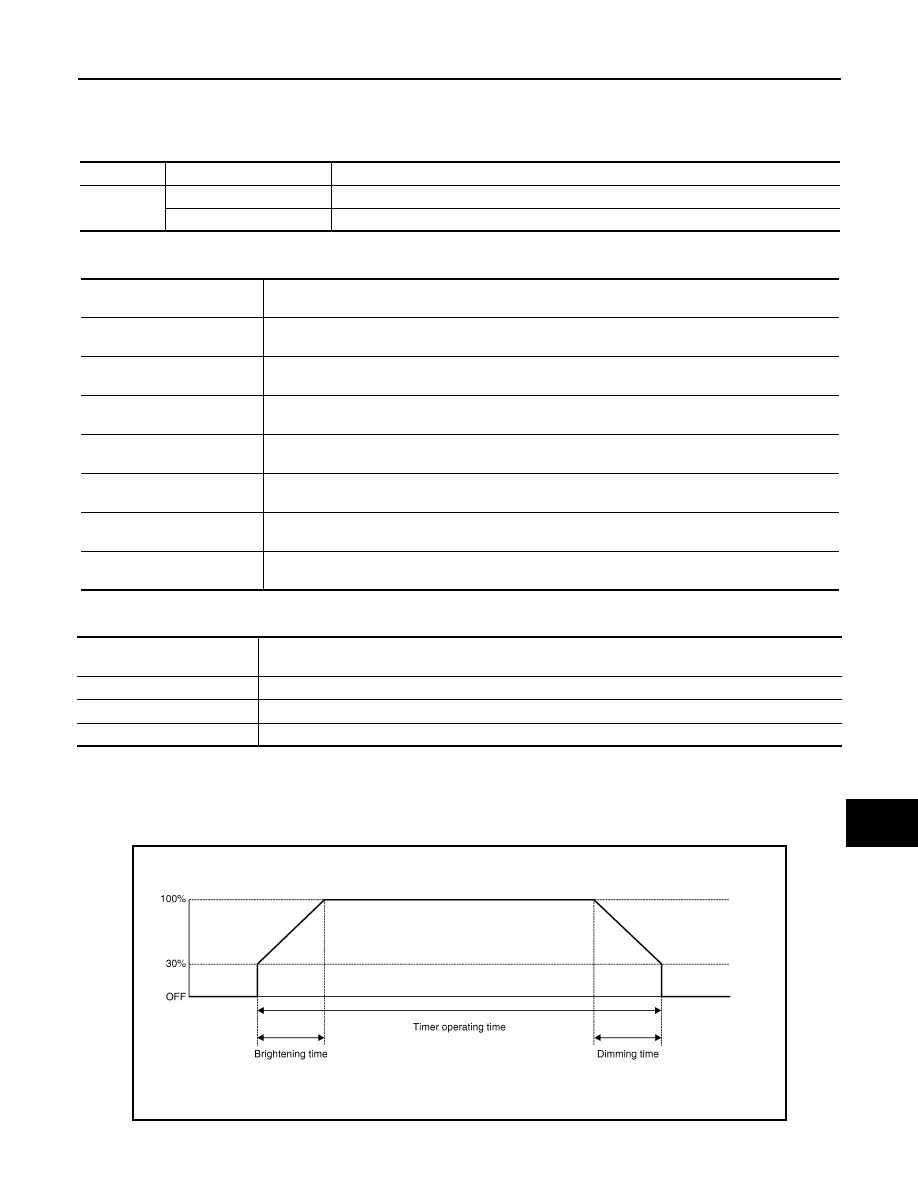

ROOM LAMP TIMER SET

MODE 2

7.5 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 3*

15 sec.

MODE 4

30 sec.

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

0 sec.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2

1 sec.

MODE 3

2 sec.

MODE 4*

3 sec.

MODE 5

0 sec.

R LAMP TIMER LOGIC SET

MODE 1*

Interior room lamp timer activates with synchronizing all doors.

MODE 2

Interior room lamp timer activates with synchronizing the driver door
only.

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

The switch status input from request switch (driver side)

REQ SW-AS
[On/Off]

The switch status input from front request switch (passenger side)

PUSH SW
[On/Off]

The switch status input from push-button ignition switch

KEY SW-SLOT
[On/Off]

Key switch status input from key slot

DOOR SW-DR
[On/Off]

The switch status input from front door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from rear door switch RH

DOOR SW- RL
[On/Off]

The switch status input from rear door switch LH

DOOR SW-BK
[On/Off]

NOTE:
The item is indicated, but not monitored.

CDL LOCK SW
[On/Off]

Lock switch status received from door lock/unlock switch

CDL UNLOCK SW
[On/Off]

Unlock switch status received from door lock/unlock switch

KEY CYL LK-SW
[On/Off]

NOTE:
The item is indicated, but not monitored.

KEY CYL UN-SW
[On/Off]

NOTE:
The item is indicated, but not monitored.

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-21

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ACTIVE TEST

HEADLAMP

HEADLAMP : CONSULT-III Function (BCM - HEAD LAMP)

INFOID:0000000003897061

WORK SUPPORT

*: Factory setting

DATA MONITOR

TRNK/HAT MNTR
[On/Off]

The switch status input from trunk room lamp switch

RKE-LOCK
[On/Off]

Lock signal status received from remote keyless entry receiver

RKE-UNLOCK
[On/Off]

Unlock signal status received from remote keyless entry receiver

Monitor item

[Unit]

Description

Test item

Operation

Description

INT LAMP

On

Outputs the interior room lamp control signal to turn map lamp and personal lamp ON
(Map lamp switch is in DOOR position).

Off

Stops the interior room lamp control signal to turn map lamp and personal lamp OFF.

STEP LAMP TEST

On

Outputs the step lamp control signal to turn step lamp ON.

Off

Stops the step lamp control signal to turn step lamp OFF.

LUGGAGE LAMP TEST

On

Outputs the trunk room lamp control signal to turn trunk room lamp ON.

Off

Stops the trunk room lamp control signal to turn trunk room lamp OFF.

Service item

Setting item

Setting

BATTERY SAVER SET

On*

With the exterior lamp battery saver function

Off

Without the exterior lamp battery saver function

ILL DELAY SET

MODE 1*

45 sec.

Sets delay timer function timer operation time.
(All doors closed)

MODE 2

Without the func-
tion

MODE 3

30 sec.

MODE 4

60 sec.

MODE 5

90 sec.

MODE 6

120 sec.

MODE 7

150 sec.

MODE 8

180 sec.

CUSTOM A/LIGHT SET-
TING

MODE 1*

Normal

MODE 2

More sensitive setting than normal setting (Turns ON earlier than normal operation.)

MODE 3

More sensitive setting than MODE 2 (Turns ON earlier than MODE 2.)

MODE 4

Less sensitive setting than normal setting (Turns ON later than normal operation.)

Monitor item

[Unit]

Description

PUSH SW
[On/Off]

The switch status input from push-button ignition switch

ENGINE STATE
[Stop/Stall/Crank/Run]

The engine status received from ECM with CAN communication
