Nissan Teana J32. Manual - part 173





AV

DISPLAY UNIT

AV-547

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DISPLAY UNIT

Reference Value

INFOID:0000000003765970

TERMINAL LAYOUT

PHYSICAL VALUES

JPNIA0006ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

1

(B/W)

Ground

Ground

Ignition

switch

ON

0  V

2

(Y)

Ground

Battery power supply

Input

ignition

switch

OFF

Battery voltage

3

(V/Y)

Ground

ACC power supply

Input

Ignition

switch

ACC

Battery voltage

4

Composite image shield

—

5

(W)

Ground

Composite image ground

Ignition

switch

ON

0  V

6

(R)

Ground

RGB image signal (G:
green)

Input

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

7

RGB image ground

Ignition

switch

ON

0  V

8

(W)

Ground

Horizontal synchronizing
(HP) signal

Output

Ignition

switch

ON

SKIB2236J

SKIB3601E

AV-548

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DISPLAY UNIT

9

(B)

Ground

RGB area (YS) signal

Input

Ignition

switch

ON

When RGB image is dis-
played.

5.0 V

When camera image or
AUX image is displayed.

11

(R)

Ground

Communication signal
(CONT

DISP)

Input

Ignition

switch

ON

When adjusting display
brightness.

13

(B/W)

Ground

Ground

Ignition

switch

ON

0  V

15

(B)

Ground

Composite image signal

Input

Ignition

switch

ON

When rear view camera im-
age or AUX image is dis-
played.

17

(W)

Ground

RGB image signal (R: red)

Input

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

18

(B)

Ground

RGB image signal (B: blue)

Input

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by
selecting“Color Spectrum
Bar” on DISPLAY DIAGNO-
SIS screen.

19

(G)

Ground

RGB synchronizing signal

Input

Ignition

switch

ON

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

PKIB4948J

PKIB5039J

SKIB2251J

SKIB2238J

SKIB2237J

SKIB3603E

AV

DISPLAY UNIT

AV-549

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

20

(R)

Ground

Vertical synchronizing (VP)
signal

Output

Ignition

switch

ON

21

Ground

RGB synchronizing ground

22

(G)

Ground

Communication signal
(DISP

CONT)

Output

Ignition

switch

ON

When adjusting display
brightness.

23

Shield —

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

SKIB3598E

PKIB5039J

AV-550

< ECU DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DISPLAY UNIT

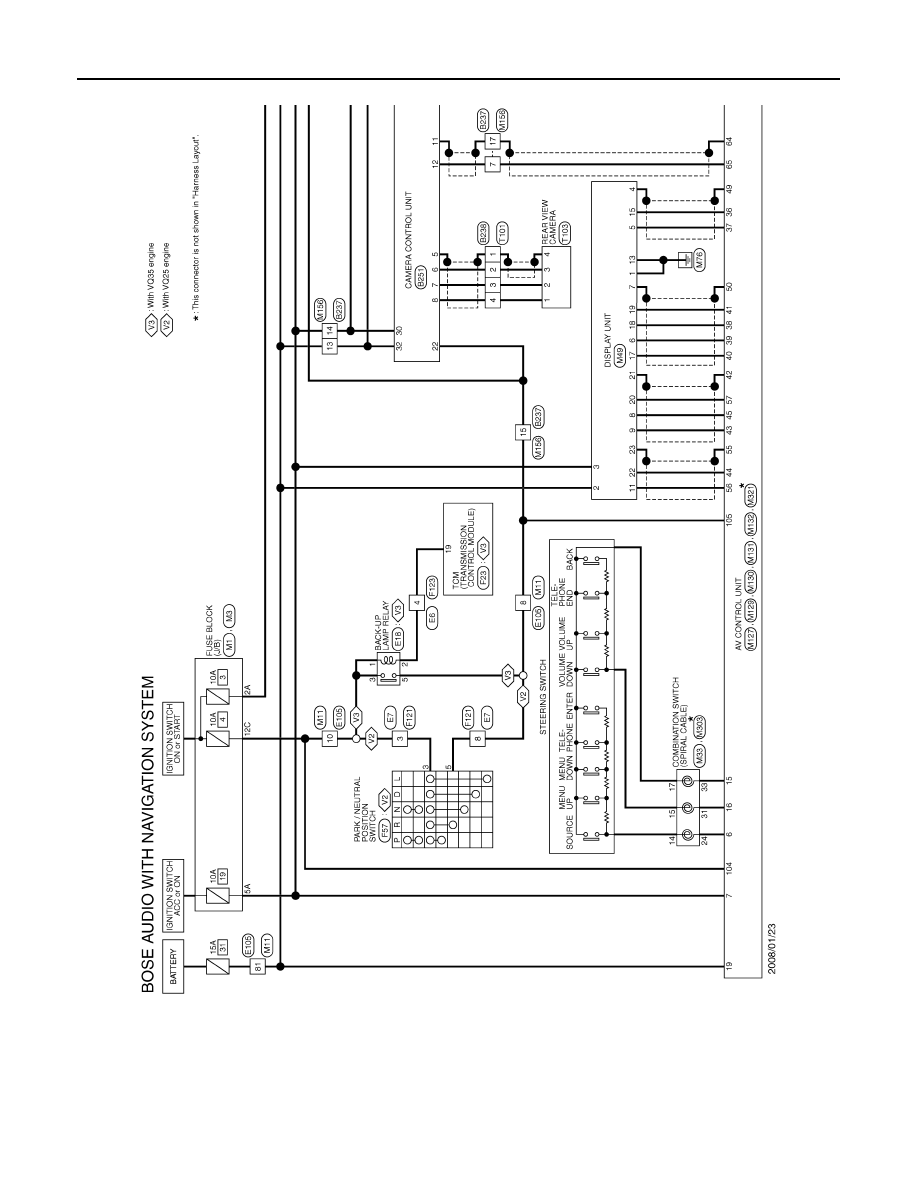

Wiring Diagram — BOSE AUDIO WITH NAVIGATION SYSTEM —

INFOID:0000000003971964

JCNWM0897GB
