STEERING SWITCH SIGNAL B CIRCUIT

AV-491

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH SIGNAL B CIRCUIT

Description

INFOID:0000000003765941

Transmits the steering switch signal to AV control unit.

Diagnosis Procedure

INFOID:0000000003765942

1.

CHECK STEERING SWITCH SIGNAL B CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect AV control unit connector and spiral cable connector.

3.

Check continuity between AV control unit harness connector and spiral cable harness connector.

4.

Check continuity between AV control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SPIRAL CABLE

Check spiral cable.

Is inspection result normal?

YES

>> GO TO 3.

NO

>> Replace spiral cable.

3.

CHECK AV CONTROL UNIT VOLTAGE

1.

Connect AV control unit connector and spiral cable connector.

2.

Turn ignition switch ON.

3.

Check voltage between AV control unit harness connector.

Is inspection result normal?

YES

>> GO TO 4.

NO

>> Replace AV control unit.

4.

CHECK STEERING SWITCH

1.

Turn ignition switch OFF.

2.

Check steering switch. Refer to

AV-492, "Component Inspection"

.

Is inspection result normal?

YES

>> INSPECTION END

NO

>> Replace steering switch.

AV control unit

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M127

16

M33

31

Existed

AV control unit

Ground

Continuity

Connector

Terminal

M127

16

Not existed

(+)

(

)

Voltage

(Approx.)

AV control unit

AV control unit

Connector

Terminal

Connector

Terminal

M127

16

M127

15

3.5 V

AV-492

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

STEERING SWITCH SIGNAL B CIRCUIT

Component Inspection

INFOID:0000000003765943

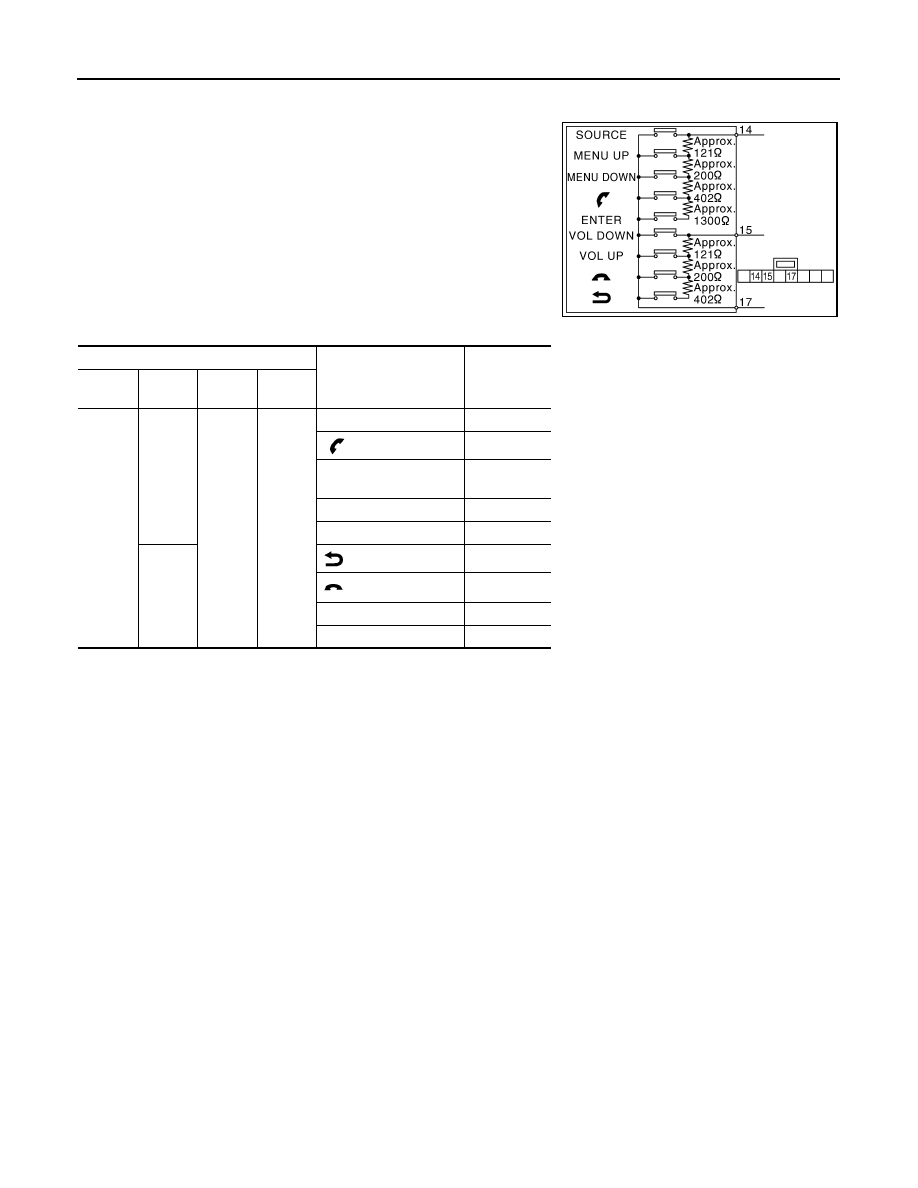

Measure the resistance between the steering switch connector ter-
minals 14 to 17 and 15 to 17.

Standard

JSNIA0502GB

Steering switch

Condition

Resistance

Con-

nector

Termi-

nal

Con-

nector

Termi-

nal

M303

14

M303

17

ENTER switch ON

1983 – 2063



 switch ON

709 – 737

MENU DOWN switch
ON

315 – 327

MENU UP switch ON

119 – 123

SOURCE switch ON

1

15

 switch ON

709 – 737

 switch ON

315 – 327

VOL UP switch ON

119 – 123

VOL DOWN switch ON

1

AV

STEERING SWITCH SIGNAL GND CIRCUIT

AV-493

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH SIGNAL GND CIRCUIT

Description

INFOID:0000000003765944

Transmits the steering switch signal to AV control unit.

Diagnosis Procedure

INFOID:0000000003765945

1.

CHECK STEERING SWITCH SIGNAL GND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect AV control unit connector and spiral cable connector.

3.

Check continuity between AV control unit harness connector and spiral cable harness connector.

4.

Connect AV control unit connector.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SPIRAL CABLE

Check spiral cable.

Is inspection result normal?

YES

>> GO TO 3.

NO

>> Replace spiral cable.

3.

CHECK GROUND CIRCUIT

1.

Connect AV control unit connector.

2.

Check continuity between AV control unit harness connector and ground.

Is inspection result normal?

YES

>> GO TO 4.

NO

>> Replace AV control unit.

4.

CHECK STEERING SWITCH

Check steering switch. Refer to

AV-494, "Component Inspection"

.

Is inspection result normal?

YES

>> INSPECTION END

NO

>> Replace steering switch.

AV control unit

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M127

15

M33

33

Existed

AV control unit

Ground

Continuity

Connector

Terminal

M127

15

Existed

AV-494

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

STEERING SWITCH SIGNAL GND CIRCUIT

Component Inspection

INFOID:0000000003765946

Measure the resistance between the steering switch connector ter-
minals 14 to 17 and 15 to 17.

Standard

JSNIA0502GB

Steering switch

Condition

Resistance

Con-

nector

Termi-

nal

Con-

nector

Termi-

nal

M303

14

M303

17

ENTER switch ON

1983 – 2063



 switch ON

709 – 737

MENU DOWN switch
ON

315 – 327

MENU UP switch ON

119 – 123

SOURCE switch ON

1

15

 switch ON

709 – 737

 switch ON

315 – 327

VOL UP switch ON

119 – 123

VOL DOWN switch ON

1
