DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-431

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

FL speaker OUT: open

Sound signal front speaker LH circuit is
open.

Check sound signal front speaker LH cir-
cuit.

FL speaker OUT: short

Sound signal front speaker LH circuit is
shorted between front speaker LH signal
(+) and front speaker LH signal (-).

Check sound signal front speaker LH cir-
cuit.

FL speaker OUT: short to ground

Sound signal front speaker LH circuit to
ground is shorted.

Check sound signal front speaker LH cir-
cuit.

FL speaker OUT: short to battery

Sound signal front speaker LH circuit to
battery is shorted.

Check sound signal front speaker LH cir-
cuit.

FL tweeter OUT: open

Sound signal front squawker LH circuit is
open.

Check sound signal front squawker LH cir-
cuit.

FL tweeter OUT: short

Sound signal front squawker LH circuit is
shorted between front squawker LH signal
(+) and front squawker LH signal (-).

Check sound signal front squawker LH cir-
cuit.

FL tweeter OUT: short to ground

Sound signal front squawker LH circuit to
ground is shorted.

Check sound signal front squawker LH cir-
cuit.

FL tweeter OUT: short to battery

Sound signal front squawker LH circuit to
battery is shorted.

Check sound signal front squawker LH cir-
cuit.

FR tweeter OUT: open

Sound signal front squawker RH circuit is
open.

Check sound signal front squawker RH cir-
cuit.

FR tweeter OUT: short

Sound signal front squawker RH circuit is
shorted between front squawker RH signal
(+) and front squawker RH signal (-).

Check sound signal front squawker RH cir-
cuit.

FR tweeter OUT: short to ground

Sound signal front squawker RH circuit to
ground is shorted.

Check sound signal front squawker RH cir-
cuit.

FR tweeter OUT: short to battery

Sound signal front squawker RH circuit to
battery is shorted.

Check sound signal front squawker RH cir-
cuit.

GPS Antenna Error

GPS antenna connection malfunction is de-
tected.

Replace the GPS antenna.

DVD Navi Internal Error

NAVI control unit malfunction is detected.

Replace the NAVI control unit.

Bluetooth module Error

TEL antenna connection malfunction is de-
tected.

TEL antenna.

AV COMM CIRCUIT

Rear control switch power supply and
ground circuits malfunction are detected.

Rear control switch power supply and
ground circuits.

• AV COMM CIRCUIT
• Switches Connection Error

When either one of the following items is
detected:
• multifunction switch power supply and

ground circuits are malfunctioning.

• AV communication circuits between AV

control unit and multifunction switch are
malfunctioning.

• AV communication signal between AV

control unit and multifunction switch is
malfunctioning.

• Multifunction switch power supply and

ground circuits.

• AV communication circuits between AV

control unit and multifunction switch.

• AV COMM CIRCUIT
• DVD Navi Unit Connection Error

NAVI control unit power supply and ground
circuits are malfunctioning.

NAVI control unit power supply and ground
circuits.

• AV COMM CIRCUIT
• Amplifier Connection Error

When either one of the following items is
detected:
• BOSE amp. power supply and ground

circuits are malfunctioning.

• AV communication signal between AV

control unit and BOSE amp is malfunc-
tioning.

BOSE amp. power supply and ground cir-
cuits.

Error item

Description

Possible malfunction factor/Action to take

AV-432

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Camera Cont.

Refer to

AV-419, "Diagnosis Description"

• AV COMM CIRCUIT
• Rear view Camera connection Error

When either one of the following items is
detected:
• camera control unit power supply and

ground circuits are malfunctioning.

• AV communication signal between AV

control unit and camera control unit is
malfunctioning.

Camera control unit power supply and
ground circuits.

• AV COMM CIRCUIT
• DVD Deck Connection Error

When either one of the following items is
detected:
• DVD player power supply and ground cir-

cuits are malfunctioning.

• AV communication circuits between

BOSE amp. and DVD player are mal-
functioning.

• AV communication signal between AV

control unit and DVD player is malfunc-
tioning.

• DVD player power supply and ground cir-

cuits.

• AV communication circuits between

BOSE amp. and DVD player.

• AV COMM CIRCUIT
• DVD Deck Connection Error
• Amplifier Connection Error

When either one of the following items is
detected:
• AV communication circuits between

NAVI control unit and BOSE amp. are
malfunctioning.

• AV communication signal between AV

control unit and BOSE amp. is malfunc-
tioning.

AV communication circuits between NAVI
control unit and BOSE amp.

• AV COMM CIRCUIT
• DVD Deck Connection Error
• Amplifier Connection Error
• DVD Navi Unit Connection Error

When either one of the following items is
detected:
• AV communication circuits between cam-

era control unit and NAVI control unit are
malfunctioning.

• AV communication signal between AV

control unit and NAVI control unit is mal-
functioning.

AV communication circuits between cam-
era control unit and NAVI control unit.

• AV COMM CIRCUIT
• DVD Deck Connection Error
• Amplifier Connection Error
• Rear view Camera connection Error
• DVD Navi Unit Connection Error

With rear control switch

When either one of the following items is
detected:

• malfunction is detected in AV communi-

cation circuits between rear control
switch and camera control unit.

• malfunction is detected in AV communi-

cation circuits between camera control
unit and NAVI control unit.

• AV communication circuits between mul-

tifunction switch and rear control switch.

• AV communication circuits between rear

control switch and camera control unit.

Without rear control switch

When either one of the following items is
detected:

• malfunction is detected in AV communi-

cation circuits between multifunction
switch and camera control unit.

• malfunction is detected in AV communi-

cation circuits between camera control
unit and NAVI control unit.

AV communication circuits between multi-
function switch and camera control unit.

• AV COMM CIRCUIT
• Switches Connection Error
• DVD Deck Connection Error
• Amplifier Connection Error
• DVD Navi Unit Connection Error
• Rear view Camera connection Error

When either one of the following items is
detected:
• AV communication circuits between AV

control unit and multifunction switch are
malfunctioning.

• AV communication signal between AV

control unit and multifunction switch are
malfunctioning.

AV communication circuits between AV
control unit and multifunction switch.

Error item

Description

Possible malfunction factor/Action to take

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-433

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

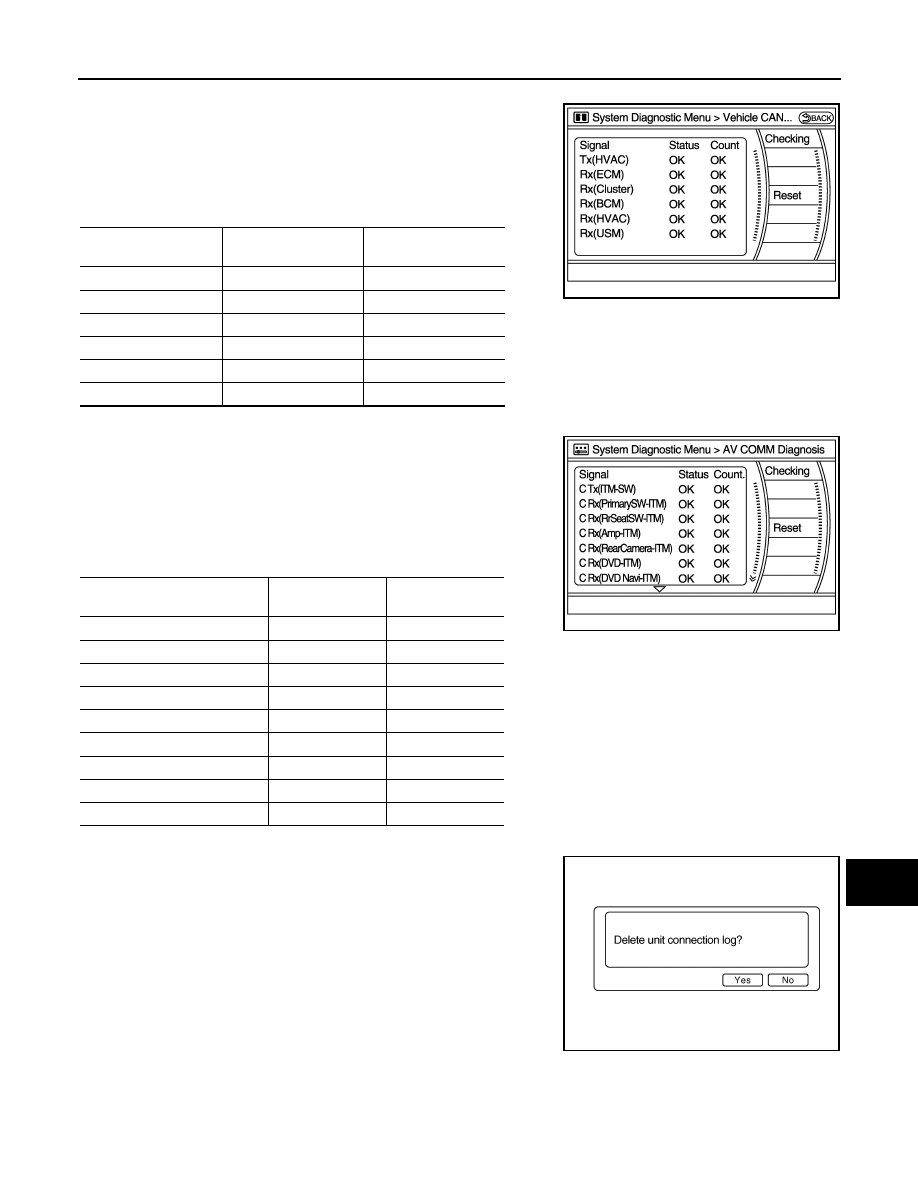

Vehicle CAN Diagnosis

• CAN communication status and error counter is displayed.
• The error counter displays “OK” if any malfunction was not

detected in the past and displays “0” if a malfunction is detected. It
increases by 1 if the condition is normal at the next ignition switch
ON cycle. The upper limit of the counter is 39.

• The error counter is erased if reset.

AV COMM Diagnosis

• Displays the communication status between AV control unit (mas-

ter unit) and each unit.

• The error counter displays “OK” if any malfunction was not

detected in the past and displays “0” if a malfunction is detected. It
increases by 1 if the condition is normal at the next ignition switch
ON cycle. The upper limit of the counter is 39.

• If it resets, the error counter is erased.

Delete Unit Connection Log

Deletes any unit connection records and error records from the AV
control unit memory. (Clear the records of the unit that has been
removed)

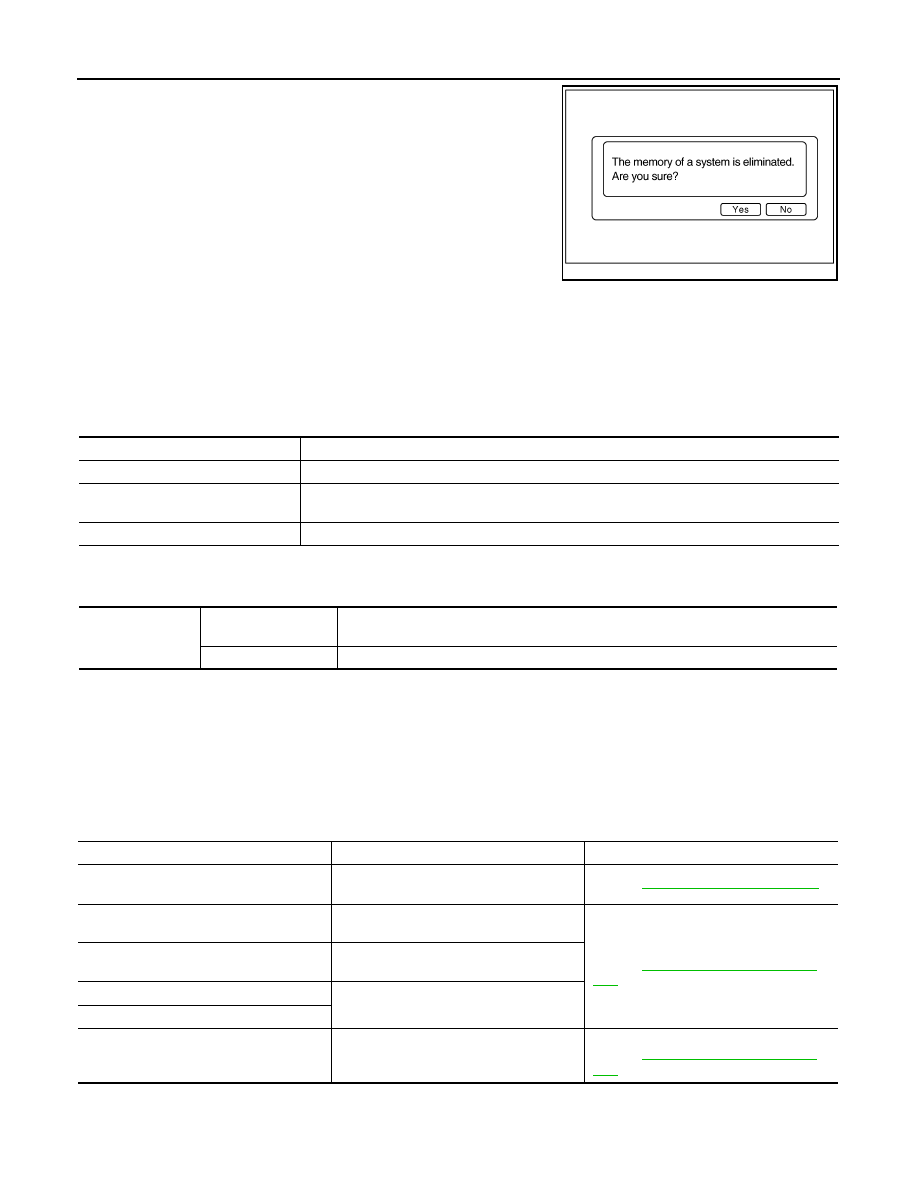

Initialize Settings

Items

Display (Current)

Malfunction counter

(Past)

Tx (HVAC)

OK / UNKWN

OK / 0 – 39

Rx (ECM)

OK / UNKWN

OK / 0 – 39

Rx (Cluster)

OK / UNKWN

OK / 0 – 39

Rx (BCM)

OK / UNKWN

OK / 0 – 39

Rx (HVAC)

OK / UNKWN

OK / 0 – 39

Rx (USM)

OK / UNKWN

OK / 0 – 39

JSNIA1287GB

Items

Status

(Current)

Counter

(Past)

C Tx(ITM–SW)

OK / UNKWN

OK / 0 – 39

C Rx(PrimarySW–ITM)

OK / UNKWN

OK / 0 – 39

C Rx(RrSeatSW–ITM)

OK / UNKWN

OK / 0 – 39

C Rx(Amp–ITM)

OK / UNKWN

OK / 0 – 39

C Rx(RearCamera–ITM)

OK / UNKWN

OK / 0 – 39

C Rx(DVD–ITM)

OK / UNKWN

OK / 0 – 39

C Rx(DVDNavi–ITM)

OK / UNKWN

OK / 0 – 39

C Rx(AmpAudio–ITM)

OK / UNKWN

OK / 0 – 39

C Rx(DVDAudio–ITM)

OK / UNKWN

OK / 0 – 39

JSNIA1292GB

JSNIA0522GB

AV-434

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Initializes the AV control unit memory.

CONSULT-III Function (MULTI AV)

INFOID:0000000003765848

CONSULT-III FUNCTIONS

CONSULT-III performs the following functions via the communication with the AV control unit.

CAUTION:

Be sure to turn the ignition switch OFF once after using CONSULT-III. (Navigation system may mal-
function if normally used when the ignition switch is not turned OFF after using CONSULT-III.)

AV COMMUNICATION

When “AV communication” of “CAN Diag Support Monitor” is selected, the following function will be performed.

ECU IDENTIFICATION

The part number of AV control unit is displayed.

SELF DIAGNOSTIC RESULT

• In CONSULT-III self-diagnosis, self-diagnosis results and error history are displayed collectively.
• The timing is displayed as “0” if any of the error codes [U1000], [U1010], [U1300] and [U1310] is detected.

The counter increases by 1 if the condition is normal at the next ignition switch ON cycle.

Self-diagnosis Results Display Item

JSNIA0155GB

Diagnosis mode

Description

Ecu Identification

The part number of AV control unit can be checked.

Self Diagnostic Result

Performs a diagnosis on the AV control unit and a connection diagnosis for the communication
circuit of the Multi AV system, and displays the current and past malfunctions collectively.

Data Monitor

The diagnosis of vehicle signal that is input to the AV control unit can be performed.

AV communication

AV&NAVI C/U

Displays the communication status from AV control unit to each unit as well as the error
counter.

AUDIO

Displays the AV control unit communication status and the error counter.

Error item

Detection logic

Possible malfunction factor/Action to take

CAN COMM CIRCUIT [U1000]

CAN communication malfunction is detect-
ed.
