AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-419

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Diagnosis Description

INFOID:0000000003765847

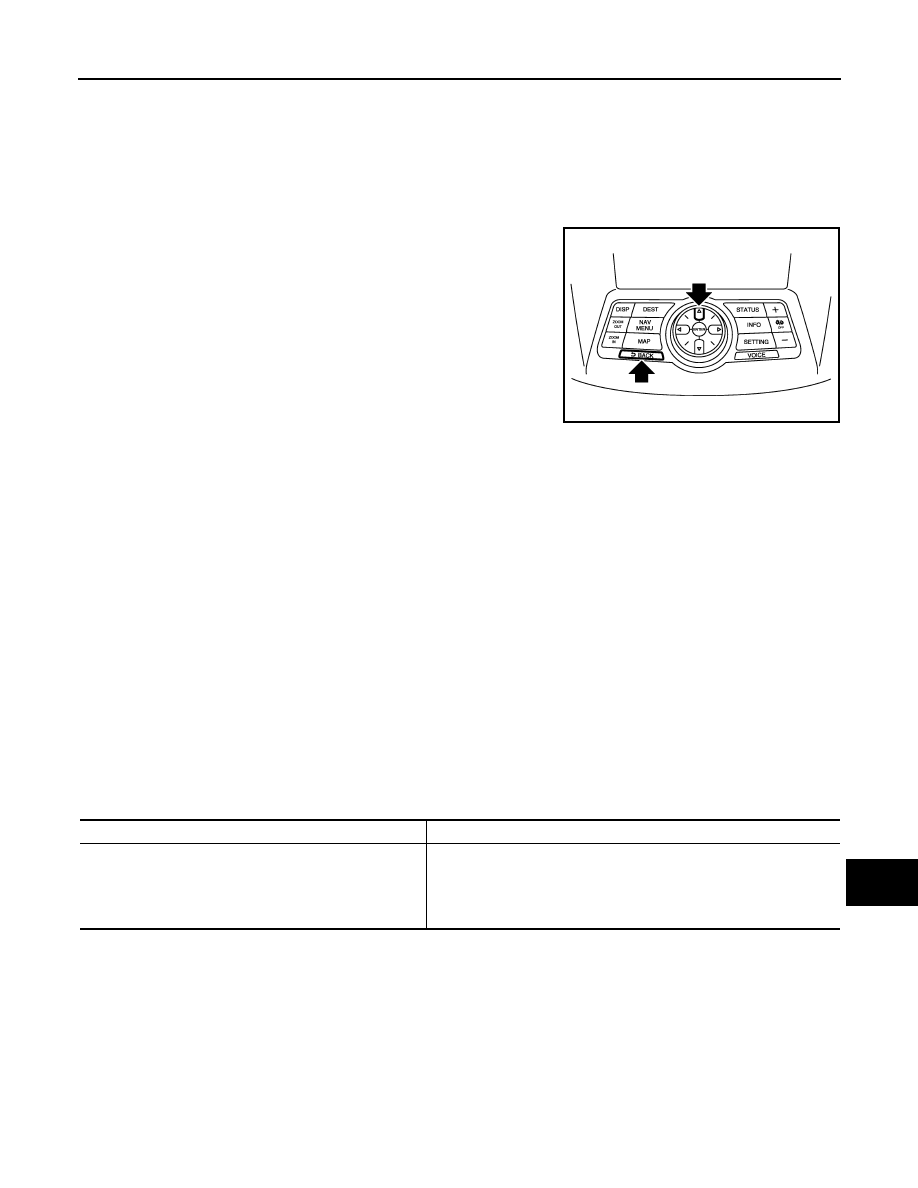

MULTIFUNCTION SWITCH AND PRESET SWITCH SELF-DIAGNOSIS FUNCTION

The on/off operation (continuity) of each switch in the multifunction switch and preset switch can be checked.

Self-Diagnosis Mode

• Press the “back” switch and the “up” switch of the 8-direction

switches within 10 seconds after turning the ignition switch from off
to ACC and hold them for 3 seconds or more. then the buzzer
sounds, all indicators of the preset switch illuminate, and the self-
diagnosis mode starts.

• The continuity of each switch at the on position can be checked by

pressing the switch. the buzzer sounds if the switch is normal.
NOTE:
The hazard switch and disk eject switch cannot be checked.

Finishing Self-diagnosis Mode

Self-diagnosis mode is canceled when turning the ignition switch off.

MULTI AV SYSTEM ON BOARD DIAGNOSIS FUNCTION

• The AV control unit diagnosis function starts up with multifunction switch operation and the AV control unit

performs a diagnosis for each unit in the system during the on board diagnosis.

• Perform a CONSULT-III diagnosis if the on board diagnosis does not start, e.g., the screen does not display

anything, the multifunction switch does not function. etc.

ON BOARD DIAGNOSIS

Description

• The trouble diagnosis function has a self-diagnosis mode for conducting trouble diagnosis automatically and

a confirmation/adjustment mode for operating manually.

• The self-diagnosis mode performs diagnoses on the AV control unit and NAVI control unit, connections

between system components as well as connections between NAVI control unit and GPS antenna and
between NAVI control unit and TEL antenna. Then it displays the diagnosis results on the display.

• The confirmation/adjustment mode allows the technician to check, modify or adjust the vehicle signals and

set values, as well as to monitor the system error records and system communication status. The check,
modify or adjust actions generally require human intervention and judgment (the system cannot make judg-
ment automatically.

On Board Diagnosis Item

JSNIA1289GB

Mode

Description

Self Diagnosis

• AV control unit diagnosis.
• NAVI control unit diagnosis.
• Diagnoses the connections across system components, between

NAVI control unit and GPS antenna and between NAVI control unit and
TEL antenna.

AV-420

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

NOTE:
*: On-board self-diagnosis is not supported. Only CONSULT-III is supported.

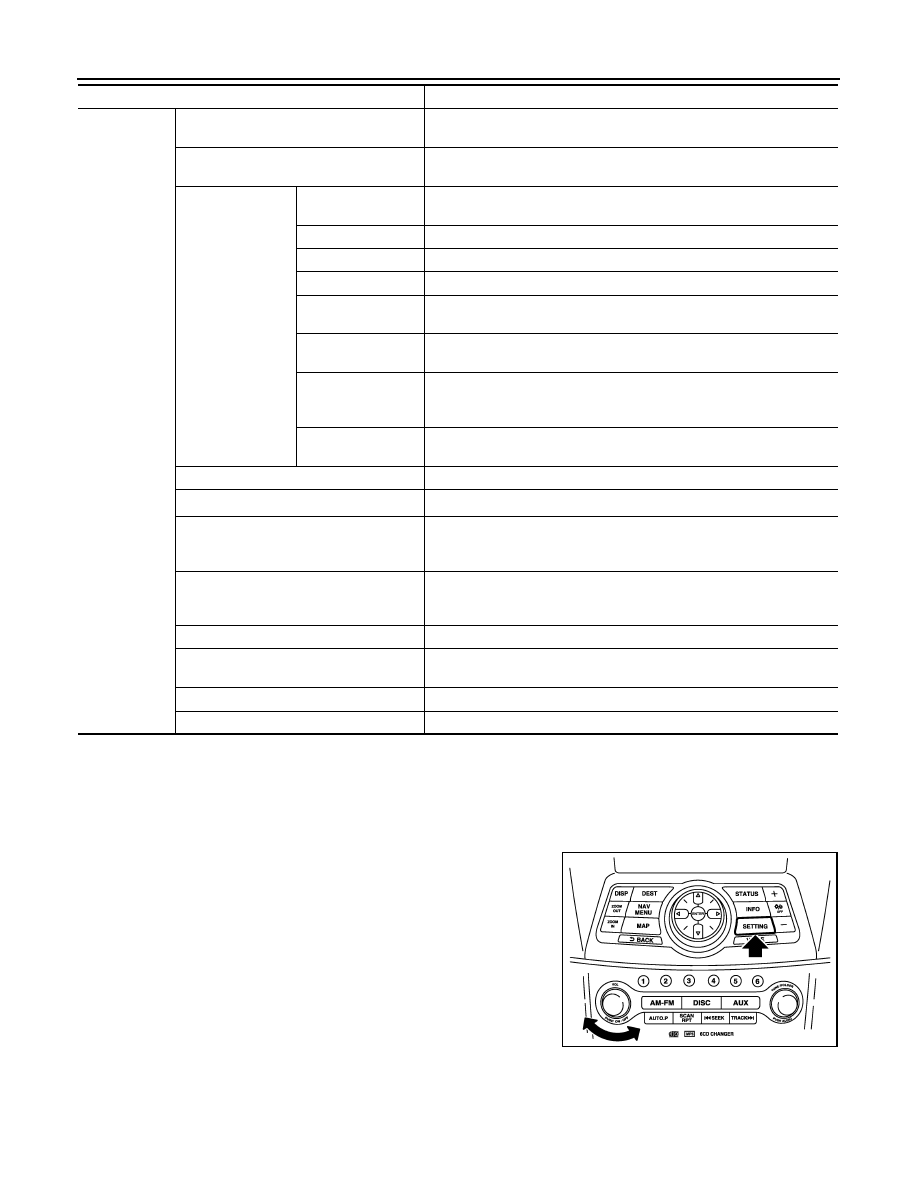

STARTING PROCEDURE

1.

Start the engine.

2.

Turn the audio system OFF.

3.

While pressing the “SETTING” button, turn the volume control
dial clockwise or counterclockwise for 40 clicks or more. (When
the self-diagnosis mode is started, a short beep will be heard.)
• Shifting from current screen to previous screen is performed

by pressing “BACK” button.

Confirmation/
Adjustment

Display Diagnosis

The confirmations of the tint with the color spectrum bar display and
shading of color with the gradation bar display can be performed.

Vehicle Signals

Diagnosis of signals can be performed for vehicle speed, parking brake,
lights, ignition switch, and reverse.

Navigation/Phone

Handsfree Voice Mi-
crophone Test

Microphone speaker check can be performed.

Color Spectrum Bar

A color tone can be checked by the color bar display.

Gradation Bar

A light and shade can be checked by the gray scale display.

Touch Panel

Touch panel response check can be performed.

Vehicle Signals

Diagnosis of signals can be performed for vehicle speed, parking brake,
lights, and reverse.

Confirm/Change
Bluetooth Passkey

The passkey can be checked and changed.

Confirm/Change
Bluetooth Device
Name

The device name can be checked and changed.

Handsfree Sound
Quality Set

Not available.

Speaker Test

The connection of a speaker can be confirmed by test tone.

Climate Control

*

Not used.

Error History

The system malfunction and the frequency when occurred in the past are
displayed. When the malfunctioning item is selected, the time and place
that the selected malfunction last occurred are displayed.

Camera Cont.

The signal connected to camera control unit can be checked and the
guiding line position that overlaps rear view camera image can be adjust-
ed.

Vehicle CAN Diagnosis

The transmitting/receiving of CAN communication can be monitored.

AV COMM Diagnosis

The communication condition of each unit of Multi AV system can be
monitored.

Delete Unit Connection Log

Erase the connection history of unit and error history.

Initialize Settings

Initializes the AV control unit memory.

Mode

Description

JSNIA1290GB

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-421

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

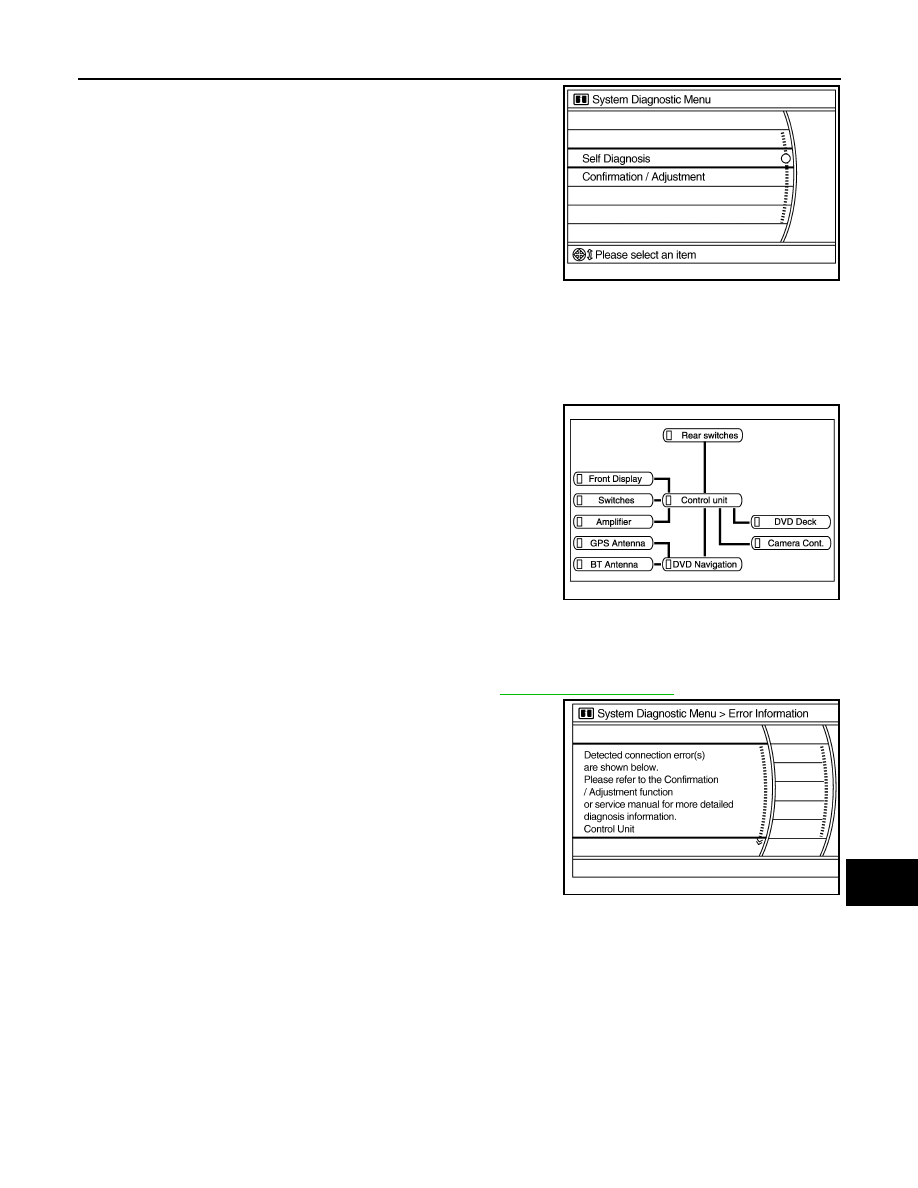

4.

The trouble diagnosis initial screen is displayed, and then the
items of “Self Diagnosis” and “Confirmation/Adjustment” can be
selected.

SELF-DIAGNOSIS MODE

1.

Start the self-diagnosis function and select “Self Diagnosis”.

-

Self-diagnosis subdivision screen is displayed, and the self-diagnosis mode starts.

-

The bar graph visible on the center of the self-diagnosis subdivision screen indicates progress of the trou-
ble diagnosis.

2.

Diagnosis results are displayed after the self-diagnosis is com-
pleted. The unit names and the connection lines are color-coded
according to the diagnostic results.

NOTE:
• In case of connection malfunction of GPS or TEL antenna, diagnosis result follows “unit malfunction”

way to display.

• Replace AV control unit if “Self-Diagnosis did not run because of a control unit malfunction” is indicated.

The symptom is AV control unit internal error. Refer to

AV-648, "Exploded View"

.

-

The comments of the self-diagnosis results can be viewed with a
component in the diagnosis result screen.

SELF-DIAGNOSIS RESULTS

• Check the applicable display at the following table, and then repair the malfunctioning parts.
• The self-diagnosis mode allows the technician to diagnose the connection in the communication line

between AV control unit and each unit and the internal operation of the AV control unit.

• Because the start condition of diagnosis function is a switch operation, the on board diagnosis function can-

not be started up if any malfunction is detected in the communication circuit between AV control unit and
multifunction switch.

Self-diagnosis Result Chart

JSNIA0512GB

Diagnosis results

Unit

Con-

nection

line

Normal

Green

Green

Connection malfunction

Gray

Yellow

Unit malfunction

Note

Red

Green

JSNIA1291GB

JSNIA0514GB

AV-422

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

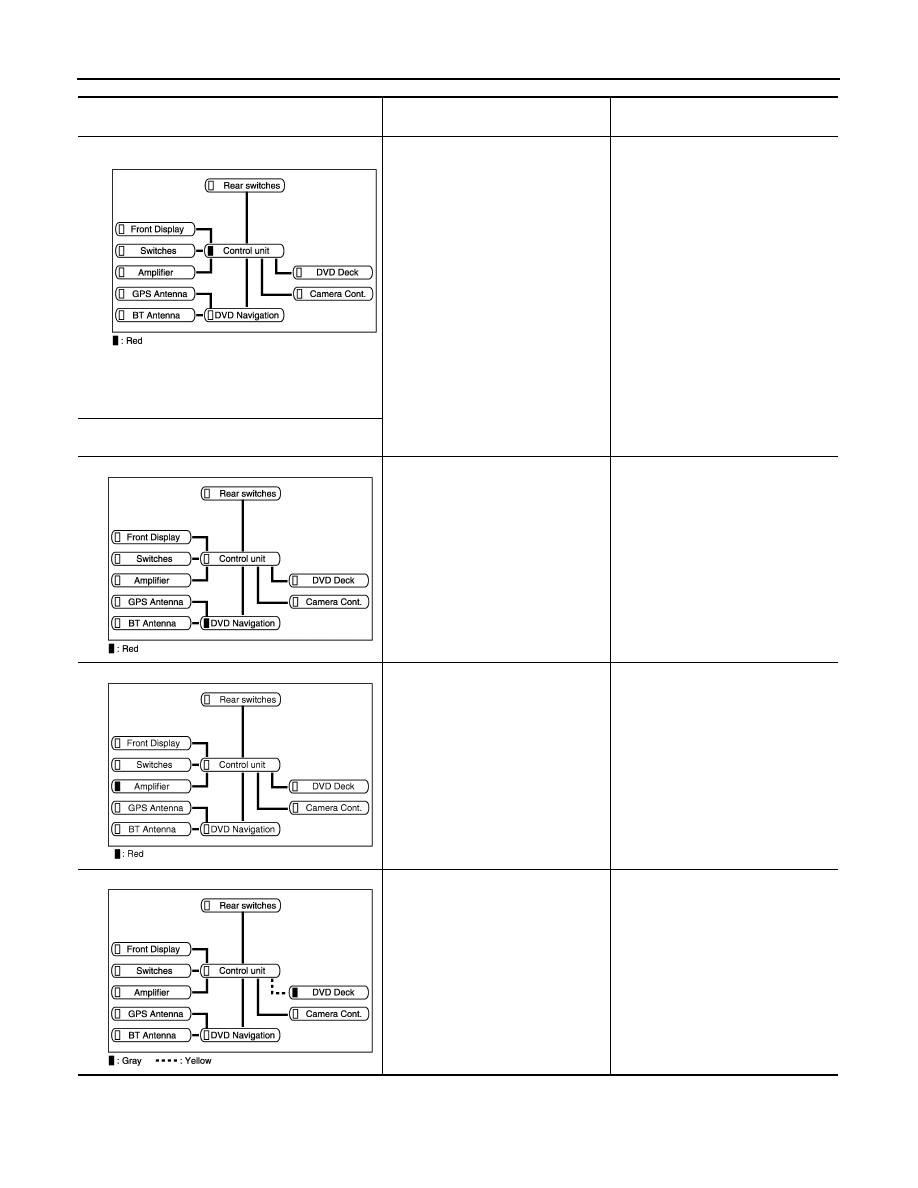

Area with yellow connection lines

Description

Possible malfunction location / Action

to take

NOTE:
When a control unit malfunction is detected (red in
unit display), connection malfunctions with other
connection unit may be displayed.

Malfunction is detected in AV control
unit power supply and ground circuits.

Check AV control unit power supply
and ground circuits. When detecting
no malfunction in those components,
replace AV control unit.

“Self-Diagnosis did not run because of a control unit
malfunction”

NAVI control unit malfunction is detect-
ed.

Replace NAVI control unit.

When either one of the following
items is detected:

• BOSE amp. malfunction is detected.
• sound signal circuits between BOSE

amp. and each speaker is malfunc-
tioning.

• Replace BOSE amp.
• Malfunctioning speaker circuits

When either one of the following
items is detected:

• DVD player power supply and

ground circuits are malfunctioning.

• AV communication circuits between

BOSE amp. and DVD player are
malfunctioning.

• AV communication signal between

AV control unit and DVD player is
malfunctioning.

• DVD player power supply and

ground circuits

• AV communication circuits between

BOSE amp. and DVD player

JSNIA1314GB

JSNIA1315GB

JPNIA1091GB

JSNIA1316GB
