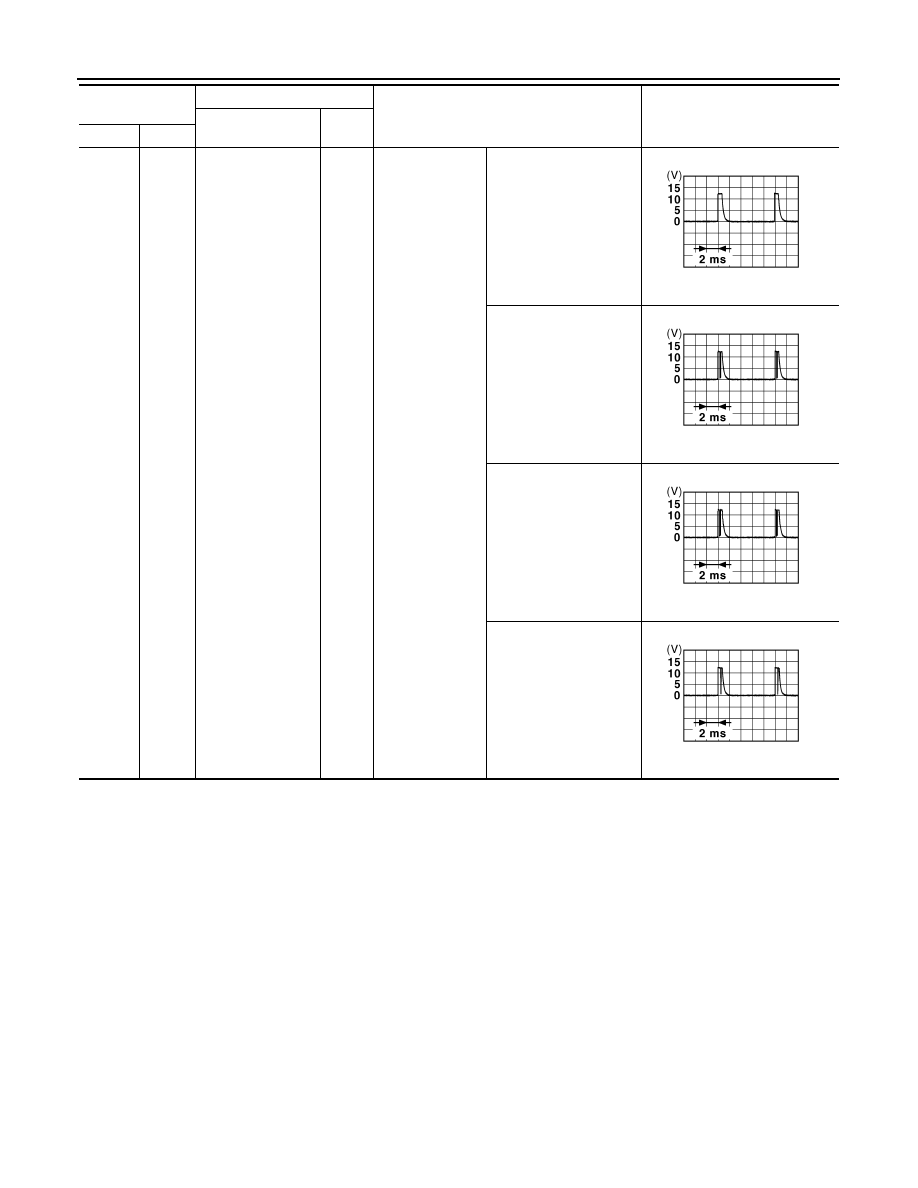

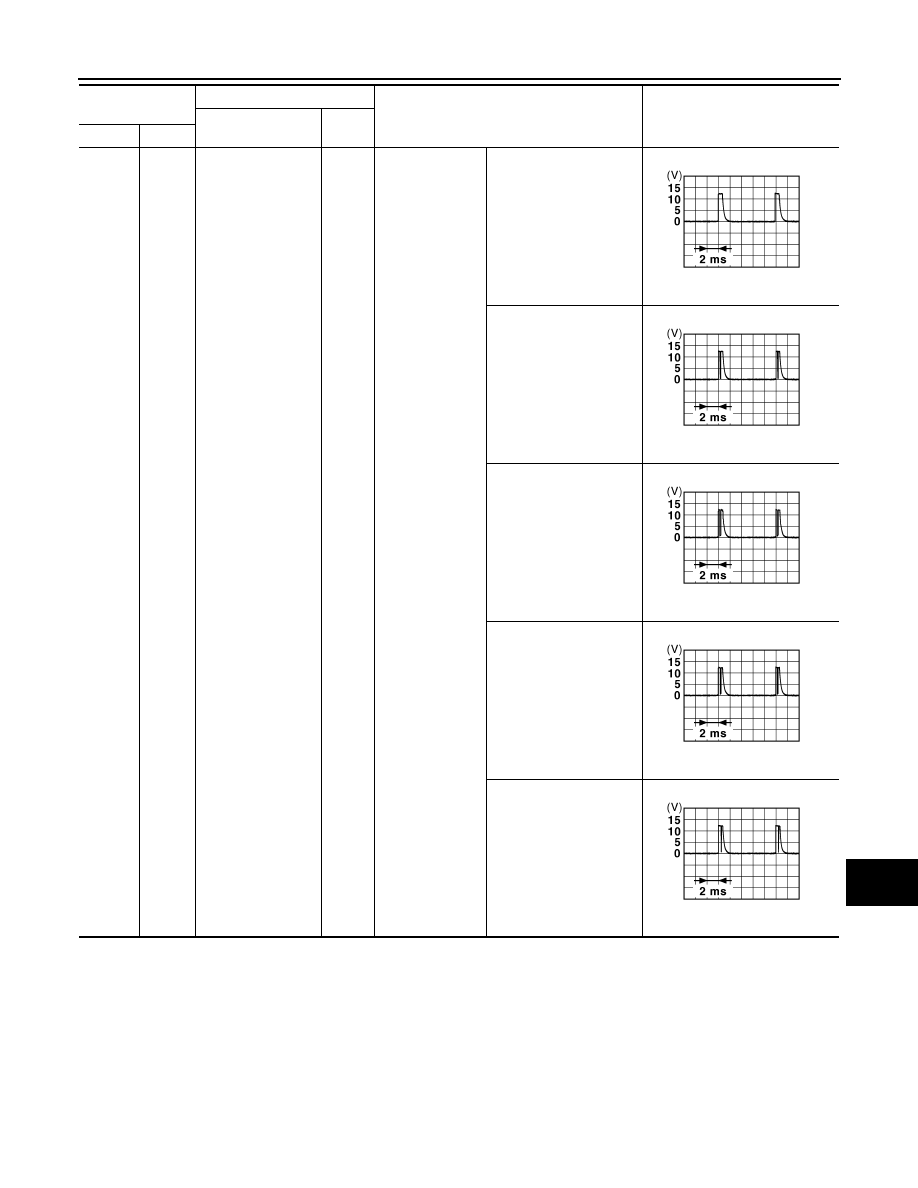

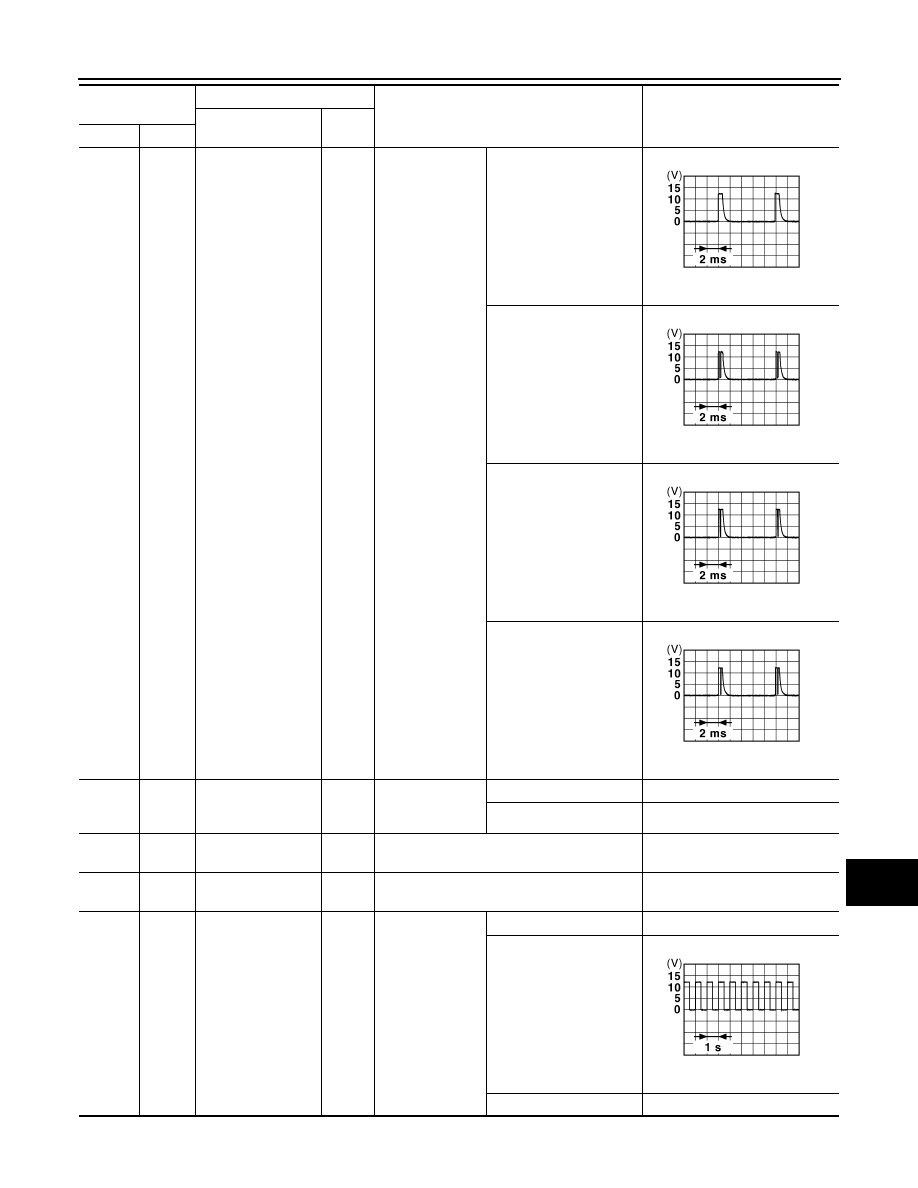

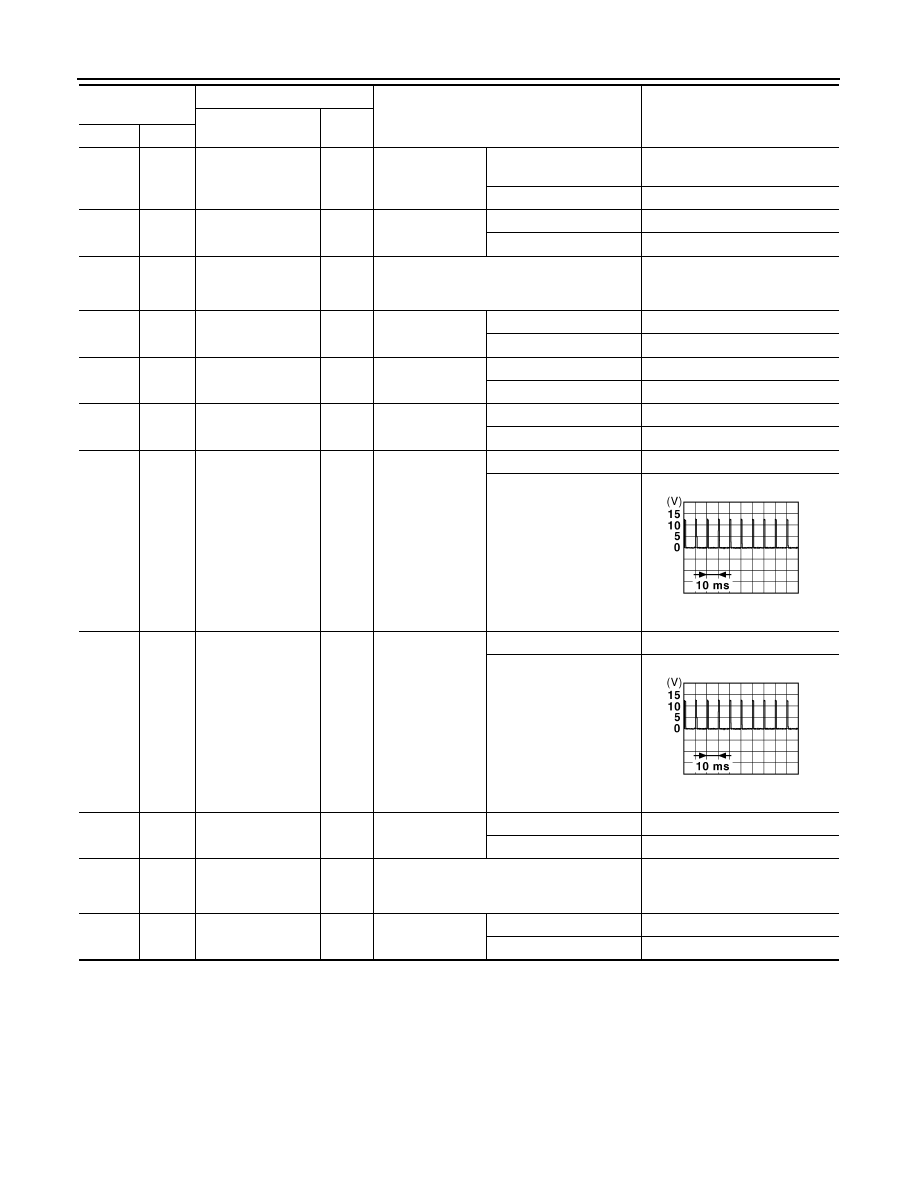

WCS BCM (BODY CONTROL MODULE) WCS-55 < ECU DIAGNOSIS > C D E F G H I J K L M B A O P 88 (R/G) Ground Combination switch Input Combination All switch OFF 1.4 V Lighting switch HI 1.3 V Lighting switch 2ND 1.3 V Any of the conditions be- 1 • Wiper intermittent dial 2 • Wiper intermittent dial 3 1.3 V 89 (BR) Ground Push-button ignition Input Push-button igni- Pressed 0 V Not pressed Battery voltage 90 (P) Ground CAN-L Input/ Output — — 91 (L) Ground CAN-H Input/ Output — — 92 (R/L) Ground Key slot illumination Output Key slot illumina- OFF Battery voltage Blinking 6.5 V ON 0 V Terminal No. (Wire color) Description Condition Value (Approx.) Signal name Input/ Output + – JPMIA0041GB JPMIA0036GB JPMIA0037GB JPMIA0040GB JPMIA0015GB |
