WARNING CHIME SYSTEM

WCS-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

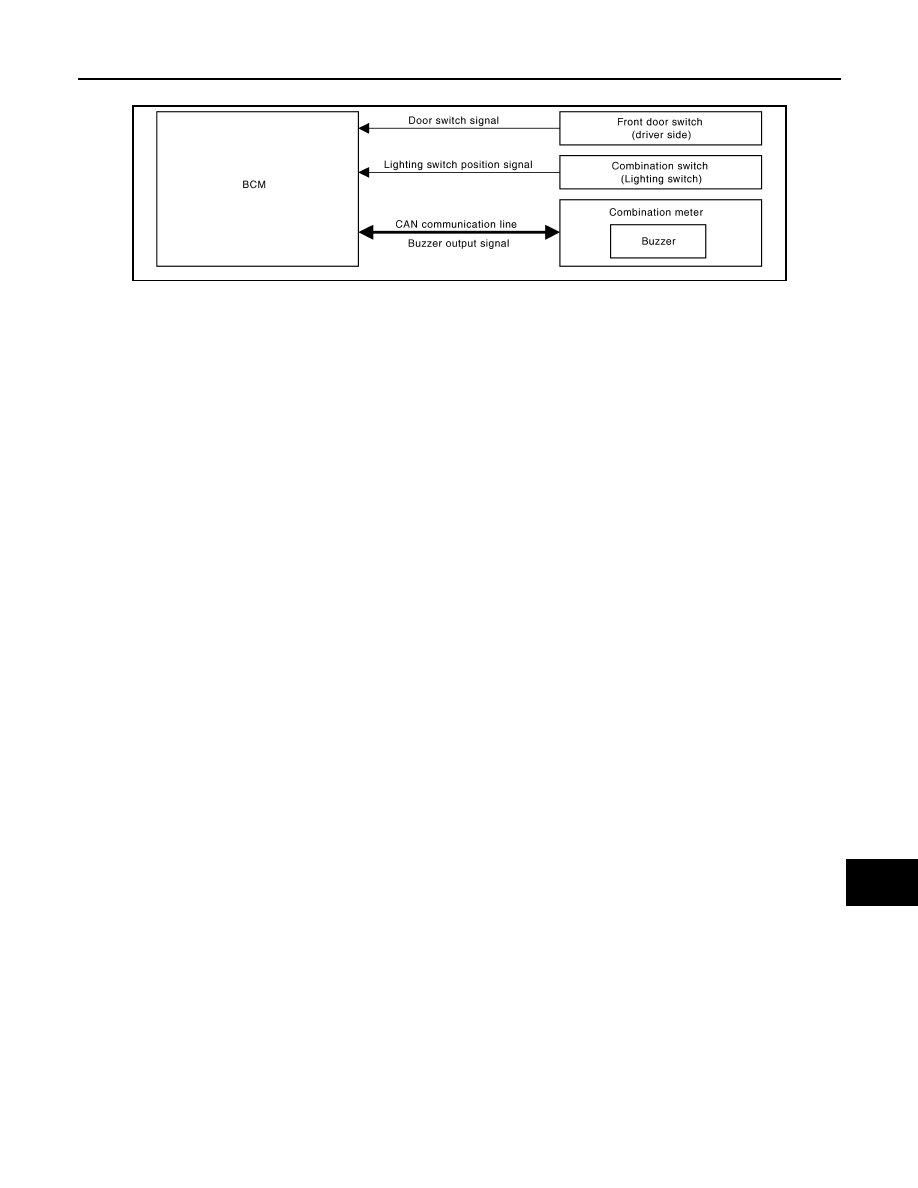

LIGHT REMINDER WARNING CHIME : System Diagram

INFOID:0000000003838695

LIGHT REMINDER WARNING CHIME : System Description

INFOID:0000000003838696

DESCRIPTION

With ignition switch in the OFF or ACC position, when the driver door is open or the lighting switch is the 1st or
2nd position, the light warning chime will sound.
• BCM detects ignition switch in the OFF or ACC position, front door switch (driver side) ON, and lighting

switch in 1st or 2nd position. Then the BCM transmits the buzzer output signal (light reminder warning
chime) to combination meter with CAN communication line.

• When combination meter receives buzzer output signal (light reminder warning chime), it sounds the buzzer.

WARNING OPERATION CONDITIONS

If all of the following conditions are fulfilled.
• Ignition switch is in the OFF or ACC
• Lighting switch is in the 1st or 2nd position
• Front door switch (driver side) is ON

WARNING CANCEL CONDITIONS

Warning is canceled if any of the following conditions is fulfilled.
• Lighting switch OFF
• Ignition switch ON
• Front door switch (driver side) is OFF

JPNIA0749GB

WCS-8

< FUNCTION DIAGNOSIS >

WARNING CHIME SYSTEM

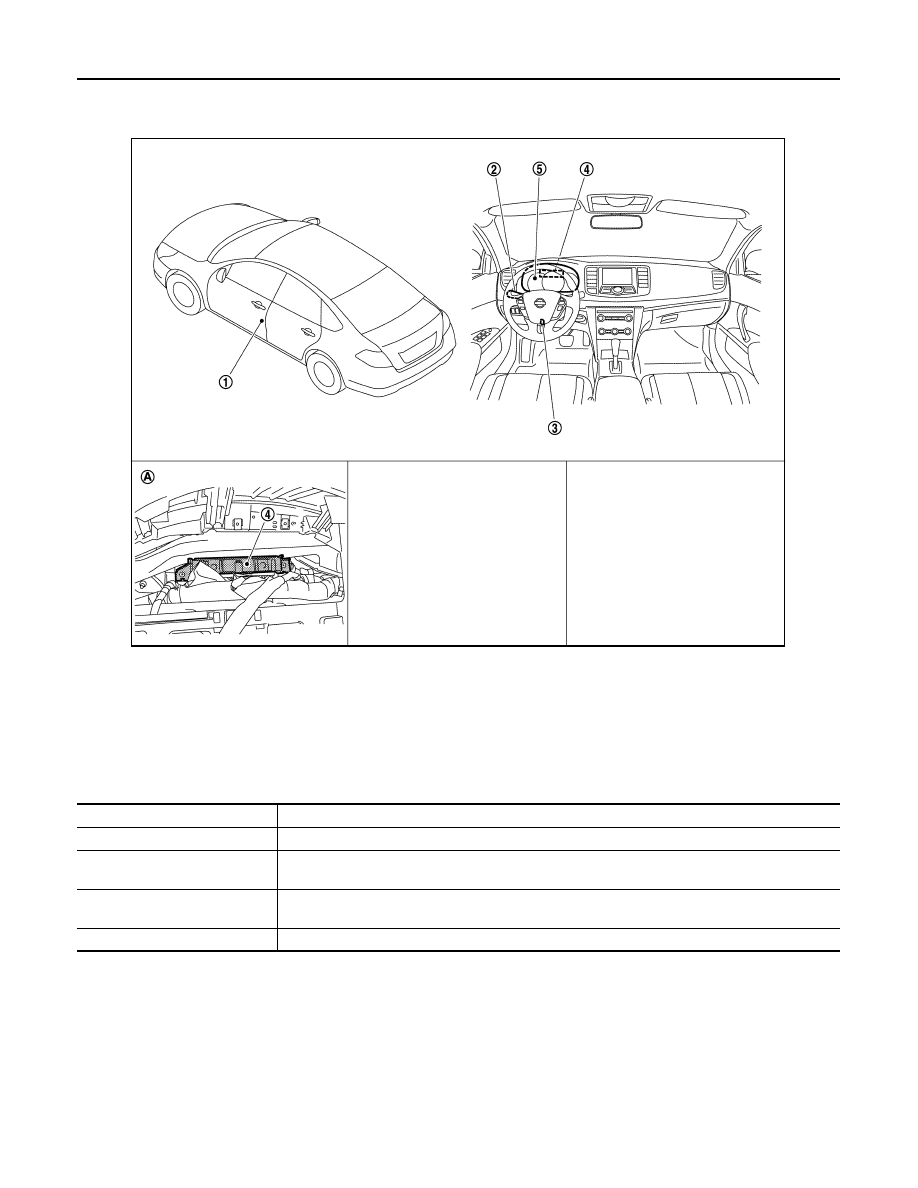

LIGHT REMINDER WARNING CHIME : Component Parts Location

INFOID:0000000003900514

LIGHT REMINDER WARNING CHIME : Component Description

INFOID:0000000003838698

PARKING BRAKE RELEASE WARNING CHIME

1.

Front door switch (driver side)

2.

Combination switch
(Lighting switch)

3.

Parking brake switch

4.

BCM

5.

Combination meter

A.

Behind the combination meter

JPNIA1026ZZ

Unit

Description

Combination meter

Receives a buzzer output signal from the BCM and sounds the buzzer.

BCM

Judges the light warning conditions from the signals provided by various switches and transmits a
buzzer output signal to the combination meter via CAN communication line if necessary.

Combination switch
(Lighting switch)

Transmits the lighting switch position signal to BCM.

Front door switch (driver side)

Transmits the door switch signal to BCM.

WCS

WARNING CHIME SYSTEM

WCS-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

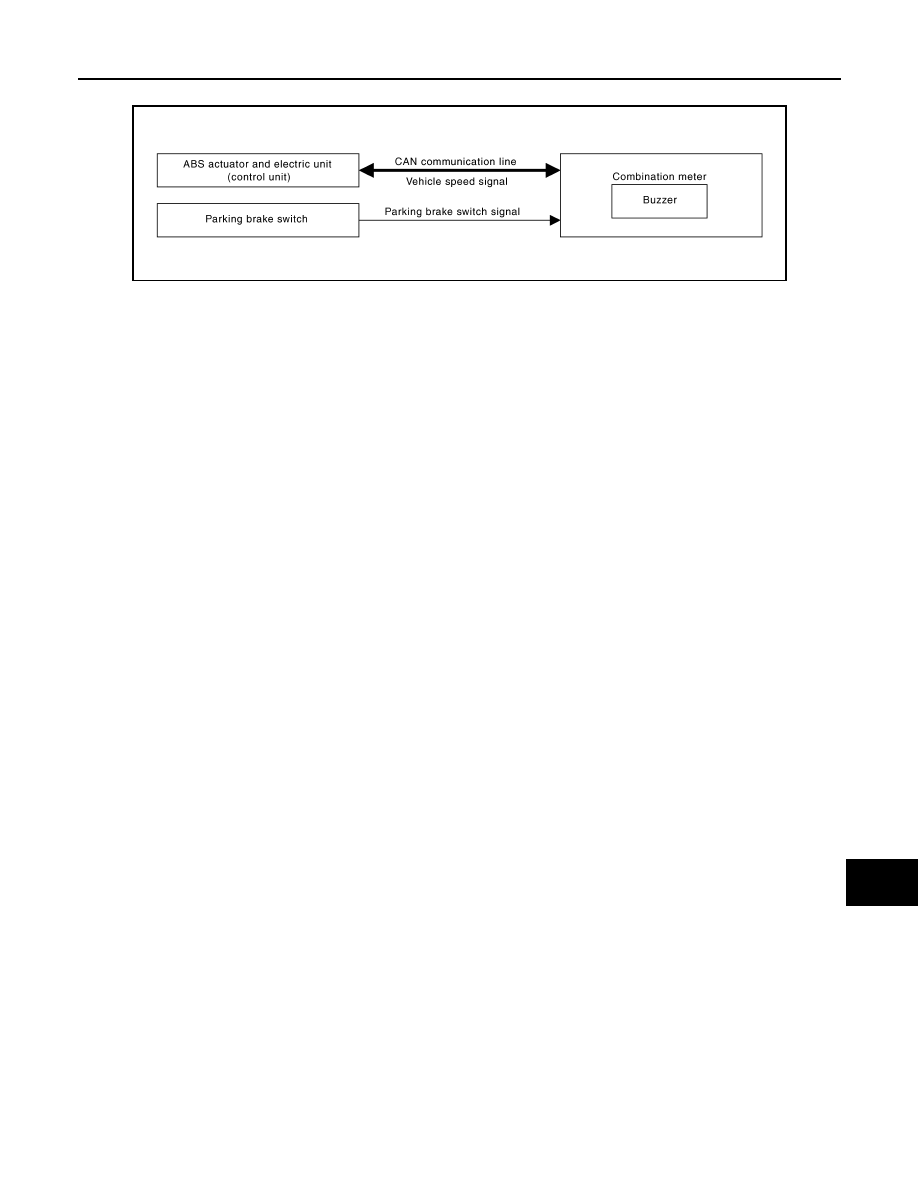

PARKING BRAKE RELEASE WARNING CHIME : System Diagram

INFOID:0000000003838699

PARKING BRAKE RELEASE WARNING CHIME : System Description

INFOID:0000000003838700

DESCRIPTION

Parking brake release warning chime judges the remaining parking brake according to the vehicle speed sig-
nal received from the ABS actuator and electric unit (control unit) via CAN communication and the parking
brake switch signal from parking brake switch to sound the warning buzzer.

WARNING OPERATION CONDITIONS

If all of the following conditions are fulfilled.

• Vehicle speed is 7 km/h (4.3 MPH) or higher
• Parking brake switch ON

WARNING CANCEL CONDITIONS

Warning is canceled if any of the following conditions are fulfilled.

• Vehicle speed is approximately 3 km/h (1.9 MPH) or less
• Parking brake switch OFF

JPNIA0751GB

WCS-10

< FUNCTION DIAGNOSIS >

WARNING CHIME SYSTEM

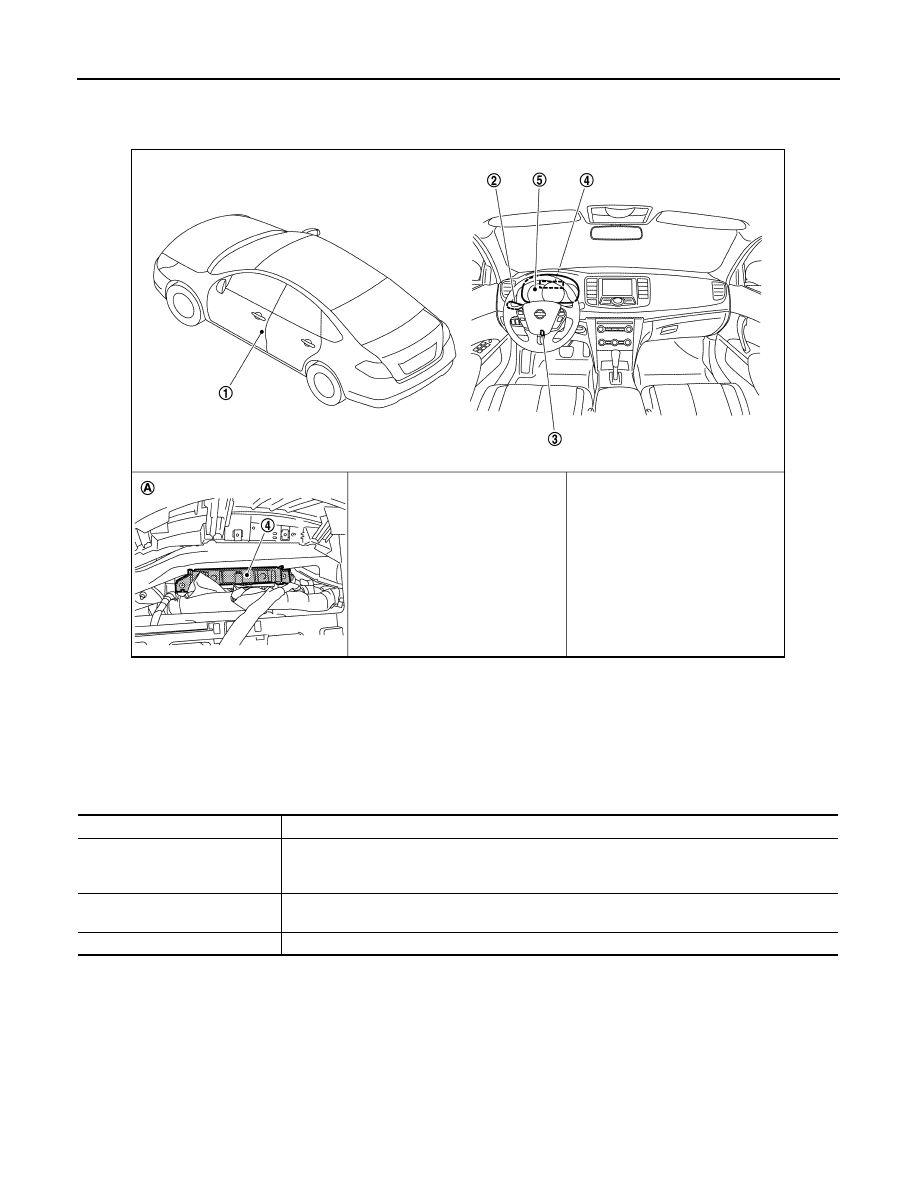

PARKING BRAKE RELEASE WARNING CHIME : Component Parts Location

INFOID:0000000003900515

PARKING BRAKE RELEASE WARNING CHIME : Component Description

INFOID:0000000003838702

1.

Front door switch (driver side)

2.

Combination switch
(Lighting switch)

3.

Parking brake switch

4.

BCM

5.

Combination meter

A.

Behind the combination meter

JPNIA1026ZZ

Unit

Description

Combination meter

Judges the remaining parking brake according to the vehicle speed signal received from the ABS
actuator and electric unit (control unit) via CAN communication and the parking brake switch signal
from parking brake switch and sounds the warning buzzer.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.

Parking brake switch

Transmits the parking brake switch signal to the combination meter.
