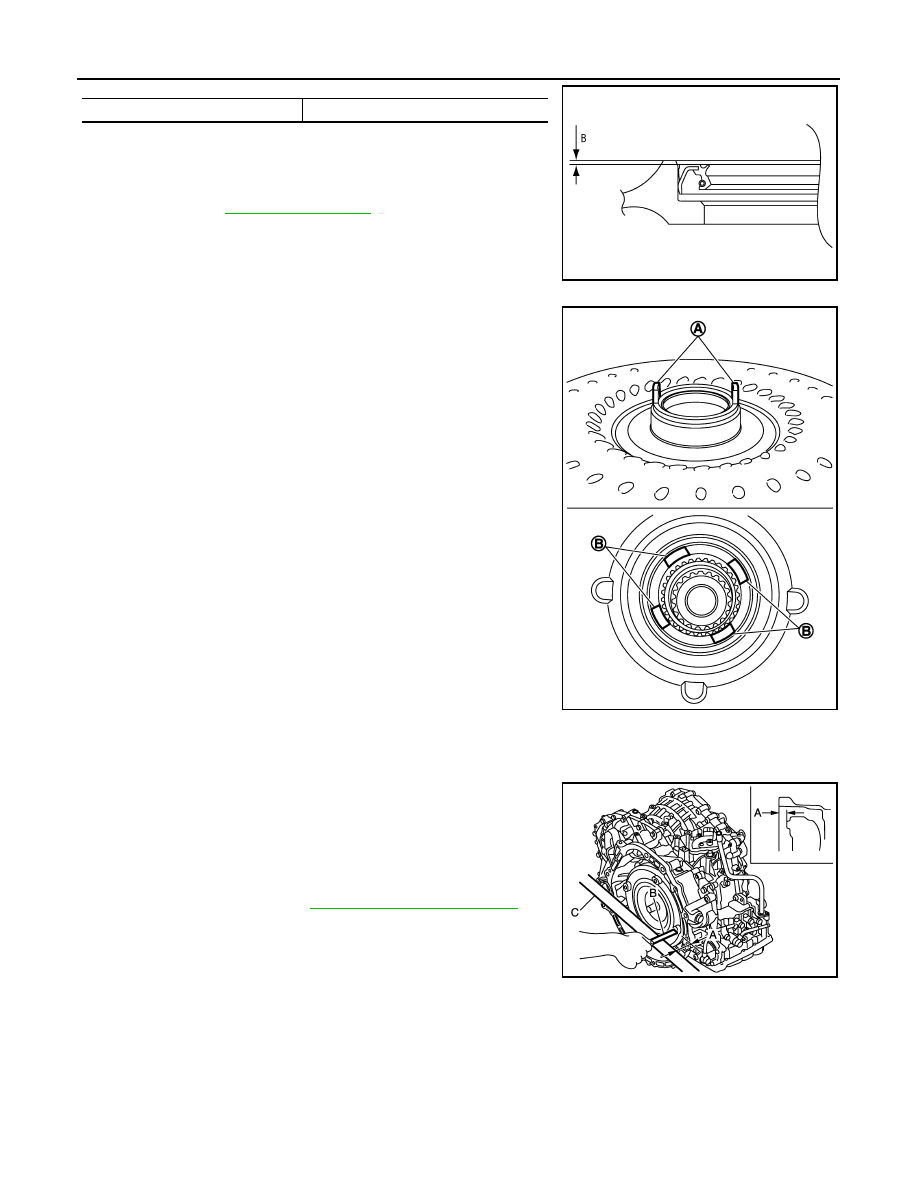

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

Unit: mm (in)

NOTE:
Converter housing oil seal pulling direction is used as the refer-
ence.

• After completing installation, check for CVT fluid leakage and CVT

fluid level. Refer to

TM-304, "Inspection"

.

• Attach the pawl (A) of the torque converter to the drive sprocket

hole (B) on the transaxle assembly side.

CAUTION:

• Rotate the torque converter for installing torque converter.
• Never damage the bushing inside the torque converter

sleeve when installing the converter housing oil seal.

• Never reuse converter housing oil seal.
• Apply CVT fluid to converter housing oil seal.

Inspection

INFOID:0000000003806560

INSPECTION AFTER INSTALLATION

• After inserting a torque converter to the CVT, check distance (A)

within the reference value limit.

Dimension B

1.0

±

 0.5 (0.039

±

 0.020)

SCIA7909J

SCIA7907J

B

:  Scale

C

: Straightedge

Distance A

: Refer to

TM-338, "Torque Converter"

.

JPDIA0740ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-337

< SERVICE DATA AND SPECIFICATIONS (SDS)

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000003806561

*: Refer to

MA-11, "Fluids and Lubricants"

.

Vehicle Speed When Shifting Gears

INFOID:0000000003806562

Numerical value data are reference values.

(rpm)

CAUTION:

Lock-up clutch is engaged when vehicle speed is approximately 18 km/h (11 MPH) to 90 km/h (56 MPH).

Stall Speed

INFOID:0000000003806563

Line Pressure

INFOID:0000000003806564

kPa (bar, kg/cm

2

, psi)

*: Reference values

Applied model

VQ25DE

CVT model

RE0F10A

CVT assembly

Model code number

1XF8E

Transmission gear ratio

D range

2.349 – 0.394

Reverse

1.750

Final drive

6.120

Recommended fluid

NISSAN CVT Fluid NS-2*

Fluid capacity

8.3 liter (7-1/4 Imp qt)

CAUTION:

• Use only Genuine NISSAN CVT Fluid NS-2. Never mix with other fluid.
• Using CVT fluid other than Genuine NISSAN CVT Fluid NS-2 will deteriorate in driveability and CVT durability, and may dam-

age the CVT, which is not covered by the warranty.

 Throttle position

Shift pattern

Engine speed

At 40 km/h (25 MPH)

At 60 km/h (37 MPH)

8/8

“D” position

3,500 – 4,400

4,700 – 5,600

Sport mode

3,500 – 4,400

4,700 – 5,600

“L” position

3,500 – 4,400

4,700 – 5,600

2/8

“D” position

1,300 – 3,100

1,400 – 3,400

Sport mode

2,200 – 3,000

2,800 – 3,600

“L” position

3,300 – 4,200

4,200 – 5,000

Stall speed

 2,500 – 2,970 rpm

Engine speed

 Line pressure

“R”, “D” positions

At idle

750 (7.50, 7.65, 108.8)

At stall

5,700 (57.00, 58.14, 826.5)

*

TM-338

< SERVICE DATA AND SPECIFICATIONS (SDS)

[CVT: RE0F10A]

SERVICE DATA AND SPECIFICATIONS (SDS)

Solenoid Valves

INFOID:0000000003806565

CVT Fluid Temperature Sensor

INFOID:0000000003806566

Primary Speed Sensor

INFOID:0000000003806567

Secondary Speed Sensor

INFOID:0000000003806568

Step Motor

INFOID:0000000003900491

Torque Converter

INFOID:0000000003806569

Name

Resistance (Approx.)

Pressure control solenoid valve B (secondary pressure solenoid valve)

3.0 – 9.0

Ω

Pressure control solenoid valve A (line pressure solenoid valve)

Torque converter clutch solenoid valve

Lock-up select solenoid valve

17.0 – 38.0

Ω

Name

Condition

CONSULT-III “Data Monitor” (Approx.)

Resistance (Approx.)

CVT fluid temperature sensor

20

°

C (68

°

F)

2.0 V

6.5 k

Ω

80

°

C (176

°

F)

1.0 V

0.9 k

Ω

Name

Condition

Data (Approx.)

Primary speed sensor

When driving [“L” position, 20 km/h (12 MPH)]

950 Hz

Name

Condition

Data (Approx.)

Secondary speed sensor

When driving [“D” position, 20 km/h (12 MPH)]

490 Hz

Name

Resistance (Approx.)

Step motor A

15.0

Ω

Step motor B

15.0

Ω

Step motor C

15.0

Ω

Step motor D

15.0

Ω

Distance between end of converter housing and torque converter

14.4 mm (0.567 in)

VTL-1
