Nissan Teana J32. Manual - part 119

AV

DVD PLAYER

AV-331

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

13

(B)

11

(G)

AUX sound signal LH

Input

Ignition

switch

ON

AUX sound output.

14

(W)

12

(R)

AUX sound signal RH

Input

Ignition

switch

ON

AUX sound output.

15

—

AUX sound signal shield

—

—

—

—

21

(B)

22

(G)

Stereo (DVD and AUX
sound) sound signal LH

Output

Ignition

switch

ON

DVD

*1

 or AUX sound out-

put.

23

(R)

24

(W)

Stereo (DVD and AUX
sound) sound signal RH

Output

Ignition

switch

ON

DVD

*1

 or AUX sound out-

put.

25

—

Stereo sound signal shield

—

—

—

—

29

(R)

—

AV communication signal
(L)

Input/

Output

—

—

—

30

(L)

—

AV communication signal
(H)

Input/

Output

—

—

—

31

(P)

—

AV communication signal
(L)

Input/

Output

—

—

—

32

(L)

—

AV communication signal
(H)

Input/

Output

—

—

—

34

—

Shield

—

—

—

—

36

(W)

35

(B)

Surround sound signal front
RH

Output

Ignition

switch

ON

DVD sound output.

*2

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

AV-332

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

DVD PLAYER

• *1: Stereo sounds are input only when the 2 channel stereo sound is played.

• *2: All surround sounds are input only when the 5.1 channel surround sound is played.

38

(W)

37

(B)

Surround sound signal front
LH

Output

Ignition

switch

ON

DVD sound output.

*2

40

(W)

39

(B)

Surround sound signal cen-
ter

Output

Ignition

switch

ON

DVD sound output.

*2

42

(L)

41

(R)

Surround sound signal
woofer

Output

Ignition

switch

ON

DVD sound output.

*2

43

—

Shield

—

—

—

—

44

—

Shield

—

—

—

—

46

(W)

45

(B)

Surround sound signal rear
RH

Output

Ignition

switch

ON

DVD sound output.

*2

48

(W)

47

(B)

Surround sound signal rear
LH

Output

Ignition

switch

ON

DVD sound output.

*2

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

AV

DVD PLAYER

AV-333

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

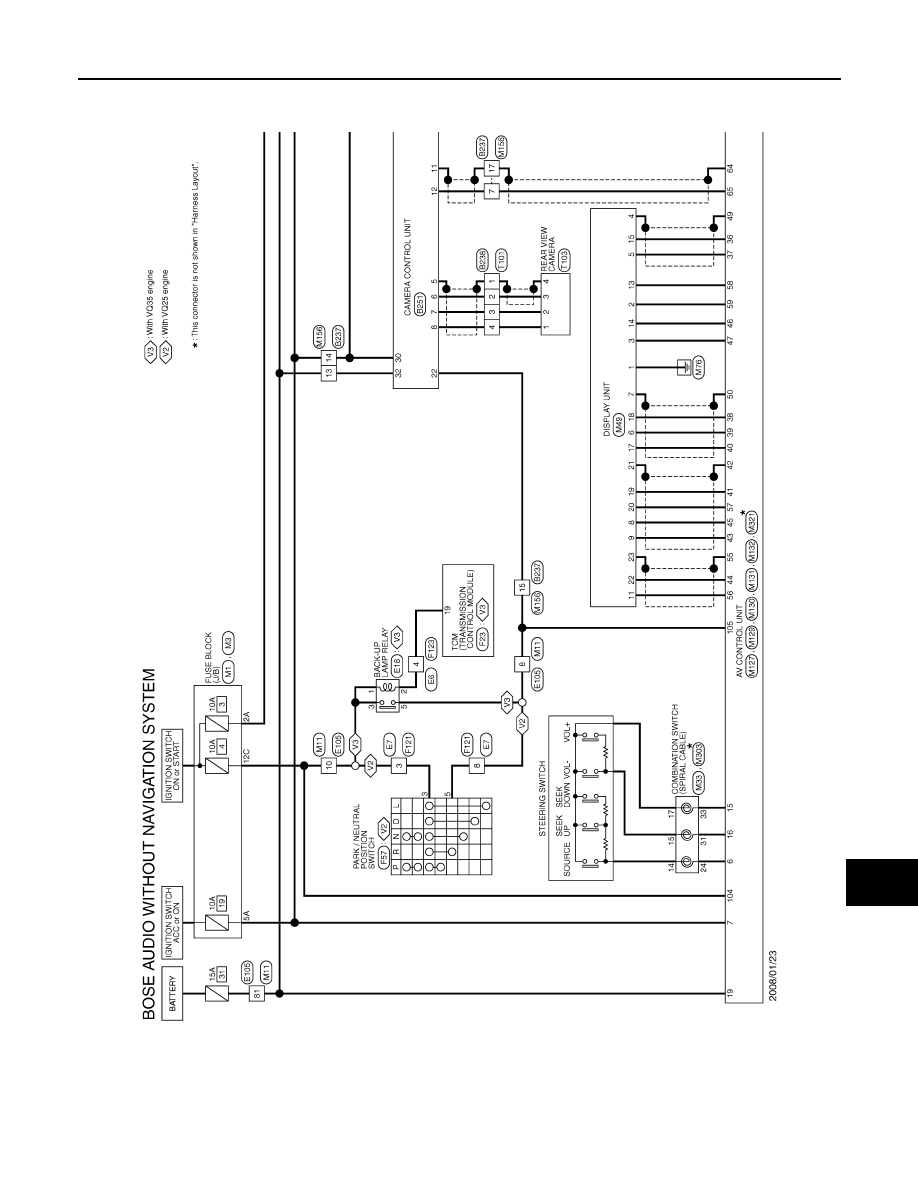

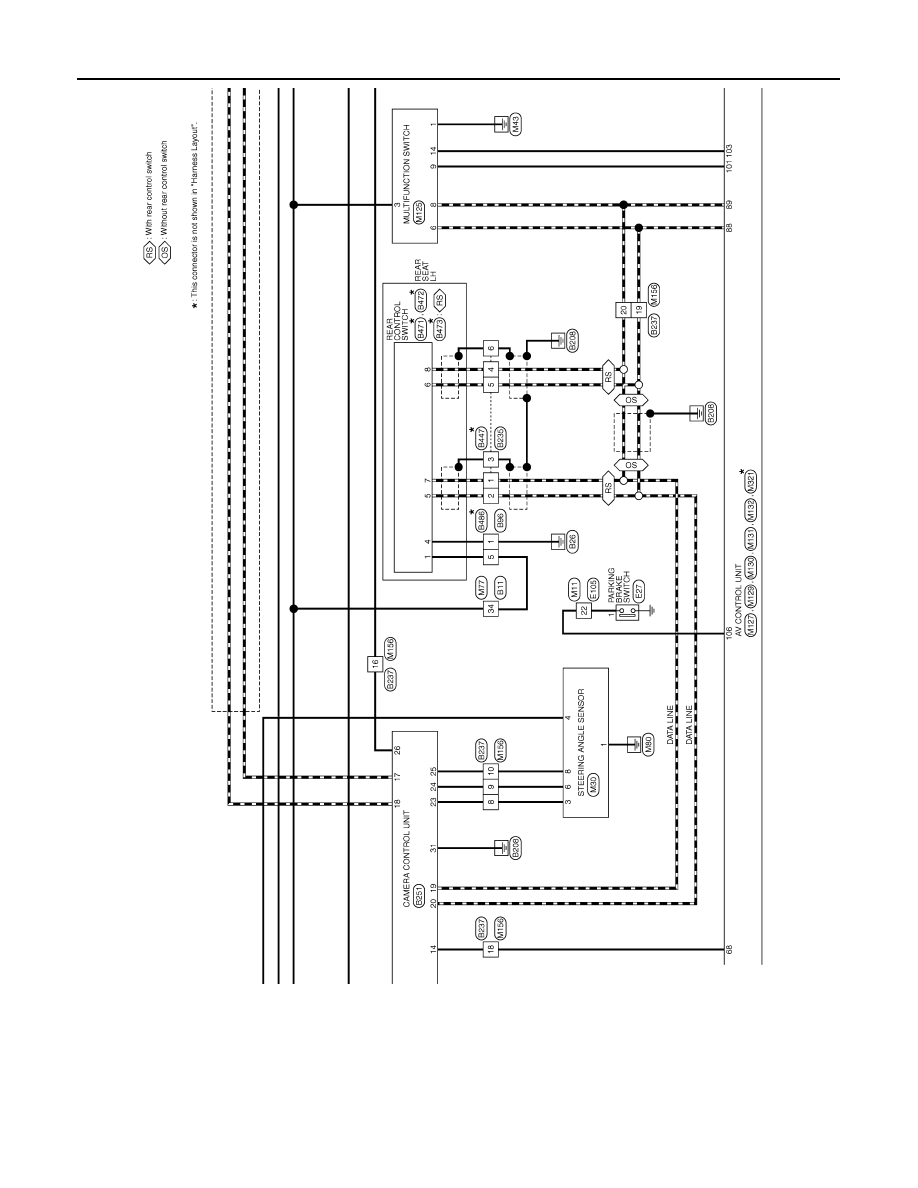

Wiring Diagram — BOSE AUDIO WITHOUT NAVIGATION SYSTEM —

INFOID:0000000003971971

JCNWM0917GB

AV-334

< ECU DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

DVD PLAYER

JCNWM0918GB
