< FUNCTION DIAGNOSIS >

[CVT: RE0F09B]

MECHANICAL SYSTEM

MECHANICAL SYSTEM

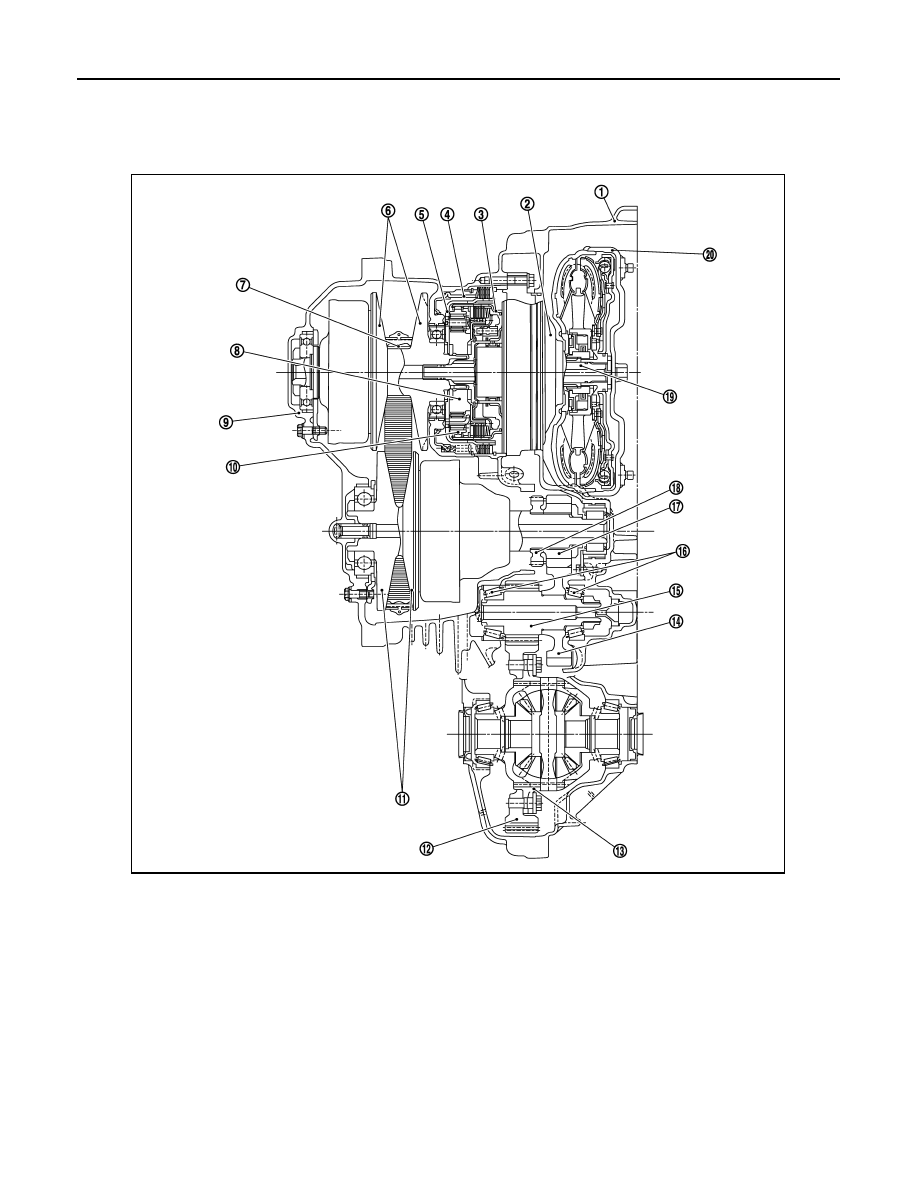

Cross-Sectional View

INFOID:0000000003848919

1.

Converter housing

2.

Oil pump

3.

Forward clutch

4.

Reverse brake

5.

Planetary carrier

6.

Primary pulley

7.

Steel belt

8.

Sun gear

9.

Side cover

10. Internal gear

11.

Secondary pulley

12. Final gear

13. Differential case

14. Idler gear

15. Reduction gear

16. Taper roller bearing

17. Output gear

18. Parking gear

19. Input shaft

20. Torque converter

SCIA7859E

MECHANICAL SYSTEM

TM-17

< FUNCTION DIAGNOSIS >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

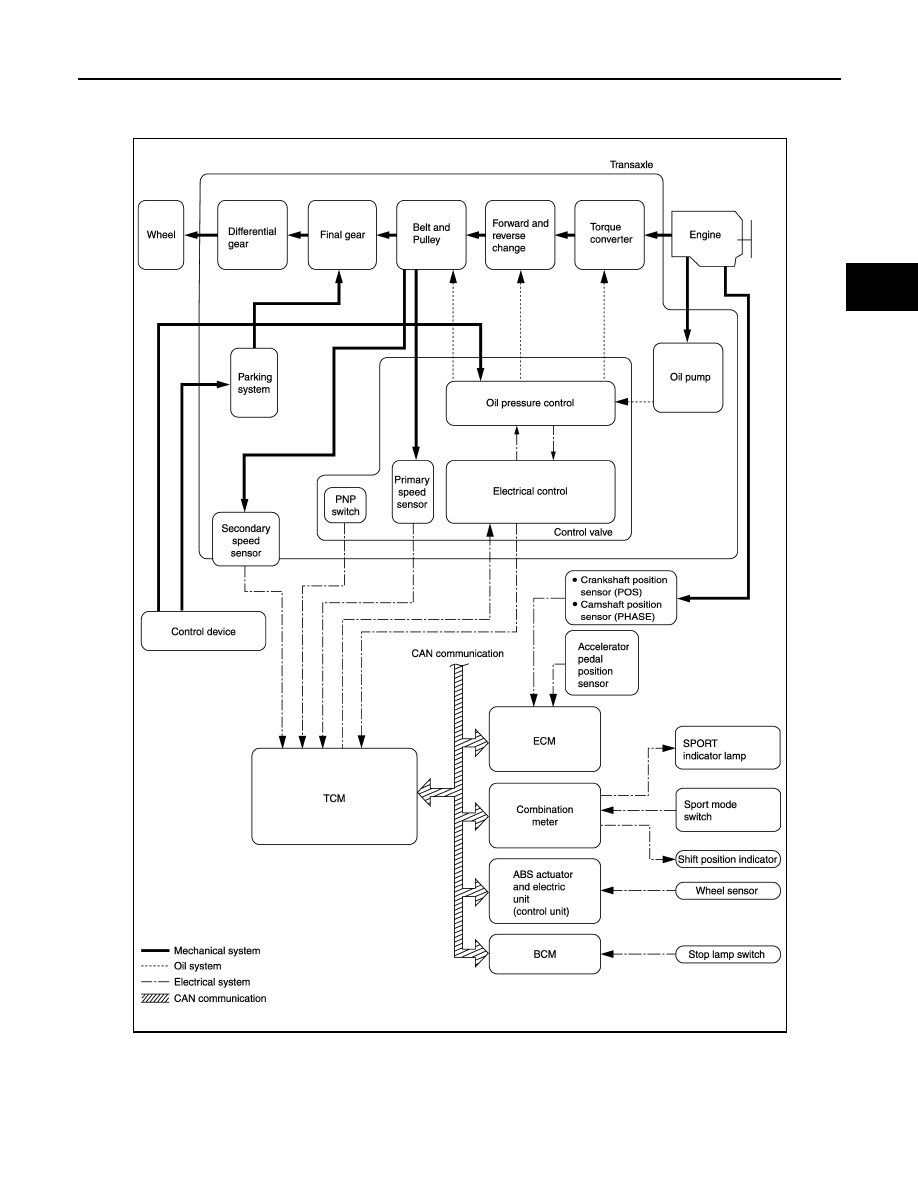

System Diagram

INFOID:0000000003848920

System Description

INFOID:0000000003848921

Transmits the power from the engine to the drive wheel.

JPDIA0755GB

TM-18

< FUNCTION DIAGNOSIS >

[CVT: RE0F09B]

MECHANICAL SYSTEM

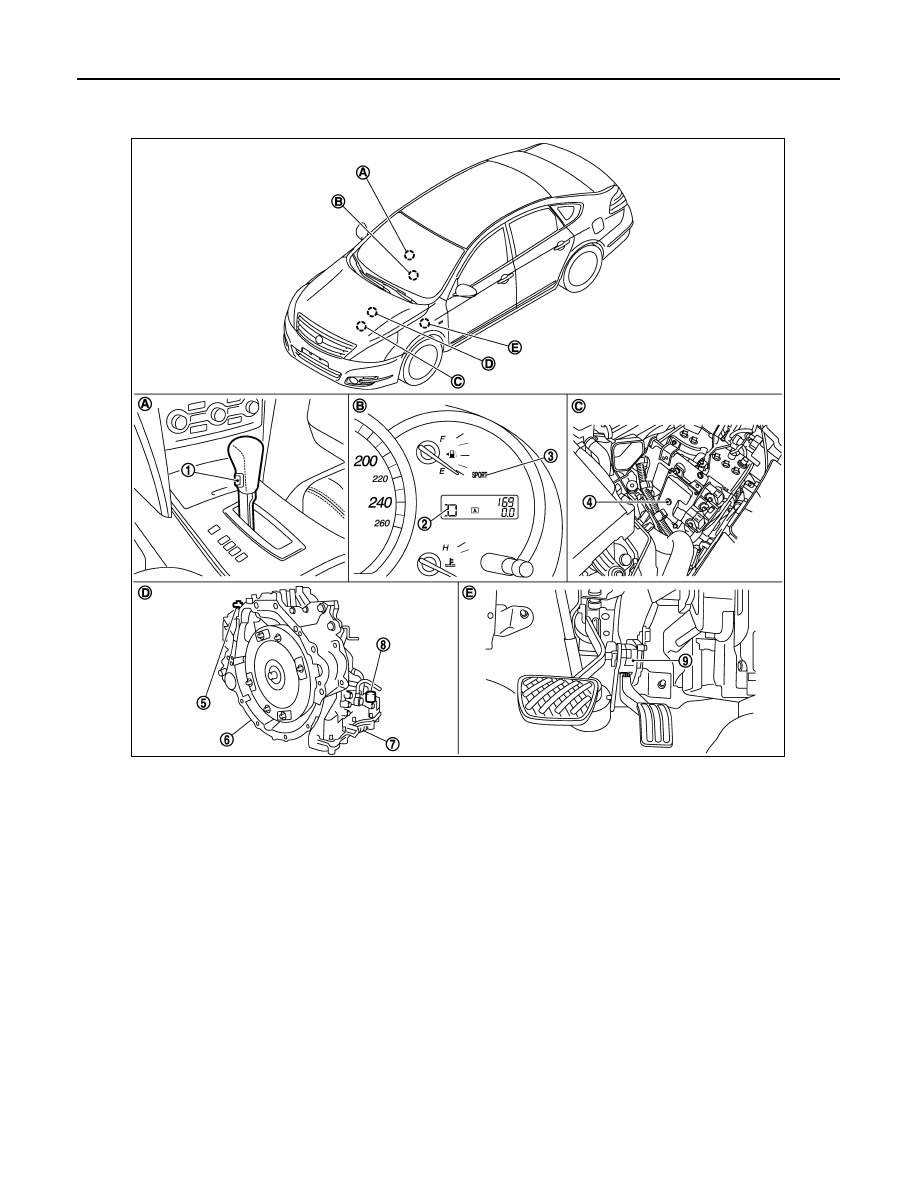

Component Parts Location

INFOID:0000000003848922

*1: Primary pressure sensor is included in CVT assembly.

*2: Control valve assembly is included in CVT assembly.

NOTE:
The following components are included in control valve assembly (7).
• PNP switch
• Primary speed sensor
• Step motor
• Secondary pressure solenoid valve
• Line pressure solenoid valve
• Torque converter clutch solenoid valve
• Shift control valve
• Secondary valve
• Manual valve
• Lock-up select solenoid valve

1.

Sport mode switch

2.

Shift position indicator

3.

SPORT indicator lamp

4.

TCM

5.

Secondary speed sensor

6.

Primary pressure sensor

*1

7.

Control valve assembly

*2

8.

CVT unit connector

9.

Accelerator pedal position sensor

A.

Control device

B.

Combination meter

C.

Engine room LH

D.

CVT assembly

E.

Accelerator pedal, upper

JPDIA0747ZZ

MECHANICAL SYSTEM

TM-19

< FUNCTION DIAGNOSIS >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• CVT fluid temperature sensor
• Secondary pressure sensor
• ROM assembly

Component Description

INFOID:0000000003848923

Item

Function

Torque converter

The torque converter is the device that increases the engine torque as well as the con-
ventional AT and transmits it to the transaxle.

Oil pump

The adoption of a trochoidal oil pump with a flow control valve actuated directly by the
engine enables the sufficient discharge from an oil pump in the low-rpm range and the
adequate discharge adjustments in the high-rpm range.

Planetary gear

Perform the transmission of drive power and the switching of forward/backward move-
ment.

Forward clutch

Reverse brake

Primary pulley

It is composed of a pair of pulleys (the groove width is changed freely in the axial direc-
tion) and the steel belt (the steel star wheels are placed continuously and the belt is guid-
ed with the multilayer steel rings on both sides). The groove width changes according to
wrapping radius of steel belt and pulley from low status to overdrive status continuously
with non-step. It is controlled with the oil pressures of primary pulley and secondary pul-
ley.

Secondary pulley

Steel belt

Output gear

Reduction gear consists of primary deceleration (output gear and idler gear in pair) and
secondary deceleration (reduction gear and final gear in pair). Each of them uses a he-
lical gear.

Idler gear

Reduction gear

Final gear

Differential

Manual shaft

The parking rod rotates the parking pole and the parking pole engages with the parking
gear when the manual shaft is in “P” position. As a result the parking gear and the output
axis are fixed.

Parking rod

Parking pawl

Parking gear
