DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-63

< FUNCTION DIAGNOSIS >

[BASE AUDIO AND DISPLAY SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

CONFIRMATION/ADJUSTMENT MODE

1.

Start the diagnosis function and select “Confirmation/Adjustment”. The confirmation/adjustment mode
indicates where each item can be checked or adjusted.

2.

Select each switch on the “Confirmation/Adjustment Mode”
screen to display the relevant trouble diagnosis screen. Press
the “BACK” switch to return to the initial Confirmation/Adjust-
ment Mode screen.

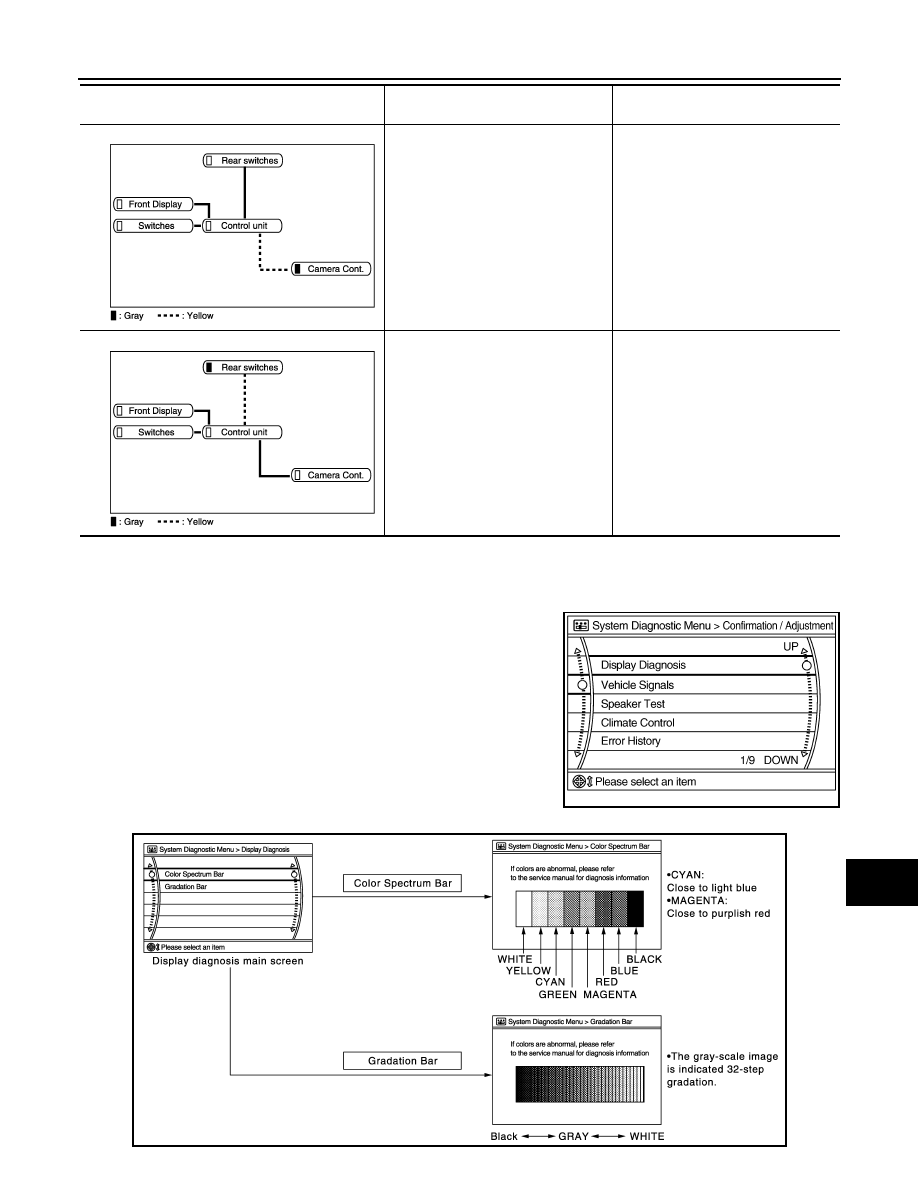

Display Diagnosis

Malfunction is detected in camera con-
nection recognition signal circuit.

Camera connection recognition signal
circuit.

When either one of the following
items is detected:

• rear control switch power supply and

ground circuits are malfunctioning.

• AV communication signal between

AV control unit and rear control
switch is malfunctioning.

• malfunction is detected in AV com-

munication circuits between AV con-
trol unit and multifunction switch.

• Rear control switch power supply

and ground circuits.

• AV communication circuits between

AV control unit and multifunction
switch.

Area with yellow connection lines

Description

Possible malfunction location / Action

to take

JSNIA1437GB

JSNIA1438GB

JSNIA0147GB

JSNIA0688GB

AV-64

< FUNCTION DIAGNOSIS >

[BASE AUDIO AND DISPLAY SYSTEM]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

The tint of the color bar indication is as per the following list if RGB signal error is detected.

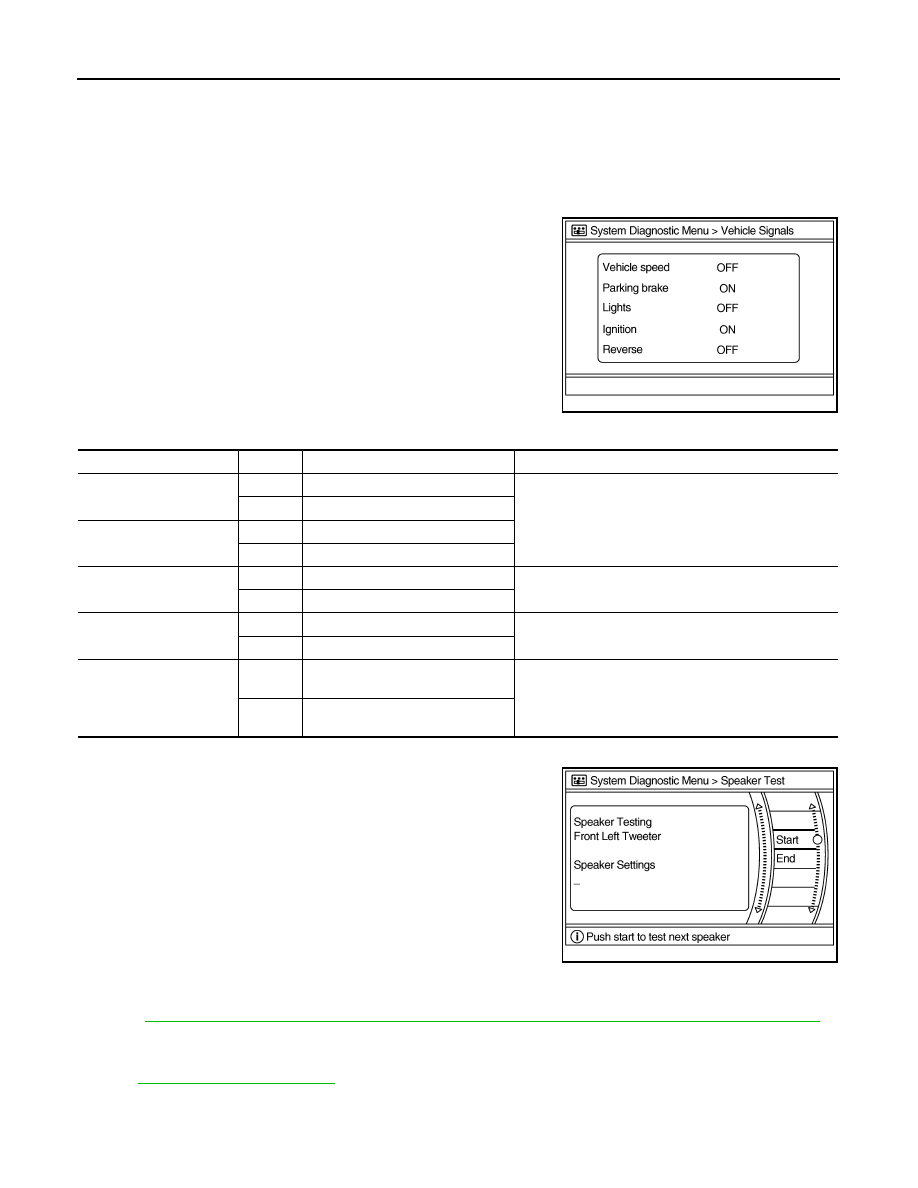

Vehicle Signals

A comparison check can be made of each actual vehicle signal and
the signals recognized by the system.

Speaker Test

Select “SPEAKER DIAGNOSIS” to display the Speaker Diagnosis
screen. Press “START and NEXT” to generate a test tone in a
speaker. Press “Start” to generate a test tone in the next speaker.
Press “End” to stop the test tones.
NOTE:
The frequency of test tone emitted from each speaker is as follows.

Climate Control

On-board self-diagnosis is not supported. Only CONSULT-III is supported.
Refer to

HAC-156, "WITHOUT INTELLIGENT AIR CONDITIONER SYSTEM : CONSULT-III Function"

for

details.

Camera Cont.

Refer to

AV-56, "System Description"

.

Error History

R (red) signal error

: Light blue (Cyan) tint

G (green) signal error

: Purple (Magenta) tint

B (blue) signal error

: Yellow tint

JSNIA0149GB

Diagnosis item

Display

Vehicle status

Remarks

Vehicle speed

ON

Vehicle speed > 0 km/h (0 MPH)

Changes in indication may be delayed by approximately
1.5 seconds. This is normal.

OFF

Vehicle speed = 0 km/h (0 MPH)

Parking brake

ON

Parking brake is applied.

OFF

Parking brake is released.

Lights

ON

Light switch ON

Block the light beam from the auto light optical sensor.

OFF

Light switch OFF

Ignition

ON

Ignition switch ON

—

OFF

Ignition switch in ACC position

Reverse

ON

Shift the selector lever to “R” posi-
tion

Changes in indication may be delayed by approximately
1.5 seconds. This is normal.

OFF

Shift the selector lever other than
“R” position

Squawker

: 3 kHz

Front speaker

: 300 Hz

Rear speaker

: 1 kHz

JSNIA0150GB

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-65

< FUNCTION DIAGNOSIS >

[BASE AUDIO AND DISPLAY SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

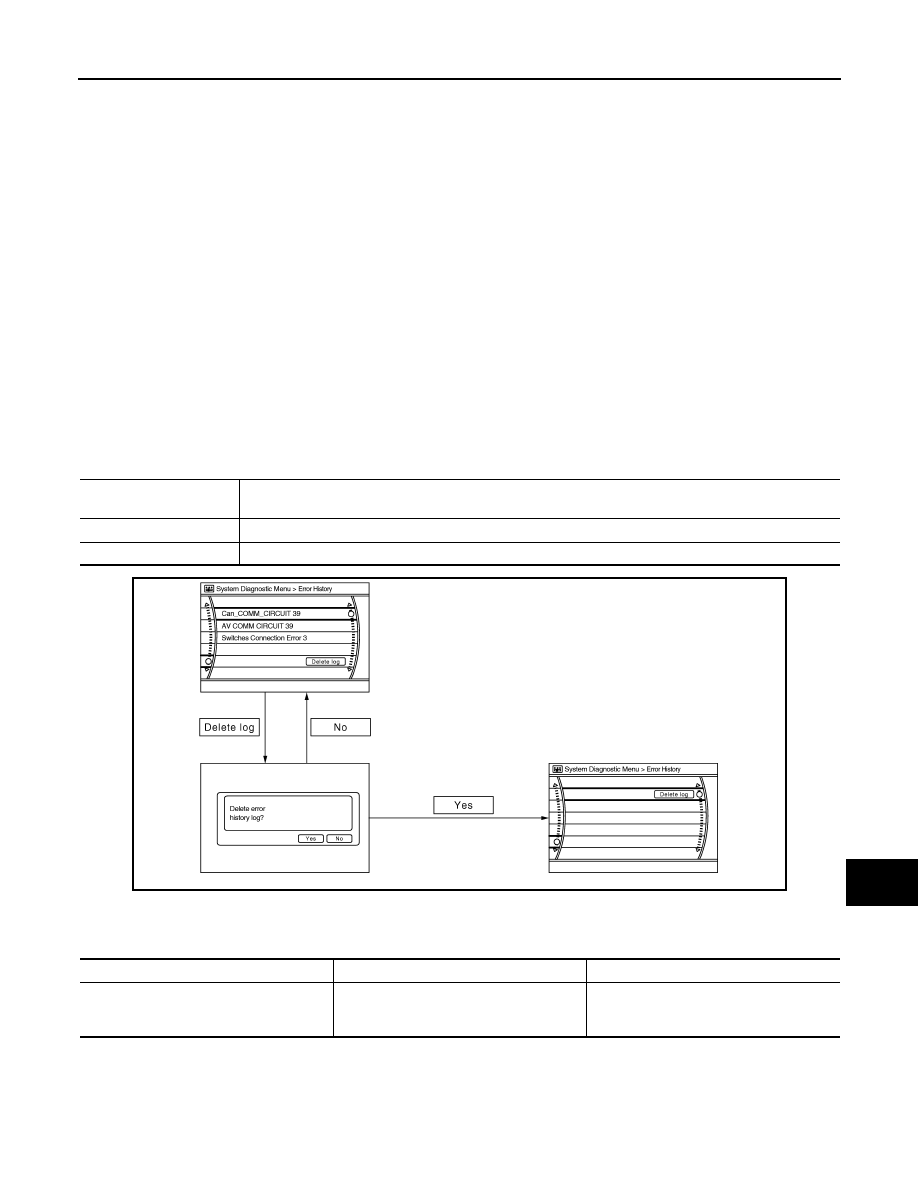

The self-diagnosis results are judged depending on whether any error occurs from when “Self-diagnosis” is
selected until the self-diagnosis results are displayed.
However, the diagnosis results are judged normal if an error has occurred before the ignition switch is turned
ON and then no error has occurred until the self-diagnosis start. Check the “Error Record” to detect any error
that may have occurred before the self-diagnosis start because of this situation.
The error record displays the time and place of the most recent occurrence of that error. However, take note of
the following points.
• Place of the error occurrence is represented by the position of the current location mark at the time an error

occurred. If current location mark has deviated from the correct position, then the place of the error occur-
rence cannot be located correctly.

• The frequency of occurrence is displayed in a count up manner. The actual count up method differs depend-

ing on the error item.

Count up method A
• The counter resets to 0 if an error occurs when IGN switch is turned ON. The counter increases by 1 if the

condition is normal at a next IGN ON cycle.

• The counter upper limit is 39. Any counts exceeding 39 are ignored.“ The counter can be reset (no error

record display) with the “Delete log” switch or CONSULT-III.

Count up method B
• The counter increases by 1 if an error occurs when IGN switch is ON. The counter will not decrease even if

the condition is normal at the next IGN ON cycle.

• The counter upper limit is 50. Any counts exceeding 50 are ignored. “ The counter can be reset (no error

record display) with the “Delete log” switch or CONSULT-III.

Error item
Some error items may be displayed simultaneously according to the cause. If some error items are displayed
simultaneously, the detection of the cause can be performed by the combination of display items

Display type of occur-

rence frequency

Error history display item

Count up method A

CAN communication line, control unit (CAN), AV communication line, control unit (AV communication)

Count up method B

Other than the above

JSNIA0151GB

Error item

Description

Possible malfunction factor/Action to take

CAN COMM CIRCUIT

CAN communication malfunction is detect-
ed.

Perform diagnosis with CONSULT-III, and
then repair the malfunctioning parts accord-
ing to the diagnosis results.

AV-66

< FUNCTION DIAGNOSIS >

[BASE AUDIO AND DISPLAY SYSTEM]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

CONTROL UNIT (CAN)

CAN initial diagnosis malfunction is detect-
ed.

Replace the AV control unit.

CONTROL UNIT (AV)

AV communication circuit initial diagnosis
malfunction is detected.

FLASH-ROM Error Of Control Unit

AV control unit malfunction is detected.

CAN Controller Memory Error

Front Display Connection Error

When either one of the following items is
detected:
• display unit power supply and ground cir-

cuits are malfunctioning.

• serial communication circuits between

display unit and AV control unit are mal-
functioning.

• serial communication signal between

display unit and AV control unit is mal-
functioning.

• Display unit power supply and ground

circuits

• Serial communication circuits between

display unit and AV control unit

Camera Cont. Unit Connection Error

Camera connection recognition signal cir-
cuits malfunction is detected.

Camera connection recognition signal cir-
cuit

AV COMM CIRCUIT

Rear control switch power supply and
ground circuits malfunction are detected.

Rear control switch power supply and
ground circuits.

• AV COMM CIRCUIT
• Switches Connection Error

When either one of the following items is
detected:
• multifunction switch power supply and

ground circuits are malfunctioning.

• AV communication circuits between AV

control unit and multifunction switch are
malfunctioning.

• AV communication signal between AV

control unit and multifunction switch is
malfunctioning.

• Multifunction switch power supply and

ground circuits

• AV communication circuits between AV

control unit and multifunction switch

Error item

Description

Possible malfunction factor/Action to take
