AUTOMATIC DRIVE POSITIONER SYSTEM

ADP-33

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

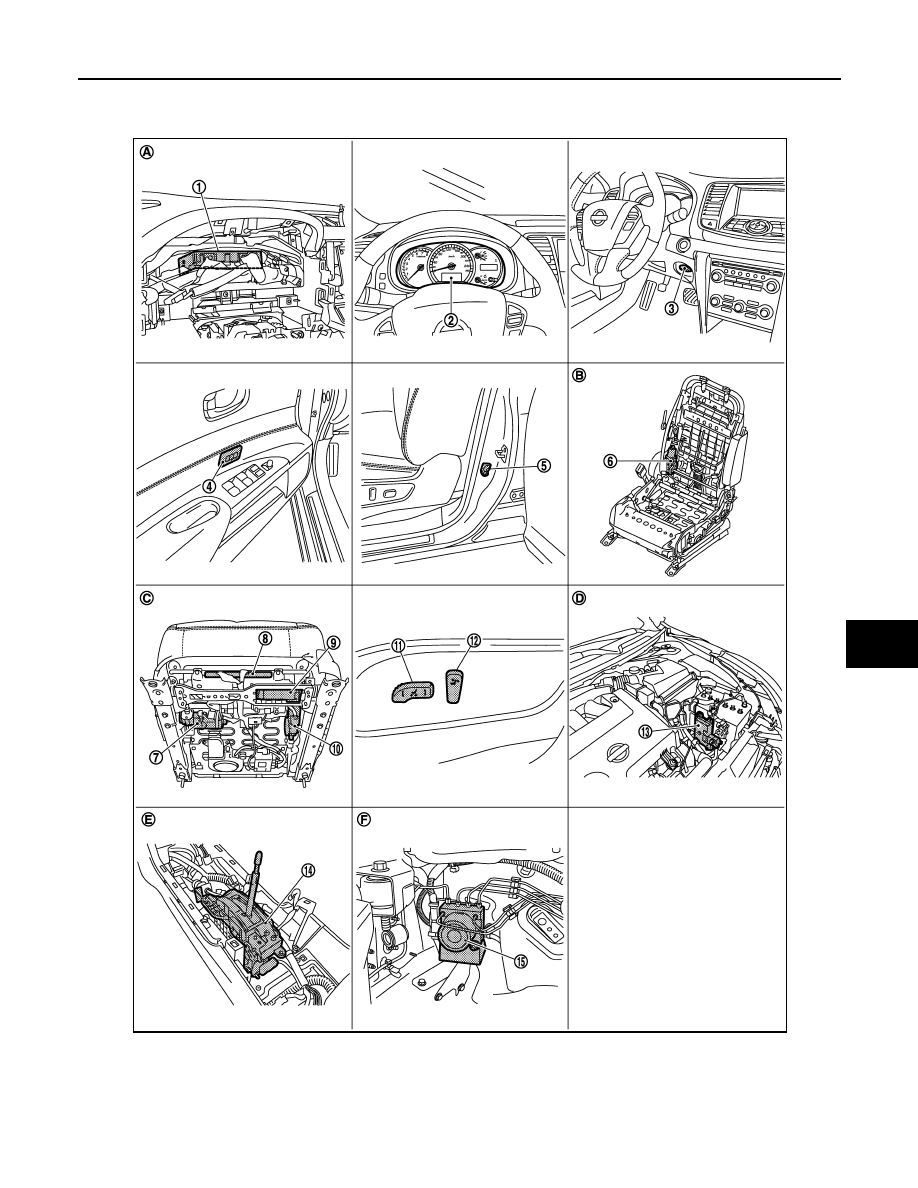

INTELLIGENT KEY INTERLOCK FUNCTION : Component Parts Location

INFOID:0000000003859815

1.

BCM M118, M119, M122, M123

2.

Combination meter M34

3.

Key slot M99

4.

Seat memory switch D13

5.

Front door switch (driver side) B34

6.

Reclining motor (driver side) B454

7.

Lifting motor (front) (driver side)
B455

8.

Driver seat control unit B451,B452

9.

Sliding  motor  (driver side) B461

JMJIA1811ZZ

ADP-34

< FUNCTION DIAGNOSIS >

AUTOMATIC DRIVE POSITIONER SYSTEM

INTELLIGENT KEY INTERLOCK FUNCTION : Component Description

INFOID:0000000003759091

CONTROL UNITS

10. Lifting motor (rear) (driver side) B456 11.

Power seat switch (driver side) B459
(sliding, lifting switch)

12. Power seat switch (driver side) B459

(reclining switch)

13. TCM (transmission control module)

F23

14. Control device (detention switch)

M57

15. ABS actuator and electric unit (con-

trol unit) E36

A.

Behind the combination meter

B.

View with seat cushion and seatback
pad removed

C.

Back side of the seat cushion

D.

Engine room (LH)

E.

View with the center console assem-
bly removed

F.

Engine room (RH)

Item

Function

Driver seat control unit

Performs memory function and entry/exit assist function after receiving the door un-
lock signal from BCM

BCM

Recognizes the following status and transmits it to the driver seat control unit via
CAN communication
• Door lock: UNLOCK

 (with Intelligent Key or driver side door request switch)

• Key ID signal
• Ignition switch signal

DIAGNOSIS SYSTEM (DRIVER SEAT CONTROL UNIT)

ADP-35

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

DIAGNOSIS SYSTEM (DRIVER SEAT CONTROL UNIT)

Diagnosis Description

INFOID:0000000003759092

The auto drive positioner system can be checked and diagnosed for component operation with CONSULT-III.

DIAGNOSTIC MODE

CONSULT-III Function

INFOID:0000000003759093

SELF-DIAGNOSIS RESULTS

Refer to

ADP-124, "DTC Index"

.

DATA MONITOR

Diagnostic mode

[AUTO DRIVE POS.]

Description

WORK SUPPORT

Changes the setting of each function

SELF-DIAG RESULTS

Performs self-diagnosis for the auto drive positioner system and displays the results

DATA MONITOR

Displays input signals transmitted from various switches and sensors to driver seat con-
trol unit in real time

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read

ACTIVE TEST

Drive each output device

ECU IDENTIFICATION

Displays part numbers of driver seat control unit parts

Monitor Item

Unit

Main

Signals

Selection

From

Menu

Contents

SET SW

“ON/OFF”

×

×

ON/OFF status judged from the setting switch signal

MEMORY SW 1

“ON/OFF”

×

×

ON/OFF status judged from the seat memory switch 1 sig-
nal

MEMORY SW 2

“ON/OFF”

×

×

ON/OFF status judged from the seat memory switch 2 sig-
nal

SLIDE SW–FR

“ON/OFF”

×

×

ON/OFF status judged from the sliding switch (forward) sig-
nal

SLIDE SW–RR

“ON/OFF”

×

×

ON/OFF status judged from the sliding switch (backward)
signal

RECLN SW–FR

“ON/OFF”

×

×

ON/OFF status judged from the reclining switch (forward)
signal

RECLN SW–RR

“ON/OFF”

×

×

ON/OFF status judged from the reclining switch (backward)
signal

LIFT FR SW–UP

“ON/OFF”

×

×

ON/OFF status judged from the lifting switch front (up) sig-
nal

LIFT FR SW–DN

“ON/OFF”

×

×

ON/OFF status judged from the lifting switch front (down)
signal

LIFT RR SW–UP

“ON/OFF”

×

×

ON/OFF status judged from the lifting switch rear (up) sig-
nal

LIFT RR SW–DN

“ON/OFF”

×

×

ON/OFF status judged from the lifting switch rear (down)
signal

DETENT SW

“ON/OFF”

×

×

The selector lever position “OFF (P position) / ON (other
than P position)” is judged from the detention switch signal

STARTER SW

“ON/OFF”

×

×

Ignition key switch ON (START, ON) /OFF (ACC, OFF) sta-
tus judged from the ignition switch signal

ADP-36

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (DRIVER SEAT CONTROL UNIT)

ACTIVE TEST

CAUTION:

When driving vehicle never perform active test.

WORK SUPPORT

SLIDE PULSE

×

Value (32768) when battery connections are standard. If it
moves backward, the value increases. If it moves forward,
the value decreases

RECLN PULSE

×

Value (32768) when battery connections are standard. If it
moves backward, the value increases. If it moves forward,
the value decreases

LIFT FR PULSE

×

Value (32768) when battery connections are standard. If it
moves DOWN, the value increases. If it moves UP, the val-
ue decreases

LIFT RR PULSE

×

Value (32768) when battery connections are standard. If it
moves DOWN, the value increases. If it moves UP, the val-
ue decreases

VEHICLE SPEED

×

×

Display the vehicle speed signal received from combination
meter by numerical value [km/h]

P RANG SW CAN

“ON/OFF”

×

×

ON/OFF status judged from the P range switch signal

R RANGE (CAN)

“ON/OFF”

×

×

ON/OFF status judged from the R range switch signal

DOOR SW–FL

“ON/OFF”

×

×

ON/OFF status judged from the door switch (front driver
side) signal

DOOR SW–FR

“ON/OFF”

×

×

ON/OFF status judged from the door switch (front passen-
ger side) signal

IGN ON SW

“ON/OFF”

×

×

ON/OFF status judged from the ignition switch signal

ACC ON SW

“ON/OFF”

×

×

ON/OFF status judged from the ACC switch signal

KEY ON SW

“ON/OFF”

×

×

ON/OFF status judged from the key on switch signal

KEYLESS ID

×

×

Key ID status judged from the key ID signal

KYLS DR UNLK

“ON/OFF”

×

×

ON/OFF status judged from the driver side door unlock ac-
tuator output switch signal

VHCL SPEED (ABS)

“ON/OFF”

×

×

ON/OFF status judged from vehicle speed signal

HANDLE

“RHD/LHD”

×

×

RHD/LHD status judged from handle position signal

TRANSMISSION

“AT or CVT/

MT”

×

×

AT or CVT/MT status judged from transmission

STEERING STATUS

“LOCK/UN-

LOCK”

×

×

LOCK/UNLOCK status judged from steering lock unit

Monitor Item

Unit

Main

Signals

Selection

From

Menu

Contents

Test item

Description

SEAT SLIDE

Activates/deactivates the sliding motor

SEAT RECLINING

Activates/deactivates the reclining motor

SEAT LIFTER FR

Activates/deactivates the lifting motor (front)

SEAT LIFTER RR

Activates/deactivates the lifting motor (rear)

MEMORY SW INDCTR

Turns ON/OFF the memory indicator

Work item

Content

Item

SEAT SLIDE VOLUME SET

The amount of seat sliding for entry/exit assist can be selected
from 3 items.

40 mm

80 mm

150 mm
