Nissan Murano Z51. Manual - part 998





DESCRIPTION

LU-3

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

Engine Lubrication System Schematic

INFOID:0000000005515880

JPBIA1775GB

LU-4

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Liquid Gasket

INFOID:0000000005515881

LIQUID GASKET APPLICATION PROCEDURE

1.

Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.
• Remove liquid gasket completely from the liquid gasket application surface, mounting bolts, and bolt

holes.

2.

Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating
use) to remove adhering moisture, grease and foreign materials.

3.

Apply liquid gasket to the liquid gasket application surface.
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-18, "Recommended Chemical Prod-

ucts and Sealants"

.

• Within 5 minutes of liquid gasket application, install in the mating component.
• If liquid gasket protrudes, wipe it off immediately.
• Never retighten mounting bolts or nuts after the installation.
• After 30 minutes or more have passed from the installation, fill engine oil and engine coolant.

PREPARATION

LU-5

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000005515882

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000005515883

Tool number
(Kent-Moore No.)
Tool name

Description

ST25051001
(J-25695-1)
Oil pressure gauge

Measuring oil pressure
Maximum measuring range: 2,452 kPa (25

kg/cm

2

, 356 psi)

ST25052000
(J-25695-2)
Hose

Adapting oil pressure gauge to oil pan (upper)

KV10115801
(J-38956)
Oil filter wrench

Removing oil filter
a: 64.3 mm (2.531 in)

NT050

S-NT559

S-NT375

Tool name

Description

Power tools

Loosening nuts and bolts

PBIC0190E

LU-6

< PREPARATION >

PREPARATION

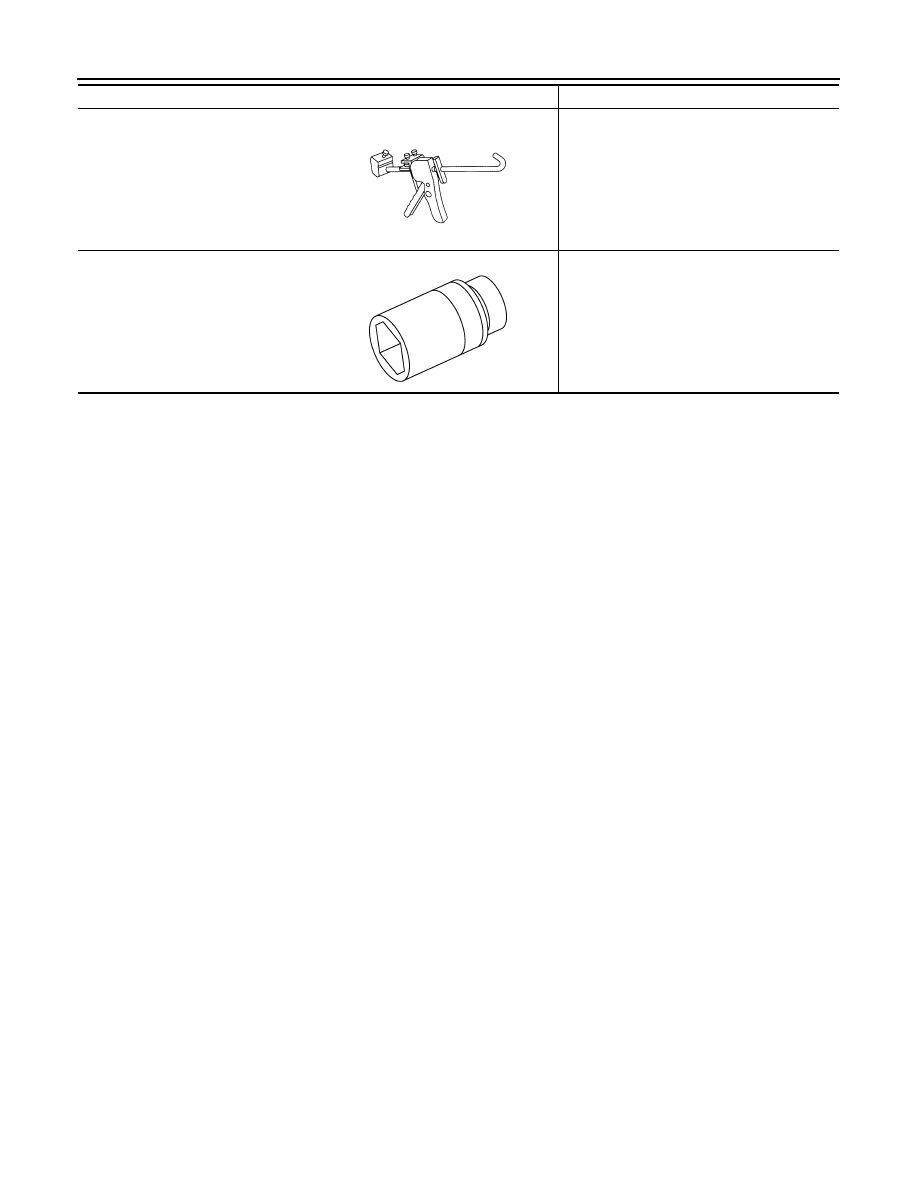

Tube presser

Pressing the tube of liquid gasket

Deep socket

Removing and installing oil pressure switch
27 mm (1.06 in)

Tool name

Description

NT052

PBIC4066E
