INSTRUMENT PANEL ASSEMBLY

IP-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

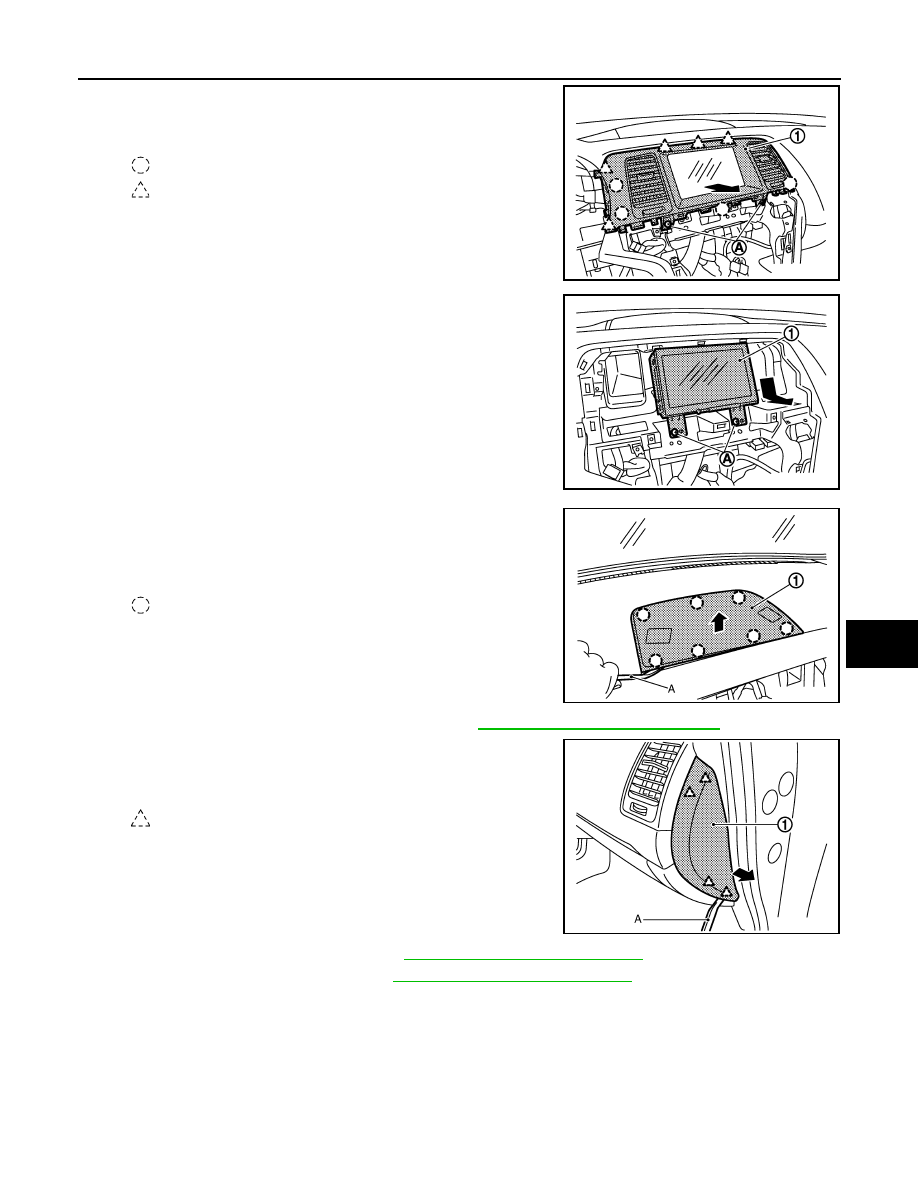

21. Remove center ventilator assembly.

• Remove center ventilator assembly (1) fixing screws (A).
• Pull back center ventilator assembly.

22. Remove display unit.

• Remove display unit (1) fixing screws (A).
• Pull toward the arrow direction.
• Disconnect harness connector.

23. Remove center speaker grille.

• Disengage center speaker grille (1) fixing clips with remover

tool (A).

• Pull up center speaker grille.

24. Remove center speaker. (with BOSE audio) Refer to

AV-543, "Removal and Installation"

.

25. Remove instrument side finisher RH.

• Insert a remover tool (A) into lower space.
• Pull the instrument side finisher RH (1) crosswise.

26. Remove front body side welt RH. Refer to

INT-20, "Removal and Installation"

.

27. Remove front pillar garnish RH. Refer to

INT-20, "Removal and Installation"

.

: Clip

: Pawl

JMJIA1325ZZ

JMJIA1326ZZ

: Clip

JMJIA1327ZZ

: Pawl

JMJIA1328ZZ

IP-18

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

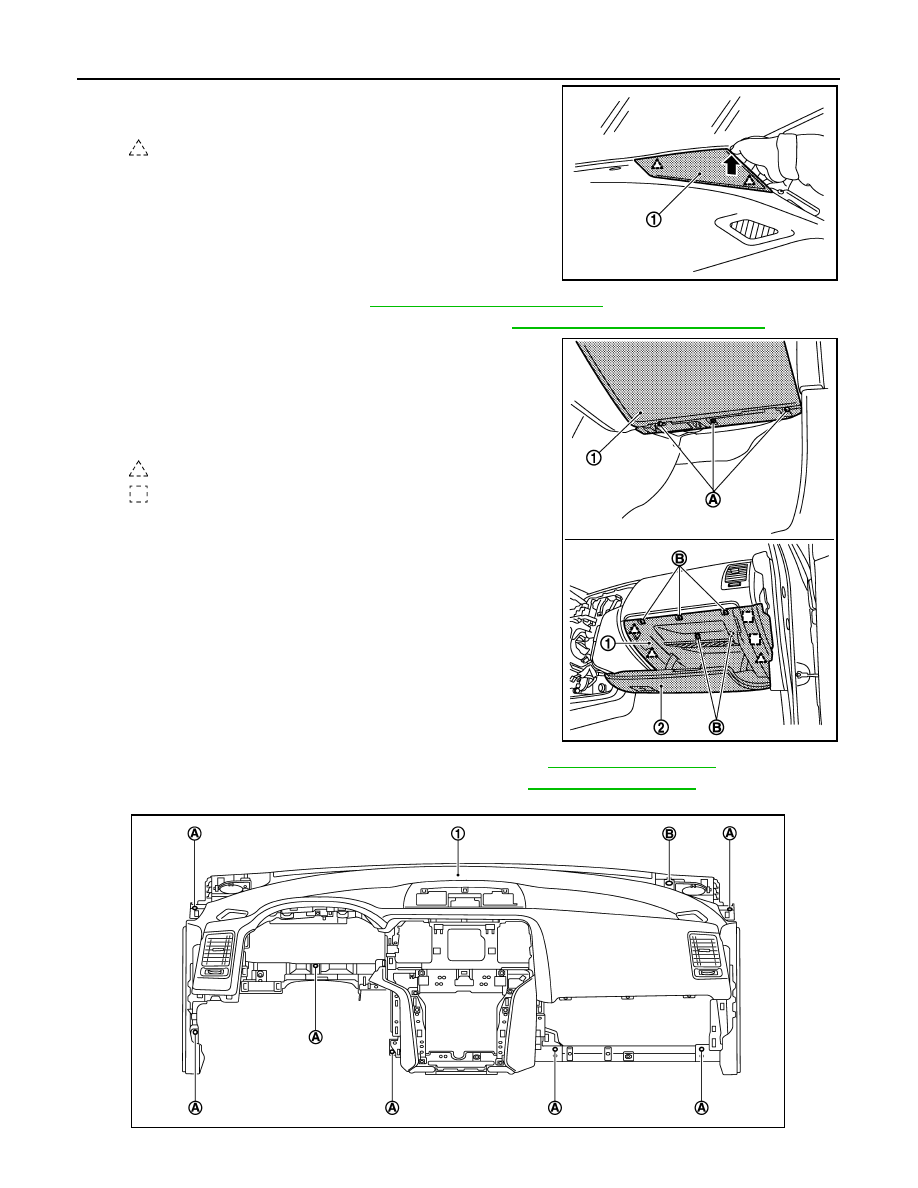

28. Remove speaker grille RH.

Pull up speaker grille RH (1).

29. Remove front squawker RH. Refer to

AV-45, "Removal and Installation"

.

30. Remove optical sensor. (with XENON headlamp) Refer to

EXL-184, "Removal and Installation"

.

31. Remove instrument lower panel RH.

• Remove instrument lower panel RH (1) fixing screws (A).
• Open the glove box lid (2).
• Remove instrument lower panel RH fixing screws (B).
• Pull back instrument lower panel RH.
• Disconnect harness connector.

32. Disconnect front passenger air bag module connector. Refer to

SR-17, "Exploded View"

.

33. Remove front passenger air bag module fixing bolt. Refer to

SR-17, "Exploded View"

.

34. Remove instrument panel assembly (1) mounting screws (A) and bolt (B).

: Pawl

JMJIA1329ZZ

: Pawl

: Metal clip

JMJIA1330ZZ

JMJIA1331ZZ

INSTRUMENT PANEL ASSEMBLY

IP-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

35. Remove instrument panel assembly.

CAUTION:

• Cover center console upper surface with a shop cloth to prevent it from being damaged.
• When removing instrument panel assembly, 2 workers are required so as to prevent it from drop-

ping.

36. Remove the following parts after removing instrument panel assembly.

• Passenger air bag module. Refer to

SR-17, "Removal and Installation"

.

• Ventilator duct. Refer to

VTL-51, "VENTILATOR DUCT : Removal and Installation"

.

• Upper ventilator duct. Refer to

VTL-52, "UPPER VENTILATOR DUCT : Removal and Installation"

.

• Defroster nozzle and side defroster nozzle LH/RH. Refer to

VTL-53, "DEFROSTER NOZZLE AND SIDE

DEFROSTER NOZZLE : Removal and Installation"

.

• Side defroster grille LH/RH. Refer to

VTL-50, "SIDE DEFROSTER GRILLE : Removal and Installation"

.

• Side ventilator grille LH/RH. Refer to

VTL-48, "SIDE VENTILATOR GRILLE : Removal and Installation"

.

• Antenna feeder (radio). Refer to

AV-48, "Harness Layout"

.

• Antenna feeder. Refer to

AV-562, "Harness Layout"

.

INSTALLATION

Install in the reverse order of removal.

IP-20

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

CENTER CONSOLE ASSEMBLY

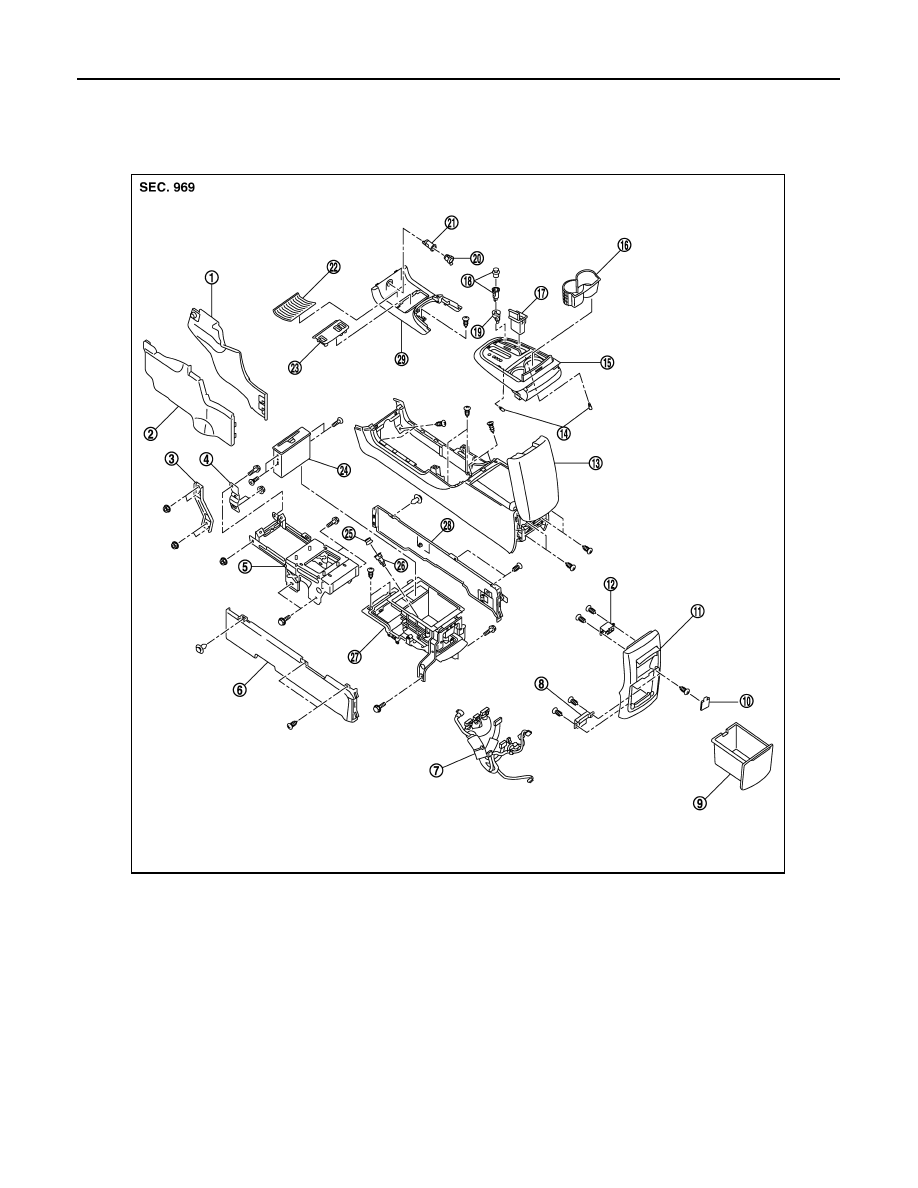

Exploded View

INFOID:0000000005518125

1.

Instrument lower cover RH

2.

Instrument lower cover LH

3.

Instrument stay LH

4.

Front console bracket

5.

Console reinforcement

6.

Lower console finisher LH

7.

Console harness

8.

Inside key antenna

9.

Rear console pocket

10. Console mask

11.

Console rear finisher

12. Auxiliary input jacks

13. Center console assembly

14. Socket and bulb

15. Console finisher assembly

16. Cup holder assembly

17. Ashtray

18. Cigarette lighter complete

19. Cigarette lighter ring

20. Socket knob

21. Socket inner case

22. Console mat

23. Console switch finisher

24. DVD player (if equipped)

25. Socket knob

26. Socket inner case

27. Lower console assembly

28. Lower console finisher RH

29. Front console pocket

JMJIA1333ZZ
