INTERIOR ROOM LAMP BATTERY SAVER SYSTEM

INL-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

Each function of interior room lamp battery saver can be set by CONSULT-III. Refer to

INL-16, "BATTERY

SAVER : CONSULT-III Function (BCM - BATTERY SAVER)"

.

Component Parts Location

INFOID:0000000005516761

1.

Personal lamp

2.

Request switch

3.

Step lamp

4.

Door switch

5.

Key cylinder switch

6.

Key slot

7.

Map lamp

8.

Vanity mirror lamp

9.

Door lock switch

10. Remote keyless entry receiver

11.

BCM

12.

Luggage room lamp

13. Back door switch

A.

Over the glove box

B.

Behind the combination meter

C.

Back door

D.

Back door lock assembly

JPLIA0846ZZ

INL-10

< SYSTEM DESCRIPTION >

INTERIOR ROOM LAMP BATTERY SAVER SYSTEM

Component Description

INFOID:0000000005516762

Part

Description

BCM

Operates the interior room lamp battery saver depending on the vehicle condition to
cut the interior room lamp power supply.

Remote keyless entry receiver

• Receives the lock/unlock signal from keyfob.
• Transmits the lock/unlock signal to BCM.

• Request switch
• Key cylinder lock/unlock switch
• Door lock/unlock switch

Inputs the lock/unlock signal to BCM.

• Door switch
• Back door switch

Inputs a switch signal to BCM.

Key slot

Inputs the Intelligent Key in status to BCM.

ILLUMINATION CONTROL SYSTEM

INL-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ILLUMINATION CONTROL SYSTEM

System Diagram

INFOID:0000000005516763

System Description

INFOID:0000000005516764

OUTLINE

Each illumination lamp is controlled by each function of BCM, IPDM E/R and combination meter.

Control by BCM

• Combination switch reading function
• Headlamp control function

Control by IPDM E/R

• Relay control function

Control by combination meter

• Meter illumination control function (Refer to

MWI-24, "METER ILLUMINATION CONTROL : System Descrip-

tion"

.)

ILLUMINATION CONTROL

• BCM detects the combination switch condition by the combination switch reading function.
• BCM transmits position light request signal to IPDM E/R and combination meter according to tail lamp ON

condition.

Tail lamp ON condition

- Lighting switch 1ST
- Lighting switch 2ND
- Lighting switch AUTO, and the auto light function ON judgment (With auto light system)
• IPDM E/R turns the integrated tail lamp relay ON according to position light request signal. It provides the

power supply to each illumination lamp.

• Combination meter enters in the nighttime mode according to position light request signal. Under the night-

time mode the combination meter controls the illuminance by controlling the each illumination lamp (ground
side).

JPLIA0855GB

INL-12

< SYSTEM DESCRIPTION >

ILLUMINATION CONTROL SYSTEM

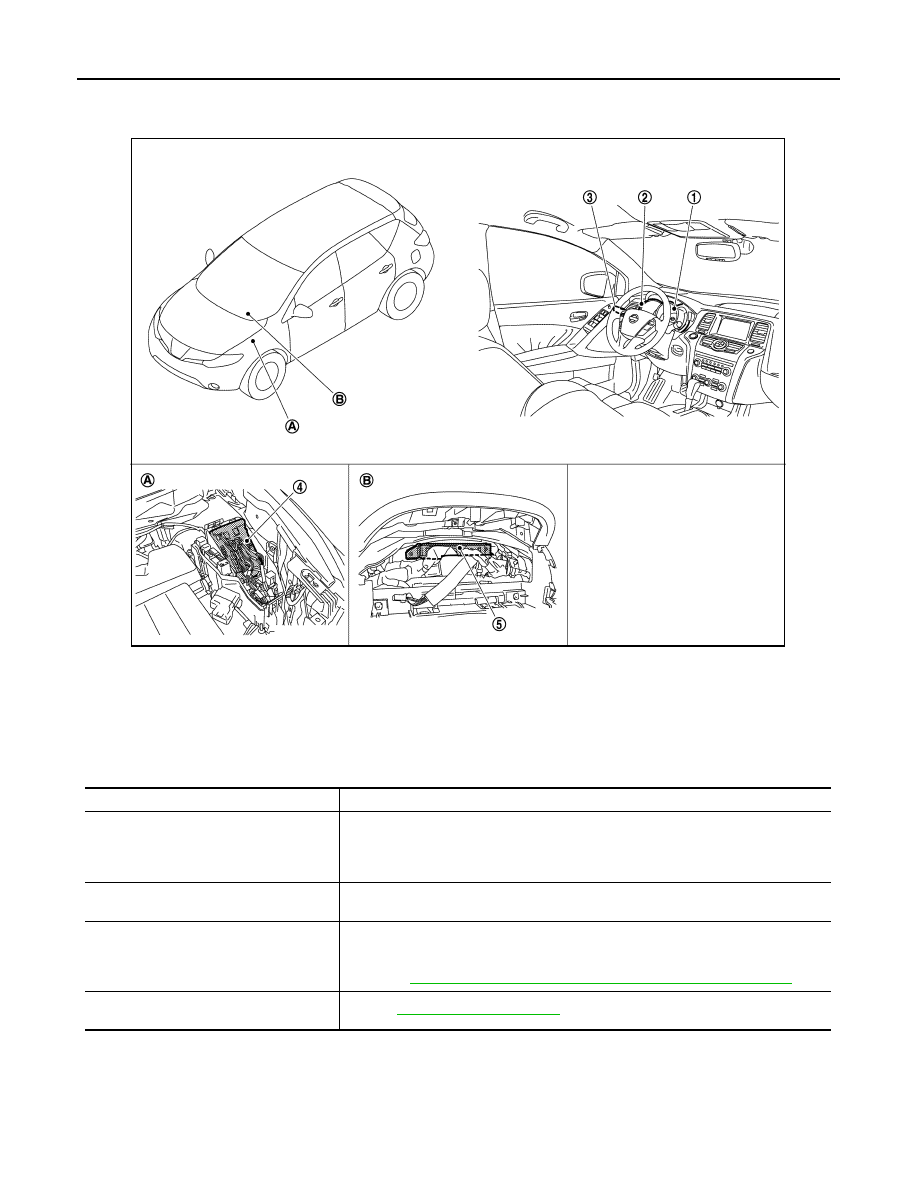

Component Parts Location

INFOID:0000000005516765

Component Description

INFOID:0000000005516766

1.

Combination meter

2.

Illumination control switch

3.

Combination switch

4.

IPDM E/R

5.

BCM

A

Engine room (LH)

B.

Behind the combination meter

JPLIA0847ZZ

Part

Description

BCM

• Detects each switch condition by the combination switch reading function.
• Judges the illumination lamp ON/OFF status depending on the vehicle condition.

And then it transmits position light request signal to IPDM E/R and combination
meter (with CAN communication).

IPDM E/R

Controls the integrated relay according to the request from BCM (with CAN communi-
cation).

Combination meter

• Enters in nighttime mode according to the request from BCM (with CAN communi-

cation).

• Controls the each illumination in the nighttime mode.

Refer to

MWI-24, "METER ILLUMINATION CONTROL : System Description"

.

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-9, "System Description"

.
