COMPRESSOR CONTROL FUNCTION

HAC-135

< SYSTEM DESCRIPTION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

PASSENGER COMPARTMENT

1.

Refrigerant pressure sensor

2.

Compressor (magnet clutch)

3.

Ambient sensor

JPIIA0607ZZ

HAC-136

< SYSTEM DESCRIPTION >

[WITH 7 INCH DISPLAY]

COMPRESSOR CONTROL FUNCTION

1.

Intake door motor

2.

Upper ventilator door motor

3.

Air mix door motor (passenger side)

4.

Air mix door motor (driver side)

5.

Mode door motor

6.

Sunload sensor

7.

In-vehicle sensor

8.

A/C auto amp.

9.

Intake sensor

10. Blower motor

JPIIA0608ZZ

COMPRESSOR CONTROL FUNCTION

HAC-137

< SYSTEM DESCRIPTION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Component’s Role

INFOID:0000000005514681

Component

Reference

Refrigerant pressure sensor

EC-457, "Description"

Compressor

HAC-195, "Description"

Ambient sensor

HAC-167, "Description"

Intake door motor

HAC-186, "Description"

Upper ventilator door motor

HAC-188, "Description"

Air mix door motor (driver side)

HAC-179, "Description"

Air mix door motor (passenger side)

HAC-181, "Description"

Mode door motor

HAC-183, "Description"

Sunload sensor

HAC-176, "Description"

In-vehicle sensor

HAC-170, "Description"

A/C auto amp.

HAC-197, "A/C AUTO AMP. : Description"

Intake sensor

HAC-173, "Description"

Blower motor

HAC-191, "Description"

HAC-138

< SYSTEM DESCRIPTION >

[WITH 7 INCH DISPLAY]

AUTOMATIC AIR CONDITIONER SYSTEM

AUTOMATIC AIR CONDITIONER SYSTEM

System Diagram

INFOID:0000000005514682

CONTROL SYSTEM

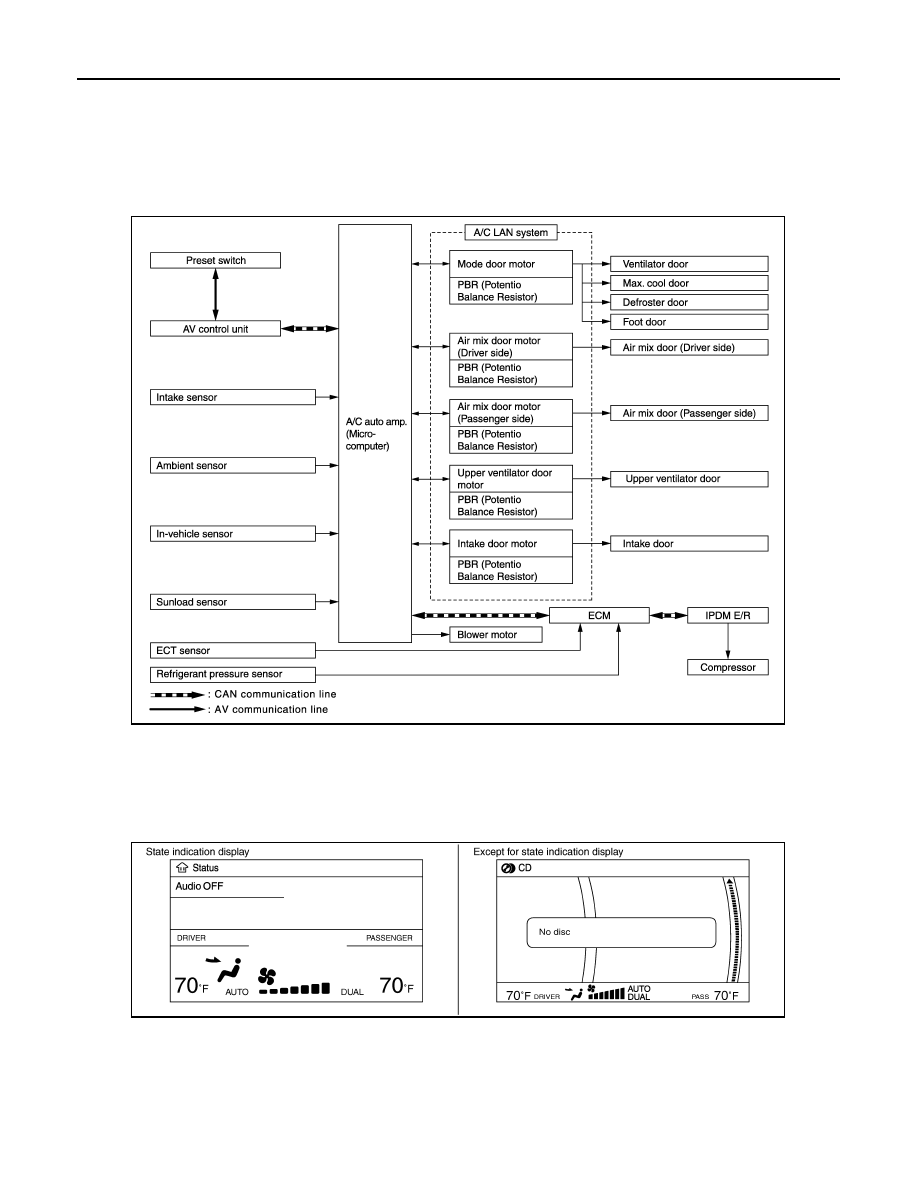

The control system consists of input sensors, switches, the A/C auto amp. (microcomputer) and outputs. The
relationship of these components is as shown in the figure below:

System Description

INFOID:0000000005514683

CONTROL OPERATION

Display

The operation status of the system is displayed on the screen.

JSIIA1542GB

JPIIA0511GB
