A/C AUTO AMP.

HAC-95

< ECU DIAGNOSIS INFORMATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

−

Signal name

Input/

Output

6

(L)

Ground

TX (AMP > SW·DISP)

 Input

—

—

7

(P)

Ground

RX (SW > AMP)

Output

—

—

10

(L)

Ground

LAN signal

Input/

Output

—

11

(R)

Ground

Power supply for each door
motor

Input

Ignition switch ON

Battery voltage

15

(O)

Ground

Sunload sensor

Input

—

—

16

(G)

Ground

Intake sensor

Input

—

—

17

(R)

Ground

Power supply from ACC

—

Ignition switch ACC

Battery voltage

19

(B)

Ground

Ground

—

Ignition switch ON

0 V

20

(G)

Ground

Power supply from IGN

—

Ignition switch ON

Battery voltage

32

(L)

Ground

Blower motor control signal

Output

• Ignition switch ON
• Blower speed: 1st speed

(manual)

34

(P)

Ground

Power supply for ambient
meter

Output

Ignition switch ON

5V

35

(L)

Ground

Ambient sensor

Input

—

—

36

(LG)

Ground

In-vehicle sensor

Input

—

—

37

(Y)

Ground

Sensor ground

—

Ignition switch ON

 0 V

39

(B)

Ground

Ground

—

Ignition switch ON

 0 V

40

(Y)

Ground

Power supply from BATT

—

Ignition switch OFF

Battery voltage

SJIA1453J

JSIIA0096ZZ

HAC-96

< ECU DIAGNOSIS INFORMATION >

[WITHOUT 7 INCH DISPLAY]

A/C AUTO AMP.

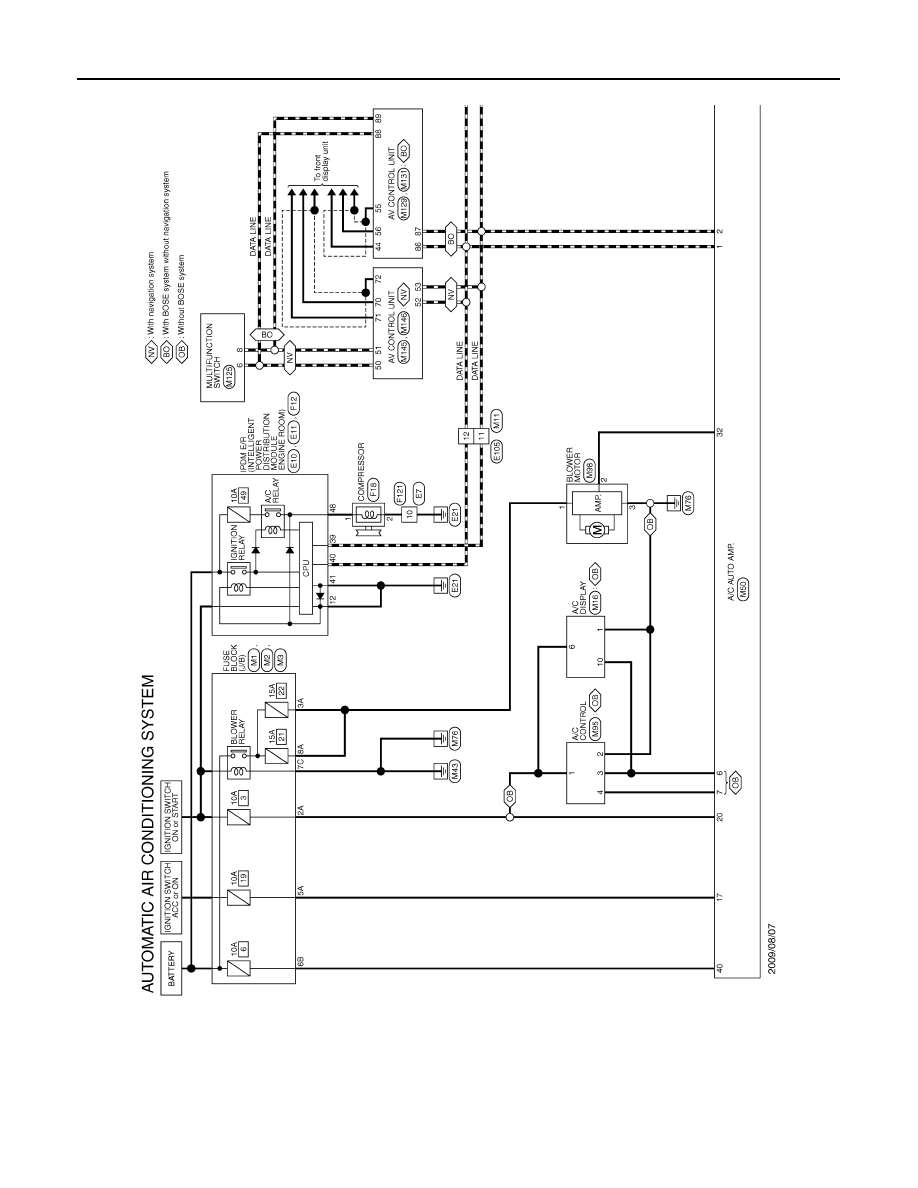

Wiring Diagram - AIR CONDITIONER CONTROL SYSTEM -

INFOID:0000000005514648

JCIWM0570GB

A/C AUTO AMP.

HAC-97

< ECU DIAGNOSIS INFORMATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

JCIWM0571GB

HAC-98

< ECU DIAGNOSIS INFORMATION >

[WITHOUT 7 INCH DISPLAY]

A/C AUTO AMP.

JCIWM0572GB
