Nissan Murano Z51. Manual - part 857





ECM

HAC-83

< ECU DIAGNOSIS INFORMATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

*1: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ
from ECM terminals voltage signal.

*2: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to

PG-3, "How to Handle Battery"

.

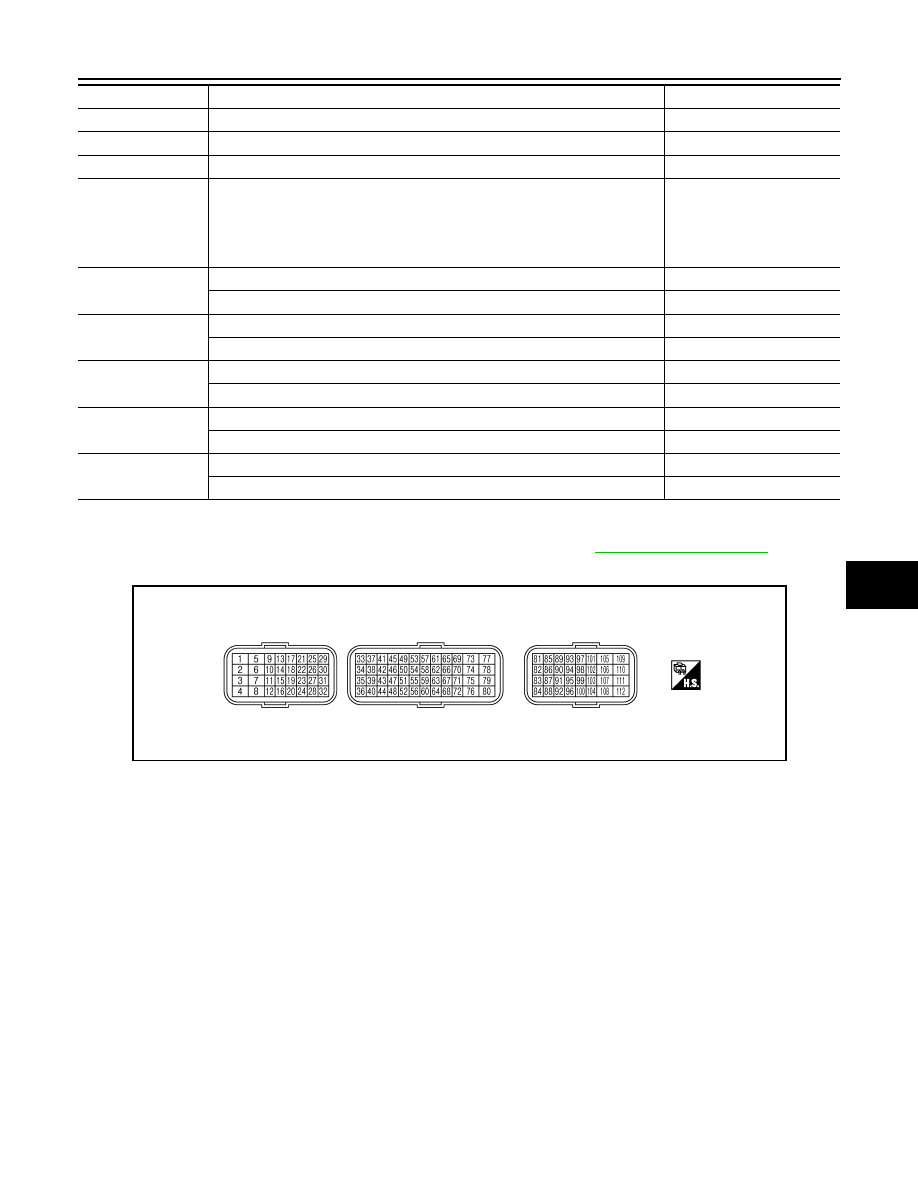

TERMINAL LAYOUT

PHYSICAL VALUES

NOTE:
• ECM is located in the engine room left side near battery.
• Specification data are reference values.
• Pulse signal is measured by CONSULT-III.

ALT DUTY

• Engine: Idle

0 - 80%

A/F ADJ-B1

• Engine: Running

0.330 - 0.330

A/F ADJ-B2

• Engine: Running

0.330 - 0.330

BAT CUR SEN

• Engine speed: Idle

• Battery: Fully charged*

2

• Selector lever: P or N position
• Air conditioner switch: OFF
• No  load

Approx. 2,600 - 3,500 mV

ALT DUTY SIG

• Power generation voltage variable control: Operating

ON

• Power generation voltage variable control: Not operating

OFF

HO2 S2 DIAG1 (B1)

DTC P0139 self-diagnosis (delayed response) is incomplete.

INCMP

DTC P0139 self-diagnosis (delayed response) is complete.

CMPLT

HO2 S2 DIAG1 (B2)

DTC P0159 self-diagnosis (delayed response) is incomplete.

INCMP

DTC P0159 self-diagnosis (delayed response) is complete.

CMPLT

HO2 S2 DIAG2 (B1)

DTC P0139 self-diagnosis (slow response) is incomplete.

INCMP

DTC P0139 self-diagnosis (slow response) is complete.

CMPLT

HO2 S2 DIAG2 (B2)

DTC P0159 self-diagnosis (slow response) is incomplete.

INCMP

DTC P0159 self-diagnosis (slow response) is complete.

CMPLT

Monitor Item

Condition

Values/Status

PBIA9221J

HAC-84

< ECU DIAGNOSIS INFORMATION >

[WITHOUT 7 INCH DISPLAY]

ECM

Terminal No.

Description

Condition

Value

(Approx.)

+

-–

Signal name

Input/

Output

1

(P/B)

112

(B)

Fuel injector No. 6

Output

[Engine is running]
• Warm-up condition
• Idle speed

NOTE:
The pulse cycle changes de-
pending on rpm at idle

BATTERY VOLTAGE

(11 - 14 V)

3

(L/W)

Fuel injector No. 5

29

(LG/R)

Fuel injector No. 4

30

(R/Y)

Fuel injector No. 3

[Engine is running]
• Warm-up condition
• Engine speed: 2,000 rpm

BATTERY VOLTAGE

(11 - 14 V)

31

(R/W)

Fuel injector No. 2

32

(R/B)

Fuel injector No. 1

2

(G/W)

112

(B)

Throttle control motor power
supply

Input

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14 V)

4

(BR/Y)

112

(B)

A/F sensor 1 heater
(bank 1)

Output

[Engine is running]
• Warm-up condition
• Idle speed

(More than 140 seconds after
starting engine)

2.9 - 8.8 V

5

(L)

112

(B)

Throttle control motor (Open)

Output

[Ignition switch: ON]
• Engine stopped
• Selector lever: D position
• Accelerator pedal: Fully de-

pressed

0 - 14 V

[Ignition switch: ON]
• Engine stopped
• Selector lever: D position
• Accelerator pedal: Fully re-

leased

0 - 14 V

6

(P)

112

(B)

Throttle control motor (Close)

Output

[Ignition switch: ON]
• Engine stopped
• Selector lever: D position
• Accelerator pedal: Fully re-

leased

0 - 14 V

JMBIA0047GB

JMBIA0048GB

JMBIA0902GB

JMBIA0031GB

JMBIA0032GB

JMBIA1125GB

ECM

HAC-85

< ECU DIAGNOSIS INFORMATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

8

(SB)

112

(B)

A/F sensor 1 heater (bank 2)

Output

[Engine is running]
• Warm-up condition
• Idle speed

(More than 140 seconds after
starting engine)

2.9 - 8.8 V

9

(L/B)

112

(B)

Ignition signal No. 3

Output

[Engine is running]
• Warm-up condition
• Idle speed

NOTE:
The pulse cycle changes de-
pending on rpm at idle

0 - 0.2 V

10

(G/R)

Ignition signal No. 2

11

(Y/R)

Ignition signal No. 1

18

(GR/R)

Ignition signal No. 6

[Engine is running]
• Warm-up condition
• Engine speed: 2,000 rpm

0.1 - 0.4 V

19

(P)

Ignition signal No. 5

21

(W)

Ignition signal No. 4

12

(B)

ECM ground

13

(P/B)

112

(B)

Heated oxygen sensor 2 heat-
er (bank 1)

Output

[Engine is running]
• Engine speed: Below 3,600

rpm after the following condi-
tions are met

- Engine: after warming up
- Keeping the engine speed be-

tween 3,500 and 4,000 rpm
for 1 minute and at idle for 1
minute under no load

10 V

[Ignition switch: ON]
• Engine stopped
[Engine is running]
• Engine speed: Above 3,600

rpm

BATTERY VOLTAGE
(11 - 14 V)

14

(GR)

112

(B)

Fuel pump relay

Output

[Ignition switch: ON]
• For 1 second after turning ig-

nition switch ON

[Engine is running]

0 - 1.5 V

[Ignition switch: ON]
• More than 1 second after turn-

ing ignition switch ON

BATTERY VOLTAGE
(11 - 14 V)

15

(O)

112

(B)

Throttle control motor relay

Output

[Ignition switch: ON

 OFF]

0 - 1.0 V

 BATTERY VOLTAGE

(11 - 14 V)

 0 V

[Ignition switch: ON]

0 - 1.0 V

16

(B/Y)

ECM ground

Terminal No.

Description

Condition

Value

(Approx.)

+

-–

Signal name

Input/

Output

JMBIA0030GB

JMBIA0035GB

JMBIA0036GB

JMBIA0902GB

HAC-86

< ECU DIAGNOSIS INFORMATION >

[WITHOUT 7 INCH DISPLAY]

ECM

17

(R)

112

(B)

Heated oxygen sensor 2 heat-
er (bank 2)

Output

[Engine is running]
• Engine speed: Below 3,600

rpm after the following condi-
tions are met

- Engine: after warming up
- Keeping the engine speed be-

tween 3,500 and 4,000 rpm
for 1 minute and at idle for 1
minute under no load

10 V

[Ignition switch: ON]
• Engine stopped
[Engine is running]
• Engine speed: Above 3,600

rpm

BATTERY VOLTAGE
(11 - 14 V)

24

(W/B)

112

(B)

ECM relay
(Self shut-off)

Output

[Engine is running]
[Ignition switch: OFF]
• A few seconds after turning

ignition switch OFF

0 - 1.5 V

[Ignition switch: OFF]
• More than a few seconds after

turning ignition switch OFF

BATTERY VOLTAGE
(11 - 14 V)

25

(P/L)

112

(B)

EVAP canister purge volume
control solenoid valve

Output

[Engine is running]
• Idle speed
• Accelerator pedal: Not de-

pressed even slightly, after
engine starting

BATTERY VOLTAGE

(11 - 14 V)

[Engine is running]
• Engine speed: approximately

2,000 rpm (More than 100
seconds after starting engine)

BATTERY VOLTAGE

(11 - 14 V)

26

(GR/B)

112

(B)

VIAS control solenoid valve 2

Output

[Engine is running]
• Warm-up condition
• Idle speed

BATTERY VOLTAGE
(11 - 14 V)

[Engine is running]
• Warm-up condition
• When revving engine up to

5,000 rpm quickly

BATTERY VOLTAGE (11 - 14 V)

0 - 1.0 V

BATTERY VOLTAGE (11 - 14 V)

27

(V)

112

(B)

VIAS control solenoid valve 1

Output

[Engine is running]
• Warm-up condition
• Idle speed

BATTERY VOLTAGE
(11 - 14 V)

[Engine is running]
• Warm-up condition
• When revving engine up to

5,000 rpm quickly

BATTERY VOLTAGE (11 - 14 V)

0 - 1.0 V

BATTERY VOLTAGE (11 - 14 V)

Terminal No.

Description

Condition

Value

(Approx.)

+

-–

Signal name

Input/

Output

JMBIA0902GB

JMBIA0039GB

JMBIA0040GB
