FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

FL-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

2.

Start engine and let it idle and check there are no fuel leakage at the fuel system connections.

FL-12

< REMOVAL AND INSTALLATION >

FUEL TANK

FUEL TANK

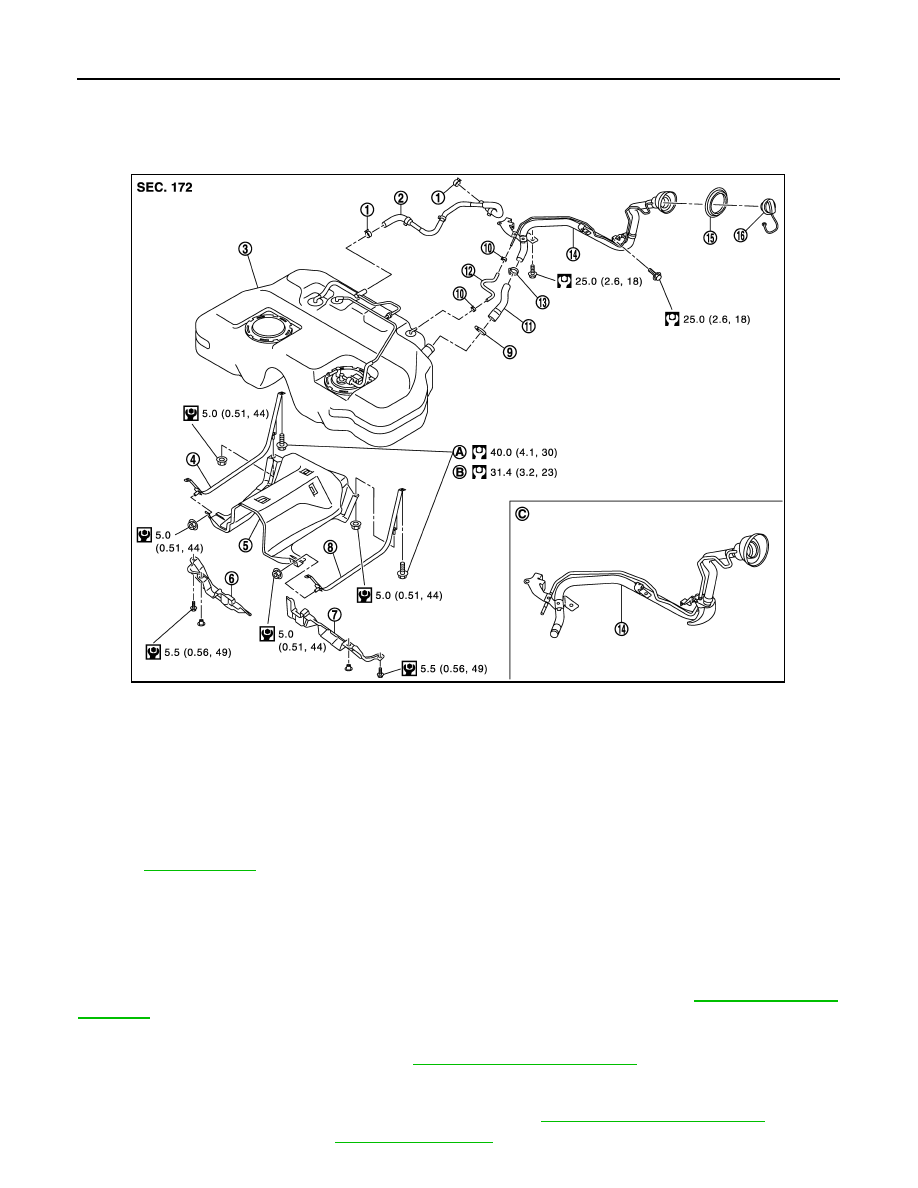

Exploded View

INFOID:0000000005515875

• In regard to the notation of torque in the figure, (A) shows an ISO standard, (B) shows a conventional stan-

dard.

Removal and Installation

INFOID:0000000005515876

WARNING:

Be sure to read “General Precautions” when working on the fuel system. Refer to

FL-2, "General Pre-

cautions"

.

REMOVAL

• Drain fuel from fuel tank if necessary. Refer to

FL-6, "Removal and Installation"

.

• Perform work on level place.

1.

Perform steps 2 to 7 of “REMOVAL” in “ FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP
ASSEMBLY” on main and sub fuel level sensor units. Refer to

FL-6, "Removal and Installation"

.

2.

Remove center muffler. Refer to

EX-5, "Exploded View"

.

1.

Clamp

2.

EVAP/Vent line hose

3.

Fuel tank

4.

Fuel tank mounting band (RH)

5.

Fuel tank protector

6.

Fuel tank protector (RH)

7.

Fuel tank protector (LH)

8.

Fuel tank mounting band (LH)

9.

Clamp

10. Clamp

11.

Fuel filler hose

12. EVAP (Recirculation) hose

13. Clamp

14.

Fuel filler tube

15. Grommet

16. Fuel filler cap

A.

The measurement of hexagonal
width across flat: 16 mm (0.63 in)

B.

The measurement of hexagonal
width across flat: 17 mm (0.67 in)

C.

AWD 20 inch tire models (up to VIN
No. JN8AZ18W79W125941)

Refer to

GI-4, "Components"

 for to symbols in the figure.

JPBIA2661GB

FUEL TANK

FL-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

3.

Remove propeller shaft. Refer to

DLN-83, "Exploded View"

. (AWD models)

4.

Remove parking rear brake cables. Refer to

PB-6, "Exploded View"

.

5.

Remove rear suspension member assembly. Refer to

RSU-18, "Exploded View"

. (AWD models)

NOTE:
For this service, drive shaft, final drive, and rear suspension member are required not to be separate one
another during removal.

6.

Remove fuel tank protectors.

7.

Disconnect fuel filler hose (1), EVAP/Vent line hose (3), and
EVAP (Recirculation) hose (2) from the side other than the fuel
tank side.

8.

Support the lower part of fuel tank (1) with transmission jack (A).

CAUTION:

Support the position that fuel tank mounting bands never
engage.

9.

Remove fuel tank mounting bands.

10. Supporting with hands, descend transmission jack carefully, and remove fuel tank.

CAUTION:

• Check that all connection points have been disconnected.
• Confirm there is no interference with vehicle.

11. Remove fuel filler tube if necessary.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Surely clamp fuel hoses and insert hose to the length below.

• Be sure hose clamp is not placed on swelled area of fuel tube.
• Tighten the clamp hand with the top mark (A) until the mark is on

the bolt head flange.

: Vehicle front

JPBIA1696ZZ

JPBIA0145ZZ

Fuel filler hose

: 35 mm (1.38 in)

The other hoses

: 25 mm (0.98 in)

JPBIA0146ZZ

FL-14

< REMOVAL AND INSTALLATION >

FUEL TANK

• To connect quick connector, refer to

FL-6, "Removal and Installation"

.

Inspection

INFOID:0000000005515877

INSPECTION AFTER INSTALLATION

Use the following procedure to check for fuel leakage.

1.

Turn ignition switch “ON” (with engine stopped), and check connections for leakage by applying fuel pres-
sure to fuel piping.

2.

Start engine and rev it up and check there are no fuel leakage at the fuel system tube and hose connec-
tions.

• After removing/installing rear suspension assembly, check to adjust wheel alignment and then, adjust neutral

position of steering angle sensor. Refer to

RSU-6, "Inspection"

 and

BRC-9, "ADJUSTMENT OF STEERING

ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.
