BCM (BODY CONTROL MODULE)

EXL-295

< ECU DIAGNOSIS INFORMATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

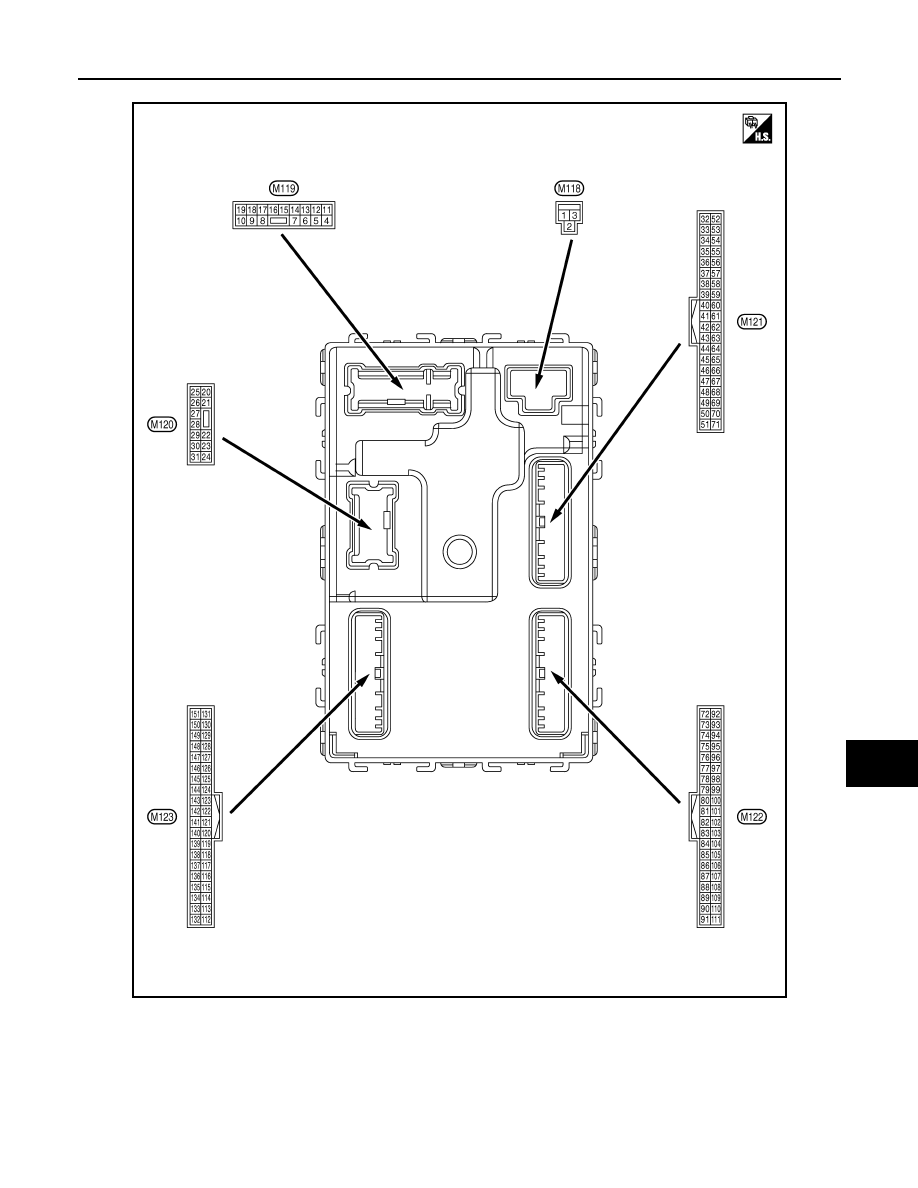

TERMINAL LAYOUT

PHYSICAL VALUES

JPMIA0062ZZ

EXL-296

< ECU DIAGNOSIS INFORMATION >

[HALOGEN TYPE]

BCM (BODY CONTROL MODULE)

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

–

1

(W)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

2

(GR)

Ground

P/W power supply
(BAT)

Output

Ignition switch OFF

Battery voltage

3

(L)

Ground

P/W power supply
(RAP)

Output

Ignition switch ON

Battery voltage

4

(P)

Ground

Interior room lamp
power supply

Output

Interior room lamp battery saver is activated.
(Cuts the interior room lamp power supply)

0 V

Interior room lamp battery saver is not activat-
ed.
(Outputs the interior room lamp power supply)

Battery voltage

5

(G)

Ground

Passenger door UN-
LOCK

Output

Passenger door

UNLOCK (Actuator is acti-
vated)

Battery voltage

Other than UNLOCK (Actu-
ator is not activated)

0 V

7

(W)

Ground

Step lamp

Output

Step lamp

ON

0 V

OFF

Battery voltage

8

(V)

Ground

All doors LOCK

Output

All doors

LOCK (Actuator is activat-
ed)

Battery voltage

Other than LOCK (Actuator
is not activated)

0 V

9

(G)

Ground

Driver door UNLOCK

Output

Driver door

UNLOCK (Actuator is acti-
vated)

Battery voltage

Other than UNLOCK (Actu-
ator is not activated)

0 V

10

(P)

Ground

Rear RH door and
rear LH door UN-
LOCK

Output

Rear RH door
and rear LH door

UNLOCK (Actuator is acti-
vated)

Battery voltage

Other than UNLOCK (Actu-
ator is not activated)

0 V

11

(LG)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

13

(B)

Ground

Ground

—

Ignition switch ON

0 V

14

(O)

Ground

Push-button ignition
switch illumination
ground

Output

Tail lamp

OFF

0 V

ON

NOTE:

When the illumination brighten-

ing/dimming level is in the neutral

position

15

(L)

Ground

ACC indicator lamp

Output

Ignition switch

OFF (LOCK and ON indi-
cator lamps are not illumi-
nated.)

Battery voltage

ACC

0 V

JSNIA0010GB

BCM (BODY CONTROL MODULE)

EXL-297

< ECU DIAGNOSIS INFORMATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

17

(G)

Ground

Turn signal RH

Output

Ignition switch
ON

Turn signal switch OFF

0 V

Turn signal switch RH

6.5 V

18

(BR)

Ground

Turn signal LH

Output

Ignition switch
ON

Turn signal switch OFF

0 V

Turn signal switch LH

6.5 V

19

(Y)

Ground

Room lamp timer
control

Output

Interior room
lamp

OFF

Battery voltage

ON

0 V

23

(BR)

Ground

Back door open

Output

Back door

OPEN (Back door opener
actuator is activated)

Battery voltage

Other than OPEN (Back
door opener actuator is not
activated)

0 V

26

(G)

Ground

Rear wiper

Output

Rear wiper

OFF (Stopped)

0 V

ON (Operated)

Battery voltage

34

(B)

Ground

Luggage room anten-
na (-)

Output

Ignition switch
OFF

When Intelligent Key is in
the passenger compart-
ment

When Intelligent Key is not
in the passenger compart-
ment

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

–

PKID0926E

PKID0926E

JMKIA0062GB

JMKIA0063GB

EXL-298

< ECU DIAGNOSIS INFORMATION >

[HALOGEN TYPE]

BCM (BODY CONTROL MODULE)

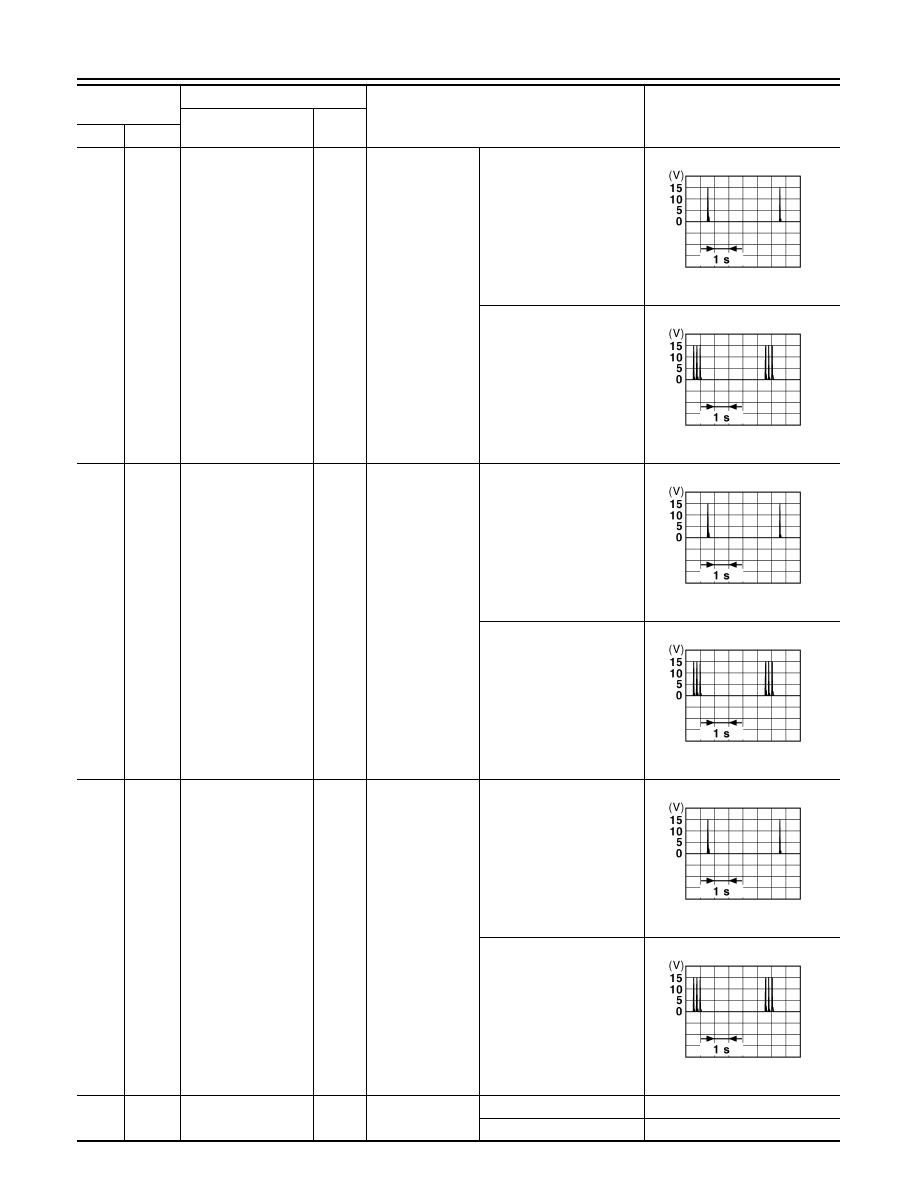

35

(W)

Ground

Luggage room anten-
na (+)

Output

Ignition switch
OFF

When Intelligent Key is in
the passenger compart-
ment

When Intelligent Key is not
in the passenger compart-
ment

38

(L)

Ground

Rear bumper anten-
na (-)

Output

When the back
door request
switch is operat-
ed with ignition
switch OFF

When Intelligent Key is in
the antenna detection area

When Intelligent Key is not
in the antenna detection
area

39

(BR)

Ground

Rear bumper anten-
na (+)

Output

When the back
door request
switch is operat-
ed with ignition
switch OFF

When Intelligent Key is in
the antenna detection area

When Intelligent Key is not
in the antenna detection
area

47

(L)

Ground

Ignition relay (IPDM
E/R) control

Output

Ignition switch

OFF or ACC

Battery voltage

ON

0 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/

Output

+

–
