TAIL LAMP CIRCUIT

EXL-243

< DTC/CIRCUIT DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

2.

Disconnect IPDM E/R connector.

3.

Check continuity between the IPDM E/R harness connector and the rear combination lamp harness con-
nector.

Does continuity exist?

YES

>> GO TO 4.

NO

>> Repair the harnesses or connectors.

4.

CHECK TAIL LAMP GROUND OPEN CIRCUIT

Check continuity between the rear combination lamp harness connector and the ground.

Does continuity exist?

YES

>> Replace the rear combination lamp.

NO

>> Repair the harnesses or connectors.

IPDM E/R

Rear combination lamp

Continuity

Connector

Terminal

Connector

Terminal

RH

E10

7

B59

4

Existed

LH

B80

4

Rear combination lamp

Ground

Continuity

Connector

Terminal

RH

B59

1

Existed

LH

B80

1

EXL-244

< DTC/CIRCUIT DIAGNOSIS >

[HALOGEN TYPE]

LICENSE PLATE LAMP CIRCUIT

LICENSE PLATE LAMP CIRCUIT

Component Function Check

INFOID:0000000005515183

1.

CHECK LICENSE PLATE LAMP OPERATION

IPDM E/R AUTO ACTIVE TEST

1.

Activate IPDM E/R auto active test. Refer to

PCS-10, "Diagnosis Description"

.

2.

Check that the license plate lamp is turned ON.

CONSULT-III ACTIVE TEST

1.

Select “EXTERNAL LAMPS” of IPDM E/R active test item.

2.

With operating the lighting switch, check that the license plate lamp is turned ON.

Is the license plate lamp turned ON?

YES

>> License plate lamp circuit is normal.

NO

>> Refer to

EXL-244, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005515184

1.

CHECK LICENSE PLATE LAMP BULB

Check the applicable lamp bulb.
Is the bulb normal?

YES

>> GO TO 2.

NO

>> Replace the bulb.

2.

CHECK LICENSE PLATE LAMP OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect IPDM E/R connector and the license plate lamp connector.

3.

Check continuity between the IPDM E/R harness connector and the license plate lamp harness connec-
tor.

Does continuity exist?

YES

>> GO TO 3.

NO

>> Repair the harnesses or connectors.

3.

CHECK LICENSE PLATE LAMP GROUND OPEN CIRCUIT

Check continuity between the license plate lamp harness connector and the ground.

Does continuity exist?

YES

>> Replace the license plate lamp.

NO

>> Repair the harnesses or connectors.

TAIL

: License plate lamp ON

Off

: License plate lamp OFF

IPDM E/R

License plate lamp

Continuity

Connector

Terminal

Connector

Terminal

RH

E10

7

D163

1

Existed

LH

D162

1

License plate lamp

Ground

Continuity

Connector

Terminal

RH

D163

2

Existed

LH

D162

2

HEADLAMP SYSTEM

EXL-245

< DTC/CIRCUIT DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEADLAMP SYSTEM

Wiring Diagram - HEADLAMP -

INFOID:0000000005515185

JCLWM2748GB

EXL-246

< DTC/CIRCUIT DIAGNOSIS >

[HALOGEN TYPE]

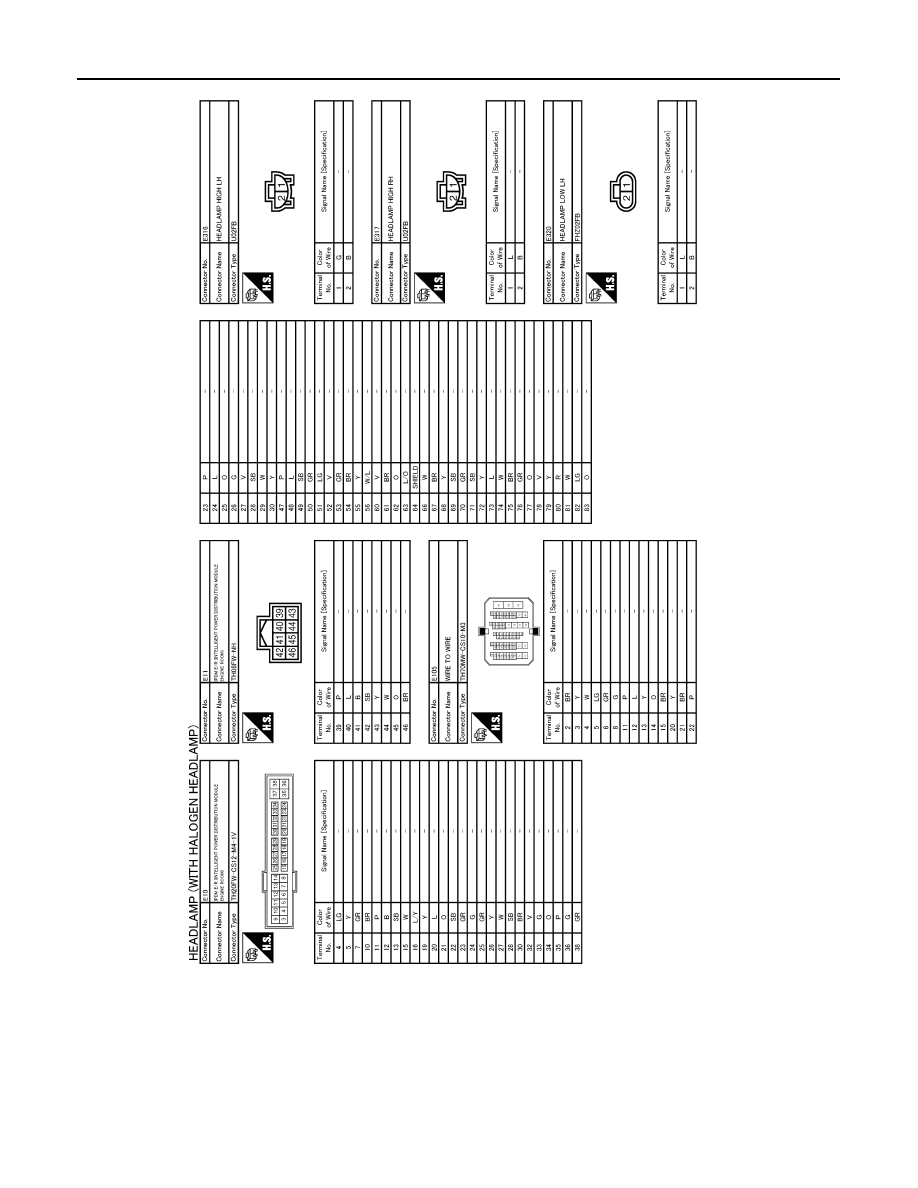

HEADLAMP SYSTEM

JCLWM4148GB
