EXTERIOR LAMP FUSE

EXL-35

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

EXTERIOR LAMP FUSE

Description

INFOID:0000000005515040

Fuse list

Diagnosis Procedure

INFOID:0000000005515041

1.

CHECK FUSE

Check that the following fuses are not fusing.

Is the fuse fusing?

YES

>> Repair the applicable circuit. And then replace the fuse.

NO

>> The fuse is normal.

Unit

Location

Fuse No.

Capacity

Headlamp HI (LH)

IPDM E/R

#54

10 A

Headlamp HI (RH)

IPDM E/R

#55

10 A

Headlamp LO (LH)

IPDM E/R

#56

15 A

Headlamp LO (RH)

IPDM E/R

#57

15 A

Front fog lamp

IPDM E/R

#58

15 A

• Parking  lamp
• Front side marker lamp

IPDM E/R

#52

10 A

• Tail  lamp
• Rear side marker lamp
• License plate lamp
• Each illumination

IPDM E/R

#53

10 A

Stop lamp

FUSE BLOCK (J/B)

#7

10 A

Back-up lamp

FUSE BLOCK (J/B)

#4

10 A

Unit

Location

Fuse No.

Capacity

Headlamp HI (LH)

IPDM E/R

#54

10 A

Headlamp HI (RH)

IPDM E/R

#55

10 A

Headlamp LO (LH)

IPDM E/R

#56

15 A

Headlamp LO (RH)

IPDM E/R

#57

15 A

Front fog lamp

IPDM E/R

#58

15 A

• Parking  lamp
• Front side marker lamp

IPDM E/R

#52

10 A

• Tail lamp
• Rear side marker lamp
• License plate lamp
• Each illumination

IPDM E/R

#53

10 A

Stop lamp

FUSE
BLOCK (J/B)

#7

10 A

Back-up lamp

FUSE
BLOCK (J/B)

#4

10 A

EXL-36

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

HEADLAMP (HI) CIRCUIT

HEADLAMP (HI) CIRCUIT

Description

INFOID:0000000005515042

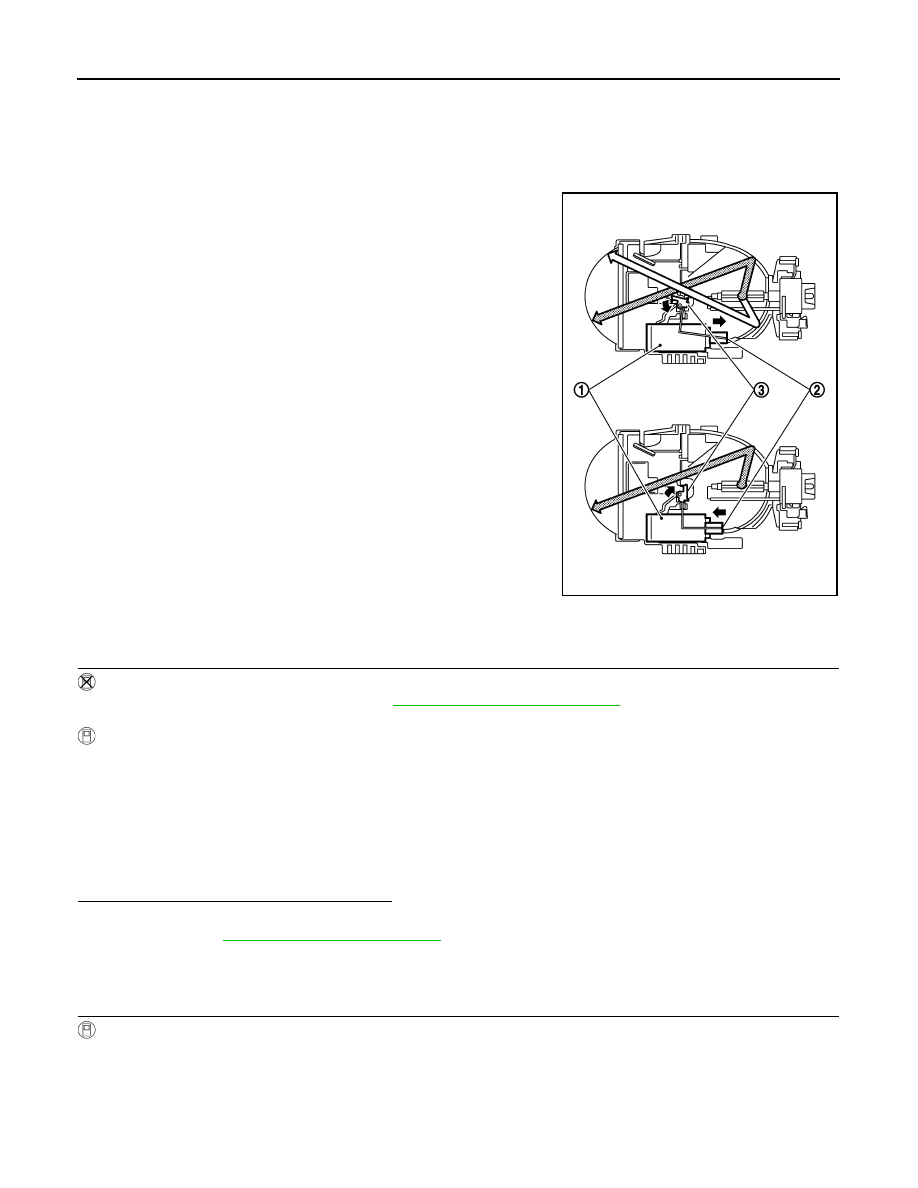

The high beam solenoid drives the mobile valve shade. And the mobile valve shade switches the high beam
and low beam of headlamp.
• When the headlamp high relay is turned ON, magnetic force is

applied to the high beam solenoid (1) by a current. The mobile
valve shade (3) is switched to the high beam position through the
actuator rod (2).

• When the headlamp high relay is turned OFF, the current stops.

The mobile valve shade returns to the low beam position automati-
cally.

Component Function Check

INFOID:0000000005515043

1.

CHECK HEADLAMP (HI) OPERATION

IPDM E/R AUTO ACTIVE TEST

1.

Start IPDM E/R auto active test. Refer to

PCS-10, "Diagnosis Description"

.

2.

Check that the headlamp switches to the high beam.

CONSULT-III ACTIVE TEST

1.

Select “EXTERNAL LAMPS” of IPDM E/R active test item.

2.

With operating the test items, check that the headlamp switches to the high beam.

NOTE:
HI/LO is repeated 1 second each.

Does the headlamp switch to the high beam?

YES

>> Headlamp (HI) circuit is normal.

NO

>> Refer to

EXL-36, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005515044

1.

CHECK HEADLAMP (HI) OUTPUT VOLTAGE

CONSULT-III ACTIVE TEST

1.

Turn the ignition switch OFF.

2.

Disconnect the high beam solenoid connector.

3.

Turn the ignition switch ON.

4.

Select “EXTERNAL LAMPS” of IPDM E/R active test item.

5.

With operating the test items, check the voltage between the IPDM E/R harness connector and the
ground.

JPLIA0802ZZ

Hi

: Headlamp switches to the high beam.

Off

: Headlamp OFF

HEADLAMP (HI) CIRCUIT

EXL-37

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Is the measurement value normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK HEADLAMP (HI) OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check continuity between the IPDM E/R harness connector and the high beam solenoid harness connec-
tor.

Does continuity exist?

YES

>> GO TO 5.

NO

>> Repair the harnesses or connectors.

3.

CHECK HEADLAMP (HI) FUSE

1.

Turn the ignition switch OFF.

2.

Check that the following fuses are not fusing.

Is the fuse fusing?

YES

>> GO TO 4.

NO

>> Replace IPDM E/R.

4.

CHECK HEADLAMP (HI) SHORT CIRCUIT

1.

Disconnect IPDM E/R connector.

2.

Check continuity between the IPDM E/R harness connector terminal and the ground.

Does continuity exist?

YES

>> Repair the harnesses or connectors. And then replace the fuse.

NO

>> Replace the fuse. (Replace IPDM E/R if the fuse is fusing again.)

Terminals

Test item

Voltage

(Approx.)

(+)

(

−

)

IPDM E/R

Ground

EXTERNAL

LAMPS

Connector

Terminal

RH

E345

89

Hi

Battery
voltage

Off

0 V

LH

90

Hi

Battery
voltage

Off

0 V

IPDM E/R

High beam solenoid

Continuity

Connector

Terminal

Connector

Terminal

RH

E345

89

E326

1

Existed

LH

90

E325

1

Unit

Location

Fuse No.

Capacity

Headlamp HI (RH) IPDM E/R

#55

10

A

Headlamp HI (LH) IPDM E/R

#54

10

A

IPDM E/R

Ground

Continuity

Connector

Terminal

RH

E345

89

Not existed

LH

90

EXL-38

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

HEADLAMP (HI) CIRCUIT

5.

CHECK HEADLAMP (HI) GROUND OPEN CIRCUIT

Check continuity between the high beam solenoid harness connector and the ground.

Does continuity exist?

YES

>> Replace the front combination lamp.

NO

>> Repair the harnesses or connectors.

High beam solenoid

Ground

Continuity

Connector

Terminal

RH

E326

2

Existed

LH

E325

2
