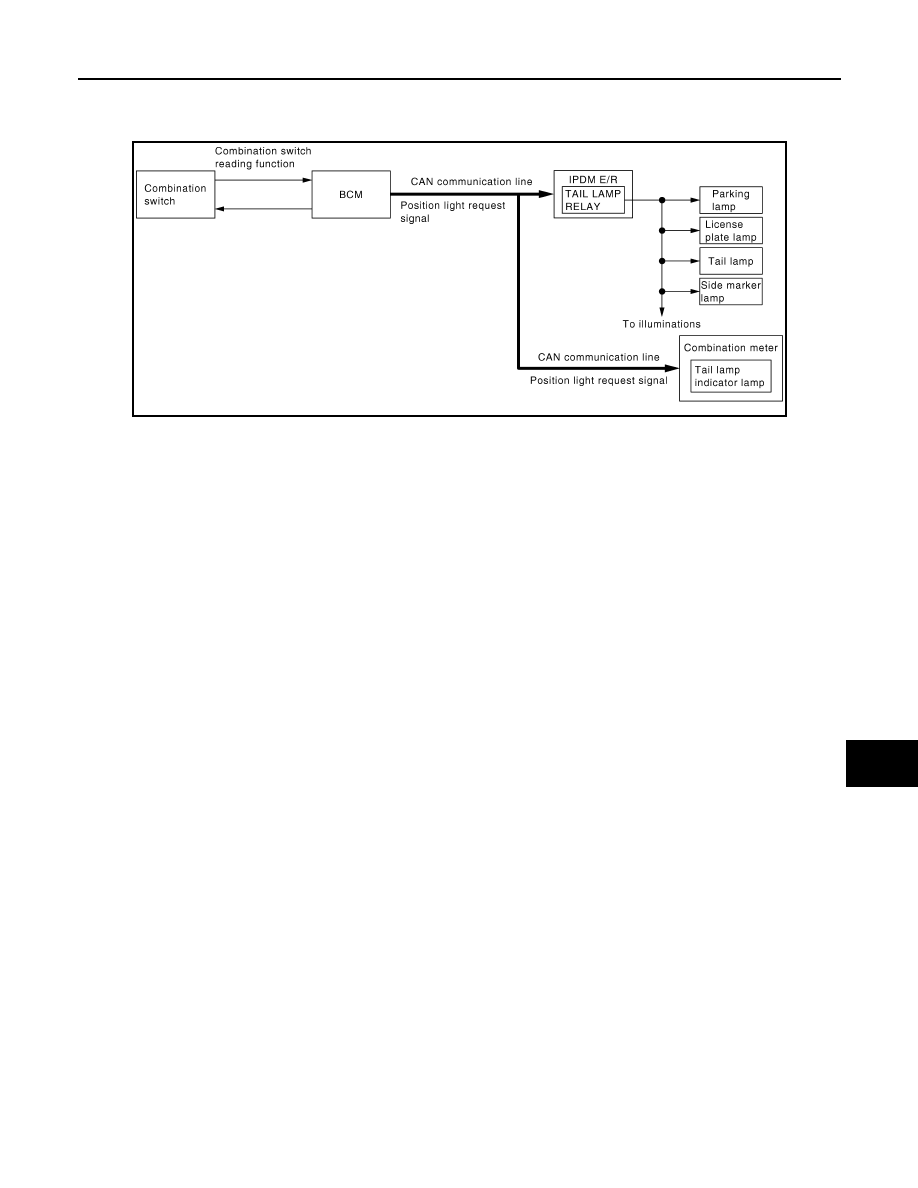

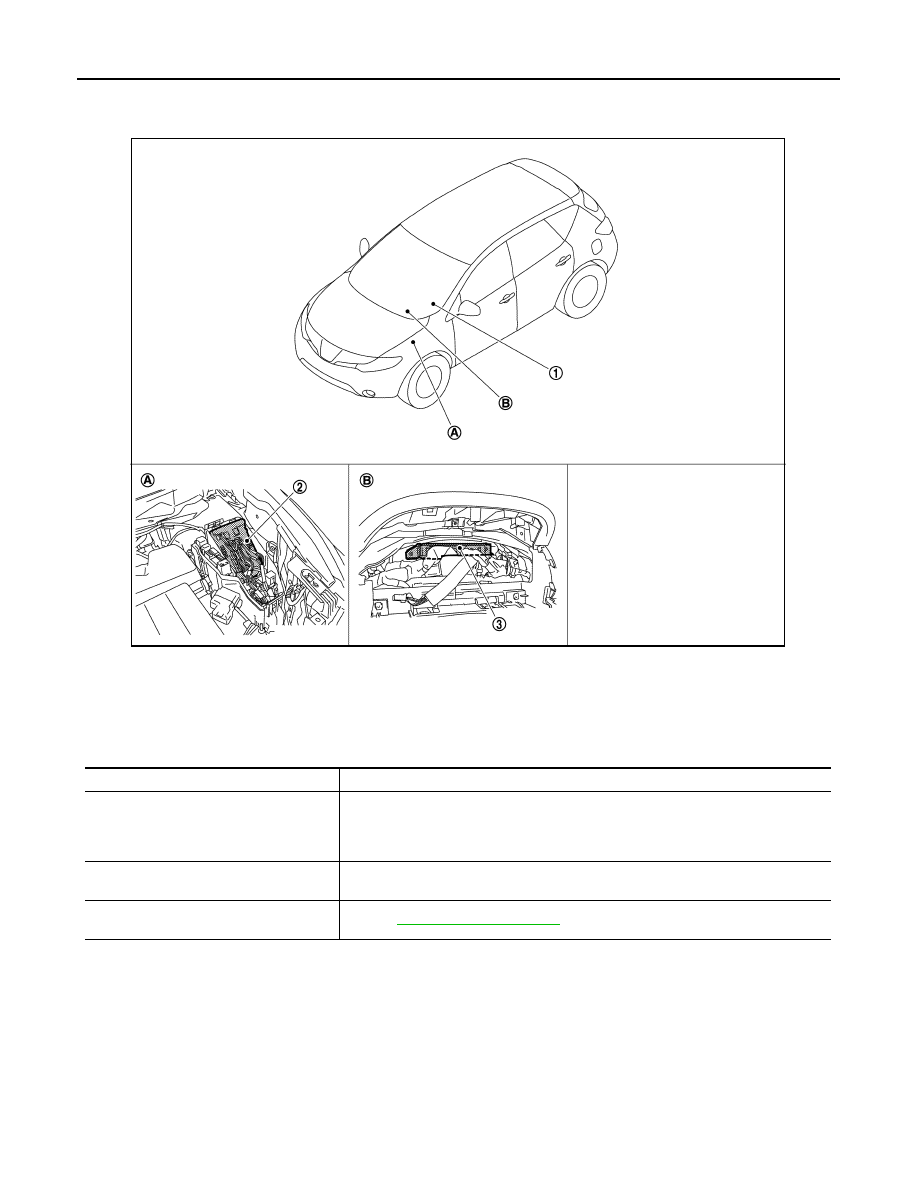

PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM EXL-19 < SYSTEM DESCRIPTION > [XENON TYPE] C D E F G H I J K M A B EXL N O P PARKING, LICENSE PLATE AND TAIL LAMPS SYSTEM System Diagram INFOID:0000000005515025 System Description INFOID:0000000005515026 OUTLINE Parking, license plate, side marker and tail lamps are controlled by combination switch reading function and PARKING, LICENSE PLATE, SIDE MARKER AND TAIL LAMPS OPERATION • BCM detects the combination switch condition by the combination switch reading function. cation according to the ON/OFF condition of the parking, license plate, side marker and tail lamps. Parking, license plate, side marker and tail lamps ON condition - Lighting switch 1ST tail lamps ON according to the position light request signal. • Combination meter turns the tail lamp indicator lamp ON according to the position light request signal. JPLIA0805GB |
