DIAGNOSIS AND REPAIR WORKFLOW

EXL-7

< BASIC INSPECTION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

>> GO TO 2.

2.

SYMPTOM CHECK

Check the symptom from the customer's information.

>> GO TO 3.

3.

BASIC INSPECTION

Check the operation of each part. Check that any symptom occurs other than the interviewed symptom.

>> GO TO 4.

4.

SELF-DIAGNOSIS WITH CONSULT-III

Perform the self-diagnosis with CONSULT-III. Check that any DTC is detected.
Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 9.

6.

FAIL-SAFE ACTIVATION CHECK

Check that the symptom is applied to the fail-safe activation.
Does the fail-safe activate?

YES

>> GO TO 7.

NO

>> GO TO 8.

7.

SYSTEM DIAGNOSIS

Perform the system diagnosis for the system that the fail-safe activates. Specify the malfunctioning part.

>> GO TO 9.

8.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 9.

9.

MALFUNCTION PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 10.

10.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)

Perform the self-diagnosis with CONSULT-III. Check that any DTC is not detected. Erase DTC if DTC is
detected before the repair. Check that DTC is not detected again.

Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 11.

11.

REPAIR CHECK (OPERATION CHECK)

Check the operation of each part.
Does it operate normally?

YES

>> INSPECTION END

NO

>> GO TO 3.

EXL-8

< SYSTEM DESCRIPTION >

[XENON TYPE]

HEADLAMP SYSTEM

SYSTEM DESCRIPTION

HEADLAMP SYSTEM

System Diagram

INFOID:0000000005515005

System Description

INFOID:0000000005515006

OUTLINE

• Mobile valve shade type is adopted. Xenon headlamp switches the high beam and the low beam with one

xenon bulb each on right and left.

• Headlamp is controlled by combination switch reading function and headlamp control function of BCM, and

relay control function of IPDM E/R.

HEADLAMP BASIC OPERATION

• BCM detects the combination switch condition with the combination switch reading function.
• BCM transmits the low beam request signal to IPDM E/R with CAN communication according to the head-

lamp ON condition.

Headlamp ON condition

- Lighting switch 2ND
- Lighting switch PASS
- Lighting switch AUTO, and the auto light function ON judgment (With auto light system)
• IPDM E/R turns the integrated headlamp low relay ON, and turns the headlamp ON according to the low

beam request signal.

HEADLAMP HI/LO SWITCHING OPERATION

• BCM transmits the high beam request signal to IPDM E/R and the combination meter with CAN communica-

tion according to the high beam switching condition.

High beam switching condition

- Lighting switch HI with the lighting switch 2ND or AUTO (auto light function ON judgment)
- Lighting switch PASS
• Combination meter turns the high beam indicator lamp ON according to the high beam request signal.
• IPDM E/R turns the integrated headlamp high relay ON, and turns the headlamp ON according to the high

beam request signal.

JPLIA1036GB

HEADLAMP SYSTEM

EXL-9

< SYSTEM DESCRIPTION >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

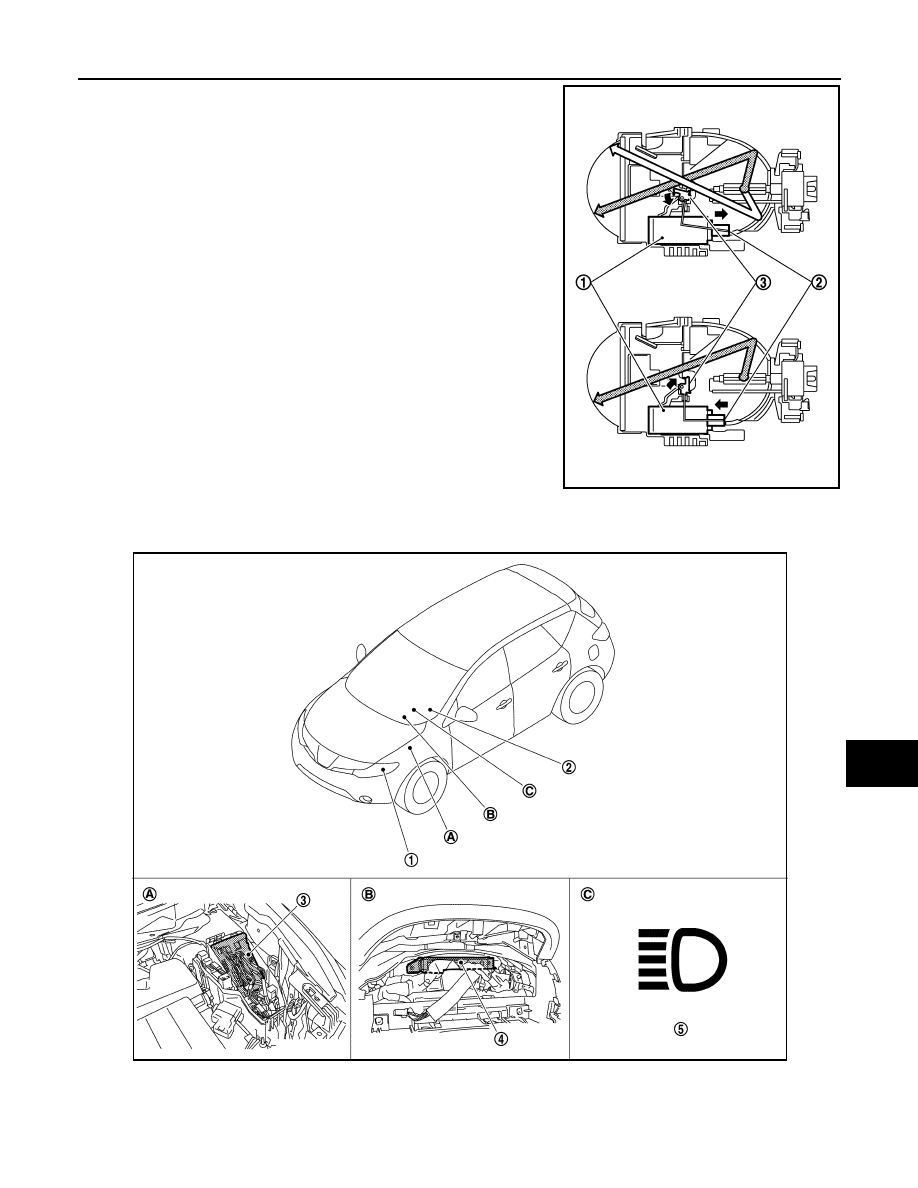

• When the headlamp high relay is turned ON, magnetic force is

applied to the high beam solenoid (1) by a current. The mobile
valve shade (3) is switched to the high beam position through the
actuator rod (2).

• When the headlamp high relay is turned OFF, the current stops.

The mobile valve shade returns to the low beam position automati-
cally.

Component Parts Location

INFOID:0000000005515007

JPLIA0802ZZ

1.

Headlamp

2.

Combination switch

3.

IPDM E/R

4.

BCM

5.

High beam indicator lamp

A.

Engine room (LH)

B.

Behind the combination meter

C.

On the combination meter

JPLIA0839ZZ

EXL-10

< SYSTEM DESCRIPTION >

[XENON TYPE]

HEADLAMP SYSTEM

Component Description

INFOID:0000000005515008

Part

Description

BCM

• Detects each switch condition by the combination switch reading function.
• Judges that the headlamp is turned ON according to the vehicle condition.
- Requests the headlamp relay (HI/LO) ON to IPDM E/R (with CAN communication).
- Requests the high beam indicator lamp ON to the combination meter (with CAN

communication).

IPDM E/R

Controls the integrated relay, and supplies voltage to the load according to the request
from BCM (with CAN communication).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-9, "System Description"

.

Combination meter
(High beam indicator lamp)

Turns the high beam indicator lamp ON according to the request from BCM (with CAN
communication).

Headlamp assem-
bly

• HID control unit
• Xenon bulb

Refer to

EXL-39, "Description"

.

High beam solenoid

Refer to

EXL-36, "Description"

.
