Nissan Murano Z51. Manual - part 519





EC-84

< SYSTEM DESCRIPTION >

[VQ35DE]

EVAPORATIVE EMISSION SYSTEM

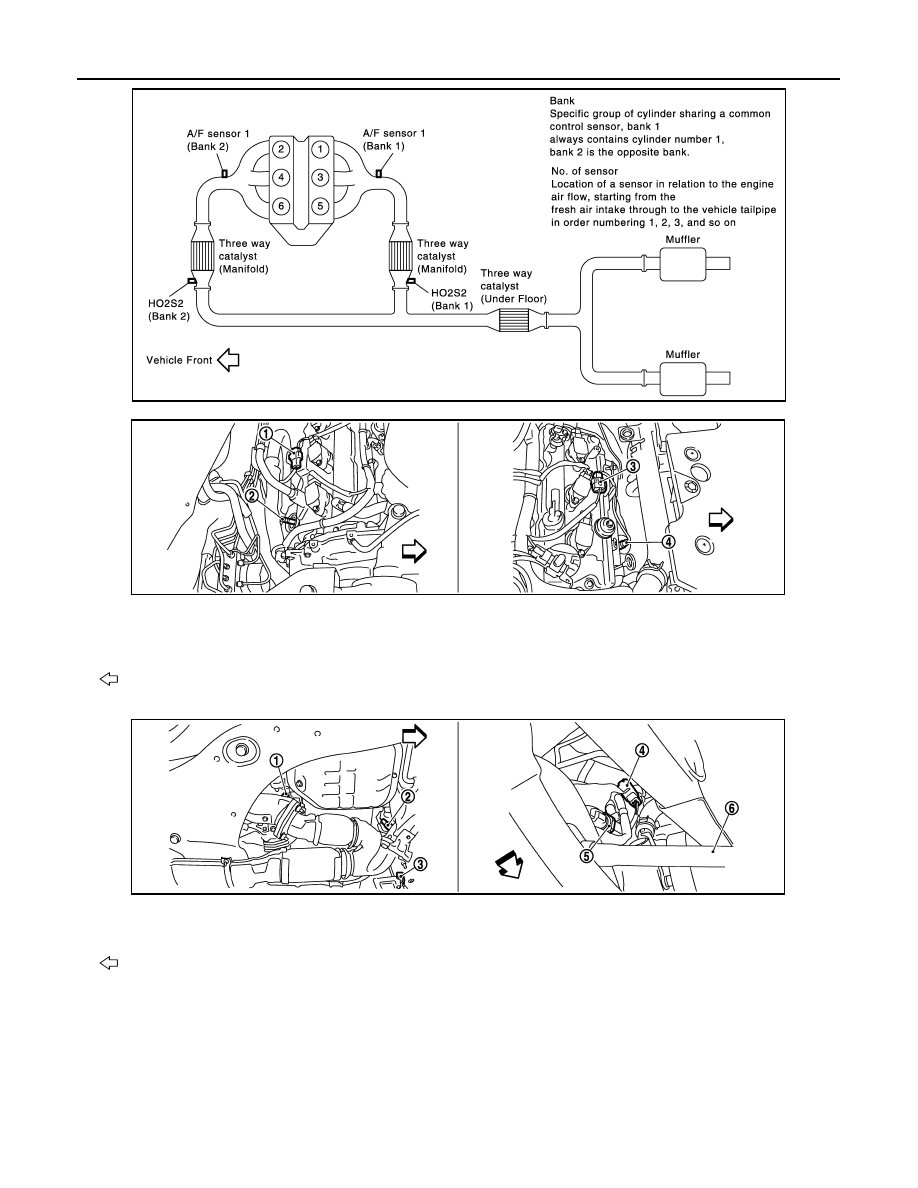

JMBIA1832GB

1.

A/F sensor 1 (bank 1) harness con-
nector

2.

A/F sensor 1 (bank 1)

3.

A/F sensor 1 (bank 2) harness con-
nector

4.

A/F sensor 1 (bank 2)

: Vehicle front

1.

HO2S2 (bank 1)

2.

HO2S2 (bank 2)

3.

HO2S2 (bank 2) harness connector

4.

HO2S2 (bank 1) harness connector

5.

Power steering pressure sensor

6.

Drive shaft (RH)

: Vehicle front

JMBIA1116ZZ

JMBIA1117ZZ

EVAPORATIVE EMISSION SYSTEM

EC-85

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1.

Electronic controlled engine mount
control solenoid valve

2.

VIAS control solenoid valve 1

3.

VIAS control solenoid valve 2

4.

EVAP canister purge volume control
solenoid valve

5.

EVAP service port

6.

EVAP control system pressure sen-
sor

7.

EVAP canister vent control valve

8.

EVAP canister

: Vehicle front

1.

Intake valve timing control solenoid
valve (bank 1)

2.

Intake valve timing control solenoid
valve (bank 2)

3.

Data link connector

1.

Stop lamp switch

2.

ASCD brake switch

3.

Accelerator pedal position sensor

JMBIA1111ZZ

JMBIA1118ZZ

JMBIA1119ZZ

JMBIA1120ZZ

EC-86

< SYSTEM DESCRIPTION >

[VQ35DE]

EVAPORATIVE EMISSION SYSTEM

Component Description

INFOID:0000000005536517

1.

ASCD steering switch

2.

CANSEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

MAIN switch

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump 3.

Fuel pressure regulator

: Vehicle front

JMBIA1121ZZ

Component

Reference

A/F sensor 1

EC-182, "Description"

Accelerator pedal position sensor

EC-407, "Description"

Camshaft position sensor (PHASE)

EC-258, "Description"

Crankshaft position sensor (POS)

EC-254, "Description"

Engine coolant temperature sensor

EC-167, "Description"

EVAP canister purge volume control solenoid valve

EC-278, "Description"

EVAP control system pressure sensor

EC-294, "Description"

Fuel tank temperature sensor

EC-230, "Description"

Mass air flow sensor

EC-153, "Description"

Throttle position sensor

EC-172, "Description"

INTAKE VALVE TIMING CONTROL

EC-87

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

INTAKE VALVE TIMING CONTROL

System Diagram

INFOID:0000000005536518

System Description

INFOID:0000000005536519

INPUT/OUTPUT SIGNAL CHART

*: This signal is sent to the ECM via the CAN communication line

SYSTEM DESCRIPTION

This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing (IVT) control sole-
noid valve depending on driving status. This makes it possible to control the shut/open timing of the intake
valve to increase engine torque in low/mid speed range and output in high-speed range.

JMBIA1830GB

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)

Engine speed and piston position

Intake valve
timing control

Intake valve timing control
solenoid valve

Camshaft position sensor (PHASE)

Engine oil temperature sensor

Engine oil temperature

Engine coolant temperature sensor

Engine coolant temperature

Combination meter

Vehicle speed*

JMBIA0060GB
