Nissan Murano Z51. Manual - part 382

DLK-36

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

KEY REMINDER FUNCTION : Component Parts Location

INFOID:0000000005575261

1.

BCM M118, M119, M120, M121, M122,
M123

2.

TCM F23

3.

Intelligent key warning buzzer E25

4.

IPDM E/R E10, E11

5.

Remote keyless entry receiver M78

6.

Combination meter M34

7.

Key slot M99

8.

CVT shift selector (detention switch)
M57

9.

Inside key antenna (console) M262

JMKIA4838ZZ

INTELLIGENT KEY SYSTEM

DLK-37

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

WARNING FUNCTION

WARNING FUNCTION : System Description

INFOID:0000000005517457

OPERATION DESCRIPTION

The warning function are as follows and are given to the user as warning information and warnings using com-
binations of Intelligent Key warning buzzer, KEY warning lamp, key slot illumination and information display in
combination meter.
• Intelligent Key system malfunction
• OFF position warning
• P position warning
• ACC warning
• Take away warning
• Door lock operation warning
• Key warning
• Intelligent Key insert information
• Engine start information

10. Inside key antenna (luggage room) B86

11.

Front outside handle LH (outside key
antenna) D12

12.

Front outside handle LH (request
switch) D11

13. Outside key antenna (rear bumper) B85

14.

Front door switch (driver side) B34

A.

Behind the combination meter

B.

Engine room (LH)

C.

Behind the instrument lower panel
RH

D.

Behind the center console

E.

Under the rear seat seatback

F.

View with rear bumper removed

JMKIA1933ZZ

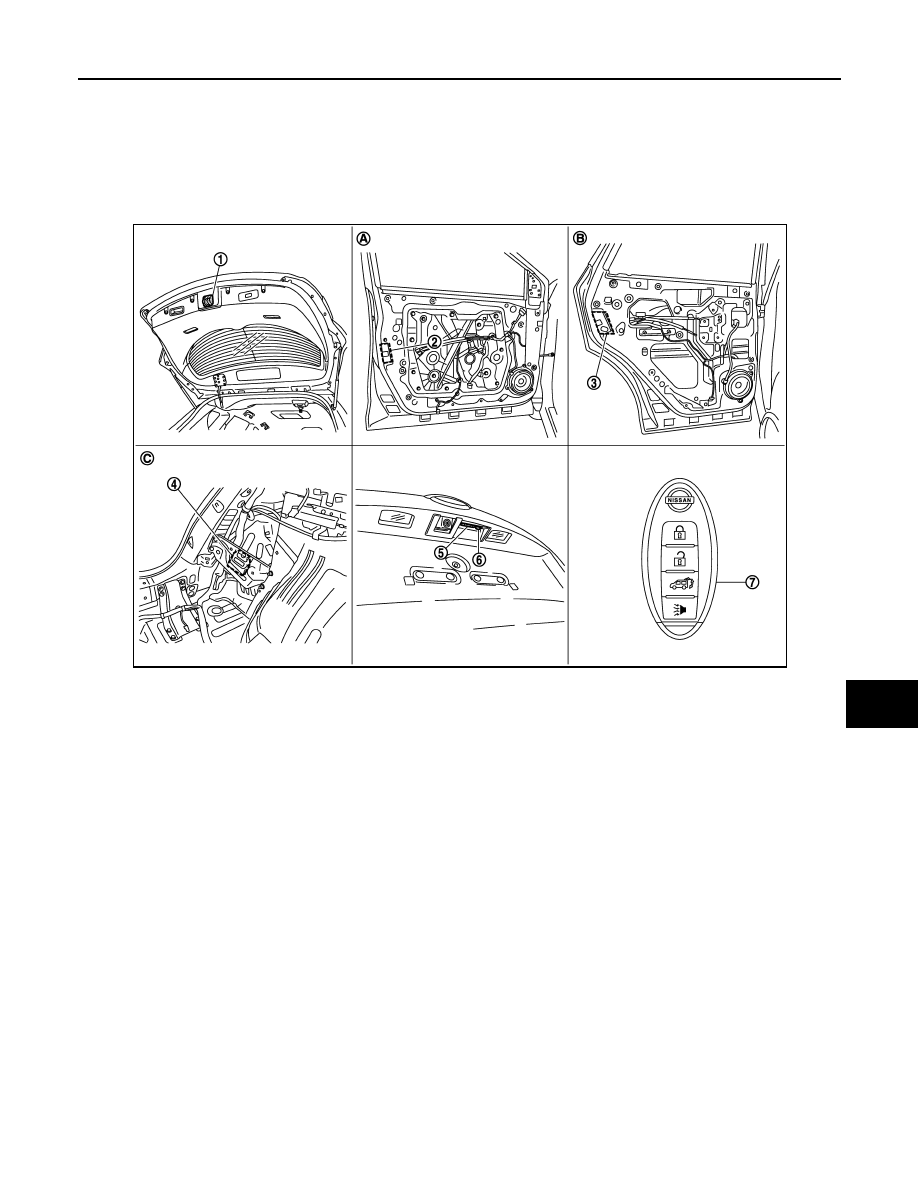

1.

Back door lock assembly
With automatic back door: D179
Without automatic back door: D180

2.

Front door lock assembly (driver side) D9

3.

Rear door lock assembly LH D85

4.

Automatic back door control unit B7, B8

5.

Back door opener switch assembly (open-
er switch) D186

6.

Back door opener switch assembly
(request switch) D186

7.

Intelligent Key

A.

View with front door finisher removed

B.

View with rear door finisher removed

C. Behind the luggage side finisher

lower (LH)

DLK-38

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

• Steering lock information
• Intelligent key low battery warning
• Key ID warning

OPERATION CONDITION

Once the following condition from below is established, alert or warning will be executed.

Warning/Information functions

Operation procedure

Intelligent Key system malfunction

When a malfunction is detected on BCM, “KEY” warning lamp will illuminate.

OFF position warning

For internal

• Ignition switch: ACC position.
• Door switch (driver side): ON (Door is open).

For external

OFF position warning (For internal) is in active mode, driver side door has
been closed.
NOTE:
OFF position (For external) active only when each of the sequence has oc-
curred as below: P position warning

→

 ACC warning

→

 OFF position warning

(For internal)

→

 OFF position warning (For internal)

P position warning

• Shift position: Except P position.
• Engine is running to stopped (Ignition switch is ON to OFF).

ACC warning

• During P position warning is in active mode, shift position has changed P po-

sition.

• Ignition switch: ACC position.

Take away warning

Door is open to close

• Ignition switch: Except LOCK position.
• Door switch: ON to OFF (Door is open to close).
• Intelligent Key can not be detected inside the vehicle.

Door is open

• Door switch: ON (Door is open).
• Key ID verification every 5 seconds when registered Intelligent Key can not

be detected inside the vehicle.

Push button-ignition
switch operation

• Ignition switch: Except LOCK position.
• Press push-button ignition switch.
• Intelligent Key can not be detected inside the vehicle.

Take away through win-
dow

• Engine is running.
• Key ID verification every 30 seconds when registered Intelligent Key can not

be detected inside the vehicle.

• After vehicle speed verification, the registered Intelligent Key can not be de-

tect inside the vehicle.

Intelligent Key is removed
from key slot

• When Intelligent Key is removed from key slot, Intelligent Key can not be de-

tected inside the vehicle.

Door lock operation warn-
ing

Request switch operation

When request switch is pushed (lock operation) under the following conditions.
• All door is closed.
• All door is unlocked.
• Intelligent Key is inside vehicle.

Intelligent Key button op-
eration

When Intelligent Key button is pushed (lock operation) under the following con-
ditions.
• Door switch: ON (Any door is open).
• For 3 seconds after Intelligent Key is removed from key slot.

Key warning

• Ignition switch is OFF position.
• Driver side door switch: ON (Driver side door is open).
• Intelligent Key is inserted in key slot.

Intelligent Key insert information

• Door switch: ON to OFF (Door is open to close).
• Ignition switch: OFF to ON position.
• Intelligent Key is out of key slot.
• Intelligent Key can not be detected inside the vehicle.

INTELLIGENT KEY SYSTEM

DLK-39

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

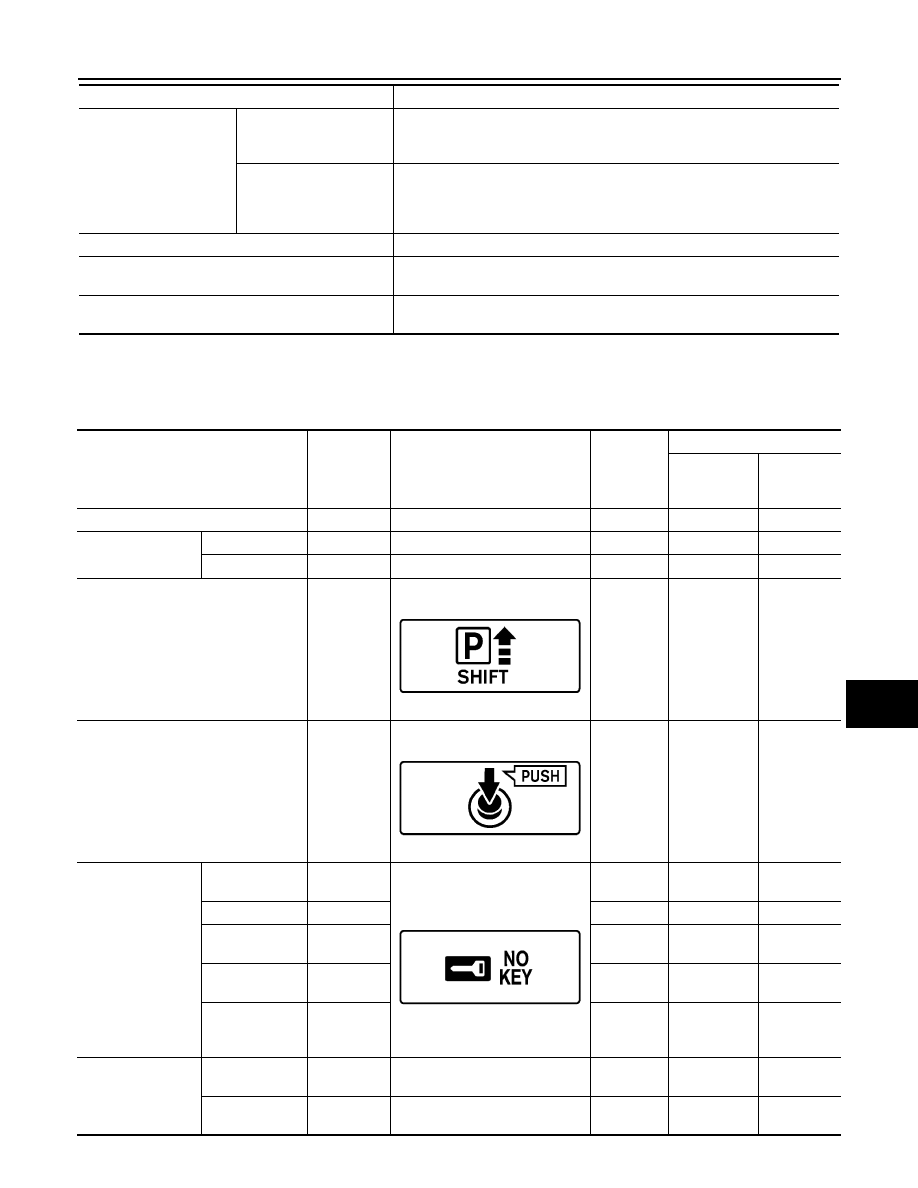

WARNING METHOD

The following table shows the alarm or warning methods with chime.
Information display (combination meter), “KEY” indicator or key slot illumination when the warning conditions
are met.

Engine start information

Ignition switch is ON posi-
tion

• Ignition switch: ON position.
• Shift position: P position.
• Engine is stopped.

Ignition switch is except
ON position

• Ignition switch: Except ON position.
• Shift position: P position.
• Intelligent Key is inserted in key slot or Intelligent Key can be detected inside

the vehicle.

Steering lock information

When steering lock can not be released after ignition switch is turned ON.

Intelligent Key low battery warning

When Intelligent Key is low battery, BCM is detected after ignition switch is
turned ON.

Key ID warning

When registered intelligent Key can not be detected inside the vehicle after ig-
nition switch is turned ON.

Warning/Information functions

Operation procedure

Warning/Information functions

“KEY” warn-

ing lamp

Information display

(combination meter)

Key slot il-
lumination

Warning chime

Combination

meter buzzer

Intelligent

Key warning

buzzer

Intelligent Key system malfunction

Illuminate

—

—

—

—

OFF position warn-
ing

For internal

—

—

—

Activate

—

For external

—

—

—

—

Activate

P position warning

—

—

Activate

—

ACC warning

—

—

—

—

Take away warning

Door is open to
close

—

Blink

Activate

Activate

Door is open

—

Flash

—

—

Push-ignition
switch operation

—

Flash

Activate

—

Take away
through window

—

Flash

Activate

—

Intelligent Key is
removed from
key slot

—

Flash

—

—

Door lock operation
warning

Request switch
operation

—

—

—

—

Activate

Intelligent Key
operation

—

—

—

—

Activate

JMKIA0037GB

JMKIA0047GB

JMKIA0036GB
