INTELLIGENT KEY SYSTEM

DOOR LOCK FUNCTION : Component Parts Location

INFOID:0000000005575258

1.

BCM M118, M119, M120, M121, M122,
M123

2.

TCM F23

3.

Intelligent key warning buzzer E25

4.

IPDM E/R E10, E11

5.

Remote keyless entry receiver M78

6.

Combination meter M34

7.

Key slot M99

8.

CVT shift selector (detention switch)
M57

9.

Inside key antenna (console) M262

JMKIA4838ZZ

INTELLIGENT KEY SYSTEM

DLK-25

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK FUNCTION : Component Description

INFOID:0000000005517446

10. Inside key antenna (luggage room) B86

11.

Front outside handle LH (outside key
antenna) D12

12.

Front outside handle LH (request
switch) D11

13. Outside key antenna (rear bumper) B85

14.

Front door switch (driver side) B34

A.

Behind the combination meter

B.

Engine room (LH)

C.

Behind the instrument lower panel
RH

D.

Behind the center console

E.

Under the rear seat seatback

F.

View with rear bumper removed

JMKIA1933ZZ

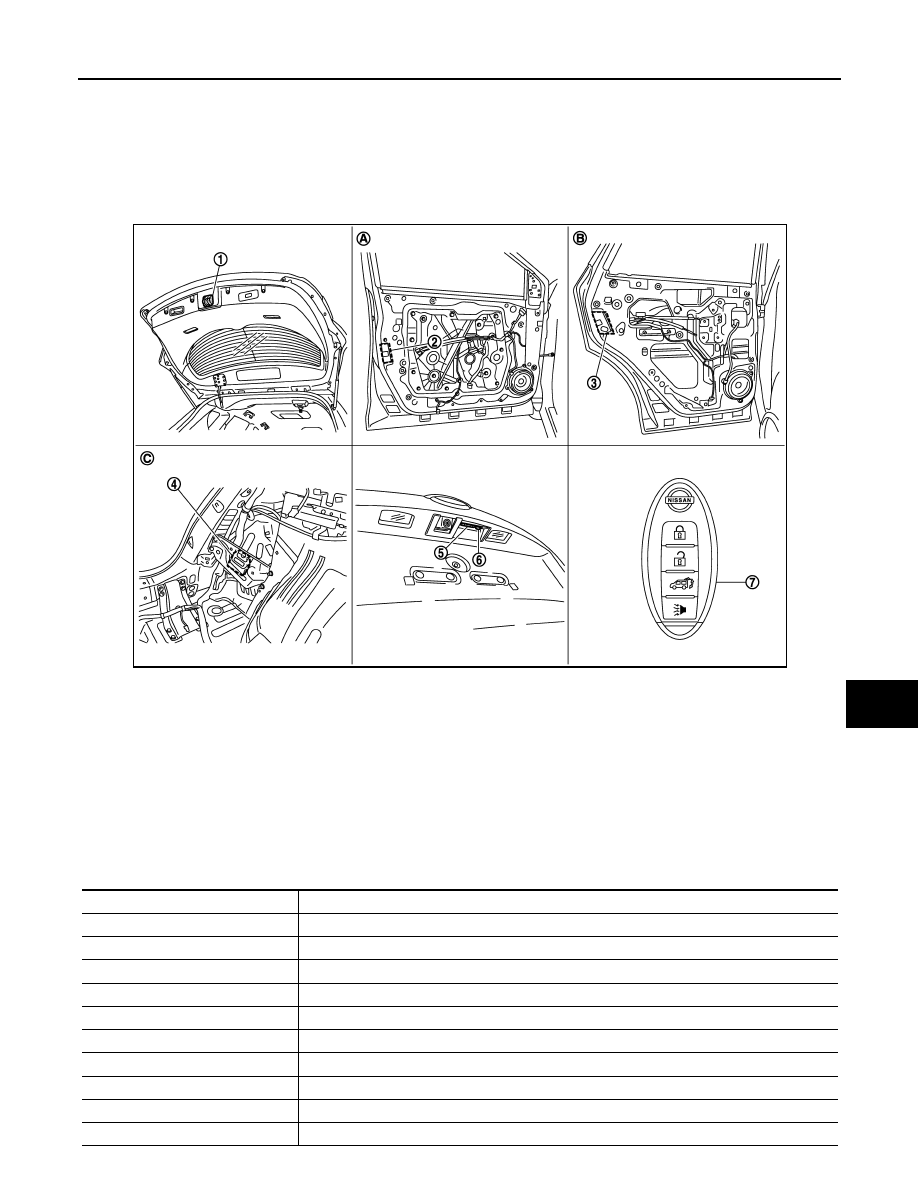

1.

Back door lock assembly
With automatic back door: D179
Without automatic back door: D180

2.

Front door lock assembly (driver side) D9

3.

Rear door lock assembly LH D85

4.

Automatic back door control unit B7, B8

5.

Back door opener switch assembly (open-
er switch) D186

6.

Back door opener switch assembly
(request switch) D186

7.

Intelligent Key

A.

View with front door finisher removed

B.

View with rear door finisher removed

C. Behind the luggage side finisher

lower (LH)

Item

Function

BCM

Controls the door lock function.

Door lock actuator

Output lock/unlock signal from BCM and locks/unlocks each door.

Door switch

Input door open/close condition to BCM.

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.

Door request switch

Input lock/unlock operation to BCM.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Outside key antenna

Detects if Intelligent Key is outside the vehicle.

Inside key antenna

Detects if Intelligent Key is inside the vehicle.

Combination meter

Receives hazard warning lamp signal from BCM and blinks turn signal indicators.

Intelligent Key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.

DLK-26

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM

BACK DOOR OPEN FUNCTION

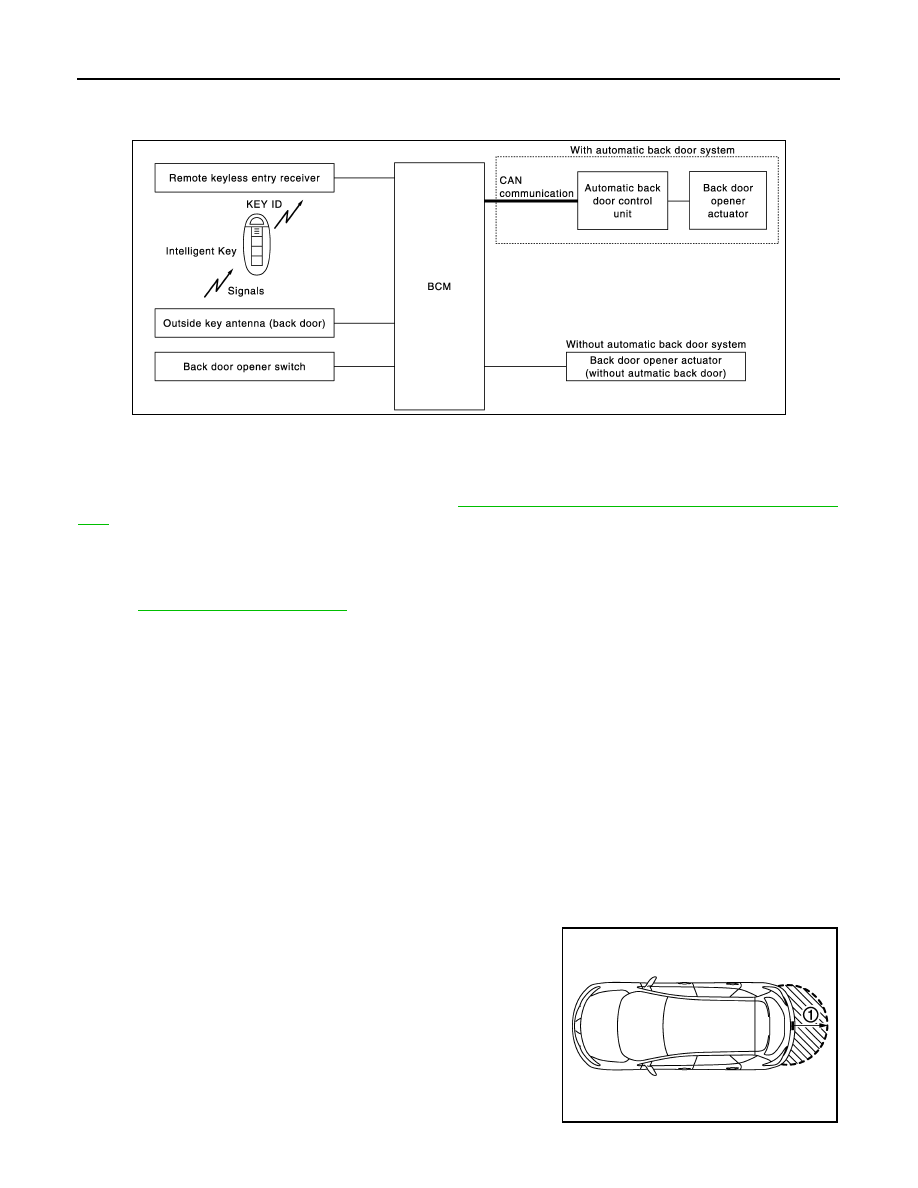

BACK DOOR OPEN FUNCTION : System Diagram

INFOID:0000000005517447

BACK DOOR OPEN FUNCTION : System Description

INFOID:0000000005517448

This section describes the operation of the back door opener switch. The operation of the back door request
switch is the same as the door lock function. Refer to

DLK-21, "DOOR LOCK FUNCTION : System Descrip-

tion"

.

• The back door opener function can open the back door by pressing the back door opener switch while carry-

ing the Intelligent Key. At this time, all doors other than the back door are locked.

• The back door opener function can open the back door by pressing the back door opener switch with all

doors unlocked by the door request switch or Intelligent Key.

Refer to

DLK-44, "System Description"

 for the automatic back door operation.

BACK DOOR OPEN

• When the BCM detects that back door opener switch is pressed, it starts the outside key antenna (back

door) and inside key antenna and transmits the request signal to the Intelligent Key. And then, check that the
Intelligent Key is near the back door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• BCM open the back door and sounds Intelligent Key buzzer warning at the same time as a reminder.

OPERATION CONDITION

If the following conditions are satisfied, the back door can be opened.
• Back door is closed
• Ignition switch is in off position
• Intelligent Key is out of key slot
• Intelligent Key is outside of vehicle
• Intelligent Key is within out side key antenna detection area

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of back door open function
is in the range of approximately 80 cm (31.50 in) surrounding the
back door opener switch (1). However, this operating range depends
on the ambient conditions.

JMKIA1994GB

JMKIA1955ZZ

INTELLIGENT KEY SYSTEM

DLK-27

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HAZARD AND BUZZER REMINDER FUNCTION

Back door opening operation by back door opener switch, the hazard warning lamps and buzzer will blink or
honk as a reminder.

LIST OF OPERATION RELATED PARTS

Parts marked with

×

 are the parts related to operation.
