Nissan Murano Z51. Manual - part 375





DLK-8

BACK DOOR ASSEMBLY : Removal and Installa-
tion .........................................................................

331

BACK DOOR ASSEMBLY : Adjustment ................

333

BACK DOOR STRIKER ...........................................

334

BACK DOOR STRIKER : Exploded View ..............

334

BACK DOOR STRIKER : Removal and Installa-
tion .........................................................................

335

BACK DOOR HINGE  ...............................................

335

BACK DOOR HINGE : Exploded View  ..................

335

BACK DOOR HINGE : Removal and Installation ..

336

BACK DOOR STAY  .................................................

336

BACK DOOR STAY : Exploded View  ....................

336

BACK DOOR STAY : Removal and Installation  ....

337

BACK DOOR STAY : Disposal  ..............................

337

BACK DOOR WEATHER-STRIP .............................

337

BACK DOOR WEATHER-STRIP : Exploded View ..

338

BACK DOOR WEATHER-STRIP : Removal and
Installation .............................................................

338

HOOD LOCK  ...................................................

340

Exploded View  .......................................................

340

Removal and Installation  .......................................

340

Inspection ..............................................................

341

FRONT DOOR LOCK  ......................................

342

DOOR LOCK ............................................................

342

DOOR LOCK : Exploded View  ..............................

342

DOOR LOCK : Removal and Installation ...............

342

INSIDE HANDLE ......................................................

344

INSIDE HANDLE : Exploded View  ........................

344

INSIDE HANDLE : Removal and Installation .........

345

OUTSIDE HANDLE ..................................................

345

OUTSIDE HANDLE : Exploded View  ....................

345

OUTSIDE HANDLE : Removal and Installation .....

346

REAR DOOR LOCK  ........................................

348

DOOR LOCK ............................................................

348

DOOR LOCK : Exploded View  ..............................

348

DOOR LOCK : Removal and Installation ...............

348

INSIDE HANDLE ......................................................

349

INSIDE HANDLE : Exploded View  ........................

350

INSIDE HANDLE : Removal and Installation .........

350

OUTSIDE HANDLE ..................................................

350

OUTSIDE HANDLE : Exploded View  ....................

351

OUTSIDE HANDLE : Removal and Installation .....

351

BACK DOOR LOCK  ........................................

353

DOOR LOCK ............................................................

353

DOOR LOCK : Exploded View  ..............................

353

DOOR LOCK : Removal and Installation ...............

353

POWER BACK DOOR DRIVE ASSEMBLY  ............

354

POWER BACK DOOR DRIVE ASSEMBLY : Ex-
ploded View  ..........................................................

354

POWER BACK DOOR DRIVE ASSEMBLY : Re-
moval and Installation  ...........................................

354

TOUCH SENSOR  ....................................................

355

TOUCH SENSOR : Exploded View  ......................

356

TOUCH SENSOR : Removal and Installation .......

356

FUEL FILLER LID OPENER  ............................

358

Exploded View  ......................................................

358

Removal and Installation .......................................

358

DOOR SWITCH  ................................................

360

Exploded View  ......................................................

360

Removal and Installation .......................................

360

INSIDE KEY ANTENNA  ...................................

361

CONSOLE ...............................................................

361

CONSOLE : Exploded View ..................................

361

CONSOLE : Removal and Installation  ..................

361

LUGGAGE ROOM ...................................................

361

LUGGAGE ROOM : Exploded View  .....................

362

LUGGAGE ROOM : Removal and Installation ......

362

OUTSIDE KEY ANTENNA  ...............................

363

DRIVER SIDE  ..........................................................

363

DRIVER SIDE : Exploded View  ............................

363

DRIVER SIDE : Removal and Installation .............

363

PASSENGER SIDE  .................................................

363

PASSENGER SIDE : Exploded View  ...................

363

PASSENGER SIDE : Removal and Installation ....

363

REAR BUMPER  ......................................................

363

REAR BUMPER : Exploded View .........................

363

REAR BUMPER : Removal and Installation  .........

363

INTELLIGENT KEY WARNING BUZZER  ........

365

Exploded View  ......................................................

365

Removal and Installation .......................................

365

KEY SLOT  ........................................................

366

Exploded View  ......................................................

366

Removal and Installation .......................................

366

BACK DOOR OPENER SWITCH ASSEMBLY

..

367

Exploded View  ......................................................

367

Removal and Installation .......................................

367

REMOTE KEYLESS ENTRY RECEIVER  ........

368

Exploded View  ......................................................

368

Removal and Installation .......................................

368

INTELLIGENT KEY BATTERY  ........................

369

Removal and Installation .......................................

369

AUTOMATIC BACK DOOR CONTROL UNIT ..

370

Exploded View  ......................................................

370

DLK-10

< BASIC INSPECTION >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000005517430

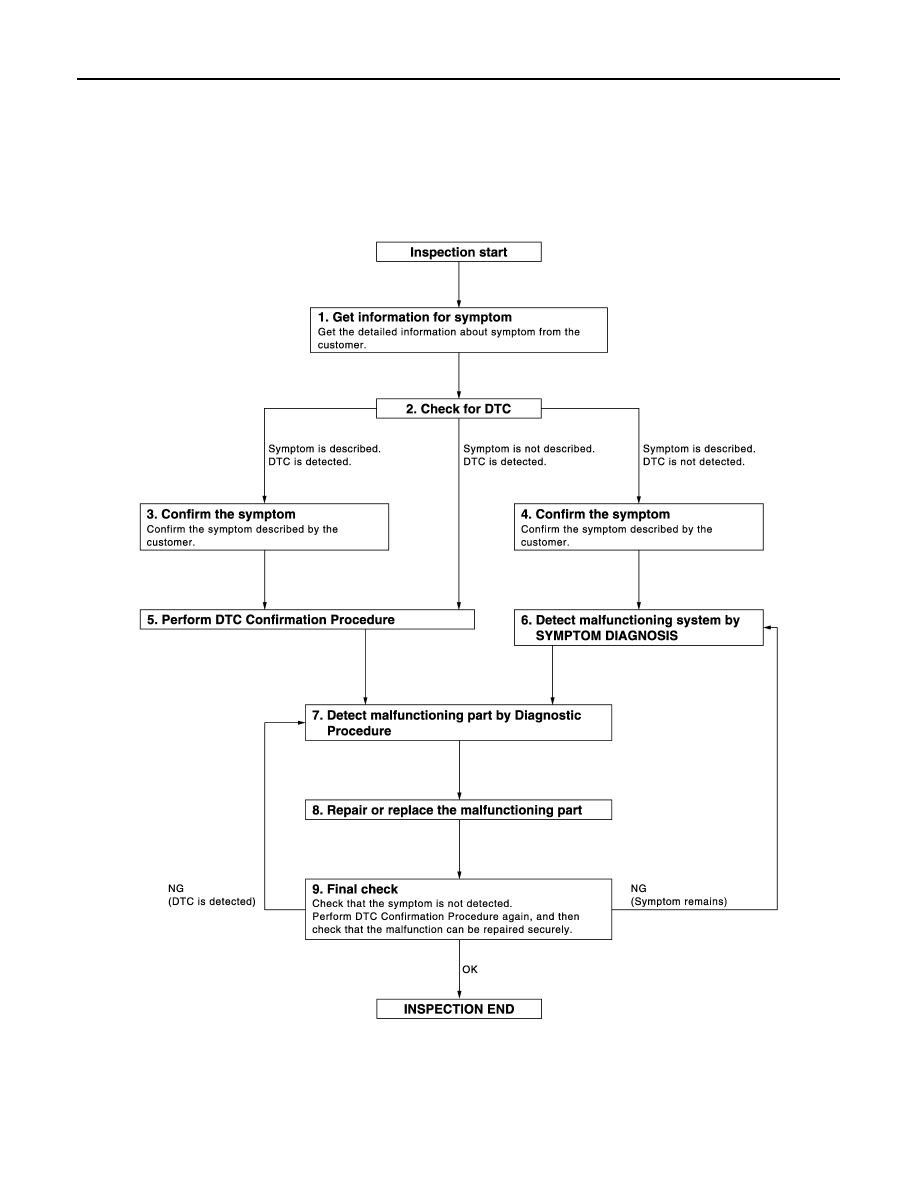

OVERALL SEQUENCE

DETAILED FLOW

JMKIA3620GB

DIAGNOSIS AND REPAIR WORK FLOW

DLK-11

< BASIC INSPECTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

GET INFORMATION FOR SYMPTOM

Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred).

>> GO TO 2.

2.

CHECK FOR DTC

1.

Check DTC for BCM and Automatic back door.

2.

Perform the following procedure if DTC is displayed.

-

Record DTC and freeze frame data (Print them out with CONSULT-III.)

-

Erase DTC.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3.

Check related service bulletins for information.

Is any symptom described and any DTC detected?

Symptom is described, DTC is displayed>>GO TO 3.
Symptom is described, DTC is not displayed>>GO TO 4.
Symptom is not described, DTC is displayed>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC Confirmation Procedure for the displayed DTC, and then check that DTC is detected again.
At this time, always connect CONSULT-III to the vehicle, and check diagnostic results in real time.
If two or more DTCs are detected, refer to

DLK-244, "DTC Inspection Priority Chart"

 (BCM) or

DLK-259,

"DTC Inspection Priority Chart"

 (automatic back door control unit) and determine trouble diagnosis order.

NOTE:
Perform Component Function Check if DTC Confirmation Procedure is not included in Service Manual. This
simplified check procedure is an effective alternative though DTC cannot be detected during this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC Confirmation
Procedure.
Is DTC detected?

YES

>> GO TO 7.

NO

>> Refer to

GI-39, "Intermittent Incident"

.

6.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM DIAGNOSIS

Detect malfunctioning system according to SYMPTOM DIAGNOSIS based on the confirmed symptom in step
4, and determine the trouble diagnosis order based on possible causes and symptom.

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.
NOTE:
The Diagnostic Procedure described based on open circuit inspection. A short circuit inspection is also
required for the circuit check in the Diagnostic Procedure.
