CHG

ALTERNATOR

CHG-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REMOVAL AND INSTALLATION

ALTERNATOR

Exploded View

INFOID:0000000005515000

REMOVAL

DISASSEMBLY

Type: A003TJ1791

1.

Alternator mounting bolt

2.

Alternator stay mounting bolt

3.

Alternator

4.

Alternator mounting nut

5.

“B” terminal nut

6.

Alternator stay mounting bolt

7.

Alternator bracket

Refer to

GI-4, "Components"

 for symbols in the figure.

JPMIA0830ZZ

CHG-28

< REMOVAL AND INSTALLATION >

ALTERNATOR

Removal and Installation

INFOID:0000000005515001

REMOVAL

1.

Disconnect the negative battery terminal.

2.

Remove engine cover.

3.

Remove front wheel and tire (RH).

4.

Remove splash guard (RH) Refer to

EXT-24, "FENDER PROTECTOR : Exploded View"

.

5.

Remove air cleaner and air duct assembly. Refer to

EM-31, "Removal and Installation"

.

6.

Remove drive belt. Refer to

EM-17, "Removal and Installation"

.

7.

Remove A/C compressor. Refer to

HA-37, "Removal and Installation"

.

8.

Remove idler pulley.

9.

Disconnect the oil pressure switch.

10. Disconnect the alternator harness connectors.

11. Remove the alternator bolt and nuts, using power tools.

12. Slide the alternator out and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

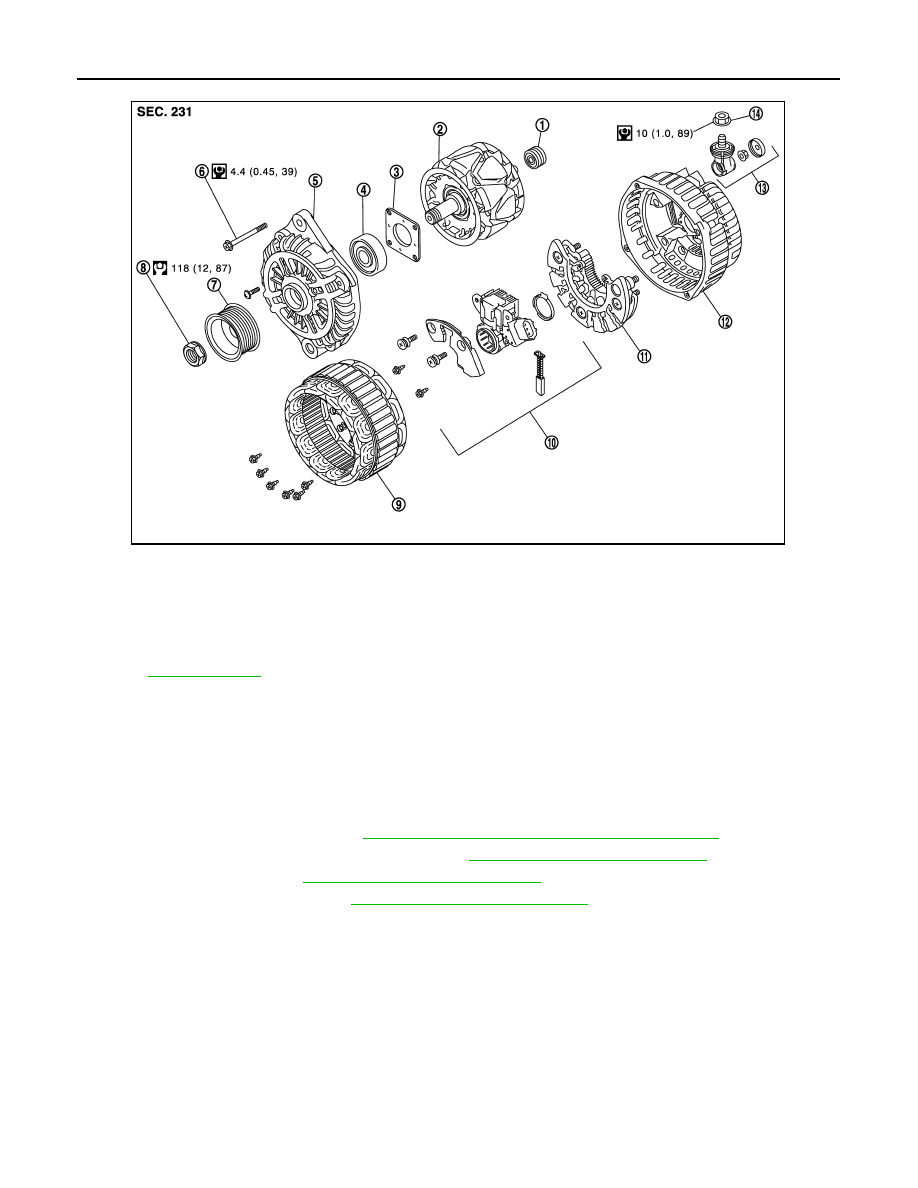

1.

Rear bearing

2.

Rotor assembly

3.

Retainer

4.

Front bearing

5.

Front bracket assembly

6.

Through bolt

7.

Pulley

8.

Pulley nut

9.

Stator assembly

10. IC voltage regulator assembly

11.

Diode assembly

12. Rear bracket assembly

13. Terminal set

Refer to

GI-4, "Components"

 for symbols in the figure.

JPMIA0859GB

CHG

ALTERNATOR

CHG-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

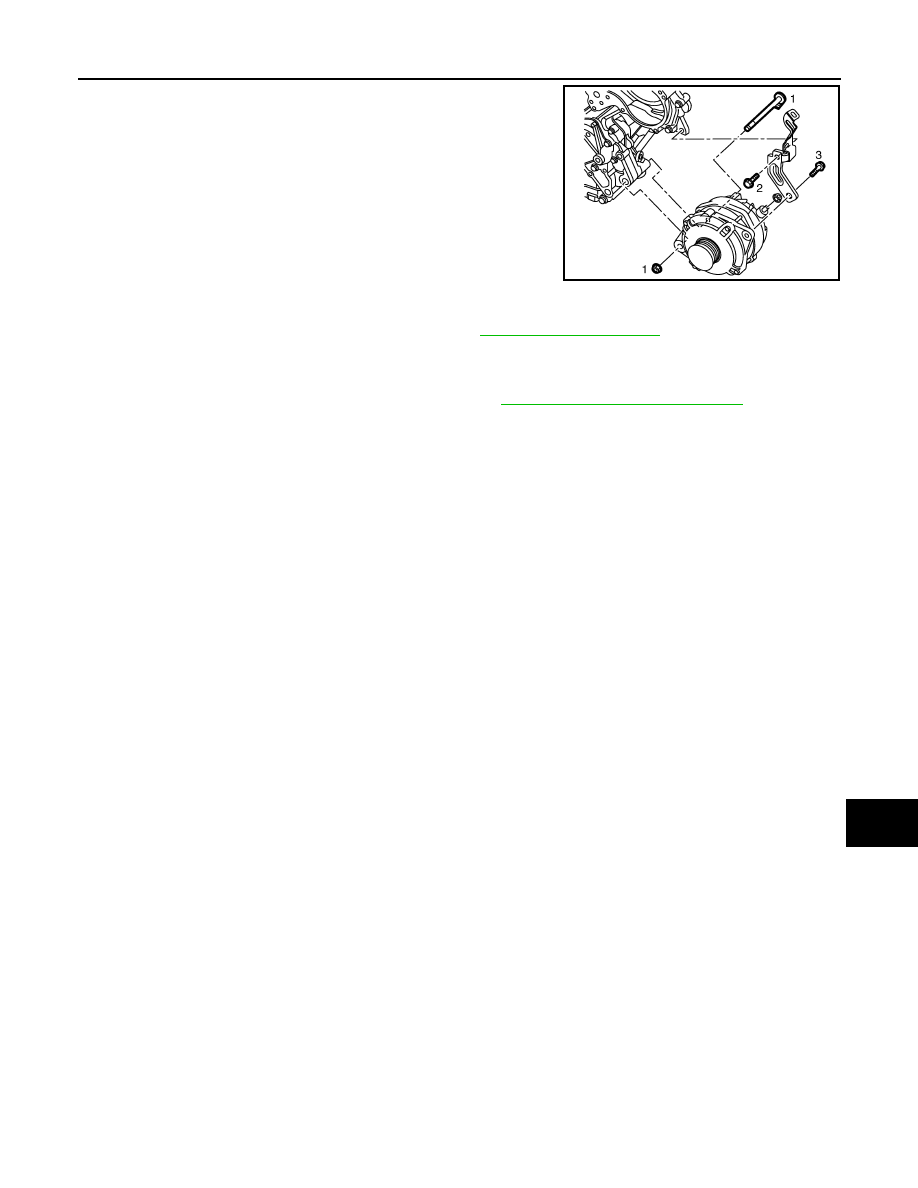

• Temporarily tighten all of alternator bolt and nuts. And then

tighten them in numerical order shown in the figure.

• Be sure to tighten “B” terminal nut carefully.
• Install alternator and check tension of belt. Refer to

EM-30, "Exploded View"

.

• For this model, the power generation voltage variable control system that controls the power gener-

ation voltage of the alternator has been adopted. Therefore, the power generation voltage variable
control system operation inspection should be performed after replacing the alternator, and then
make sure that the system operates normally. Refer to

CHG-25, "Inspection Procedure"

.

Inspection

INFOID:0000000005515002

ALTERNATOR PULLEY INSPECTION

Perform the following.
• Make sure that alternator pulley does not rattle.
• Make sure that alternator pulley nut is tight.

JPMIA0831ZZ

CHG-30

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Alternator

INFOID:0000000005515003

*: Adjustment range of power generation voltage variable control is 11.4 – 15.6 V.

Type

A003TJ1791

MITSUBISHI make

Nominal rating

[V - A]

12 – 130

Ground polarity

Negative

Minimum revolution under no-load (When 13.5 V is ap-
plied)

[rpm]

Less than 1,300

Hot output current (When 13.5 V is applied)

[A/rpm]

More than 61/1,500

More than 109/2,500
More than 129/5,000

Regulated output voltage

[V]

14.1 – 14.7

*

Minimum length of brush

[mm (in)]

More than 5.00 (0.197)

Brush spring pressure

[N (g, oz)]

4.1 – 5.3 (418 – 541, 14.7 – 19.1)

Slip ring minimum outer diameter

[mm (in)]

More than 22.1 (0.870)

Rotor (Field coil) resistance

[

Ω

]

1.8 – 2.2
