C1166, C1167 SV SYSTEM  ...............................

73

Description ..............................................................

73

DTC Logic  ...............................................................

73

Diagnosis Procedure ...............................................

73

Component Inspection  ............................................

74

Special Repair Requirement  ...................................

74

U1000, U1002 CAN COMM CIRCUIT  ................

75

Description ..............................................................

75

DTC Logic  ...............................................................

75

Diagnosis Procedure ...............................................

75

Special Repair Requirement  ...................................

75

POWER SUPPLY AND GROUND CIRCUIT ......

76

Description ..............................................................

76

Diagnosis Procedure ...............................................

76

Special Repair Requirement  ...................................

77

PARKING BRAKE SWITCH  ..............................

78

Component Function Check ....................................

78

Diagnosis Procedure ...............................................

78

Component Inspection  ............................................

78

VDC OFF SWITCH  .............................................

80

Description ..............................................................

80

Component Function Check ....................................

80

Diagnosis Procedure ...............................................

80

Component Inspection  ............................................

81

ABS WARNING LAMP .......................................

82

Description ..............................................................

82

Component Function Check ....................................

82

Diagnosis Procedure ...............................................

82

Special Repair Requirement  ...................................

82

BRAKE WARNING LAMP  .................................

83

Description ..............................................................

83

Component Function Check ....................................

83

Diagnosis Procedure ...............................................

83

Special Repair Requirement  ...................................

83

VDC OFF INDICATOR LAMP  ............................

85

Description ..............................................................

85

Component Function Check ....................................

85

Diagnosis Procedure ...............................................

85

SLIP INDICATOR LAMP  ....................................

86

Description ..............................................................

86

Component Function Check ....................................

86

Diagnosis Procedure ...............................................

86

ECU DIAGNOSIS INFORMATION ..............

87

ABS ACTUATOR AND ELECTRIC UNIT
(CONTROL UNIT)  ..............................................

87

Reference Value  .....................................................

87

Wiring Diagram -BRAKE CONTROL SYSTEM-  .....

91

Fail-Safe ..................................................................

95

DTC No. Index  ........................................................

96

SYMPTOM DIAGNOSIS  ..............................

98

EXCESSIVE ABS FUNCTION OPERATION
FREQUENCY ....................................................

98

Diagnosis Procedure  ...............................................

98

UNEXPECTED PEDAL REACTION  .................

99

Diagnosis Procedure  ...............................................

99

THE BRAKING DISTANCE IS LONG .............

100

Diagnosis Procedure  .............................................

100

ABS FUNCTION DOES NOT OPERATE  .......

101

Diagnosis Procedure  .............................................

101

PEDAL VIBRATION OR ABS OPERATION
SOUND OCCURS  ...........................................

102

Diagnosis Procedure  .............................................

102

VEHICLE JERKS DURING VDC/TCS/ABS
CONTROL .......................................................

103

Diagnosis Procedure  .............................................

103

NORMAL OPERATING CONDITION  .............

104

Description .............................................................

104

PRECAUTION ............................................

105

PRECAUTIONS ...............................................

105

FOR USA AND CANADA  ........................................

105

FOR USA AND CANADA : Precaution for Supple-
mental Restraint System (SRS) "AIR BAG" and
"SEAT BELT PRE-TENSIONER" ..........................

105

FOR USA AND CANADA : Precaution Necessary
for Steering Wheel Rotation after Battery Discon-
nect ........................................................................

105

FOR USA AND CANADA : Precaution for Proce-
dure without Cowl Top Cover  ................................

106

FOR USA AND CANADA : Precaution for Brake
System ...................................................................

106

FOR USA AND CANADA : Precaution for Brake
Control ...................................................................

106

FOR MEXICO ...........................................................

107

FOR MEXICO : Precaution for Supplemental Re-
straint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" ................................................

107

FOR MEXICO : Precaution Necessary for Steer-
ing Wheel Rotation after Battery Disconnect .........

107

FOR MEXICO : Precaution for Procedure without
Cowl Top Cover .....................................................

108

FOR MEXICO : Precaution for Procedure without
Cowl Top Cover .....................................................

108

FOR MEXICO : Precaution for Brake System  .......

108

FOR MEXICO : Precaution for Brake Control  .......

109

REMOVAL AND INSTALLATION  .............

110

WHEEL SENSOR ............................................

110

FRONT WHEEL SENSOR  .......................................

110

FRONT WHEEL SENSOR : Exploded View  .........

110

BRC-4

FRONT WHEEL SENSOR : Removal and Instal-
lation ......................................................................

110

REAR WHEEL SENSOR  .........................................

111

REAR WHEEL SENSOR : Exploded View  ............

111

REAR WHEEL SENSOR : Removal and Installa-
tion .........................................................................

111

SENSOR ROTOR  ............................................

112

FRONT SENSOR ROTOR  .......................................

112

FRONT SENSOR ROTOR : Exploded View  .........

112

FRONT SENSOR ROTOR : Removal and Instal-
lation ......................................................................

112

REAR SENSOR ROTOR  .........................................

112

REAR SENSOR ROTOR : Exploded View ............

112

REAR SENSOR ROTOR : Removal and Installa-
tion ........................................................................

112

ABS ACTUATOR AND ELECTRIC UNIT
(CONTROL UNIT) .............................................

113

Exploded View  ......................................................

113

Removal and Installation .......................................

113

YAW RATE/SIDE/DECEL G SENSOR  ............

115

Exploded View  ......................................................

115

Removal and Installation .......................................

115

STEERING ANGLE SENSOR  ..........................

116

Exploded View  ......................................................

116

Removal and Installation .......................................

116

DIAGNOSIS AND REPAIR WORK FLOW

BRC-5

< BASIC INSPECTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000005517248

PRECAUTIONS FOR DIAGNOSIS

Adjustment of Steering Angle Sensor

If steering angle sensor, steering system parts, suspension system parts, ABS actuator and electric unit (con-
trol unit) or tires have been replaced, or if wheel alignment has been adjusted, be sure to adjust neutral posi-
tion of steering angle sensor before driving. Refer to

BRC-9, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Description"

.

Calibration of Decel G Sensor

If yaw rate/side/decel G sensor or ABS actuator and electric unit (control unit) have been replaced, be sure to
calibrate decel G sensor before driving. Refer to

BRC-10, "CALIBRATION OF DECEL G SENSOR : Descrip-

tion"

.

BRC-6

< BASIC INSPECTION >

[VDC/TCS/ABS]

DIAGNOSIS AND REPAIR WORK FLOW

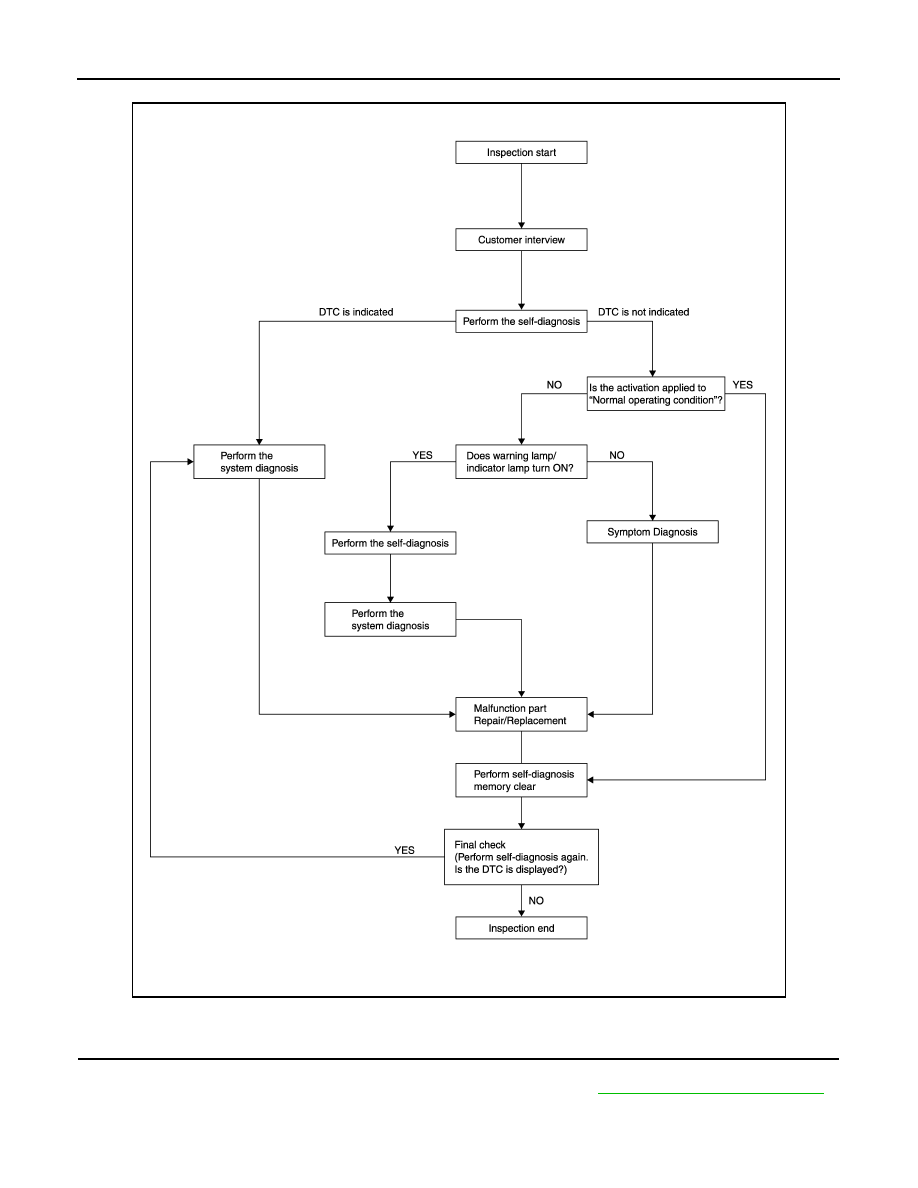

OVERALL SEQUENCE

DETAILED FLOW

1.

COLLECT THE INFORMATION FROM THE CUSTOMER

Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred) using the diagnosis worksheet. Refer to

BRC-8, "Diagnostic Work Sheet"

.

>> GO TO 2.

JPFIC0059GB
