BOSE AMP.

BOSE AMP.

Reference Values

INFOID:0000000005528807

TERMINAL LAYOUT

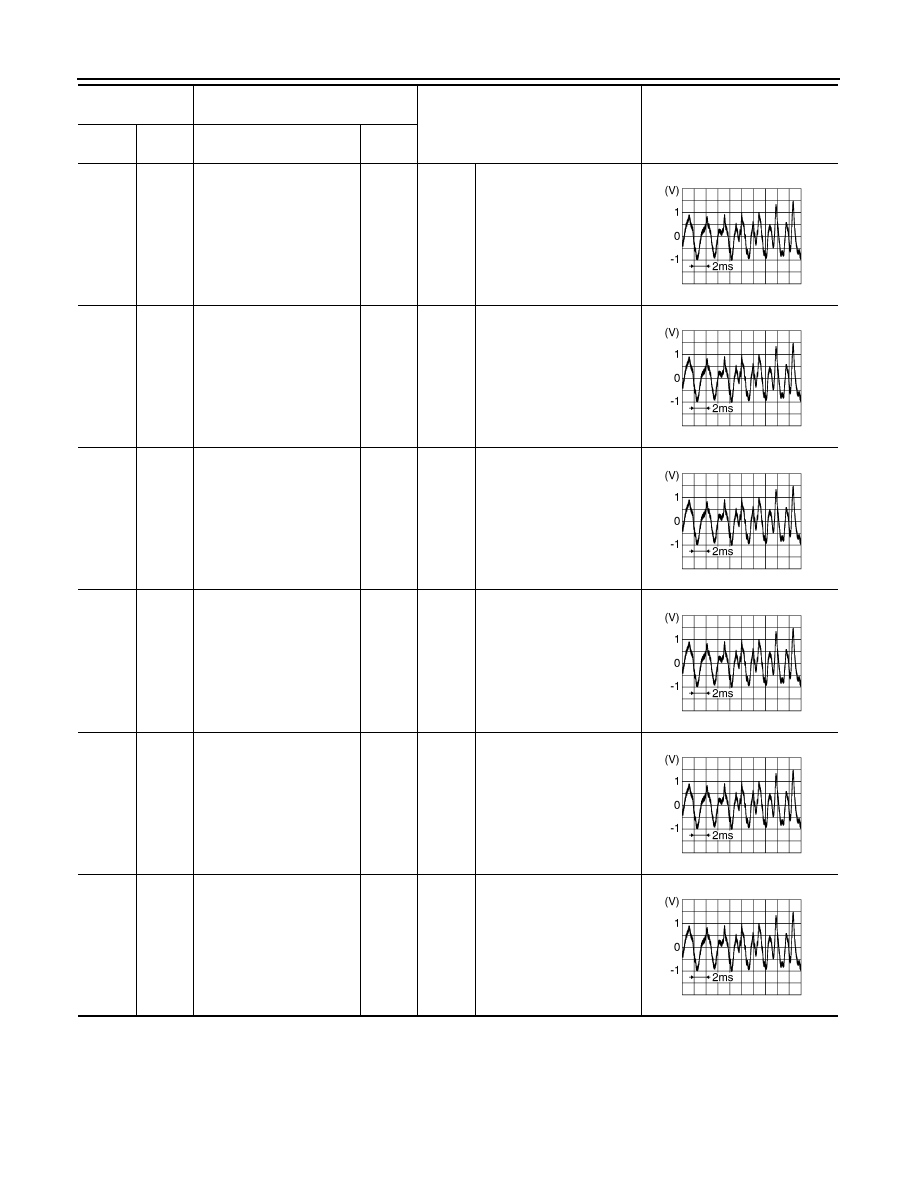

PHYSICAL VALUES

JSNIA1223ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(LG)

2

(V)

Sound signal front squawk-
er LH

Output

Ignition

switch

ON

Sound output.

4

(P)

3

(L)

Sound signal front squawk-
er RH

Output

Ignition

switch

ON

Sound output.

5

(Y)

6

(BR)

Sound signal rear speaker
RH

Output

Ignition

switch

ON

Sound output.

7

(B)

Ground

Ground

—

Ignition

switch

ON

—

0  V

10

(SB)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

11

(GR)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

12

(B)

Ground

Ground

—

Ignition

switch

ON

—

0  V

SKIB3609E

SKIB3609E

SKIB3609E

AV

BOSE AMP.

AV-709

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

13

(GR)

8

(BR)

Sound signal rear speaker
LH

Output

Ignition

switch

ON

Sound output.

14

(L)

9

(O)

Sound signal rear door
speaker RH

Output

Ignition

switch

ON

Sound output.

16

(B/R)

17

(W/R)

Sound signal woofer

Output

Ignition

switch

ON

Sound output.

18

(W)

19

(B)

Sound signal front door
speaker LH

Output

Ignition

switch

ON

Sound output.

20

(SB)

Ground

Amp. ON signal

Input

Ignition

switch

ACC

—

12.0  V

21

—

Shield

—

—

—

—

22

(W)

Ground

Woofer Amp. ON signal

Output

Ignition

switch

ACC

—

12.0  V

24

(GR/V)

23

(W/L)

Sound signal rear LH

Input

Ignition

switch

ON

Sound output.

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

AV-710

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

BOSE AMP.

Wiring Diagram - BOSE AUDIO WITH NAVIGATION SYSTEM -

INFOID:0000000005528808

NOTE:

26

(GR/V)

25

(W/L)

Sound signal rear RH

Input

Ignition

switch

ON

Sound output.

28

(G)

15

(R)

Sound signal rear door
speaker LH

Output

Ignition

switch

ON

Sound output.

29

(V)

30

(P)

Sound signal center speak-
er

Output

Ignition

switch

ON

Sound output.

31

(BR)

32

(Y)

Sound signal front door
speaker RH

Output

Ignition

switch

ON

Sound output.

33

(W/R)

34

(B/R)

Sound signal front RH

Input

Ignition

switch

ON

Sound output.

35

(W/R)

36

(B/R)

Sound signal front LH

Input

Ignition

switch

ON

Sound output.

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E
