Nissan Murano Z51. Manual - part 227





AV

FRONT DISPLAY UNIT

AV-687

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

9

(W)

Ground

RGB area (YS) signal

Input

Ignition

switch

ON

When RGB image is dis-
played.

5.0 V

When rear view camera im-
age is displayed.

11

(R)

Ground

Communication signal
(CONT

DISP)

Input

Ignition

switch

ON

When adjusting display
brightness.

12

(W)

14

Camera image signal

Input

Ignition

switch

ON

When rear view camera im-
age is displayed.

13

(B)

Ground

Ground

Ignition

switch

ON

0  V

14

Ground

Shield (camera image
ground

Ignition

switch

ON

0  V

15

(Y)

5

AUX image signal

Input

Ignition

switch

ON

When AUX image is dis-
played.

17

(G)

Ground

RGB image signal (R: red)

Input

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

PKIB4948J

PKIB5039J

SKIB2251J

SKIB2251J

JSNIA1029ZZ

AV-688

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

FRONT DISPLAY UNIT

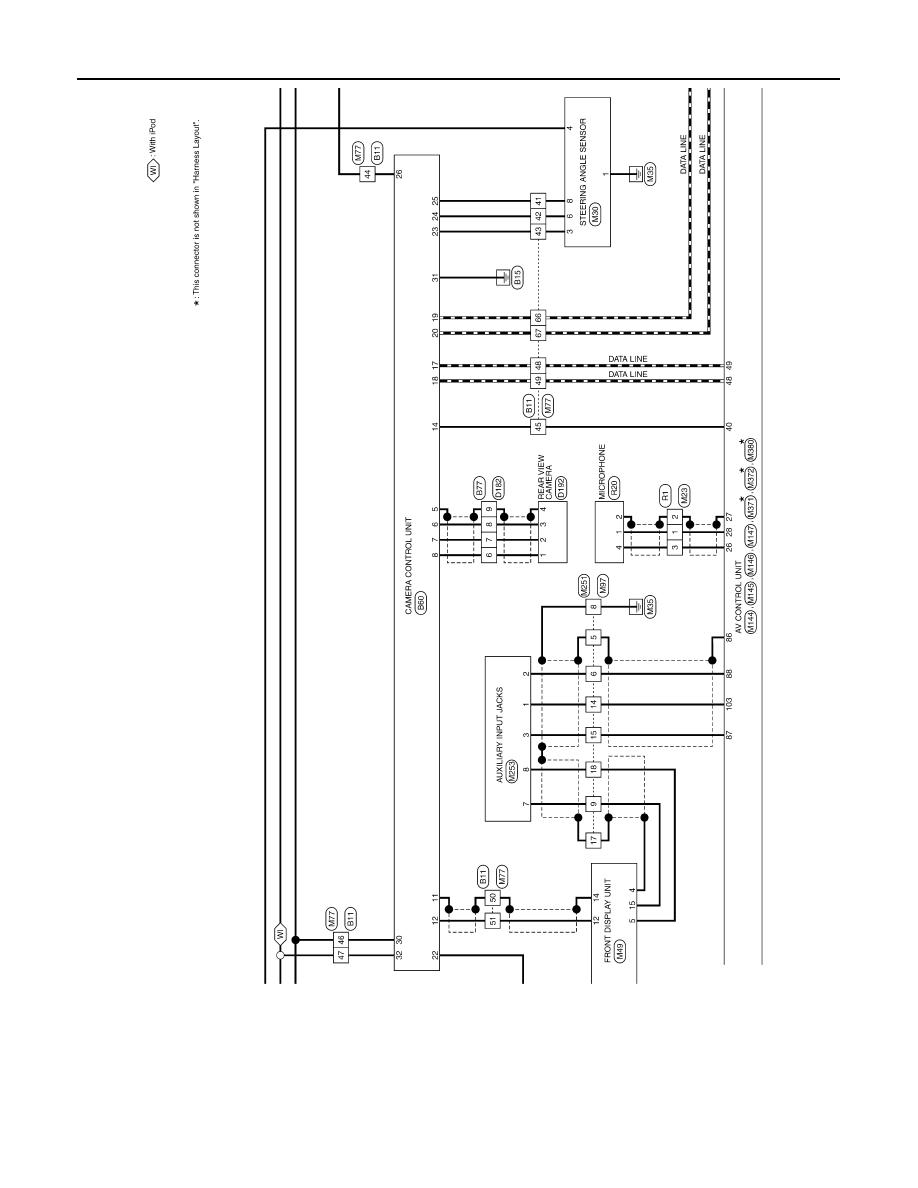

Wiring Diagram - BOSE AUDIO WITH NAVIGATION SYSTEM -

INFOID:0000000005528806

NOTE:

18

(W)

Ground

RGB image signal (B: blue)

Input

Ignition

switch

ON

Start confirmation/adjust-
ment mode, and then dis-
play color bar by selecting
“Color Spectrum Bar” on
DISPLAY DIAGNOSIS
screen.

19

(B)

Ground

RGB synchronizing signal

Input

Ignition

switch

ON

20

(R)

Ground

Vertical synchronizing (VP)
signal

Output

Ignition

switch

ON

21

Shield

22

(G)

Ground

Communication signal
(DISP

CONT)

Output

Ignition

switch

ON

When adjusting display
brightness.

23

Shield

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

JSNIA1031ZZ

JPNIA0461GB

SKIB3598E

PKIB5039J

AV

FRONT DISPLAY UNIT

AV-689

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

In this section, PRESET SWITCH and MULTIFUNCTION SWITCH are written as the MULTIFUNCTION
SWITCH.

JCNWM1838GB

AV-690

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITH NAVIGATION]

FRONT DISPLAY UNIT

JCNWM1839GB
