Nissan Murano Z51. Manual - part 218





AV

STEERING ANGLE SENSOR SIGNAL CIRCUIT

AV-651

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

3.

Turn ignition switch ON.

4.

Check signal between camera control unit harness connector and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace steering angle sensor.

(+)

(

)

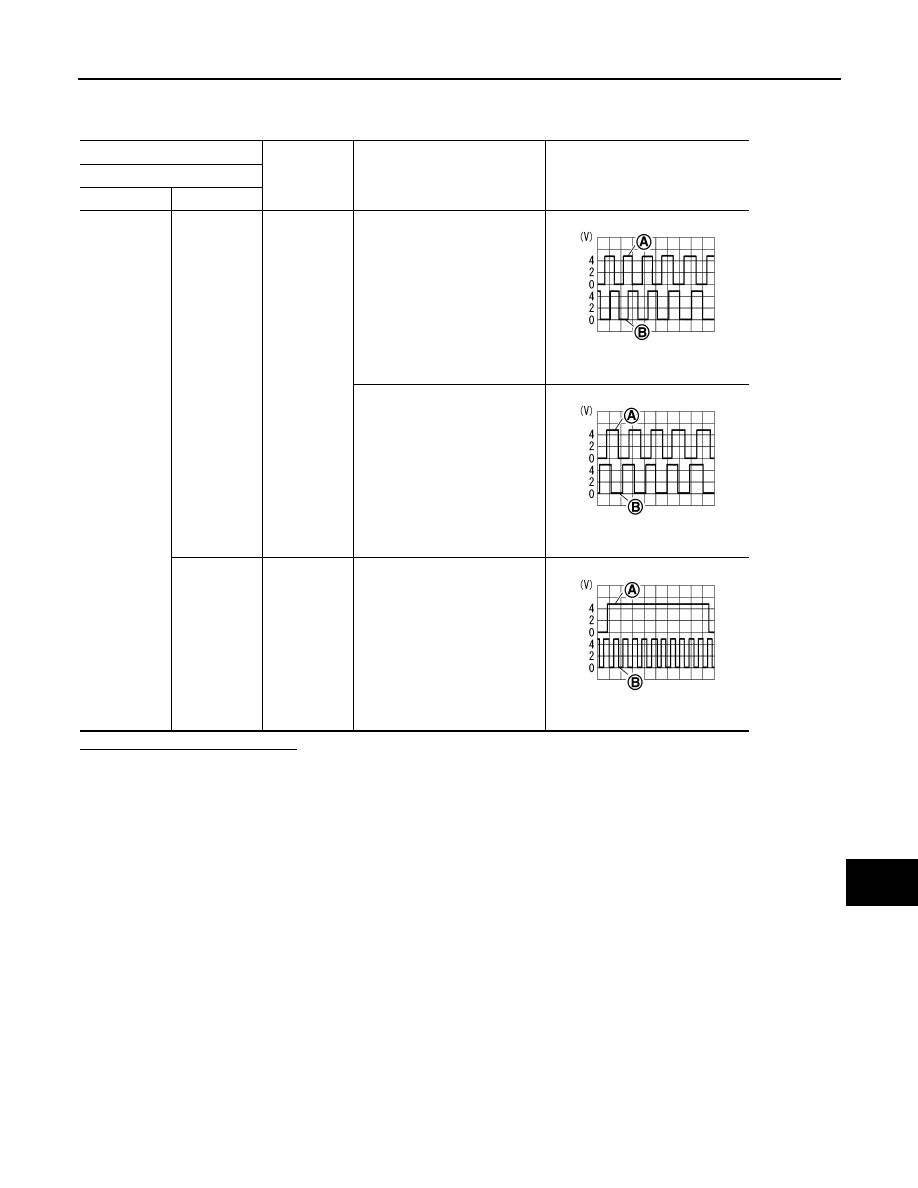

Condition

Reference value

Camera control unit

Connector

Terminals

B60

23, 24

Ground

Turn the steering to the right

A: Sensor signal 1
B: Sensor signal 2

Turn the steering to the left

A: Sensor signal 1
B: Sensor signal 2

25

Ground

Turn the steering around the
neutral position

A: Sensor signal 3
B: Sensor signal 1

SKIB3827E

SKIB3828E

SKIB3829E

AV-652

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

STEERING SWITCH SIGNAL A CIRCUIT

STEERING SWITCH SIGNAL A CIRCUIT

Description

INFOID:0000000005528792

Transmits the steering switch signal to AV control unit.

Diagnosis Procedure

INFOID:0000000005528793

1.

CHECK STEERING SWITCH SIGNAL A CIRCUIT

1.

Disconnect AV control unit connector and spiral cable connector.

2.

Check continuity between AV control unit harness connector and spiral cable harness connector.

3.

Check continuity between AV control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SPIRAL CABLE

Check spiral cable.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace spiral cable.

3.

CHECK AV CONTROL UNIT VOLTAGE

1.

Connect AV control unit connector and spiral cable connector.

2.

Turn ignition switch ON.

3.

Check voltage between AV control unit harness connector.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace AV control unit.

4.

CHECK STEERING SWITCH

1.

Turn ignition switch OFF.

2.

Check steering switch. Refer to

AV-653, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace steering switch.

AV control unit

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M144

6

M33

24

Existed

AV control unit

Ground

Continuity

Connector

Terminal

M144

6

Not existed

(+)

(

)

Voltage

(Approx.)

AV control unit

AV control unit

Connector

Terminal

Connector

Terminal

M144

6

M144

15

5.0  V

AV

STEERING SWITCH SIGNAL A CIRCUIT

AV-653

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Inspection

INFOID:0000000005528794

Measure the resistance between the steering switch connector ter-
minals 14 to 17 and 15 to 17.

Standard

JSNIA0112GB

Steering switch

Condition

Resistance

Con-

nector

Termi-

nal

Con-

nector

Termi-

nal

M303

14

M303

17

ENTER switch ON

1983 – 2063

 switch ON

709 – 737

MENU DOWN switch
ON

315 – 327

MENU UP switch ON

119 – 123

SOURCE switch ON

0

15

 switch ON

709 – 737

 switch ON

315 – 327

VOL UP switch ON

119 – 123

VOL DOWN switch ON

0

AV-654

< DTC/CIRCUIT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

STEERING SWITCH SIGNAL B CIRCUIT

STEERING SWITCH SIGNAL B CIRCUIT

Description

INFOID:0000000005528795

Transmits the steering switch signal to AV control unit.

Diagnosis Procedure

INFOID:0000000005528796

1.

CHECK STEERING SWITCH SIGNAL B CIRCUIT

1.

Disconnect AV control unit connector and spiral cable connector.

2.

Check continuity between AV control unit harness connector and spiral cable harness connector.

3.

Check continuity between AV control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK SPIRAL CABLE

Check spiral cable.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace spiral cable.

3.

CHECK AV CONTROL UNIT VOLTAGE

1.

Connect AV control unit connector and spiral cable connector.

2.

Turn ignition switch ON.

3.

Check voltage between AV control unit harness connector.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace AV control unit.

4.

CHECK STEERING SWITCH

1.

Turn ignition switch OFF.

2.

Check steering switch. Refer to

AV-655, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace steering switch.

AV control unit

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M144

16

M33

31

Existed

AV control unit

Ground

Continuity

Connector

Terminal

M144

16

Not existed

(+)

(

)

Voltage

(Approx.)

AV control unit

AV control unit

Connector

Terminal

Connector

Terminal

M144

16

M144

15

5.0 V
