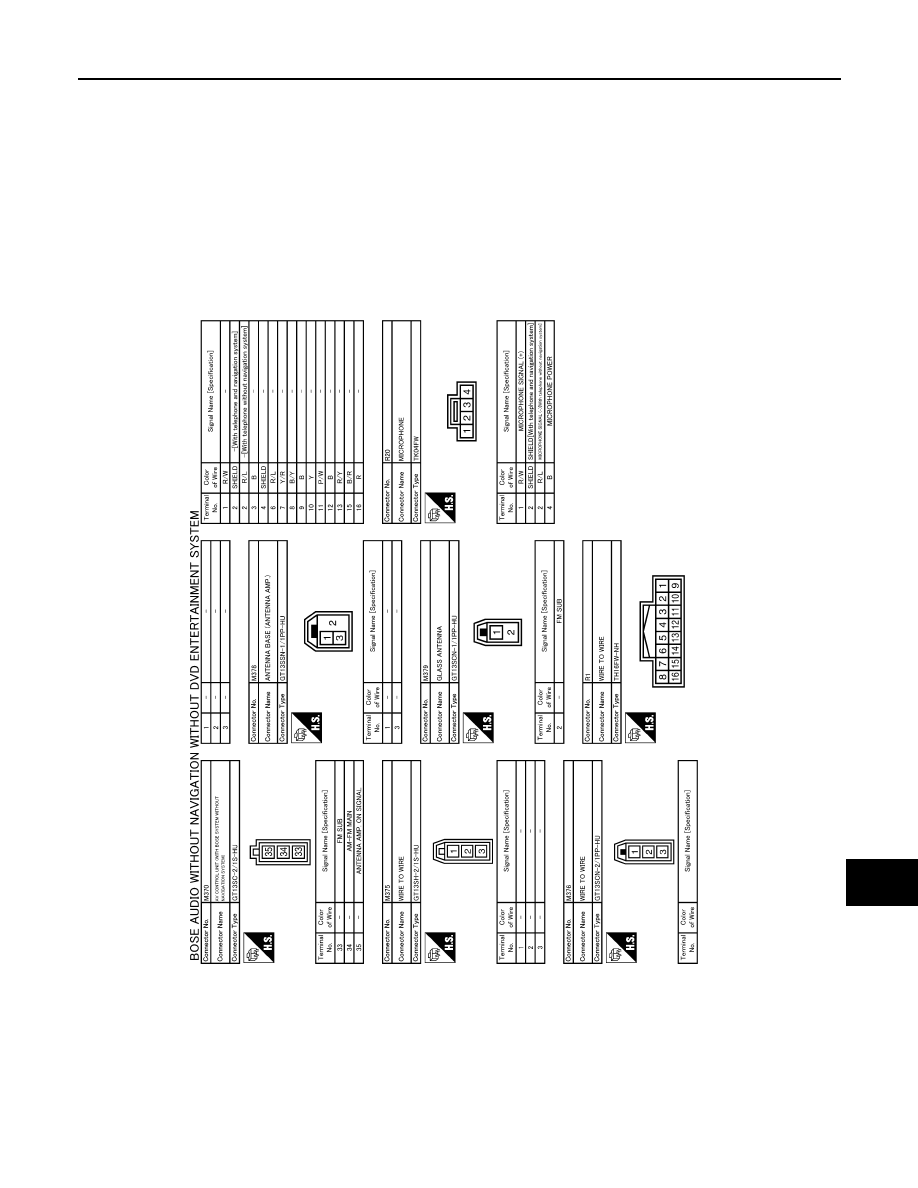

AV

IPOD ADAPTER

AV-415

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

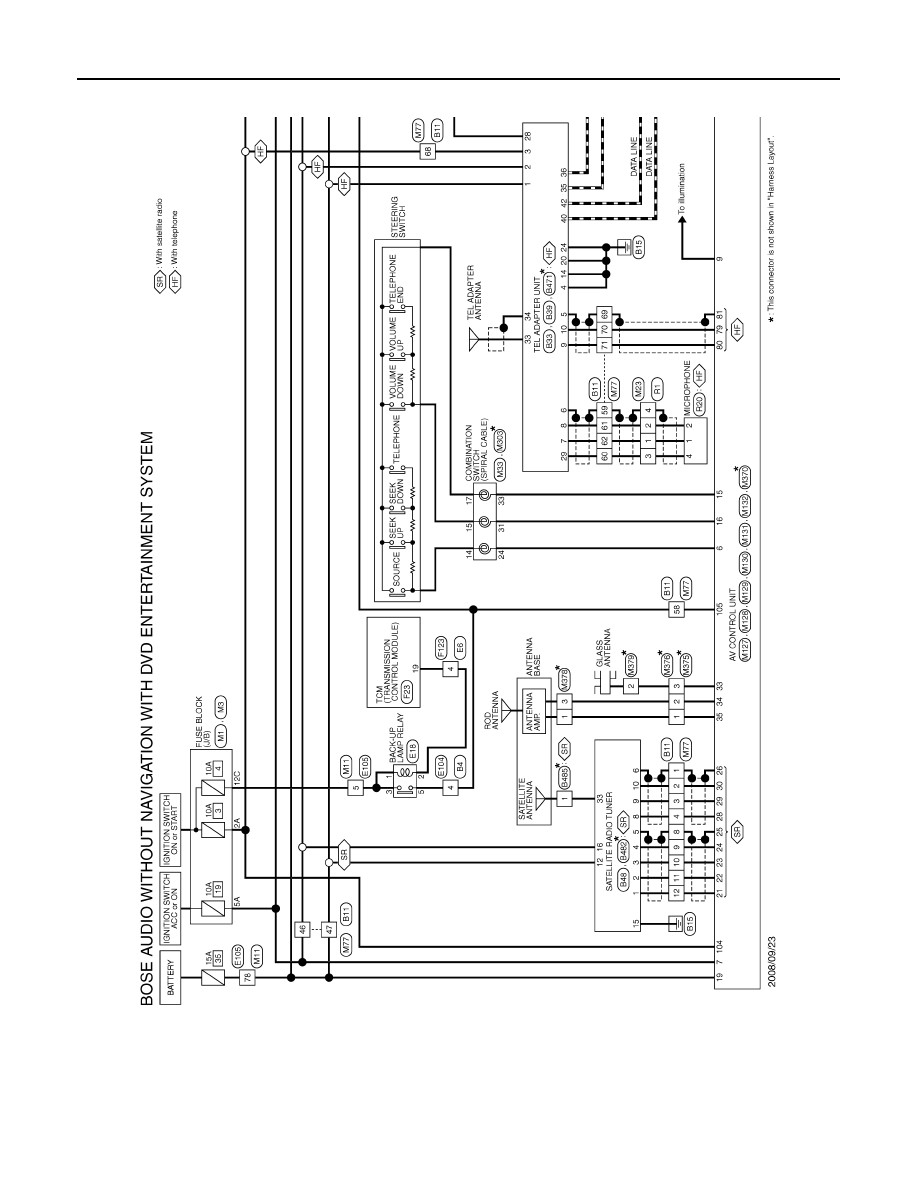

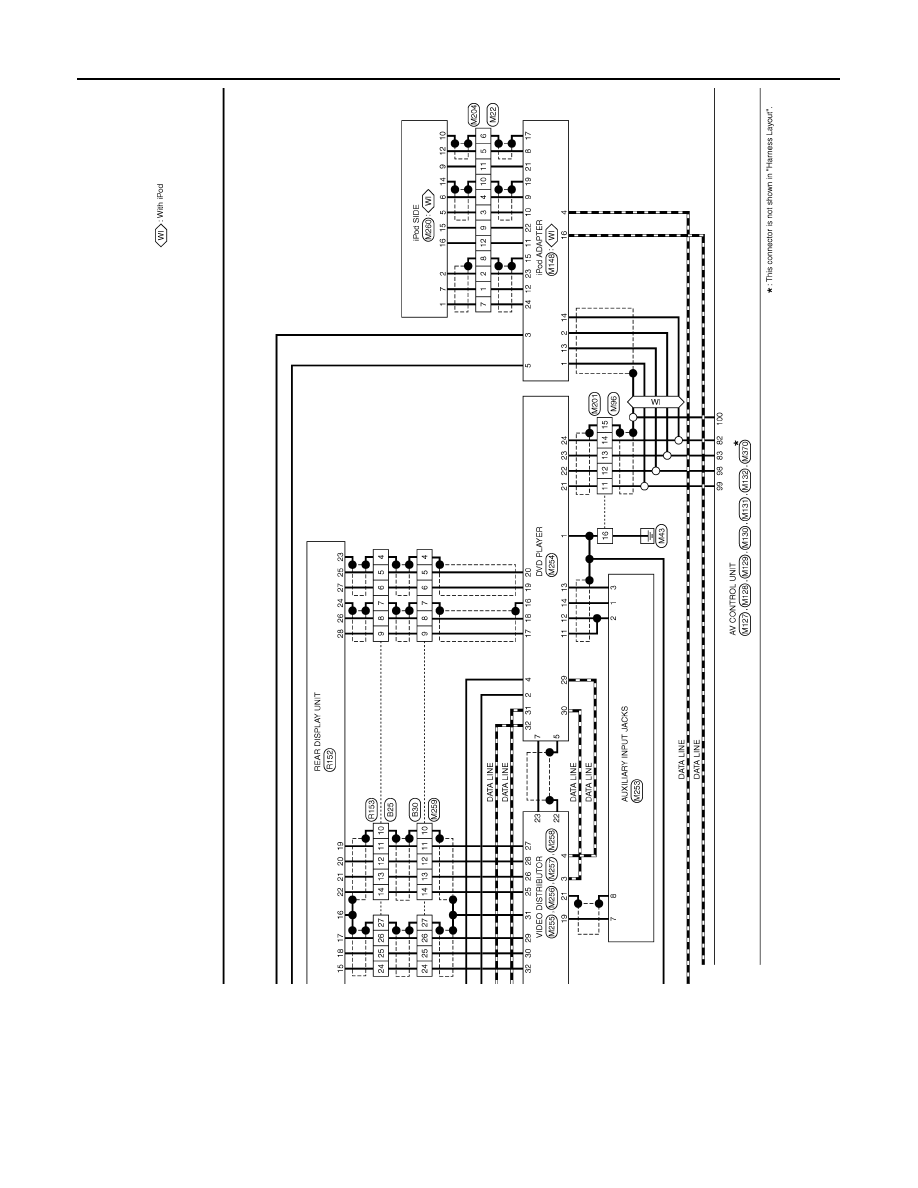

Wiring Diagram - BOSE AUDIO WITHOUT NAVIGATION WITH DVD ENTERTAIN-
MENT SYSTEM -

INFOID:0000000005528600

NOTE:

JCNWM3194GB

AV-416

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

IPOD ADAPTER

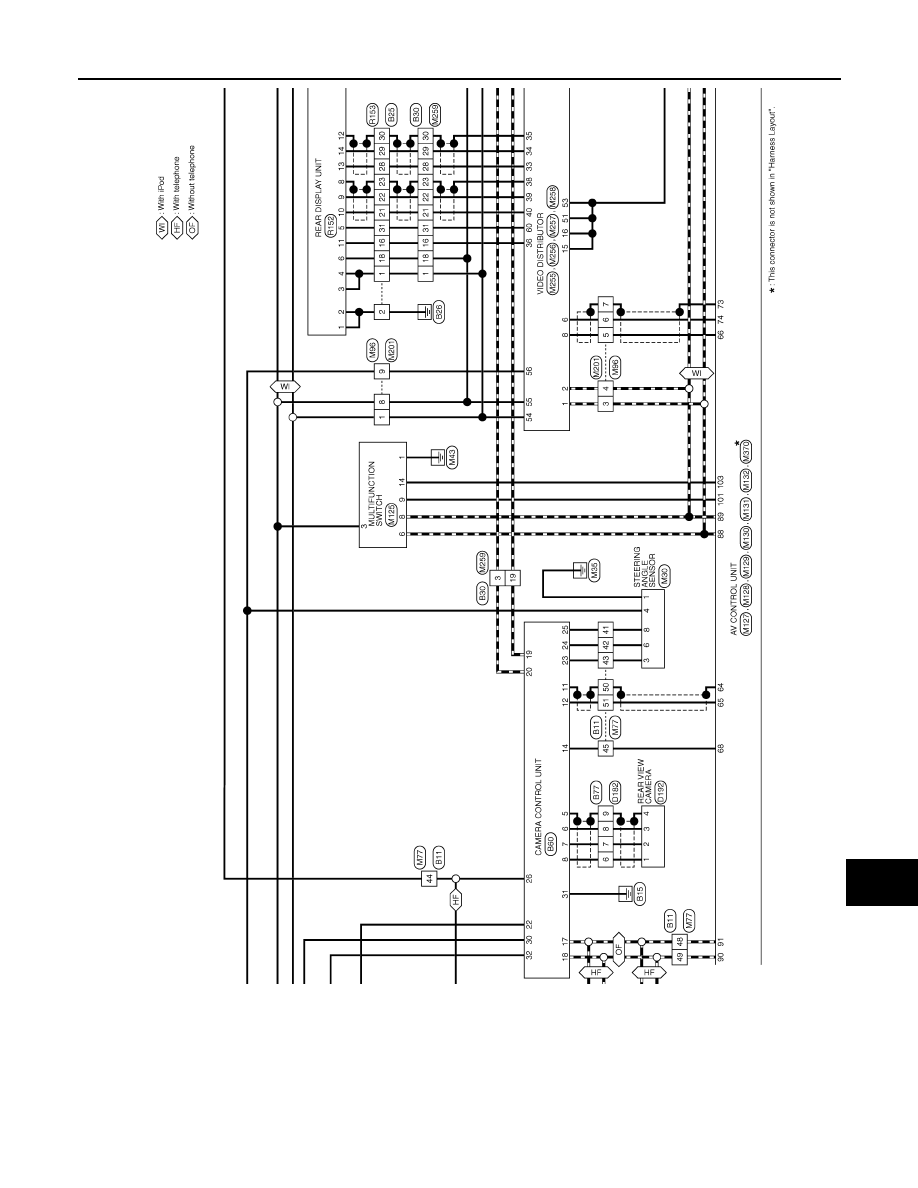

In this section, PRESET SWITCH and MULTIFUNCTION SWITCH are written as the MULTIFUNCTION
SWITCH.

JCNWM1872GB

AV

IPOD ADAPTER

AV-417

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JCNWM1873GB

AV-418

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

IPOD ADAPTER

JCNWM1874GB
